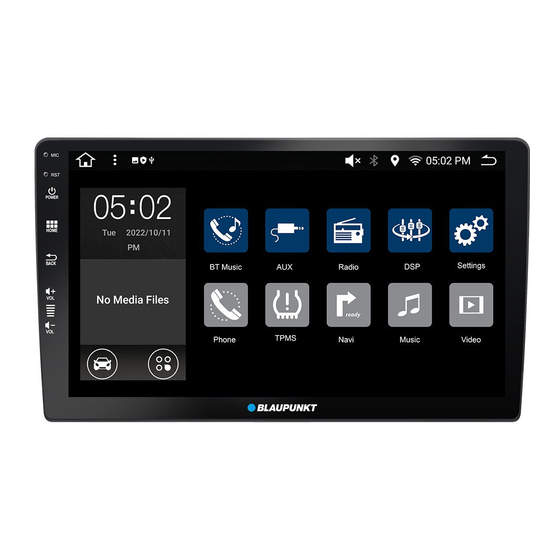

- Page 1 VELOCITY POWER MULTIMEDIA NAVIGATION CAPE TOWN DSP/ 1000 PALM SPRINGS 900 DSP/1000 CAPE TOWN 900 DSP 9.0” CAPE TOWN 1000 DSP 10.1” PALM SPRINGS 900 DSP 9.0” PALM SPRINGS 1000 DSP 10.1” Operating and Installation Instructions...
- Page 2 The car radio Disclaimer volume can be too loud when the car radio is In no event shall Blaupunkt be liable for any direct, unmuted. indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products.
- Page 3 CAUTIONS Disposal Notes Do not dispose of your old unit in the household trash! Use the return and collection systems available to dispose of the old device. Radios with Detachable Panel - Damage to the control panel • Never drop the control panel. •...
-
Page 4: Key Functions
KEY FUNCTIONS Functions Microphone Reset When the machine is not working properly, press this button and the machine will return to the factory settings. Power Button • Press to activate the system/mute volume • Press and hold to turn off the system Home Button Back Button Volume Up... -
Page 5: Operation
OPERATION Home Page Change Icon Position • Press and hold the select icon then it pop-up, movable and can locate to new position. Main Interface • Press button to return to the default main interface. Apps info • Long Press button to clear background running •... - Page 6 OPERATION RDS (Radio Data System) Multimedia Music Player Shows the traffic station is on or not It can switch to stronger signal frequency when the current frequency is weak, but keep the contents same, only frequency different It can source the traffic info every minute, and stops to broadcast the traffic info once news come in.
- Page 7 OPERATION DSP Setting Settings Display Setup Sound Effect - Flat, Pop, Rock, etc. Brake Bypass – Switches “OFF”, the screen will display • • warning information if playing video. The warning screen will prevent the driver from watching videos while the vehicle is in motion. Curve Setup custom sound curve.
- Page 8 OPERATION Android Settings View and manage the Android settings. • Manage BT devices. • System Info Language Setup View the details of system. • Source volume level Set the volume level of each Source. • Factory Access Factory configuration. • Default Password: 8888...
- Page 9 OPERATION General Power supply (12V) ........10.5 V ~ 16 V DC Standby current ...............≤ 5mA Operating current ..............<12A Max. power output ............4 x 50W Dimension (WxLxH) ........230x130x45mm Weight .................0.78kg Operation temperature ........-20°C ~ 60°C Screen size ............9.0/10.1 inch Resolution ............
- Page 10 360 AVM (OPTIONAL) Connect BLACK BLACK FRONT FRONT CAMERA (Reversing Light+ : connect with positive wire of the car Back light） YELLOW YELLOW REAR REAR CAMERA (Left Turn Signal+ : connect with positive wire of the car Left light ） LEFT LEFT SIDE CAMERA (Right Turn Signal+ : connect with positive wire of the car Right light ）...
- Page 11 360 AVM (OPTIONAL) 360 Parking System NOTE: Enter the Settings page, select Display > Camera • If not show the window, please reboot the head unit by Setting hand. Entering AVM Go to , press then choose Press to enter the 2D interface. Select Set the camera hardware channel >...
- Page 12 360 AVM (OPTIONAL) Front left side view- 3D angle, show around Front left side view- 3D angle, show around the car front left view. the car front left view. Right rear side view- 3D angle, show around Right rear side view- 3D angle, show around the car right rear view.
- Page 13 360 AVM (OPTIONAL) Car Model More vehicles. Click to select car model My garage ( Sedan , SUV, MPV ) Front view View angle mode ( 10°, 20°, 30°, 45° ) Vehicle color Car mode License plat settings Calibration Follow the video to finsh calibration & also find a •...
- Page 14 360 AVM (OPTIONAL) Settings • About • 360 settings • Turning/Reversing settings • Parking Line settings • User Car/Model settings...
-
Page 15: Main Interface
CAR TPMS Main Interface Sensor ID Pairing Select on a preferred tire Display tire pressure Start sensor ID pairing status Display tire temperature Display tire status: Normal/ High temperature/ Low pressure, etc Sensor signal: Turn to yellow when signal is abnormal Sensor voltage: Turn to yellow when voltage is low Enter the sensor ID pairing interface... -
Page 16: Sensor Voltage
CAR TPMS Sensor ID pairing is completed Sensor Voltage Display the voltage values of each sensor Tire Exchange Select the two tires that need to be exchanged Confirm tire exchange Tire exchange is completed... - Page 17 TRUCK TPMS Main Interface Sensor ID Pairing Select on a preferred tire Enter the settings interface Start sensor ID pairing status Display tire number Display tire pressure Display tire temperature Set pressure units Set temperature units Settings Sensor ID pairing process can be interrupted. The sensor ID pairing process will be time out &...
- Page 18 TRUCK TPMS Sensor ID pairing is completed Vehicle Type Select on the preferred vehicle type Tire Exchange Select the two tires that need to be exchanged Confirm Selection Confirm tire exchange Sensor ID Display the ID numbers of each sensor Tire exchange is completed Sensor Voltage Display the voltage values of each sensor...
-
Page 19: Wiring Diagram
WIRING DIAGRAM 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 9 10 11 12 13 14 15 16 11 12 13 14 15 16 17 18 7 8 9 10 11 12 WIRE BLACK... -
Page 20: Troubleshooting
TROUBLESHOOTING If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist. Problems Possible Causes Solutions Unable to start The car key is not inserted into the ignition; Insert the car key and turn on the ignition. - Page 22 1 104 23 057 69 01 CAPE TOWN 1000 DSP 1 104 23 058 69 01 PALM SPRINGS 900 DSP 1 104 23 059 69 01 PALM SPRINGS 1000 DSP Blaupunkt Car Entertainment - Asia Pacific Competence Centre 1 104 23 060 69 01...
