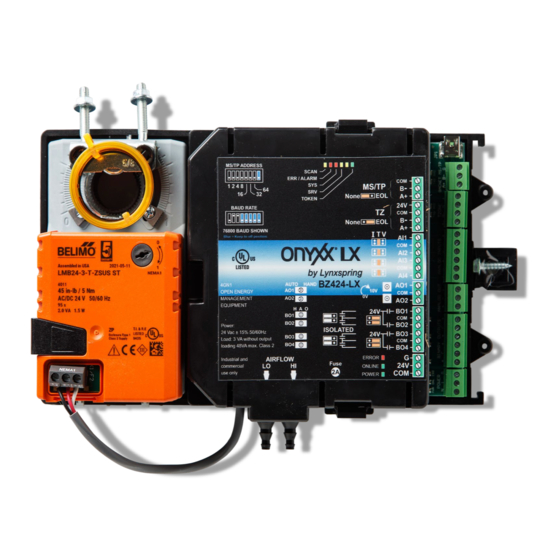

BZ424-LX - Configurable VAV MS/TP Controller
Controller Installation and Wiring Guide
www.lynxspring.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ONYXX LX BZ424-LX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lynxspring ONYXX LX BZ424-LX

Summary of Contents for Lynxspring ONYXX LX BZ424-LX

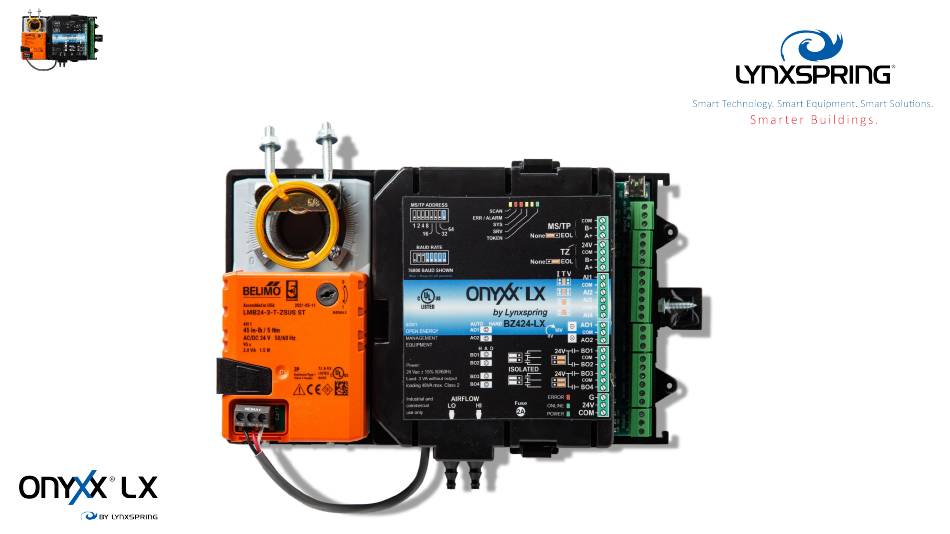

  • Page 1 BZ424-LX - Configurable VAV MS/TP Controller Controller Installation and Wiring Guide www.lynxspring.com...
  • Page 2 Any short circuit or incorrect wiring may damage the controller or the controlled equipment. Double-check all wiring before applying power. If a control failure could lead to personal injury and/or loss of property, it becomes the responsibility of the installer to add safety devices to protect against failures. www.lynxspring.com...

  • Page 3: Table Of Contents

    Analog V a l u e s … … … … … … … … … … … … … … … … … … … … … … . p. 28-31 Binary Values...................... p. 32 PID Loops…..…....................p. 33 Multi-State Values....................p. 34-44 TZxxx Room Sensors................... p. 45 RS – 485 Network Guidelines……………………………………………………………..p. 46-50 Technical Specifications…....................p. 51 www.lynxspring.com...

  • Page 4: Installation

    If a control failure could lead to personal injury and/or loss of property, the installer must add safety devices and/or alarm systems to protect against failures. Electronic controls are static sensitive devices; discharge yourself properly before manipulating and installing the device. www.lynxspring.com...

  • Page 5: Product Label

    Physical connectors (for mounting and cable connections) are accessible on the outside of the unit. This section describes all the user-adjustable interfaces of the BZ424-LX. Details for each section are provided further in this guide. www.lynxspring.com...

  • Page 6: Wiring Instructions

    Supported Wire Size 28-16 AWG Analog Outputs Common Supported Wire Size 28-16 AWG Common or (BO1,BO2) Binary Outputs Common or (BO3,BO4) Supported Wire Size 28-16 AWG Ground Input Power 24Vac Common Wire size based on VA rating and distance fro www.lynxspring.com...
  • Page 7 Proper grounding of a controller is important to ensure a high probability of surviving a nearby lightning strike as well as other possible electrical surges. For details on grounding within control panels, NFPA 79 and UL508A provide the required details. www.lynxspring.com...

  • Page 8: Jumper Settings

    0 – 10 V or 2 – 10 V AO1 and AO2 Switches allow analog output bypass control when “HAND” is selected Switch Left = AUTOMATIC Switch Right = HAND (manual) Counterclockwise for 0% (0V) Clockwise for 100% (10V) www.lynxspring.com...
  • Page 9 A beep will sound every 5 seconds. The bypass will automatically be cancelled after one hour. as switching loads. ** To cancel before the hour, hold the switch in the up or down position for 2 seconds until a beep sounds. www.lynxspring.com...

  • Page 10: Tz Room Sensor Wiring

    • If there is a loss in communication to any of the TZ controllers, BV24 will indicate a MS/TP fault, AV 41 will = - 40 °F and the fan, heating and cooling will be disabled, and the TZ100 TZ200 damper will return to minimum position. NONE 12345678 www.lynxspring.com...

  • Page 11: Sequence Of Operation

    During unoccupied mode and a call for cooling, the damper will modulate open to Max Air Flow setpoint (configurable), maintaining the Unoccupied Cooling Setpoint (80°F). Unoccupied Heating Control During unoccupied mode and a call for heating, the damper will modulate closed to Min Air Flow setpoint (configurable), maintaining the Unoccupied Heating Setpoint (65°F). www.lynxspring.com...
  • Page 12 When placed in this mode, the outputs will be allowed to modulate or cycle from 0-100% (100%). A network variable can modify this setpoint. Fan Status The fan status of the primary unit can be used as proof of airflow as status or to prevent outputs from operating when no airflow is detected. Set Aux Output A-E Authorization Fan Status or Fan+MaxPwr. www.lynxspring.com...
  • Page 13 If modulating fan is chosen, there is an ECM Minimum Speed setting that can be adjusted in Onyxx LX UI below Output C. The default is 30%. Ramp adjustment boxes below Aux A thru Aux E Ramp settings are preset to manufacturer recommendations. Adjustments can be performed at user risk and may result in undesirable behavior. www.lynxspring.com...
  • Page 14 If the measured reading from the TZ200HC zone sensor reaches within 100ppm greater than the CO2 setpoint [AV66], the fan and damper will modulate toward normal operation in the BZ controller. Once the measured reading from the TZ200HC zone sensor is less than the CO2 setpoint [AV66], the BZ controller returns to normal operation. www.lynxspring.com...
  • Page 15 95 sec. There is a reference to AV-46 thru 50 but this does not write to the Private VAR. Do not write to these AVs in BACnet to adjust the runtime. Adjustment is solely through the Onyxx LX UI. www.lynxspring.com...
  • Page 16 If the measured zone dewpoint (which requires a Humidity input] exceeds the entering chilled water temp (this must be selected to utilize this sequence) the BZ controller will close the entering chilled water temperature. If the zone dewpoint rises above the dewpoint high limit, the ventilation damper will be modulated further open until the zone dewpoint drops back below the dewpoint low limit. www.lynxspring.com...
  • Page 17 Bias = 0 Bias = 0 Bias = 0     Reverse Direct Reverse Direct     ActiveTz2SPHtg - 5 ActiveTz2SPHtg ActiveTz2SPClg ActiveTz2SPClg + 5 ActiveTz3SPHtg - 5 ActiveTz3SPHtg ActiveTz3SPClg ActiveTz3SPClg + 5 Tzone2 Tzone3 www.lynxspring.com...
  • Page 18 Sequence of Operation Details Flow zPidFlow P = 0.3  I = 0.01  Bias = 50  Direct  zActiveFlowSP – zActiveFlowSP + zActiveFlowSP 333.33 333,33 zAirFlow www.lynxspring.com...
  • Page 19 HtgClgMode (MSV26) = 2    (cool) (cooling) (cooling) AUX mode ON OFF Cooling (A  AUX analog Cooling (A to E)  to E) MinAFpos MinAFpos MinAFpos (AV4) 0 (AV4) 0 (AV4) 0 PidRoomT_Clg On/Off PidRoomT_Clg AO zPidFlow (%) www.lynxspring.com...
  • Page 20 HtgClgMode (MSV26) = 1    (heat) (Heating) (Heating) AUX mode ON OFF Heating AUX analog Heating (A to E)   (A to E) MinAFpos MinAFpos MinAFpos (AV4) 0 (AV4) 0 (AV4) 0 PidRoomT_Htg On/Off PidRoomT_Htg AO zPidFlow (%) www.lynxspring.com...
  • Page 21 Sequence of Operation Details Aux A Heating AuxA_Out (AV46) AuxA_Out (AV46) Var1(AuxA_Out) Var2(AuxA_Out) Var1(AuxA_Out) Var2(AuxA_Out) PidRoomT_Htg (Loop2) PidRoomT_Htg (Loop2) Aux A Cooling AuxA_Out (AV46) AuxA_Out (AV46) Var1(AuxA_Out) Var2(AuxA_Out) Var1(AuxA_Out) Var2(AuxA_Out) PidRoomT_Clg (Loop1) PidRoomT_Clg (Loop1) www.lynxspring.com...
  • Page 22 MIN(PidRoomT_Clg, PidRoomTz2_Clg) Var1(AuxB_Out) Var2(AuxB_Out) Maximum Clg MAX(PidRoomT_Clg, PidRoomTz2_Clg) 3x Tzone. PidClg TzControlMode (MSV34): Tzone1. PidRoomT_Clg Tzone2. PidRoomTz2_Clg Tzone3. PidRoomTz3_Clg Average. (PidRoomT_Clg + PidRoomTz2_Clg + PidRoomTz3_Clg) / 3.0 Maximum Htg MIN(PidRoomT_Clg, PidRoomTz2_Clg, PidRoomTz3_Clg) Var1(AuxB_Out) Var2(AuxB_Out) Maximum Clg MAX(PidRoomT_Clg, PidRoomTz2_Clg, PidRoomTz3_Clg) PidClg www.lynxspring.com...
  • Page 23 Var2(AuxC_Out) Maximum Clg 100% MAX(PidRoomT_Clg, PidRoomTz2_Clg) 3x Tzone. PidClg TzControlMode (MSV34): Tzone1. PidRoomT_Clg Tzone2. PidRoomTz2_Clg Tzone3. PidRoomTz3_Clg Average. (PidRoomT_Clg + PidRoomTz2_Clg + PidRoomTz3_Clg) / 3.0 Maximum Htg MIN(PidRoomT_Clg, PidRoomTz2_Clg, PidRoomTz3_Clg) Maximum Clg Var1(AuxC_Out) Var2(AuxC_Out) MAX(PidRoomT_Clg, PidRoomTz2_Clg, PidRoomTz3_Clg) 100% www.lynxspring.com PidClg...
  • Page 24 Sequence of Operation Details Aux D Heating AuxD_Out (AV49) AuxD_Out (AV49) Var1(AuxD_Out) Var2(AuxD_Out) Var1(AuxD_Out) Var2(AuxD_Out) 100% 100% PidRoomTz2_Htg (Loop7) PidRoomTz2_Htg (Loop7) Aux D Cooling AuxD_Out (AV49) AuxD_Out (AV49) Var1(AuxD_Out) Var2(AuxD_Out) Var1(AuxD_Out) Var2(AuxD_Out) 100% 100% PidRoomTz2_Clg (Loop6) PidRoomTz2_Clg (Loop6) www.lynxspring.com...
  • Page 25 Sequence of Operation Details Aux E Heating AuxE_Out (AV50) AuxE_Out (AV50) Var1(AuxE_Out) Var2(AuxE_Out) Var1(AuxE_Out) Var2(AuxE_Out) 100% 100% PidRoomTz3_Htg (Loop9) PidRoomTz3_Htg (Loop9) Aux E Cooling AuxE_Out (AV50) AuxE_Out (AV50) Var1(AuxE_Out) Var2(AuxE_Out) Var1(AuxE_Out) Var2(AuxE_Out) 100% 100% PidRoomTz3_Clg (Loop8) PidRoomTz3_Clg (Loop8) www.lynxspring.com...
  • Page 26 3x Tzone. TzControlMode (MSV34): Var1(AuxC_Out Tzone1. or AuxE_Out) PidRoomT_Htg Tzone2. PidRoomTz2_Htg Tzone3. > 0% 100% PidRoomTz3_Htg Average. Occupied PidHtg (%) PidHtg (%) (PidRoomT_Htg + PidRoomTz2_Htg + PidRoomTz3_Htg) / 3.0 Maximum Htg MIN(PidRoomT_Htg, PidRoomTz2_Htg, PidRoomTz3_Htg) Maximum Clg MAX(PidRoomT_Htg, PidRoomTz2_Htg, PidRoomTz3_Htg) www.lynxspring.com...
  • Page 27 Max (PidHtg (%) or PidClg (%)) PidRoomTz2_Clg AuxE_Formula (MSV41) == 4 On/Off Tzone3. PidRoomTz3_Clg Average. (PidRoomT_Clg + PidRoomTz2_Clg + PidRoomTz3_Clg) / 3.0 Maximum Htg MIN(PidRoomT_Clg, PidRoomTz2_Clg, PidRoomTz3_Clg) Maximum Clg MAX(PidRoomT_Clg, PidRoomTz2_Clg, PidRoomTz3_Clg) Always On Max (PidHtg (%) or PidClg (%)) www.lynxspring.com...

  • Page 28: Physical Inputs And Outputs

    • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...

  • Page 29: Analog Values

    • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 30 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 31 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 32 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...

  • Page 33: Binary Values

    • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...

  • Page 34: Pid Loops

    Downstream low limit control loop Direct LOOP6 Room T° control loop, cooling PidRoomTz2_Clg Direct 0.05 LOOP7 PidRoomTz2_Htg Room T° control loop, heating Reverse 0.05 LOOP8 Room T° control loop, cooling PidRoomTz3_Clg Direct 0.05 LOOP9 PidRoomTz3_Htg Room T° control loop, heating Reverse 0.05 www.lynxspring.com...

  • Page 35: Multi-State Values

    • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 36 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 37 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 38 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 39 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 40 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 41 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 42 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 43 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 44 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 45 • User: represent properties or objects that are typically manipulated by users of the controller • Status: represent objects or properties that are ‘’typically’’ meant to be displayed on graphics for various required visualization • Cmd: represent objects that can be controlled directly by other BACnet external process www.lynxspring.com...
  • Page 46 TZ Series Room Sensors Object name Description Room T Units Status Tzone1 Wall mount interface Current Value °F Normal Tzone2 Wall mount interface Current Value °F Normal Tzone3 Wall mount interface Current Value °F Normal www.lynxspring.com...

  • Page 47: Rs-485 Network Guidelines

    RS-485 Network Guidelines www.lynxspring.com...
  • Page 48 RS-485 Network Guidelines www.lynxspring.com...
  • Page 49 RS-485 Network Guidelines www.lynxspring.com...
  • Page 50 RS-485 Network Guidelines www.lynxspring.com...
  • Page 51 RS-485 Network Guidelines www.lynxspring.com...

  • Page 52: Technical Specifications

    Specific Controller • Real-time clock (RTC): Built-in capacitor • 1 AO for analog actuators (one-week backup) WARNING: Internally, this device utilizes a half-wave rectifier and therefore can only share the same AC power source with other half-wave rectified devices. www.lynxspring.com...
