Cisco Power Supply IW-PWRADPT-MFIT4P= Installation Guide Cisco Power Supply IW-PWRADPT-MFIT4P= Installation Guide Product Overview Technical Specifications Mounting Instructions Regulatory Information... -
Page 2: Cisco Power Supply Iw-Pwradpt-Mfit4P= Installation Guide

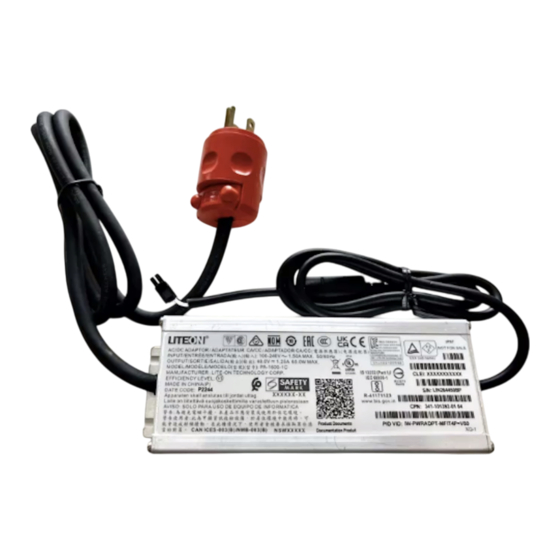

Revised: June 26, 2023 Cisco Power Supply IW-PWRADPT-MFIT4P= Installation Guide This document describes the Cisco Power Supply IW-PWRADPT-MFIT4P= (referred to as the power supply in this document) and provides instructions for mounting them. Product Overview The Cisco Power Supply IW-PWRADPT-MFIT4P= is an outdoor single-phase AC/DC, 60-Watt output external wide temperature range power supply with the DC voltage output of 48V. - Page 3 Phase Wire Color Brown Blue Green/Yellow When connecting to AC plug, different types of plugs should be used in each country. The following table is for reference. Plug Type Country Plug Type Country US, Taiwan, Japan, Canada, Mexico UK, Singapore European, Morocco Korea, Russia China, Australia, Argentina...
-
Page 4: Technical Specifications
Figure 2: Output Connector Molex Microfit Molex Microfit Pin Assignment Pin 1 Black ( - Negative Terminal) Pin 2 Not assigned Pin 3 White (+ Positive Terminal) Pin 4 Not assigned For DC cable asembly, insert the receptable into the header in system. The following picture is only for reference. Receptacle: JWT C3004H00-2x2P, 3.0mm pitch, Header: Molex 430450400 or C3004WV0-2x2P 2x2 pin... -
Page 5: Mounting Instructions
MTBF: 300,000 hrs @ 40ºC Mounting Instructions You can attach the power adapter IW-PWRADPT-MFIT4P= to the IW9167EH access point on a pole using the mounting bracket AIR-ACCPMK3700= or AIR-ACCPMK3700-2=. For detailed information on mounting procedures, see Attaching a Power Adapter Cisco Catalyst IW9167E Heavy Duty Access Point Hardware Installation Guide. -
Page 6: Regulatory Information
You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures: •... - Page 7 • Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits controlled by different circuit breakers or fuses.) Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.
