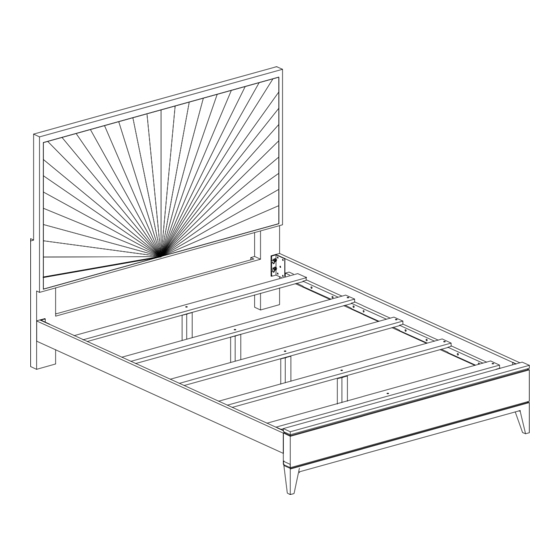

1708-3 / 1708-7 / 1708-9 QUEEN BED SKU# 32317085 / 32717083 / 32917087
THANK YOU FOR PURCHASING THIS QUALITY PRODUCT. BE SURE TO CHECK ALL PACKING MATERIAL CAREFULLY
FOR SMALL PARTS. WHICH MAY HAVE COME LOOSE INSIDE THE CARTON DURING SHIPMENT. IDENTIFY AND COUNT
ALL PARTS AND COMPARE WITH THE HARDWARE LIST BELOW.
NO
DESCRIPTION
A
HEADBOARD
B
HEADBOARD BASE
C
FOOTBOARD
SIDE RAIL
D
SLATS
E
CENTER LEG
F
HARDWARE LIST IN HEADBOARD & FOOTBOARD
NO
1
WASHER+LOCK WASHER
2
ALLEN BOLT (6x30mm-Thread count 28)
ALLENKEY (4mm)
3
4
ALLENKEY (5mm)
5
SCREW
6
SCREW DRIVER (NOT INCLUDED)
This product is manufactured by Rishabh Handicrafts for
ASSEMBLY INSTRUCTION
COMPONENT LIST
DESCRIPTION
F
D
E
C
QTY.
1
1
1
2
5
5
QTY.
12
12
1
1
10
-
A
B
D
ROOMS TO GO
Advertisement
Table of Contents
Related Manuals for ROOMS TO GO GBHS 1708-3
Summary of Contents for ROOMS TO GO GBHS 1708-3
- Page 1 SIDE RAIL SLATS CENTER LEG HARDWARE LIST IN HEADBOARD & FOOTBOARD DESCRIPTION QTY. WASHER+LOCK WASHER ALLEN BOLT (6x30mm-Thread count 28) ALLENKEY (4mm) ALLENKEY (5mm) SCREW SCREW DRIVER (NOT INCLUDED) ROOMS TO GO This product is manufactured by Rishabh Handicrafts for...
- Page 2 THE HEADBOARD. STEP-2 ASSEMBLE HEADBOARD WITH SIDE RAIL & FOOTBOARD. LOOSEN PRE-PARTIALLY TIGHTENED BOLTS, ALIGN SIDERAIL WITH BOLTS AS SHOWN. STEP-3 AFTER SIDERAIL SET IN POSITION TIGHTEN THE BOLTS COMPLETELY. ROOMS TO GO This product is manufactured by Rishabh Handicrafts for...
- Page 3 STEP-4 ALIGN SLATS TO SIDERAIL AND SET IN POSITION AS SHOWN. STEP-5 AFTER INSERT SCREW AND TIGHTEN USING A SCREW DRIVER. ROOMS TO GO This product is manufactured by Rishabh Handicrafts for...
- Page 4 STEP-6 ALIGN SLATS BOTTOM LEGS TO MATCH HOLES TURN LEG CLOCKWISE TO TIGHTEN COMPLETE, REPEAT STEP FOR OTHER LEGS. STEP-7 COMPLETE PRODUCT ROOMS TO GO This product is manufactured by Rishabh Handicrafts for...
