Polycom Vortex EF2201 Brochure & Specs page 2

Installed Voice Products

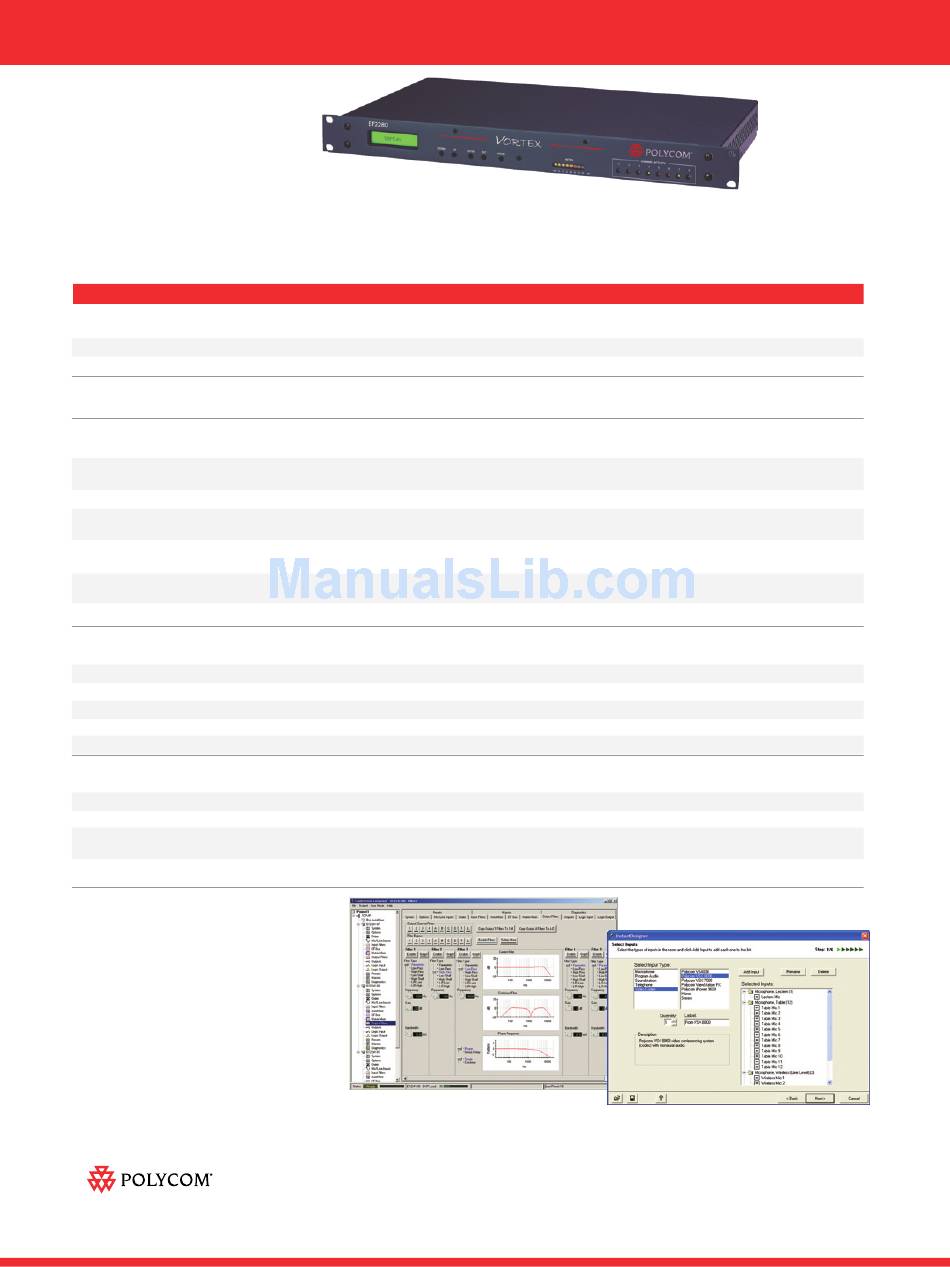

All Vortex products measure 19" x 9.6" x 1.75"
(483 mm x 244 mm x 45 mm) and are designed
to be installed in a standard equipment rack.
Connections to microphones, video conferencing
equipment and other devices are made on the
rear panel.
Feature
Audio Capabilities
Number of microphone inputs
Number of line level inputs
Number of line level outputs
Phone-Add Capabilities
Analog PSTN network interface
Voice Quality
Automatic microphone mixer
Noise cancellation on inputs - reduces
background noise
Equalization on inputs and outputs
Automatic gain control - be heard regardless
of your proximity to microphones
Number of independent microphone echo
cancellation channels for voice clarity
Interfaces to SoundStation VTX 1000
for wideband audio - amazing quality!
Integrates with Polycom VSX video conferencing systems
Operational Features
10W Speaker amplifier
Front panel LCD user interface
Cross point matrix
RS232 interface
Logic control and status
Maximum number of linked devices
Other
Compatible with Instant Designer™ software
Create PDF reports of configuration
Create DXF drawings of the system
Available in Quick Install Packs with
SoundStation VTX 1000, mics and speakers
* 8 EF2280's + 8 EF2201's
Conference Composer™ and Instant Designer Software
These powerful software tools, provided with each Vortex unit,
allow you to easily configure your Vortex product(s) for any type
of application. Design your system in a few easy steps with
Instant Designer, a room configuration wizard that automatically
configures your Vortex product(s) based on the number and type
of equipment required in the installation With support for
Polycom VSX™ video codecs and multi-zoned sound reinforce-
ment/voice lift, InstantDesigner makes it even easier to design
complicated systems in just a few minutes.
Customizable settings in Conference Composer include 5-band
parametric EQ on all inputs and outputs; AGC controls; noise
cancellation levels, matrix mixing (with adjustable cross point
gain levels), macro commands for cascading events and more.
