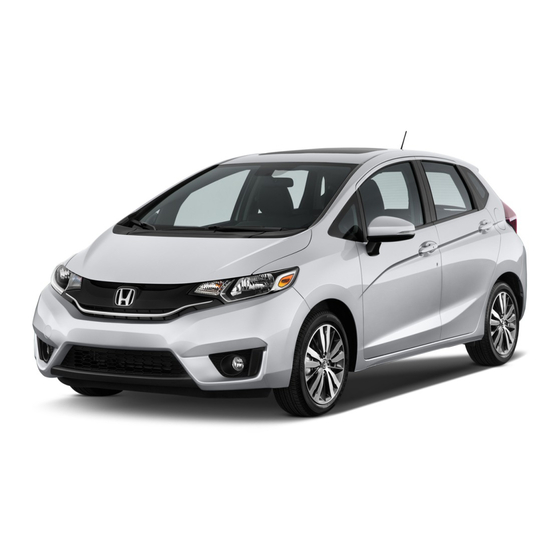

Page 1 2017 OWNER’S MANUAL...
Page 2 California Proposition 65 Warning To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the WARNING: This product contains or emits vehicle manufacturer, other parties, such as law enforcement, that chemicals known to the state of California to cause have the special equipment, can read the information if they have cancer and birth defects or other reproductive...
Page 3 A Few Words About Safety You will find this important safety information in a variety of forms, including: Your safety, and the safety of others, is very important. And ● Safety Labels - on the vehicle. operating this vehicle safely is an important responsibility. ●...
Page 4: Table Of Contents
The information and specifications included in this publication were Before Driving P. 302 Towing a Trailer P. 307 in effect at the time of approval for printing. Honda Motor Co., Ltd. Multi-View Rear Camera P. 345 reserves the right, however, to discontinue or change specifications 2 Maintenance P.
Page 5 Contents Quick Reference Guide P. 4 Child Safety P. 54 Exhaust Gas Hazard P. 66 Safety Labels P. 67 Safe Driving P. 27 Instrument Panel P. 69 Opening and Closing the Tailgate P. 107 Security System P. 110 Opening and Closing the Moonroof P.
Page 6: Quick Reference Guide
Quick Reference Guide Visual Index ❙ ECON Button * (P328) ❙ System Indicators (P70) ❙ Gauges (P82) ❙ Information Display (P83) ❙ Hazard Warning Button ❙ Audio/Information Screen (P170, 191) ❙ Audio System (P162) ❙ Navigation System () See the Navigation System Manual ❙...
Page 7 ❙ Headlights/Turn Signals (P121) ❙ Fog Lights (P124) ❙ LaneWatch * (P334) ❙ Paddle Shifter (Shift Down) (P 324) ❙ Display Button (P191) ❙ (Select/Reset) Knob (P83) ❙ Brightness Control (P128) ❙ Paddle Shifter (Shift Up) (P324) ❙ Wipers/Washers (P126) ❙...
Page 8 Visual Index ❙ Power Window Switches (P113) ❙ Power Door Lock Master Switch (P101) ❙ Door Mirror Controls (P131) ❙ Interior Fuse Box (P425) ❙ Driver’s Front Airbag (P44) ❙ Passenger’s Front Airbag (P44) ❙ Accessory Power Socket (P149) ❙ USB Port (P163) ❙...
Page 9 ❙ Rearview Mirror (P131) ❙ Sun Visors ❙ Vanity Mirrors ❙ Map Lights (P145) ❙ Moonroof Switch (P115) ❙ Side Curtain Airbags (P50) ❙ Ceiling Light (P144) ❙ Grab Handle ❙ Coat Hook (P150) (Only on the rear left side) ❙...
Page 10 Visual Index ❙ Maintenance Under the Hood (P361) ❙ Windshield Wipers (P126, 380) ❙ Power Door Mirrors (P131) ❙ Door Lock/Unlock Control (P93) ❙ Headlights (P121, 373) ❙ Front Turn Signal/Parking Lights (P121, 374) ❙ Side Marker Lights (P121, 375) ❙...
Page 11 Eco Assist® System Ambient Meter ● Changes color to reflect your driving style. Green: Fuel efficient driving Blue green: Moderate acceleration/deceleration Blue: Aggressive acceleration/deceleration ● The ambient meter color changes in accordance with your brake or accelerator pedal operation. ECON Mode Indicator (P78) ECON Button Comes on when the ECON button is...
Page 12 Safe Driving (P 27) Airbags (P41) ● Your vehicle is fitted with airbags to help protect you and your passengers during a moderate-to-severe collision. Child Safety (P54) ● All children 12 and younger should be seated in the rear seat. ●...
Page 13 Instrument Panel (P69) Gauges /Information Display /System Indicators (P82) (P83) (P70) Speedometer Lights Indicators System Indicators Tachometer Information Display Smart Entry System Fog Light Indicator Indicator High Beam Indicator Starter System U.S. Indicator Lights On Indicator Canada Supplemental System Indicators Restraint System Indicator Malfunction...
Page 14 Controls (P87) Clock Models with display audio system Models with color audio system (P88) Models with navigation system The navigation system receives signals from GPS satellites, updating the clock automatically. Models without navigation system Select the (HOME) icon, then select Press and hold the MENU/CLOCK Settings.
Page 15 Engine START/STOP Turn Signals Wipers and Washers (P121) Button (P117) (P126) Turn Signal Control Lever Press the button to change the vehicle’s power mode. Wiper/Washer Control Lever Right Pull toward you to spray Left washer fluid. MIST Lights (P121) INT: Low speed with intermittent Light Control Switches LO: Low speed wipe HI: High speed wipe...
Page 16 Steering Wheel Unlocking the Front Tailgate (P130) (P107) ● To adjust, pull the adjustment lever Doors from the Inside towards you, adjust to the desired (P100) position, then lock the lever back in place. ● Pull either front door inner handle to unlock and open it in one motion.
Page 17 Power Door Mirrors Power Windows (P113) ● With the ignition switch in ON , open (P131) and close the power windows. ● With the ignition switch in ON , move ● If the power window lock button is in the the selector switch to L or R.
Page 18 Heating and Cooling System (P154) ● Rotate the fan control dial to adjust the fan speed. ● Rotate the mode control dial ( ) to select the vents air flows from. ● Rotate the temperature control dial to adjust the temperature. ●...
Page 19 Climate Control System (P157) ● Select the AUTO icon to activate the climate control system. ● Select the icon to turn the system on or off. ● Select the icon to defrost the windshield. ● The climate control system is voice operable. () See the Navigation System Manual for complete details.
Page 20 Features Audio System (P162) (P161) For navigation system operation () See the Navigation System Manual Models without navigation system Audio Remote Controls (P167) Models with color audio system Buttons Audio/Information Screen Button CD Slot (CD Eject) Button RADIO Button (Phone) Button SOURCE Button ●...
Page 21 Models with display audio system Audio/Information Screen CD Slot (Power) Button (CD Eject) Button Button (Home) Icon VOL (Volume) Icons (Menu) Icon (Back) Icon * Not available on all models...
Page 22 Driving (P301) Manual Transmission (P325) (P323) 7-Speed Manual Shift Mode ● Allows you to manually shift the transmission up or Continuously Variable Transmission down without removing your hands from the steering wheel. (P319, 321) When the shift lever is in ●...
Page 23 VSA® OFF Button Refueling (P333) (P347) ● The vehicle stability assist (VSA®) system Fuel recommendation: Unleaded gasoline with a pump octane number 87 or helps stabilize the vehicle during higher required cornering, and helps maintain traction Fuel tank capacity: 10.6 US gal (40 L) while accelerating on loose or slippery road surfaces.
Page 24 Maintenance (P353) Under the Hood (P361) ● Check engine oil, engine coolant, and window washer Wiper Blades (P380) fluid. Add when necessary. ● Replace blades if they leave streaks ● Check brake fluid. across the windshield. ● Check the battery condition monthly. Pull the hood release handle under the corner of the dashboard.
Page 25 Handling the Unexpected (P403) Flat Tire Engine Won’t Start Overheating (P405) (P411) (P417) ● If the battery is dead, jump start using a ● Park in a safe location. If you do not see ● Park in a safe location and replace the booster battery.
Page 26 What to Do If U.S. models with manual transmission The steering wheel may be locked. ● Canadian models Models without smart entry system The ignition switch does Try to turn the steering wheel left and ● not turn from right while turning the ignition key. Why? Models with smart entry system Move the steering wheel left and right...
Page 27 The rear door cannot be Check if the childproof lock is in the opened from inside the lock position. If so, open the rear door vehicle. Why? with the outside door handle. To cancel this function, push the lever to the unlock position. Why do the doors lock If you do not open the doors within 30 seconds, the doors are after I unlocked the doors...
Page 28 I’m seeing an amber The Tire Pressure Monitoring System (TPMS) needs attention. If indicator of a tire with an you recently inflated or changed a tire, you have to recalibrate exclamation point. What is the system. 2 Tire Pressure Monitoring System (TPMS) (P 336) that?
Page 29: Safe Driving
Safe Driving You can find many safety recommendations throughout this chapter, and throughout this manual. For Safe Driving Side Curtain Airbags ......50 Important Safety Precautions ..... 28 Airbag System Indicators....51 Your Vehicle’s Safety Features.... 30 Airbag Care ........53 Seat Belts Child Safety About Your Seat Belts......
Page 30: For Safe Driving
For Safe Driving The following pages explain your vehicle’s safety features and how to use them properly. The safety precautions below are ones that we consider to be among the most important. Important Safety Precautions 1Important Safety Precautions ■ Some states, provinces and territories prohibit the use Always wear your seat belt of cell phones other than hands-free devices by the A seat belt is your best protection in all types of collisions.
Page 31 uuFor Safe DrivinguImportant Safety Precautions ■ Pay appropriate attention to the task of driving safely Engaging in cell phone conversation or other activities that keep you from paying close attention to the road, other vehicles, and pedestrians could lead to a crash. Remember, situations can change quickly, and only you can decide when it is safe to divert some attention away from driving.
Page 32: Your Vehicle's Safety Features
uuFor Safe DrivinguYour Vehicle’s Safety Features Your Vehicle’s Safety Features 1Your Vehicle’s Safety Features Your vehicle is equipped with many features that work together to help protect you and your passengers during a crash. Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering...
Page 33 uuFor Safe DrivinguSafety Checklist Safety Checklist For the safety of you and your passengers, make a habit of checking these items 1Safety Checklist each time before you drive. If the door and tailgate open indicator is on, a door • After everyone has entered the vehicle, be sure all doors and the tailgate are and/or the tailgate is not completely closed.
Page 34: Seat Belts
Seat Belts About Your Seat Belts Seat belts are the single most effective safety device because they keep you 1About Your Seat Belts connected to the vehicle so that you can take advantage of many built-in safety WARNING features. They also help keep you from being thrown against the inside of the vehicle, against other passengers, or out of the vehicle.
Page 35 uuSeat BeltsuAbout Your Seat Belts ■ Proper use of seat belts 1About Your Seat Belts Follow these guidelines for proper use: If a rear seat passenger moves around and extends • All occupants should sit upright, well back in the seat, and remain in that position the seat belt, the lockable retractor may activate.
Page 36 uuSeat BeltsuAbout Your Seat Belts ■ 1Automatic Seat Belt Tensioners Automatic Seat Belt Tensioners The seat belt tensioners can only operate once. The front seats are equipped with automatic seat belt tensioners to enhance safety. If a tensioner is activated, the SRS indicator will come on.
Page 37: Fastening A Seat Belt
uuSeat BeltsuFastening a Seat Belt Fastening a Seat Belt After adjusting a front seat to the proper position, and while sitting upright and well 1Fastening a Seat Belt back in the seat: No one should sit in a seat with an inoperative seat 2 Adjusting the Seats P.
Page 38 uuSeat BeltsuFastening a Seat Belt 3. Position the lap part of the belt as low as 1Fastening a Seat Belt possible across your hips, then pull up on WARNING the shoulder part of the belt so the lap part Lap belt fits snugly.
Page 39 uuSeat BeltsuFastening a Seat Belt ■ 1Adjusting the Shoulder Anchor Adjusting the Shoulder Anchor The shoulder anchor height can be adjusted to four The front seats have adjustable shoulder anchors to accommodate taller and shorter levels. If the belt contacts your neck, lower the height occupants.
Page 40 uuSeat BeltsuFastening a Seat Belt ■ 1Seat Belt with Detachable Anchor Seat Belt with Detachable Anchor WARNING 1. Pull out the seat belt’s small latch plate and Latch Plate the latch plate from each holding slot in the Using the seat belt with the detachable ceiling.
Page 41 uuSeat BeltsuFastening a Seat Belt ■ 1Advice for Pregnant Women Advice for Pregnant Women Each time you have a checkup, ask your doctor if it is If you are pregnant, the best way to protect yourself and your unborn child when okay for you to drive.
Page 42: Seat Belt Inspection
uuSeat BeltsuSeat Belt Inspection Seat Belt Inspection Regularly check the condition of your seat belts as follows: 1Seat Belt Inspection WARNING • Pull each belt out fully, and look for frays, cuts, burns, and wear. • Check that the latch plates and buckles work smoothly and the belts retract Not checking or maintaining seat belts can easily.
Page 43: Airbags
Airbags Airbag System Components Continued...
Page 44 uuAirbagsuAirbag System Components The front, front side, and side curtain An electronic control unit that continually Impact sensors that can detect a airbags are deployed according to the monitors and can record information moderate-to-severe front or side impact. direction and severity of impact. Both side about the sensors, the airbag activators, curtain airbags are deployed in a rollover.
Page 45 uuAirbagsuAirbag System Components ■ 1Important facts about your airbags Important facts about your airbags Do not attempt to deactivate your airbags. Together, Airbags can pose serious hazards. To do their job, airbags must inflate with airbags and seat belts provide the best protection. tremendous force.
Page 46: Types Of Airbags
uuAirbagsuTypes of Airbags Types of Airbags Your vehicle is equipped with three types of airbags: 1Types of Airbags • Front airbags: Airbags in front of the driver’s and front passenger’s seats. The airbags can inflate whenever the ignition switch • Side airbags: Airbags in the driver’s and front passenger’s seat-backs. is in ON •...
Page 47 uuAirbagsuFront Airbags (SRS) ■ Operation Front airbags are designed to inflate during moderate-to-severe frontal collisions. When the vehicle decelerates suddenly, the sensors send information to the control unit which signals one or both front airbags to inflate. A frontal collision can be either head-on or angled between two vehicles, or when a vehicle crashes into a stationary object, such as a concrete wall.
Page 48 uuAirbagsuFront Airbags (SRS) ■ When front airbags should not deploy Minor frontal crashes: Front airbags were designed to supplement seat belts and help save lives, not to prevent minor scrapes, or even broken bones that might occur during a less than moderate-to-severe frontal crash. Side impacts: Front airbags can provide protection when a sudden deceleration causes a driver or front passenger to move towards the front of the vehicle.
Page 49 uuAirbagsuFront Airbags (SRS) ■ 1Advanced Airbags Advanced Airbags If there is a problem with the driver’s seat position Your front airbags have advanced features to help reduce the likelihood of airbag sensor, the SRS indicator will come on and the airbag related injuries to smaller occupants.
Page 50: Side Airbags
uuAirbagsuSide Airbags Side Airbags The side airbags help protect the torso and pelvis of the driver or a front passenger 1Side Airbags during a moderate-to-severe side impact. Make sure you and your front seat passenger always sit upright. Leaning into the path of a side airbag can ■...
Page 51 uuAirbagsuSide Airbags ■ When a side airbag deploys with little or no visible damage Because the airbag system senses sudden acceleration, a strong impact to the side of the vehicle’s framework can cause a side airbag to deploy. In such cases, there may be little or no damage, but the side impact sensors detected a severe enough impact to deploy the airbag.
Page 52: Side Curtain Airbags
uuAirbagsuSide Curtain Airbags Side Curtain Airbags The side curtain airbags help protect the heads of the driver and passengers in the 1Side Curtain Airbags outer seating positions during a moderate-to-severe side impact. The side curtain If the SRS control unit senses that your vehicle is airbags equipped in this vehicle are also designed to help reduce the likelihood of about to rollover, it immediately deploys both side curtain airbags and activates both front seat belt...
Page 53: Airbag System Indicators
uuAirbagsuAirbag System Indicators ■ When side curtain airbags deploy in a frontal collision One or both side curtain airbags may inflate in a moderate-to-severe angled frontal collision. Airbag System Indicators 1SRS (Supplemental Restraint System) Indicator If a problem occurs in the airbag system, the SRS indicator will come on. WARNING ■...
Page 54 uuAirbagsuAirbag System Indicators ■ 1Passenger Airbag Off Indicator Passenger Airbag Off Indicator If the indicator comes on with no front passenger and ■ When the passenger airbag off no objects on the passenger’s seat, or with an adult indicator comes on riding there, something may be interfering with the The indicator comes on to alert you that the weight sensors, such as:...
Page 55: Airbag Care
This would likely disable the driver’s seat position sensor or the weight sensors in the passenger’s seat. If it is necessary to remove or modify a front seat to accommodate a person with disabilities, contact a Honda dealer, or for U.S. vehicles, American Honda Automobile Customer Service at 1-800-999-1009 and for Canadian vehicles,...
Page 56: Child Safety
Child Safety Protecting Child Passengers Each year, many children are injured or killed in vehicle crashes because they are 1Protecting Child Passengers either unrestrained or not properly restrained. In fact, vehicle accidents are the WARNING number one cause of death of children ages 12 and under. Children who are unrestrained or To reduce the number of child deaths and injuries, every state, Canadian province improperly restrained can be seriously...
Page 57 uuChild SafetyuProtecting Child Passengers • Any child who is too small to wear a seat belt correctly must be restrained in an 1Protecting Child Passengers approved child seat that is properly secured to the vehicle using either the lap belt WARNING portion of the lap/shoulder belt or the lower anchors of the LATCH system.
Page 58: Safety Of Infants And Small Children
uuChild SafetyuSafety of Infants and Small Children Safety of Infants and Small Children ■ 1Protecting Infants Protecting Infants WARNING An infant must be properly restrained in a rear-facing, reclining child seat until the infant reaches the seat maker’s weight or height limit for the seat, and the infant is Placing a rear-facing child seat in the front at least one year old.
Page 59 uuChild SafetyuSafety of Infants and Small Children ■ 1Protecting Smaller Children Protecting Smaller Children WARNING If a child is at least one year old and within the weight range indicated by the child seat manufacturer, the child should be properly restrained in a firmly secured Placing a forward-facing child seat in the forward-facing child seat.
Page 60 uuChild SafetyuSafety of Infants and Small Children ■ 1Selecting a Child Seat Selecting a Child Seat Installation of a LATCH-compatible child seat is Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren). simple. Some have a rigid-type connector, while others have a flexible-type connector. Both are equally easy to use.
Page 61 uuChild SafetyuSafety of Infants and Small Children ■ Installing a LATCH-Compatible Child Seat A LATCH-compatible child seat can be installed in either of the two outer rear seats. A child seat is attached to the lower anchors with either the rigid or flexible type of connectors.
Page 62 uuChild SafetyuSafety of Infants and Small Children 1Installing a LATCH-Compatible Child Seat For your child’s safety, when using a child seat installed using the LATCH system, make sure that the seat is properly secured to the vehicle. A child seat that is not properly secured will not adequately Flexible Type protect a child in a crash and may cause injury to the...
Page 63 uuChild SafetyuSafety of Infants and Small Children ■ 1Installing a Child Seat with a Lap/Shoulder Seat Belt Installing a Child Seat with a Lap/Shoulder Seat Belt A child seat that is not properly secured will not 1. Raise the head restraint to its highest adequately protect a child in a crash and may cause position.
Page 64 uuChild SafetyuSafety of Infants and Small Children 7. Make sure the child seat is firmly secured by 1Installing a Child Seat with a Lap/Shoulder Seat Belt rocking it forward and back and side to To deactivate a lockable retractor, release the buckle side;...
Page 65 uuChild SafetyuSafety of Infants and Small Children ■ Using an outer anchor Anchor 1. Remove the cargo area cover 2 Cargo Area Cover P. 152 2. Put the outer head restraint to its upper most position, then route the tether strap between the head restraint legs, and secure the tether strap hook onto the anchor.
Page 66: Safety Of Larger Children
uuChild SafetyuSafety of Larger Children Safety of Larger Children ■ 1Safety of Larger Children Protecting Larger Children WARNING The following pages give instructions on how to check proper seat belt fit, what kind of booster seat to use if one is needed, and important precautions for a child who Allowing a child age 12 or under to sit in must sit in front.
Page 67 uuChild SafetyuSafety of Larger Children ■ 1Booster Seats Booster Seats When installing a booster seat, make sure to read the If a lap/shoulder seat belt cannot be used instructions that came with it, and install the seat properly, position the child in a booster seat in accordingly.
Page 68: Exhaust Gas Hazard
Exhaust Gas Hazard Carbon Monoxide Gas The engine exhaust from this vehicle contains carbon monoxide, a colorless, 1Carbon Monoxide Gas odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon WARNING monoxide gas will not get into the interior. Carbon monoxide gas is toxic.
Page 69: Safety Labels
Safety Labels Label Locations These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels carefully. If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact a dealer for a replacement.
Page 71: Instrument Panel
Instrument Panel This chapter describes the buttons, indicators, and gauges that are used while driving. Indicators ..........70 Information Display Warning and Information Messages...... 80 Gauges and Displays Gauges..........82 Information Display......83...
Page 72: Indicators
Indicators Indicator Name On/Blinking Explanation Comes on for a few seconds when you Comes on while driving - Make sure the parking ● ● turn the ignition switch to ON , then brake is released. Check the brake fluid level. goes off if the parking brake has been 2 What to do when the indicator comes on while U.S.
Page 73 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on when you turn the ignition Comes on while driving - Immediately stop in a ● ● switch to ON , and goes off when safe place. Low Oil Pressure the engine starts. 2 If the Low Oil Pressure Indicator Comes On Indicator P.
Page 74 uuIndicatorsu Indicator Name On/Blinking Explanation Indicates the current shift lever position. ● Shift Lever Position 2 Shifting P. 319, 321 Indicator Blinks if the transmission system has a Blinks while driving - Avoid sudden starts and ● ● Transmission problem. acceleration and have your vehicle checked by a Indicator dealer immediately.
Page 75 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on when the fuel reserve is Comes on - Refuel your vehicle as soon as possible. ● ● running low (approximately 1.59 U.S. Blinks - Have your vehicle checked by a dealer. ● Low Fuel Indicator gal./6.0 Liter left).
Page 76 uuIndicatorsu Indicator Name On/Blinking Explanation Goes off, then comes on blue when the engine ● Comes on for a few seconds when you ● coolant temperature is low. turn the ignition switch to ON , then High Temperature Blinks while driving - Drive slowly to prevent ●...
Page 77 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on for a few seconds if you turn Goes off when all doors and the tailgate are closed. ● ● the ignition switch to ON , then goes off. Door and Tailgate Comes on if any door or the tailgate is ●...
Page 78 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on for a few seconds when you Comes on while driving - Stop in a safe place, ● ● turn the ignition switch to ON , then check tire pressures, and inflate the tire(s) if goes off.
Page 79 uuIndicatorsu Indicator Name On/Blinking Explanation U.S. Comes on for a few seconds when you As a temporary measure, press and hold the ● ● set the power mode to ON, then goes ENGINE START/STOP button for up to 15 seconds off.
Page 80 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on briefly when you turn the Blinks - ● ● ignition switch to ON , then goes Models without smart entry system off. You cannot start the engine. Turn the ignition Comes on if the immobilizer system ●...
Page 81 uuIndicatorsu Indicator Name On/Blinking Explanation Blinks when the security system alarm ● Security System has been set. 2 Security System Alarm P. 110 Alarm Indicator Indicator Comes on when you press the CRUISE ● CRUISE MAIN 2 Cruise Control P. 329 button.
Page 82: Information Display Warning And Information Messages
uuIndicatorsuInformation Display Warning and Information Messages Information Display Warning and Information Messages The following messages appear only on the information display. Message Condition Explanation Appears when the fuel fill cap is loose or is not ● installed. 2 Check Fuel Cap Message P. 420 Appears when there is a problem with the sensor on Stays on constantly - Have your vehicle checked ●...
Page 83 uuIndicatorsuInformation Display Warning and Information Messages Models with smart entry system Message Condition Explanation Appears if you push the ENGINE START/STOP Canadian models with continuously variable transmission ● button to turn the engine off without the shift lever Push the ENGINE START/STOP button twice after ●...
Page 84: Gauges And Displays
Gauges and Displays Gauges Gauges include the speedometer, tachometer and related indicators. They are displayed when the ignition switch is in ON ■ Speedometer Displays your driving speed in mph and km/h. ■ Tachometer Shows the number of engine revolutions per minute. *1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Page 85: Information Display
uuGauges and DisplaysuInformation Display Information Display The information display shows the fuel gauge, odometer, trip meter, engine oil life 1Switching the Display and maintenance service item codes, and other gauges. Models with display audio system Some of the items on the information display also appear on the audio/information screen.
Page 86 uuGauges and DisplaysuInformation Display ■ Instant Fuel Economy Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada). ■ Odometer Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has accumulated.
Page 87 uuGauges and DisplaysuInformation Display ■ 1Outside Temperature Outside Temperature The temperature sensor is in the front bumper. Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada). Road heat and exhaust from another vehicle can affect the temperature reading when your vehicle ■...
Page 89: Controls
Controls This chapter explains how to operate the various controls necessary for driving. Clock.............. 88 Operating the Switches Around the Steering Adjusting the Mirrors .........131 Locking and Unlocking the Doors Interior Rearview Mirror......131 Wheel Key Types and Functions ......90 Power Door Mirrors ........131 Models without smart entry system Low Smart Entry Remote Signal Strength...
Page 90: Clock
Clock Adjusting the Clock Models without navigation system 1Adjusting the Time You can adjust the time in the clock display with the ignition switch is in ON The clock in the information display is automatically adjusted along with the audio system’s clock display. ■...
Page 91 uuClockuAdjusting the Clock ■ Color audio system 1Color audio system 1. Press and hold the MENU/CLOCK button. These indications are used to show how to operate Adjust Clock is selected. the LIST/SELECT (List/Selector) knob. 2. Rotate to change hour, then press Rotate to select.
Page 92: Locking And Unlocking The Doors
Locking and Unlocking the Doors Key Types and Functions This vehicle comes with the following keys: 1Key Types and Functions All the keys have an immobilizer system. The ■ immobilizer system helps to protect against vehicle Keys theft. Models with smart entry system 2 Immobilizer System P.
Page 93 uuLocking and Unlocking the DoorsuKey Types and Functions ■ Smart entry remote The built-in key can be used to lock/unlock the Release Knob doors when the smart entry remote battery becomes weak and the power door lock/ unlock operation is disabled. To remove the built-in key, pull it out while sliding the release knob.
Page 94: Low Smart Entry Remote Signal Strength
uuLocking and Unlocking the DoorsuLow Smart Entry Remote Signal Strength Low Smart Entry Remote Signal Strength The vehicle transmits radio waves to locate the smart entry remote when locking/ 1Low Smart Entry Remote Signal Strength unlocking the doors and tailgate, or to start the engine. Communication between the smart entry remote and the vehicle consumes the smart entry remote’s battery.
Page 95: Locking/Unlocking The Doors From The Outside
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside Locking/Unlocking the Doors from the Outside ■ 1Using the Smart Entry with Push Button Start System Using the Smart Entry with Push Button Start System • Do not leave the smart entry remote in the vehicle When you carry the smart entry remote, you when you get out.
Page 96 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ Unlocking the doors and tailgate 1Using the Smart Entry with Push Button Start System Grab the driver’s door handle: If you do not open a door or the tailgate within 30 The driver’s door unlocks.
Page 97 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ Using the Remote Transmitter 1Using the Remote Transmitter If you do not open a door within 30 seconds of ■ Locking the doors Unlock Button unlocking the vehicle with the remote transmitter, Press the lock button.
Page 98 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ Unlocking the doors 1Using the Remote Transmitter Press the unlock button. If the distance at which the remote transmitter works Once: varies, the battery is probably low. Replace the Some exterior lights flash twice, and the driver’s door unlocks.
Page 99 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ 1Locking a Door Without Using a Key Locking/Unlocking the Doors Using a Key If you unlock the doors with the key, the alarm goes Fully insert the key and turn it. off when you open the hood or move the shift lever out of (continuously variable transmission...
Page 100 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ 1Locking a Door Without Using a Key Locking a Door Without Using a Key When you lock the driver’s door, all the other doors ■ Locking the driver’s door and tailgate lock at the same time.
Page 101: Locking/Unlocking The Doors From The Inside
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside Locking/Unlocking the Doors from the Inside ■ 1Using the Lock Tab Using the Lock Tab When you lock the door using the lock tab on the ■ Locking a door Lock Tab driver’s door, all the other doors and the tailgate lock To Lock...
Page 102 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside ■ 1Unlocking Using the Front Door Inner Handle Unlocking Using the Front Door Inner Handle The front door inner handles are designed to allow Pull the front door inner handle. front seat occupants to open the door in one motion.
Page 103 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside ■ 1Using the Master Door Lock Switch Using the Master Door Lock Switch When you lock/unlock the driver’s door using the Press the master door lock switch in as shown master lock switch, all the other doors and the To Lock to lock or unlock all doors and the tailgate.
Page 104: Childproof Door Locks
uuLocking and Unlocking the DoorsuChildproof Door Locks Childproof Door Locks The childproof door locks prevent the rear doors from being opened from the inside regardless of the position of the lock tab. ■ 1Childproof Door Locks Setting the Childproof Door Locks To open the door from the inside when the Slide the lever in the rear door to the lock childproof door lock is on, put the lock tab in the...
Page 105: Auto Door Locking/Unlocking
uuLocking and Unlocking the DoorsuAuto Door Locking/Unlocking Auto Door Locking/Unlocking Your vehicle locks and unlocks all doors automatically when a certain condition is 1Auto Door Locking/Unlocking met. You can turn off or change to another auto door locking/unlocking setting using the master door lock ■...
Page 106 uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting Customizing the Auto Door Locking/Unlocking Setting You can customize the auto door locking/unlocking setting to your liking using the master door lock switch. ■ List of the Auto Door Locking/Unlocking Customizable Options ■...
Page 107 uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting ■ Customizing Flow for Auto Door Locking Options Steps Drive Lock Mode Apply the parking brake. The driver’s door must be closed at this stage. Open the driver’s door. Turn the ignition switch to ON Push the ENGINE START/STOP button twice without depressing the brake pedal Press and hold the front of the master door lock switch on the driver’s door.
Page 108 uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting ■ Customizing Flow for Auto Door Unlocking Options Continuously variable transmission models Steps Driver Door Open Unlock Mode Park Unlock Mode Apply the parking brake. Apply the parking brake. Apply the parking brake. Continuously variable transmission models Continuously variable transmission models Move the shift lever to...
Page 109: Opening And Closing The Tailgate
Opening and Closing the Tailgate Precautions for Opening/Closing the Tailgate Always make sure individuals and objects are clear of the tailgate before opening or 1Precautions for Opening/Closing the Tailgate closing it. Be careful not to hit your head on the tailgate or to put your hands between the tailgate and the cargo ■...
Page 110 uuOpening and Closing the TailgateuUsing the Tailgate Outer Handle/Release Button Using the Tailgate Outer Handle/Release Button Models with smart entry system 1Using the Tailgate Outer Handle/Release Button When all the doors are unlocked, the tailgate Models with smart entry system is unlocked.
Page 111 uuOpening and Closing the TailgateuUsing the Tailgate Outer Handle/Release Button To close the tailgate, grab the inner handle, pull the tailgate down, and push it closed from outside. Inner Handle...
Page 112: Security System
Security System Immobilizer System The immobilizer system prevents a key that has not been pre-registered from 1Immobilizer System starting the engine. Each key contains electronic transmitters that use electronic NOTICE signals to verify the key. Leaving the ignition key in the vehicle can result in theft or accidental movement of the vehicle.
Page 113 uuSecurity SystemuSecurity System Alarm ■ To deactivate the security system alarm 1Security System Alarm Unlock the vehicle using the remote transmitter or smart entry remote, or turn the Do not set the security system alarm when someone ignition switch to ON .
Page 114 uuSecurity SystemuSecurity System Alarm ■ Panic Mode ■ The panic button on the remote transmitter If you press the panic button for approximately one second, the following will occur for about 30 seconds: • The horn sounds. • Some exterior lights flash. Panic Button ■...
Page 115: Opening And Closing The Windows
Opening and Closing the Windows Opening/Closing the Power Windows The power windows can be opened and closed when the ignition switch is in ON 1Opening/Closing the Power Windows , using the switches on the doors. The driver’s side switches can be used to WARNING open and close all of the windows.
Page 116 uuOpening and Closing the WindowsuOpening/Closing the Power Windows ■ Opening/Closing Windows without Auto-Open/Close Function To open: Push the switch down lightly, and hold it until the desired position is reached. Close To close: Pull the switch up lightly, and hold it until the desired position is reached.
Page 117: Opening And Closing The Moonroof
Opening and Closing the Moonroof ■ Opening/Closing the Moonroof You can only operate the moonroof when the ignition switch is in ON . Use the 1Opening/Closing the Moonroof switch in the front of the ceiling to open and close the moonroof. WARNING ■...
Page 118: Operating The Switches Around The Steering Wheel
Operating the Switches Around the Steering Wheel Models without smart entry system Ignition Switch 1Ignition Switch Manual transmission models WARNING LOCK: Insert and remove the key in this Removing the key from the ignition switch position. while driving locks the steering. This can ACCESSORY: Operate the audio system and cause you to lose control of the vehicle.
Page 119: Models With Smart Entry System
uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button Models with smart entry system ENGINE START/STOP Button 1ENGINE START/STOP Button ■ ENGINE START/STOP Button Operating Range Changing the Power Mode Operating Range Continuously Variable Transmission Manual Transmission Indicator Indicator VEHICLE OFF (LOCK) Indicator in the button is off.
Page 120 uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button ■ Automatic Power Off If you leave the vehicle for 30 to 60 minutes with the shift lever in and the power mode in ACCESSORY, the vehicle automatically goes into the mode similar to VEHICLE OFF (LOCK) to avoid the battery drain.
Page 121 uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button ■ Power Mode Reminder If you open the driver’s door when the power mode is set to ACCESSORY, a warning buzzer sounds. ■ 1Smart Entry Remote Reminder Smart Entry Remote Reminder When the smart entry remote is within the system’s Warning buzzers may sound from inside or/ operational range, and the driver’s door is closed, the...
Page 122: Ignition Switch And Power Mode Comparison
uuOperating the Switches Around the Steering WheeluIgnition Switch and Power Mode Comparison Ignition Switch and Power Mode Comparison Ignition Switch LOCK ACCESSORY START Position (with/without the key) Without Smart Engine is turned off and Engine is turned off. Normal key position Use this position to start ●...
Page 123: Turn Signals
uuOperating the Switches Around the Steering WheeluTurn Signals Turn Signals The turn signals can be used when the ignition Right Turn switch is in ON ■ One-touch turn signal When you lightly push up or down and release the turn signal lever, the exterior turn signals and turn signal indicator blink three times.
Page 124 uuOperating the Switches Around the Steering WheeluLight Switches ■ 1Automatic Operation (automatic lighting control) Automatic Operation (automatic lighting control) We recommend that you turn on the lights manually Automatic lighting control can be used when when driving at night, in a dense fog, or in dark areas the ignition switch is in ON such as long tunnels or parking facilities.
Page 125 uuOperating the Switches Around the Steering WheeluLight Switches ■ 1Headlight Integration with Wipers Headlight Integration with Wipers This feature activates while the headlights are off in The headlights automatically come on when the wipers are used several times within AUTO. a certain intervals with the headlight switch in AUTO.
Page 126: Fog Lights
uuOperating the Switches Around the Steering WheeluFog Lights Fog Lights When the low beam headlights are on, turn 1Fog Lights the fog light switch on to use the fog lights. When the fog lights are on, the indicator in the instrument panel will be on.
Page 127: Daytime Running Lights
uuOperating the Switches Around the Steering WheeluDaytime Running Lights Daytime Running Lights The high beam headlights come on slightly dimmer than normal when the following conditions have been met: • The ignition switch is in ON • The headlight switch is off, or in •...
Page 128: Wipers And Washers
uuOperating the Switches Around the Steering WheeluWipers and Washers Wipers and Washers ■ 1Wipers and Washers Front Wiper/Washer NOTICE The windshield wipers and washers can be Do not use the wipers when the windshield is dry. used when the ignition switch is in ON The windshield will get scratched, or the rubber blades will get damaged.
Page 129 uuOperating the Switches Around the Steering WheeluWipers and Washers ■ 1Wipers and Washers Rear Wiper/Washer If the wiper stops operating due to any obstacle such The rear wiper and washer can be used when as the build-up of snow, park the vehicle in a safe the ignition switch is in ON place.
Page 130: Brightness Control
uuOperating the Switches Around the Steering WheeluBrightness Control Brightness Control When the parking lights are turned on and the 1Brightness Control ignition switch is in ON , you can use the Instrument panel brightness varies, depending on (select/reset) knob to adjust instrument whether the exterior lights are on or off.
Page 131: Rear Defogger/Heated Door Mirror * Button
uuOperating the Switches Around the Steering WheeluRear Defogger/Heated Door Mirror Button Rear Defogger/Heated Door Mirror Button Press the rear defogger and heated door 1Rear Defogger/Heated Door Mirror Button Models with heating and cooling system mirror button or touch the icon to defog the NOTICE rear window and mirrors when the ignition When cleaning the inside of the rear window, be...
Page 132: Adjusting The Steering Wheel
uuOperating the Switches Around the Steering WheeluAdjusting the Steering Wheel Adjusting the Steering Wheel The steering wheel height and distance from your body can be adjusted so that you 1Adjusting the Steering Wheel can comfortably grip the steering wheel in an appropriate driving posture. WARNING 1.
Page 133: Adjusting The Mirrors
Adjusting the Mirrors Interior Rearview Mirror Adjust the angle of the rearview mirror when you are sitting in the correct driving 1Adjusting the Mirrors position. Keep the inside and outside mirrors clean and adjusted for best visibility. ■ Rearview Mirror with Day and Night Positions Adjust the mirrors before you start driving.
Page 134: Adjusting The Seats
Adjusting the Seats Front Seats Adjust the driver’s seat as far back as possible 1Adjusting the Seats Allow sufficient while allowing you to maintain full control of space. WARNING the vehicle. You should be able to sit upright, well back in the seat and be able to Sitting too close to a front airbag can result adequately press the pedals without leaning in serious injury or death if the front...
Page 135 uuAdjusting the SeatsuFront Seats ■ 1Adjusting the Seat Positions Adjusting the Seat Positions Once a seat is adjusted correctly, rock it back and forth to make sure it is locked in position. Horizontal Position Adjustment Pull up on the bar to move the seat, then release the bar.
Page 136 uuAdjusting the SeatsuFront Seats ■ 1Adjusting the Seat-Backs Adjusting the Seat-Backs WARNING Adjust the driver’s seat-back to a comfortable, upright position, leaving ample space Reclining the seat-back too far can result in between your chest and the airbag cover in serious injury or death in a crash.
Page 137 uuAdjusting the SeatsuFront Seats ■ 1Reclining the Front Seats Reclining the Front Seats Both front seats must be returned to their normal Reclining the seat-backs on the front seats until they are level with the rear seat upright position, and the head restraints reinstalled cushions provides a large cushioned area that can (and should only) be used when and properly adjusted before driving.
Page 138: Rear Seats
uuAdjusting the SeatsuRear Seats Rear Seats ■ Adjusting the Rear Seat-Backs Pull the lever on the right to change the angle of the right half of the seat-back, and left for the left half. Release Lever...
Page 139 uuAdjusting the SeatsuRear Seats ■ 1Folding Down the Rear Seats Folding Down the Rear Seats Make sure all items in the cargo area or items The rear seats can be folded down separately to allow for additional storage space. extending to the rear seats are properly secured.
Page 140 uuAdjusting the SeatsuRear Seats ■ 1Folding the Rear Seat Up Folding the Rear Seat Up After you fold the seat up, or put it back in the Separately lift up the left and right halves of original position, make sure the seat is firmly secured Loop the rear seat cushions to make room for cargo by rocking it forward and back.
Page 141 uuAdjusting the SeatsuHead Restraints Head Restraints ■ 1Adjusting the Head Restraints Adjusting the Head Restraints WARNING Your vehicle is equipped with head restraints in all seating positions. Improperly positioning head restraints reduces their effectiveness and increases Head restraints are most effective for the likelihood of serious injury in a crash.
Page 142 uuAdjusting the SeatsuHead Restraints ■ Changing the Rear Seat Head Restraint Positions A passenger sitting in a back seating position Outer should adjust the height of their head restraint to an appropriate position before the vehicle begins moving. To raise the head restraint: Pull it upward.
Page 143 uuAdjusting the SeatsuHead Restraints ■ 1Removing and Reinstalling the Head Restraints Removing and Reinstalling the Head Restraints WARNING Head restraints can be removed for cleaning or repair. Failure to reinstall, or correctly reinstall, the To remove a head restraint: head restraints can result in severe injury Pull the restraint up as far as it will go.
Page 144 uuAdjusting the SeatsuMaintain a Proper Sitting Position Maintain a Proper Sitting Position After all occupants have adjusted their seats and head restraints, and put on their 1Maintain a Proper Sitting Position seat belts, it is very important that they continue to sit upright, well back in their WARNING seats, with their feet on the floor, until the vehicle is safely parked and the engine is off.
Page 145 uuAdjusting the SeatsuArmrest Armrest ■ Using the Front Seat Armrest The console lid can be used as an armrest. * Not available on all models...
Page 146: Interior Lights/Interior Convenience Items
Interior Lights/Interior Convenience Items Interior Lights ■ 1Interior Light Switches Interior Light Switches In the door activated position, the interior lights fade ■ Front out and go off about 30 seconds after the doors are The interior lights come on regardless of closed.
Page 147 uuInterior Lights/Interior Convenience ItemsuInterior Lights ■ 1Map Lights Map Lights Models with moonroof The map lights can be turned on and off by When the interior light switch is in the door activated Models with moonroof pressing the lenses. position and any door is open, the map light will not go off when you press the lens.
Page 148: Interior Convenience Items
uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items Interior Convenience Items ■ 1Glove Box Glove Box WARNING Pull the handle to open the glove box. An open glove box can cause serious injury to your passenger in a crash, even if the passenger is wearing the seat belt.
Page 149 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Beverage Holders Beverage Holders NOTICE ■ Front seat beverage holders Spilled liquids can damage the upholstery, carpeting, Pull the lid backward to use the front panel and electrical components in the interior. beverage holder. Be careful when you are using the beverage holders.
Page 150 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ Rear seat beverage holders Rear Door The beverage holder is at the front of each door. Models without center console box ■ Cargo Floor Box Pull up the cargo area floor lid. Cargo Floor Box...
Page 151 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Accessory Power Socket(s) Accessory Power Socket(s) NOTICE The accessory power socket can be used when the ignition switch is in ACCESSORY Do not insert an automotive type cigarette lighter q or ON element. ■...
Page 152 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ Coat Hook 1Coat Hook The coat hook is not designed for large or heavy There is a coat hook on the rear left grab items. handle. Pull it down to use it.
Page 153 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ Tie-down Anchors The tie-down anchors on the cargo area floor Front can be used to install a net for securing items. Anchors Rear Anchors * Not available on all models Continued...
Page 154 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Cargo Area Cover Cargo Area Cover Do not place items on the cargo area cover, or stack The cargo area cover may be removed to give you more cargo room. objects higher than the top of the back seat. They could block your view and be thrown about the ■...
Page 155 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Seat Heaters Seat Heaters WARNING The ignition switch must be in ON to use the seat heaters. The HI setting heats the seats Heat induced burns are possible when faster than the LO setting. using seat heaters.
Page 156: Heating And Cooling System
Heating and Cooling System Using Vents, Heating and A/C Dashboard Floor and Floor vents Floor and Windshield vents dashboard windshield defroster vents defroster vents vents Fan Control Dial Mode Control Dial Adjusts the fan speed. Rotate the dial all Change airflow. the way to OFF to turn everything off.
Page 157 uuHeating and Cooling System uUsing Vents, Heating and A/C ■ Heating The heater uses heat from the engine coolant to warm the air. 1. Adjust the fan speed using the fan control dial. 2. Select 3. Adjust the temperature using the temperature control dial.
Page 158 uuHeating and Cooling System uUsing Vents, Heating and A/C ■ 1To rapidly cool down the interior Cooling If the interior is very warm, you can cool it down 1. Adjust the fan speed using the fan control more rapidly by partially opening the windows. dial.
Page 159: Climate Control System
Climate Control System Using Automatic Climate Control The automatic climate control system maintains the interior temperature you select. 1Using Automatic Climate Control The system also selects the proper mix of heated or cooled air that raises or lowers If any icons are selected while using the climate the interior temperature to your preference as quickly as possible.
Page 160 uuClimate Control System uUsing Automatic Climate Control ■ Switching between the recirculation and fresh air modes 1Using Automatic Climate Control Select the icon to switch the mode depending on environmental Selecting the icon switches the climate control conditions. system between on and off. When turned on, the Recirculation mode (indicator on): Recirculates air from the vehicle’s interior system returns to your last selection.
Page 161 uuClimate Control System uUsing Automatic Climate Control ■ 1Using Automatic Climate Control Turning On and Off the Touch Screen Beep If you touch any other icons during this procedure, You hear the beep when operating the climate control system on the touch screen. the setting may fail.
Page 162: Automatic Climate Control Sensors
uuClimate Control System uAutomatic Climate Control Sensors Automatic Climate Control Sensors The automatic climate control system is Sensor equipped with sensors. Do not cover or spill any liquid on them. Sensor...
Page 163: Features
Features This chapter describes how to operate technology features. Audio System Playing an iPod ........181 Smartphone Apps.........216 About Your Audio System....162 Playing a USB Flash Drive ..... 184 Siri® Eyes Free........217 USB Port(s) ........... 163 Playing Bluetooth® Audio..... 187 Audio Error Messages ......218 General Information on the Audio HDMI®...
Page 164: Audio System
Audio System About Your Audio System The audio system features AM/FM radio. It can also play audio CDs, WMA/MP3/AAC 1About Your Audio System files, USB flash drives, and iPod, iPhone and Bluetooth® devices. Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not supported.
Page 165: Usb Port(S)
uuAudio SystemuUSB Port(s) USB Port(s) 1. Open the cover. 1USB Port(s) 2. Install the iPod USB connector or the USB • Do not leave the iPod or USB flash drive in the flash drive to the USB port. vehicle. Direct sunlight and high temperatures may damage it.
Page 166: Hdmi® Port
uuAudio SystemuHDMI® Port HDMI® Port 1. Open the cover. 1HDMI® Port 2. Install the HDMI® cable to the HDMI® port. • Do not leave the HDMI® connected device in the vehicle. Direct sunlight and high temperatures may damage it. • We recommend backing up your data before using the device in your vehicle.
Page 167: Audio Antenna
uuAudio SystemuAudio Antenna Audio Antenna Your vehicle is equipped with a removable 1Audio Antenna antenna at the rear of the roof. NOTICE Before using a “drive-through” car wash, remove the antenna by unscrewing it by hand. This prevents the antenna from being damaged by the car wash brushes.
Page 168: Audio System Theft Protection
uuAudio SystemuAudio System Theft Protection Audio System Theft Protection The audio system is disabled when it is disconnected from the power source, such as when the battery is disconnected or goes dead. In certain conditions, the system may display a code entry screen. If this occurs, reactivate the audio system. ■...
Page 169: Audio Remote Controls
uuAudio SystemuAudio Remote Controls Audio Remote Controls Allow you to operate the audio system while driving. 1Audio Remote Controls SOURCE Button Some modes appear only when an appropriate Button Cycles through the audio modes as follows: device or medium is used. Button Models with color audio system Button...
Page 170 uuAudio SystemuAudio Remote Controls Models with display audio system 1Audio Remote Controls Steering Wheel (Menu) Button button is available only when the audio • When listening to the radio mode is FM, AM, CD, USB, iPod, Pandora® , Aha Press : To display the menu items.
Page 171: Audio System Basic Operation
Audio System Basic Operation Models with color audio system 1Audio System Basic Operation To use the audio system, the ignition switch must be in ACCESSORY q or ON These indications are used to show how to operate Use the selector knob or MENU/CLOCK the selector knob.
Page 172: Audio/Information Screen
uuAudio System Basic OperationuAudio/Information Screen Audio/Information Screen Displays the audio status and wallpaper. From this screen, you can go to various setup options. ■ Switching the Display Audio/Information Screen Audio Clock/Wallpaper...
Page 173 uuAudio System Basic OperationuAudio/Information Screen ■ Audio Shows the current audio information. ■ Clock/Wallpaper Shows a clock screen or an image you import. ■ Change display 1. Press the MENU/CLOCK button. 2. Rotate to select Settings, then press 3. Rotate to select Display Change, then press 4.
Page 174 uuAudio System Basic OperationuAudio/Information Screen ■ 1Wallpaper Setup Wallpaper Setup • When importing wallpaper files, the image must be You can change, store, and delete the wallpaper on the audio/information screen. in the USB flash drive’s root directory. Images in a folder cannot be imported.
Page 175 uuAudio System Basic OperationuAudio/Information Screen ■ Select wallpaper 1Wallpaper Setup 1. Press the MENU/CLOCK button. To go back to the previous screen, press the 2. Rotate to select Settings, then press (Back) button. 3. Rotate to select Wallpaper, then press When the file size is large, it takes a while to be 4.
Page 176: Adjusting The Sound
uuAudio System Basic OperationuAdjusting the Sound Adjusting the Sound Press the (Sound) button, and rotate 1Adjusting the Sound (Sound) Button to scroll through the following choices: The SVC has four modes: Off, Low, Mid, and High. SVC adjusts the volume level based on the vehicle speed.
Page 177: Display Setup
uuAudio System Basic OperationuDisplay Setup Display Setup You can change the brightness or color theme of the audio/information screen. ■ 1Changing the Screen Brightness Changing the Screen Brightness You can change the Contrast and Black Level 1. Press the MENU/CLOCK button. settings in the same manner.
Page 178: Playing Am/Fm Radio
uuAudio System Basic OperationuPlaying AM/FM Radio Playing AM/FM Radio RADIO Button Audio/Information Screen Press to select a band. VOL/ (Power/volume) Knob Selector Knob Press to turn the audio system Turn to tune the radio frequency. on and off. Press, and then turn to select an Turn to adjust the volume.
Page 179 uuAudio System Basic OperationuPlaying AM/FM Radio ■ 1Playing AM/FM Radio Radio Data System (RDS) The ST indicator appears on the display indicating Provides text data information related to your selected RDS capable FM station. stereo FM broadcasts. Stereo reproduction in AM is not available. ■...
Page 180: Playing A Cd
uuAudio System Basic OperationuPlaying a CD Playing a CD Your audio system supports audio CDs, CD-Rs, and CD-RWs in either MP3 or WMA, or AAC format. With the CD loaded, press the CD/AUX button. Audio/Information Screen CD Slot Insert a CD about halfway into the CD slot. (CD Eject) Button Press to eject a CD.
Page 181 uuAudio System Basic OperationuPlaying a CD ■ 1Playing a CD How to Select a File from a Folder with the Selector Knob (MP3/WMA/AAC) NOTICE Do not use CDs with adhesive labels. The label can 1. Press to switch the display to a folder list. cause the CD to jam in the unit.
Page 182 uuAudio System Basic OperationuPlaying a CD ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat, random, and scan modes when playing a track or file. Repeat Available mode icons appear above the play Repeat One Folder (MP3/WMA/AAC): mode buttons.
Page 183: Playing An Ipod
uuAudio System Basic OperationuPlaying an iPod Playing an iPod Using your USB connector, connect the iPod to a USB port, then press the CD/AUX button. 2 USB Port(s) P. 163 USB Indicator Audio/Information Screen Appears when an iPod is connected. CD/AUX Button Press to select iPod (if connected).
Page 184 uuAudio System Basic OperationuPlaying an iPod ■ 1Playing an iPod How to Select a Song from the iPod Music List with the Available operating functions vary on models or Selector Knob versions. Some functions may not be available on the 1.
Page 185 uuAudio System Basic OperationuPlaying an iPod ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat and shuffle modes when playing a song. Shuffle Album: Plays all available albums in Available mode icons appear above the play a selected category (playlists, artists, albums, songs, mode buttons.
Page 186: Playing A Usb Flash Drive
uuAudio System Basic OperationuPlaying a USB Flash Drive Playing a USB Flash Drive Your audio system reads and plays sound files on a USB flash drive in either MP3, WMA or AAC format. Connect your USB flash drive to the USB port, then press the CD/AUX button. 2 USB Port(s) P.
Page 187 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1Playing a USB Flash Drive How to Select a File from a Folder with the Selector Knob Use the recommended USB flash drives. 1. Press to display a folder list. 2 General Information on the Audio System P.
Page 188 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat, random, and scan modes when playing a file. Repeat Available mode icons appear above the play Repeat One Folder: Repeats all files in the mode buttons.
Page 189: Playing Bluetooth® Audio
This function is available when the phone is paired and connected to the vehicle’s audio capabilities are compatible with the system. For a list of compatible phones: Bluetooth® HandsFreeLink® (HFL) system. • U.S.: Visit www.handsfreelink.honda.com, or call 2 Phone Setup P. 253 1-888-528-7876. • Canada: Visit www.handsfreelink.ca, or call 1-888- Bluetooth Indicator 528-7876.
Page 190 uuAudio System Basic OperationuPlaying Bluetooth® Audio ■ 1To Play Bluetooth® Audio Files To Play Bluetooth® Audio Files To play the audio files, you may need to operate your 1. Make sure that your phone is paired and CD/AUX Button phone. If so, follow the phone maker's operating connected to HFL.
Page 191 uuAudio System Basic OperationuPlaying Bluetooth® Audio ■ 1How to Select a Song from the Music Search List with the Selector How to Select a Song from the Music Search List with the Knob Selector Knob Depending on the Bluetooth® device you connect, 1.
Page 192: Audio System Basic Operation
Audio System Basic Operation Models with display audio system 1Audio System Basic Operation To use the audio system function, the ignition switch must be in ACCESSORY q or Audio Menu Items 2 Station List P. 199 : Select to go to the HOME screen. 2 Music Search P.
Page 193: Audio/Information Screen
uuAudio System Basic OperationuAudio/Information Screen Audio/Information Screen Displays the audio status and wallpaper. From this screen, you can go to various setup options. ■ Switching the Display Using the button Press the (display) button on the steering wheel to change the display. (Display) Button Audio/Information Screen Continued...
Page 194 uuAudio System Basic OperationuAudio/Information Screen Using the HOME screen HOME screen Select HOME to go to the HOME screen. Select Phone, Info, Audio, Settings, or HondaLink. ■ Phone Shows the HFL information. 2 Bluetooth® HandsFreeLink® P. 247 ■ Info Shows the Trip Computer, Clock/Wallpaper, Voice Info, or System/Device Information.
Page 195 4. Select the Home tab. 5. Select Home Screen Edit Order. 6. Select and hold the icon then, drag it to the desired position. *1 : Available on specific phones only. Check handsfreelink.honda.com for compatible phones and hondalink.com for feature details. Continued...
Page 196 uuAudio System Basic OperationuAudio/Information Screen ■ 1Wallpaper Setup Wallpaper Setup • When importing wallpaper files, the image must be You can change, store, and delete the wallpaper on the audio/information screen. in the USB flash drive’s root directory. Images in a folder cannot be imported.
Page 197 uuAudio System Basic OperationuAudio/Information Screen ■ Select wallpaper 1Wallpaper Setup 1. Select Settings to go to the Settings screen. From the pop-up menu, select Preview to see a 2. Select Clock/Info. preview at full-size screen. 3. Select Clock/Wallpaper Type, then the Wallpaper tab. The screen changes to the wallpaper list.
Page 198: Adjusting The Sound
uuAudio System Basic OperationuAdjusting the Sound Adjusting the Sound 1. Select HOME. 1Adjusting the Sound 2. Select Settings. The SVC has four modes: Off, Low, Mid, and High. 3. Select Audio. SVC adjusts the volume level based on the vehicle speed.
Page 199: Display Setup
uuAudio System Basic OperationuDisplay Setup Display Setup You can change the brightness or color theme of the audio/information screen. ■ 1Changing the Screen Brightness Changing the Screen Brightness You can change the Contrast and Black level 1. Select HOME. settings in the same manner. 2.
Page 200: Playing Am/Fm Radio
uuAudio System Basic OperationuPlaying AM/FM Radio Playing AM/FM Radio Tune Icons Audio/Information Screen Select to tune the radio frequency. Seek Icons Select to search up and down the Scan selected band for a station with a strong signal. Select to scan each station with a strong signal. (Power) Button Open/Close Icon Press to turn the audio system on and off.
Page 201 uuAudio System Basic OperationuPlaying AM/FM Radio ■ 1Playing AM/FM Radio Preset Memory The ST indicator appears on the display indicating To store a station: stereo FM broadcasts. 1. Tune to the selected station. Stereo reproduction in AM is not available. 2.
Page 202 uuAudio System Basic OperationuPlaying AM/FM Radio ■ Radio text Displays the radio text information of the selected RDS station. 1. Select MENU. 2. Select View Radio Text. ■ Scan Samples each of the strongest stations on the selected band for 10 seconds. 1.
Page 203: Playing A Cd
uuAudio System Basic OperationuPlaying a CD Playing a CD Your audio system supports audio CDs, CD-Rs, and CD-RWs in either MP3 or WMA, or AAC format. With the CD loaded, select the CD mode. Audio/Information Screen CD Slot Insert a CD about halfway into the CD slot. (Power) Button (CD Eject) Button Press to turn the audio system...
Page 204 uuAudio System Basic OperationuPlaying a CD ■ 1Playing a CD How to Select a File from the Music Search List (MP3/WMA/ AAC) NOTICE Do not use CDs with adhesive labels. The label can 1. Select MENU and select Music Search. cause the CD to jam in the unit.
Page 205 uuAudio System Basic OperationuPlaying a CD ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select scan, repeat, and random modes when playing a track or file. Scan 1. Select MENU. Scan Folders (MP3/WMA/AAC): Provides 10- 2.
Page 206: Playing An Ipod
uuAudio System Basic OperationuPlaying an iPod Playing an iPod Using your USB connector, connect the iPod to a USB port, then select the iPod mode. 2 USB Port(s) P. 163 Audio/Information Screen (Power) Button USB Indicator Press to turn the audio system Appears when an iPod is connected.
Page 207 uuAudio System Basic OperationuPlaying an iPod ■ 1How to Select a Song from the Music Search List How to Select a Song from the Music Search List Available operating functions vary on models or 1. Select MENU and select Music Search. versions.
Page 208 uuAudio System Basic OperationuPlaying an iPod ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat and shuffle modes when playing a file. Repeat Song: Repeats the current file. 1.
Page 209: Playing Internet Radio
United States. Source to select Pandora mode. To find out if your phone is compatible with this Cover Art Audio/Information Screen feature, visit www.handsfreelink.honda.com, or call (Power) Button Open/Close Icon 1-888-528-7876 Press to turn the audio Displays/hides the system on and off.
Page 210 uuAudio System Basic OperationuPlaying Internet Radio ■ 1Playing Internet Radio Pandora® Menu Pandora® is free, personalized radio that plays music You can operate some of the Pandora® menu items from your vehicle’s audio and comedy you’ll love. Just start with the name of system.
Page 211: Playing A Usb Flash Drive
uuAudio System Basic OperationuPlaying a USB Flash Drive Playing a USB Flash Drive Your audio system reads and plays sound files on a USB flash drive in either MP3, WMA or AAC format. Connect your USB flash drive to the USB port, then select the USB mode. 2 USB Port(s) P.
Page 212 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1Playing a USB Flash Drive How to Select a File from the Music Research List Use the recommended USB flash drives. 1. Select MENU and select Music Search. 2 General Information on the Audio System P.
Page 213 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select scan, repeat, and random modes when playing a file. Scan 1. Select MENU. Scan Folders: Provides 10-second sampling of the 2.
Page 214: Playing Bluetooth® Audio
This function is available when the phone is paired and connected to the vehicle’s audio capabilities are compatible with the system. For a list of compatible phones: Bluetooth® HandsFreeLink® (HFL) system. • U.S.: Visit www.handsfreelink.honda.com, or call 2 Phone Setup P. 280 1-888-528-7876. • Canada: Visit www.handsfreelink.ca, or call 1-888-...
Page 215 uuAudio System Basic OperationuPlaying Bluetooth® Audio ■ 1To Play Bluetooth® Audio Files To Play Bluetooth® Audio Files To play the audio files, you may need to operate your 1. Make sure that your phone is paired and phone. If so, follow the phone maker's operating connected to HFL.
Page 216: Playing A Video Using The Hdmi
uuAudio System Basic OperationuPlaying a Video Using the HDMI® Playing a Video Using the HDMI® Your audio system allows you to play videos from an HDMI®-compatible device. Connect the device, using an HDMI® cable, then select the HDMI® mode. 2 HDMI® Port P.
Page 217 uuAudio System Basic OperationuPlaying a Video Using the HDMI® ■ 1Playing a Video Using the HDMI® Changing the Screen Aspect This feature is limited while driving. To play videos, 1. Select HOME. stop your vehicle and apply the parking brake. 2.
Page 218: Smartphone Apps
HondaLink app, and view connection instructions, visit Not all phones and apps are compatible with the handsfreelink.honda.com. For the latest apps and feature details, check system. The system does not display all the available hondalink.com.
Page 219: Siri® Eyes Free
uuAudio System Basic OperationuSiri® Eyes Free Siri® Eyes Free You can talk to Siri® using the Talk button on the steering wheel when your iPhone 1Siri® Eyes Free is paired to Bluetooth® HandsFreeLink®. Siri® is a trademark of Apple Inc. 2 Phone Setup P.
Page 220: Audio Error Messages
Audio Error Messages CD Player If a disc error occurs, you may see the following error messages. Error Message Cause Solution Current track/file will be skipped. The next supported track/file ● Unplayable File Track/file format not supported plays automatically. Bad Disc Press the (eject) button and remove the disc, and check that the ●...
Page 221 uuAudio Error MessagesuiPod/USB Flash Drive iPod/USB Flash Drive If an error occurs while playing an iPod or USB flash drive, you may see the following error messages. If you cannot clear the error message, contact a dealer. Error Message Solution Appears when there is a problem with the USB adapter unit.
Page 222 uuAudio Error MessagesuPandora® Models with display audio system Pandora® If an error occurs while playing Pandora®, you may see the following error messages. If you cannot clear the error message, contact a dealer. Error Message Solution The maximum number of stations that can be created is 100. Appears when the number of stations that can be created is ●...
Page 223 uuAudio Error MessagesuPandora® Error Message Solution Unsupported Appears when the device is not supported. Use another device. ● Unsupported Version Appears when Pandora® version is not supported. Update ● Pandora® to the latest version. Pandora App version is not supported Unable to connect to the phone.
Page 224: General Information On The Audio System
General Information on the Audio System Recommended CDs • Use only high-quality CD-R or CD-RW discs labeled for audio use. 1Recommended CDs • Use only CD-R or CD-RW discs on which the recordings are closed. A Dual-disc cannot play on this audio unit. If recorded •...
Page 225 uuGeneral Information on the Audio System uRecommended CDs ■ Protecting CDs 1Protecting CDs Follow these precautions when handling or storing CDs: NOTICE • Store a CD in its case when it is not being played. Do not insert a damaged CD. It may be stuck inside •...
Page 226 uuGeneral Information on the Audio SystemuCompatible iPod, iPhone, and USB Flash Drives Compatible iPod, iPhone, and USB Flash Drives ■ 1iPod and iPhone Model Compatibility iPod and iPhone Model Compatibility This system may not work with all software versions of these devices. Model iPod (5th generation) iPod classic 80GB/160GB (launch in 2007)
Page 227: Customized Features
Customized Features Use the audio/information screen to customize certain features. 1Customized Features When you customize settings: Models with navigation system • Make sure that the vehicle is at a complete stop. See the navigation system manual for information of the customized features. Continuously variable transmission models •...
Page 228 uuCustomized Featuresu ■ Customization Flow Press the MENU/CLOCK button. Clock Adjustment Settings Bluetooth Add New Device Connect an Audio Device Display Adjustment Brightness Contrast Black Level Rear Camera Camera Guideline...
Page 229 uuCustomized Featuresu Display Change Audio Wallpaper Wallpaper Select Import Delete Color Theme Blue Amber Gray Language Clock Format Continued...
Page 230 uuCustomized Featuresu Press the button and rotate to select Phone Setup, then press Bluetooth Setup Add New Device Connect a Phone Connect an Audio Device Disconnect All Devices Delete Device Pass-Key Speed Dial Ringtone Fixed Mobile Phone Caller ID Info Name Priority Number Priority System Clear...
Page 231 uuCustomized Featuresu ■ List of customizable options Setup Customizable Features Description Selectable Settings Group Adjust Clock. Clock Adjustment — 2 Clock P. 88 Pairs a new phone to HFL, edits and deletes a paired phone, and create a code for a paired Add New Device —...
Page 232 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Display Change Changes the display type. Audio /Wallpaper Clock /Image1/Image2/ Select Changes the wallpaper type. Image3 Wallpaper Imports an image file for a new wallpaper. Import — 2 Wallpaper Setup P. 172 Settings Delete Deletes an image file for a wallpaper.
Page 233 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Pairs a new phone to HFL. Add New Device — 2 Phone Setup P. 253 Pairs a new phone or connects a paired phone Connect a Phone to HFL. — 2 Phone Setup P. 253 Bluetooth Connect an Audio Setup...
Page 234 uuCustomized Featuresu Models with display audio system 1Customized Features ■ How to customize When you customize settings: While the vehicle is at a complete stop with the ignition switch in ON , select • Make sure that the vehicle is at a complete stop. Settings, then select a setting item.
Page 235 uuCustomized Featuresu Models with display audio system ■ Customization Flow Select HOME. Home Home Screen Edit Order Display Display Settings Brightness Contrast Select Settings. Black Level Background Color Sound/Beep Volume Clock/Info Phone Beep Volume Audio Camera Voice Recog Voice Prompt Bluetooth System Volume...
Page 236 uuCustomized Featuresu Audio Sound Audio Source Pop-Up RDS INFO [Your selected media] Cover Art Display Adjustment Display Brightness Contrast Black Level Color Color Tint Aspect Ratio Adjustment Change Bluetooth Audio Device Bluetooth Device List Default *1 : May change depending on your currently selected source.
Page 237 uuCustomized Featuresu Clock/Info Clock Clock/Wallpaper Type Clock Wallpaper Clock Adjustment Clock Format Clock Display Clock Location Clock Reset Info Info Screen Preference Default Continued...
Page 238 uuCustomized Featuresu Phone Phone Connect Phone Bluetooth Device List Edit Speed Dial Ring Tone Automatic Phone Sync HondaLink Assist Text/Email Enable Text/Email Select Account New Message Notification Default...
Page 239 uuCustomized Featuresu Camera Rear Camera Fixed Guideline Dynamic Guideline Default LaneWatch Show with Turn Signal Display Time after Turn Signal Off Reference Line Default Bluetooth Bluetooth On/Off Status Bluetooth Device List Edit Pairing Code Default * Not available on all models Continued...
Page 240 uuCustomized Featuresu ■ List of customizable options Setup Customizable Features Description Selectable Settings Group Changes the HOME screen icon layout. Home Home Screen Edit Order — 2 Changing the Home screen icon Layout P. 193 Changes the brightness of the audio/ Brightness —...
Page 241 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Voice Prompt Turns the voice prompt on and off. /Off Volume Changes the volume of the voice prompt. Phonebook Phonetic Voice Recog Modifies a voice command for the phonebook. — Modification Sets a phonebook data to be automatically Automatic Phone Sync On/Off...
Page 242 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Language Changes the display language. English /French/Spanish Keyboard Layout Selects the on-screen keyboard type. Alphabet/QWERTY Alerts you when manual control of the system Voice Command Tips is disabled to prevent distraction while driving. /Off Others Only voice commands are available.
Page 243 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group iPod, Pandora, USB or CD mode [Your selected media] Turns on and off the cover art display. /Off Cover Art Brightness Display Contrast 2 System P. 238 Black Level HDMI® mode Display Changes the color of the audio/information Color...
Page 244 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Clock/ Clock Wallpaper Wallpaper type Clock Adjustment Clock 2 System P. 238 Clock Format Clock Display Clock/Info Clock Location Clock Reset Info Info Screen Preference Changes the Info Screen type. Info Top/Info Menu/Off Cancels/Resets all customized items in the Default Yes/No...
Page 245 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Pairs a new phone to HFL, connects or Connect Phone disconnects a paired phone. — 2 Phone Setup P. 280 Pairs a new phone to HFL, edits or deletes a Bluetooth Device List —...
Page 246 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Selects whether the fixed guidelines come on Fixed Guideline /Off or not on the rear camera monitor. Rear Selects whether the dynamic guidelines come Dynamic Guideline /Off Camera on or not on the rear camera monitor. Cancels/Resets all customized items in the Default Yes/No...
Page 247 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Bluetooth On/Off Status Changes the Bluetooth® status. /Off Pairs a new phone to HFL, edits or deletes a Bluetooth Device List paired phone, or creates a security PIN. — 2 Phone Setup P. 280 Bluetooth Edits Pairing Code.
Page 248 uuCustomized FeaturesuDefaulting All the Settings Defaulting All the Settings Models with display audio system 1Defaulting All the Settings Reset all the menu and customized settings as the factory defaults. When you transfer the vehicle to a third party, reset 1. Select HOME. all settings to default and delete all personal data.
Page 249: Bluetooth® Handsfreelink
Models without navigation system procedures, and special feature capabilities: Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using • U.S.: Visit www.handsfreelink.honda.com, or call your vehicle’s audio system, without handling your cell phone. 1-888-528 -7876. • Canada: Visit www.handsfreelink.ca, or call 1-888- Models with color audio system 528 -7876.
Page 250 Bluetooth SIG, Inc., and any Signal Strength use of such marks by Honda Motor Co., Ltd., is under license. Other trademarks and trade names are those Roam Status of their respective owners.
Page 251 uuBluetooth® HandsFreeLink®uHFL Menus HFL Menus 1HFL Menus The ignition switch must be in ACCESSORY q or ON w to use HFL. To use HFL, you must first pair your Bluetooth- compatible cell phone to the system while the vehicle is parked. Phone Speed Dial Add New...
Page 252 uuBluetooth® HandsFreeLink®uHFL Menus Redial Redial the last number dialed in the phone’s history. Phone Setup Bluetooth Setup Add New Device Pair a phone to the system. Connect a Phone Connect a phone to the system. Connect a Bluetooth® Audio device to the Connect an Audio Device system.
Page 253 uuBluetooth® HandsFreeLink®uHFL Menus Add New Select a phone number from the call history Speed Dial Call History to store as a speed dial number. Select a phone number from the phonebook Phonebook to store as a speed dial number. Enter a phone number to store as a speed dial Phone Number number.
Page 254 uuBluetooth® HandsFreeLink®uHFL Menus Ringtone Fixed Select the ring tone stored in HFL. Select the ring tone stored in the connected Mobile Phone cell phone. Caller ID Info Name Priority Prioritize the caller’s name as the caller ID. Prioritize the caller’s phone number as the Number Priority caller ID.
Page 255 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Phone Setup Phone Setup Your Bluetooth-compatible phone must be paired to ■ To pair a cell phone (No phone has HFL before you can make and receive hands-free been paired to the system) calls. 1. Press the button or the button.
Page 256 uuBluetooth® HandsFreeLink®uHFL Menus ■ To pair a mobile phone (when a phone has already been paired to the system) 1. Press the button or the button. If a prompt appears asking to connect to a phone, select No and proceed with step 2.
Page 257 If your phone does not appear, select Phone not found? and search for Bluetooth® devices using your phone. From your phone, select Honda HFT. 8. The system gives you a pairing code on the audio display. Confirm if the pairing code on the screen and your phone match.
Page 258 uuBluetooth® HandsFreeLink®uHFL Menus ■ To Change the currently paired phone 1. Press the button or the button. 2. Rotate to select Phone Setup, then press 3. Rotate to select Bluetooth Setup, then press 4. Rotate to select Connect a Phone, then press The screen changes to a device list.
Page 259 uuBluetooth® HandsFreeLink®uHFL Menus ■ To change the pairing code setting 1. Press the button or the button. 2. Rotate to select Phone Setup, then press 3. Rotate to select Bluetooth Setup, then press 4. Rotate to select Pass-Key, then press 5.
Page 260 uuBluetooth® HandsFreeLink®uHFL Menus ■ To delete a paired phone 1. Press the button or the button. 2. Rotate to select Phone Setup, then press 3. Rotate to select Bluetooth Setup, then press 4. Rotate to select Delete Device, then press The screen changes to a device list.
Page 261 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Ring Tone Ring Tone Fixed: The fixed ring tone sounds from the speakers. You can change the ring tone setting. Mobile Phone: For certain connected phones, the 1. Press the button or the button. ring tone stored in the phone sounds from the 2.
Page 262 uuBluetooth® HandsFreeLink®uHFL Menus ■ To Clear the System Pairing codes, paired phones, all stored voice tags, all speed dial entries, all call history data, and all imported phonebook data are erased. 1. Press the button or the button. 2. Rotate to select Phone Setup, then press 3.
Page 263 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Automatic Import of Cellular Phonebook and Call History Automatic Import of Cellular Phonebook and Call History When you select a person from the list in the cellular When your phone is paired, the contents of its phonebook and call history are phonebook, you can see up to three category icons.
Page 264 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Speed Dial Speed Dial You can use the audio preset buttons during a call to Up to 20 speed dial numbers can be stored per phone. store a speed dial number: To store a speed dial number: 1.
Page 265 uuBluetooth® HandsFreeLink®uHFL Menus ■ To edit a speed dial 1. Press the button or the button. 2. Rotate to select Phone Setup, then press 3. Rotate to select Speed Dial, then press 4. Select an existing speed dial entry. 5. Rotate to select Change Speed Dial, then press 6.
Page 266 uuBluetooth® HandsFreeLink®uHFL Menus ■ To add a voice tag to a stored speed 1Speed Dial dial number Avoid using duplicate voice tags. 1. Press the button or the button. Avoid using “home” as a voice tag. 2. Rotate to select Phone Setup, then It is easier for HFL to recognize a longer name.
Page 267 uuBluetooth® HandsFreeLink®uHFL Menus ■ To delete a voice tag 1. Press the button or the button. 2. Rotate to select Phone Setup, then press 3. Rotate to select Speed Dial, then press 4. Select an existing speed dial entry. 5. Rotate to select Delete Voice Tag, then press A confirmation message appears on the...
Page 268 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Making a Call Making a Call Any voice-tagged speed dial entry can be dialed by You can make calls by inputting any phone number, or by using the imported voice from any screen. phonebook, call history, speed dial entries, or redial. Press the button and follow the prompts.
Page 269 uuBluetooth® HandsFreeLink®uHFL Menus ■ To make a call using the imported 1To make a call using the imported phonebook phonebook This function is disabled while the vehicle is moving. When your phone is paired, the contents of its However, you can call a stored voice-tagged speed phonebook are automatically imported to dial number using voice commands.
Page 270 uuBluetooth® HandsFreeLink®uHFL Menus ■ To make a call using redial 1To make a call using redial 1. Press the button or the button. Press and hold the button to redial the last 2. Rotate to select Redial, then press number dialed in your phone’s call history. Dialing starts automatically.
Page 271 uuBluetooth® HandsFreeLink®uHFL Menus ■ To make a call using a speed dial entry 1To make a call using a speed dial entry 1. Press the button or the button. On the Phone screen, the first six speed dials on the 2.
Page 272 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Receiving a Call Receiving a Call Call Waiting When there is an incoming call, an audible Press the button to put the current call on hold HFL Mode notification sounds and the Incoming Call to answer the incoming call. screen appears.
Page 273 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Options During a Call Options During a Call Dial Tones: Available on some phones. The following options are available during a call. Swap Call: Put the current call on hold to answer the incoming call. Mute: Mute your voice. Transfer Call: Transfer a call from HFL to your phone.
Page 274: Models With Display Audio System
To use HFL, you need a Bluetooth-compatible cell phone. For a list of compatible phones, pairing (MENU) Button procedures, and special feature capabilities: Volume down • U.S.: Visit www.handsfreelink.honda.com, or call (HOME) Icon Microphones Volume up 1-888-528 -7876. SOURCE Button •...
Page 275 Bluetooth SIG, Inc., and any 2. Select Phone to switch the display to the Phone screen. use of such marks by Honda Motor Co., Ltd., is under 3. Select MENU. license. Other trademarks and trade names are those of their respective owners.
Page 276 uuBluetooth® HandsFreeLink®uUsing HFL ■ 1HFL Status Display HFL Status Display The information that appears on the audio/ The audio/information screen notifies you when there is an incoming call. information screen varies between phone models. Bluetooth Indicator Battery Level Status You can change the system language. Comes on when your 2 Customized Features P.
Page 277 uuBluetooth® HandsFreeLink®uHFL Menus HFL Menus The ignition switch must be in ACCESSORY q or ON to use HFL. 1HFL Menus To use HFL, you must first pair your Bluetooth- ■ Phone settings screen compatible mobile phone to the system while the vehicle is parked.
Page 278 uuBluetooth® HandsFreeLink®uHFL Menus Edit Speed Dial New Entry Manual Input Enter a phone number to store as a speed dial number. Import from Call History Select a phone number from the call history to store as a speed dial number. Import from Phonebook Select a phone number from the phonebook to store as a...
Page 279 uuBluetooth® HandsFreeLink®uHFL Menus Text/Email Enable Text/Email Turn the text/e-mail message function on and off. Select Account Select a mail or text message account. New Message Notification Select whether a pop-up alert comes on the screen when HFL receives a new text/e-mail message. Default Cancel/Reset all customized items in the Phone Settings group as default.
Page 280 uuBluetooth® HandsFreeLink®uHFL Menus ■ Phone menu screen 1. Press , or select HOME, then select Phone. 2. Press (MENU) on the steering wheel, or select MENU. Speed Dial New Entry Manual Input Enter a phone number to store as a speed dial number.
Page 281 uuBluetooth® HandsFreeLink®uHFL Menus Call History Display the last 20 outgoing, incoming and missed calls. Dialed Display the last 20 outgoing calls. Received Display the last 20 incoming calls. Missed Display the last 20 missed calls. Text/Email Select Account Select a mail or text message account. Select a message.
Page 282 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Phone Setup Phone Setup Your Bluetooth-compatible phone must be paired to ■ To pair a mobile phone (when there is HFL before you can make and receive hands-free no phone paired to the system) calls. 1. Select Phone. Phone Pairing Tips: 2.
Page 283 uuBluetooth® HandsFreeLink®uHFL Menus ■ Changing the currently paired phone 1Changing the currently paired phone 1. Go to the Phone settings screen. If no other phones are found or paired when trying to 2 Phone settings screen P. 275 switch to another phone, HFL will inform you that the 2.
Page 284 uuBluetooth® HandsFreeLink®uHFL Menus ■ To edit an already-paired phone name 1. Go to the Phone settings screen. 2 Phone settings screen P. 275 2. Select Phone tab. 3. Select Bluetooth Device List. 4. Select a paired phone you want to edit. 5.
Page 285 uuBluetooth® HandsFreeLink®uHFL Menus ■ To delete a paired phone 1. Go to the Phone settings screen. 2 Phone settings screen P. 275 2. Select Phone tab. 3. Select Bluetooth Device List. 4. Select a phone you want to delete. 5. Select Delete This Device. 6.
Page 286 uuBluetooth® HandsFreeLink®uHFL Menus ■ To Set Up a Text/E-mail Message Options ■ To turn on or off the text/e-mail message function 1. Go to the Phone settings screen. 2 Phone settings screen P. 275 2. Select Text/Email tab, then Enable Text/ Email.
Page 287 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Ring Tone Ring Tone Fixed: The fixed ring tone sounds from the speaker. You can change the ring tone setting. Mobile Phone: The ring tone stored in the 1. Go to the Phone settings screen. connected cell phone is heard through the vehicle 2 Phone settings screen P.
Page 288 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Automatic Import of Cellular Phonebook and Call History Automatic Import of Cellular Phonebook and Call History When you select a person from the list in the cellular ■ When Automatic Phone Sync is set to phonebook, you can see up to three category icons. The icons indicate what types of numbers are stored When your phone is paired, the contents of its for that name.
Page 289 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Speed Dial Speed Dial When a voice tag is stored, press the button to Up to 20 speed dial numbers can be stored per phone. call the number using the voice tag. Say “Call” and To store a speed dial number: the voice tag name.
Page 290 uuBluetooth® HandsFreeLink®uHFL Menus ■ To add a voice tag to a stored speed 1Speed Dial dial number Avoid using duplicate voice tags. 1. Go to the Phone settings screen. Avoid using “home” as a voice tag. It is easier for the system to recognize a longer name. 2 Phone settings screen P.
Page 291 uuBluetooth® HandsFreeLink®uHFL Menus ■ To edit a speed dial 1. Go to the Phone settings screen. 2 Phone settings screen P. 275 2. Select Edit Speed Dial. 3. Select an existing speed dial entry. From the pop-up menu, select Edit. 4.
Page 292 uuBluetooth® HandsFreeLink®uHFL Menus ■ To make a call using the imported 1To make a call using the imported phonebook phonebook This function is disabled while the vehicle is moving. 1. Go to the Phone menu screen. However, you can call a stored voice-tagged speed dial number using voice commands.
Page 293 uuBluetooth® HandsFreeLink®uHFL Menus ■ To make a call using redial 1To make a call using redial 1. Go to the Phone menu screen. Press and hold the button to redial the last 2 Phone menu screen P. 278 number dialed in your phone’s history. 2.
Page 294 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Receiving a Call Receiving a Call Call Waiting When there is an incoming call, an audible Press the button to put the current call on hold notification sounds and the Incoming call to answer the incoming call. screen appears.
Page 295 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Receiving a Text/E-mail Message Receiving a Text/E-mail Message The system does not display any received messages HFL can display newly received text or e-mail messages as well as 20 of the most while you are driving. You can only hear them read recently received messages on a linked cell phone.
Page 296 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Selecting an E-mail Message Account Selecting an E-mail Message Account You can also select a mail account from the folder list If a paired phone has text or e-mail message accounts, you can select one of them screen or the message list screen.
Page 297 uuBluetooth® HandsFreeLink®uHFL Menus ■ 1Displaying Messages Displaying Messages icon appears next to an unread message. ■ Displaying text messages Message List 1. Go to the Phone menu screen. If you delete a message on the phone, the message is 2 Phone menu screen P. 278 also deleted in the system.
Page 298 uuBluetooth® HandsFreeLink®uHFL Menus ■ Displaying e-mail messages Folder List 1. Go to the Phone menu screen. 2 Phone menu screen P. 278 2. Select Text/Email. Select Select Account if necessary. 3. Select a folder. 4. Select a message. The e-mail message is displayed. The system automatically starts reading the message aloud.
Page 299 Complete appears on the screen when Only certain phones receive and send messages when the reply message was successfully sent. paired and connected. For a list of compatible phones: • U.S.: Visit www.handsfreelink.honda.com, or call 1-888-528-7876. • Canada: Visit www.handsfreelink.ca, or call 1-888-528-7876. Continued...
Page 300 uuBluetooth® HandsFreeLink®uHFL Menus ■ Making a call to a sender 1. Go to the text message screen. 2. Select Call.
Page 301 NEITHER HONDA NOR ITS SERVICE PROVIDERS GUARANTEE THAT SUCH NOTIFICATION WILL OCCUR. Honda reserves the right to terminate HondaLink Assist services at any time or for 1Automatic collision notification any reason, and in the future may not be able to provide services due to changes in,...
Page 302 uuBluetooth® HandsFreeLink®uHFL Menus ■ To enable notification 1To enable notification 1. Go to the Phone settings screen. Setting options: 2 Phone settings screen P. 275 • On: Notification is available. • 2. Select Phone tab, then HondaLink Assist. Off: Disable the feature. A pop-up menu appears on the screen.
Page 303: Driving
Driving This chapter discusses driving, refueling, and information on items such as accessories. Before Driving Braking Continuously variable transmission models Driving Preparation ......302 Brake System........340 with paddle shifters Anti-lock Brake System (ABS)....342 Maximum Load Limit......305 Shifting..........321 Brake Assist System ......343 Towing a Trailer Manual transmission models Parking Your Vehicle...
Page 304: Before Driving Driving Preparation
Before Driving Driving Preparation Check the following items before you start driving. ■ 1Exterior Checks Exterior Checks NOTICE • Make sure there are no obstructions on the windows, door mirrors, exterior When doors are frozen shut, use warm water around lights, or other parts of the vehicle.
Page 305 uuBefore DrivinguDriving Preparation ■ 1Interior Checks Interior Checks The headlight aim is set by the factory, and does not • Store or secure all items on board properly. need to be adjusted. However, if you regularly carry Carrying too much cargo, or improperly storing it, can affect your vehicle’s heavy items in the cargo area, have the aiming handling, stability, stopping distance, and tires, and make it unsafe.
Page 306 uuBefore DrivinguDriving Preparation • Be sure items placed on the floor behind the front seats cannot roll under the seats. They can interfere with the driver’s ability to operate the pedals, the operation of the seats, or the operation of the sensors under the seats. •...
Page 307: Maximum Load Limit
uuBefore DrivinguMaximum Load Limit Maximum Load Limit The maximum load for your vehicle is 850 lbs (385 kg). 1Maximum Load Limit See the Tire and Loading Information label attached to the driver’s doorjamb. WARNING Overloading or improper loading Label Example can affect handling and stability and cause a crash in which you can be hurt or killed.
Page 308 uuBefore DrivinguMaximum Load Limit (5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in step 4. (6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle.
Page 309: Towing A Trailer
Towing a Trailer Your vehicle is not designed to tow a trailer. Attempting to do so can void your warranties.
Page 310: Towing Your Vehicle
uuTowing a TraileruTowing Your Vehicle Towing Your Vehicle Continuously variable transmission models 1Towing Your Vehicle Your vehicle is not designed to be towed behind a motorhome. If your vehicle needs Do not exceed 65 mph (100 km/h). to be towed in an emergency, refer to the emergency towing information. Consult your towing parts sales or rental agency if 2 Emergency Towing P.
Page 311: Models Without Smart Entry System
uuTowing a TraileruTowing Your Vehicle ■ Extended Towing 1Towing Your Vehicle If you tow more than eight hours in one day, you should repeat the “before towing Make sure to reinstall the fuses before you start your vehicle procedure” at least every eight hours. driving your vehicle.
Page 312 uuTowing a TraileruTowing Your Vehicle Models with smart entry system Interior Fuse Box 1. Remove the 20 A accessory power socket and 7.5 A ACC fuses. These fuses are located in the interior fuse box. 2 Interior Fuse Boxes P. 425 2.
Page 313: When Driving
When Driving Models without smart entry system Starting the Engine 1Starting the Engine 1. Make sure the parking brake is applied. Keep your foot firmly on the brake pedal when starting the engine. The engine is harder to start in cold weather and in thinner air found at altitudes above 8,000 feet (2,400 meters).
Page 314 uuWhen DrivinguStarting the Engine 3. Turn the ignition switch to START 1Starting the Engine without depressing the accelerator pedal. Do not hold the key in START for more than 10 seconds. • If the engine does not start right away, wait for at least 30 seconds before trying again.
Page 315: Models With Smart Entry System
uuWhen DrivinguStarting the Engine Models with smart entry system Starting the Engine 1Starting the Engine 1. Make sure the parking brake is applied. Keep your foot firmly on the brake pedal when starting the engine. The engine is harder to start in cold weather and in thinner air found at altitudes above 8,000 feet (2,400 meters).
Page 316 uuWhen DrivinguStarting the Engine 3. Press the ENGINE START/STOP button 1Starting the Engine without depressing the accelerator pedal. Bring the smart entry remote close to the ENGINE START/STOP button if the battery in the smart entry remote is weak. ENGINE START 2 If the Smart Entry Remote Battery is Weak P.
Page 317 uuWhen DrivinguStarting the Engine ■ Stopping the Engine You can turn the engine off when the vehicle is completely stopped. Continuously variable transmission models 1. Shift to 2. Press the ENGINE START/STOP button. Manual transmission models • If the shift lever is in N , press the ENGINE START/STOP button.
Page 318 uuWhen DrivinguStarting the Engine ■ Hill start assist system 1Hill start assist system Hill start assist keeps the brake engaged briefly to help prevent the vehicle from Hill start assist may not prevent the vehicle from rolling on inclines as you move your foot from the brake pedal to the accelerator. rolling downhill on a very steep or slippery slope, and does not operate on small inclines.
Page 319: Precautions While Driving
uuWhen DrivinguPrecautions While Driving Precautions While Driving ■ 1Precautions While Driving In Rain NOTICE Avoid driving in deep water and on flooded roads. This can damage the engine or Do not operate the shift lever while pressing the driveline, or cause electrical component failure. accelerator pedal.
Page 320: Continuously Variable Transmission
uuWhen DrivinguContinuously Variable Transmission ■ 1Precautions While Driving Other Precautions NOTICE If there is a strong impact with something under the vehicle, stop in a safe location. The following can damage the under spoiler: Check the underside of the vehicle for damage or any fluid leaks. •...
Page 321: Shifting
uuWhen DrivinguShifting Continuously variable transmission models without paddle shifters Shifting 1Shifting Change the shift position in accordance with your driving needs. You cannot turn the ignition switch to LOCK ■ Shift lever positions and remove the key unless the shift lever is in The vehicle may move forward very slightly even in while the engine is cold.
Page 322 uuWhen DrivinguShifting ■ 1Shift Lever Operation Shift Lever Operation NOTICE When you change the shift lever from Tachometer’s red zone vice versa, come to a complete stop and keep the brake pedal depressed. Operating the shift lever before the vehicle has come to a complete standstill can damage the transmission.
Page 323: Shifting
uuWhen DrivinguShifting Continuously variable transmission models with paddle shifters Shifting 1Shifting Change the shift position in accordance with your driving needs. You cannot turn the ignition switch to LOCK ■ Shift lever positions and remove the key unless the shift lever is in The vehicle may move forward very slightly even in while the engine is cold.
Page 324 uuWhen DrivinguShifting ■ 1Shift Lever Operation Shift Lever Operation NOTICE When you change the shift lever from Tachometer’s red zone vice versa, come to a complete stop and keep the brake pedal depressed. Operating the shift lever before the vehicle has come to a complete standstill can damage the transmission.
Page 325 uuWhen DrivinguShifting ■ 17-Speed Manual Shift Mode 7-Speed Manual Shift Mode To improve fuel economy, the transmission may shift Use the paddle shifters to change between 1st and 7th speeds without removing up to a higher speed than the seventh under certain your hands from the steering wheel.
Page 326 uuWhen DrivinguShifting ■ 17-Speed Manual Shift Mode Operation 7-Speed Manual Shift Mode Operation Each paddle shift operation makes a single speed change. Paddle Shifter To change continuously, release the paddle shifter Paddle Shifter (Shift up) (Shift down) before pulling it again for the next speed. Recommended Shift Points Use this table as a guideline for efficient fuel economy and effective emission control.
Page 327: Manual Transmission Models
uuWhen DrivinguShifting Manual transmission models Shifting 1Shifting ■ Shift Lever Operation NOTICE Do not shift to before the vehicle comes to a Fully depress the clutch pedal to operate the shift lever and change gears, then complete stop. slowly release the pedal. Shifting to before stopping can damage the transmission.
Page 328 uuWhen DrivinguShifting When you are not shifting, do not rest your 1Shifting foot on the clutch pedal. This can cause your Recommended Shift Points clutch to wear out faster. Driving in the highest gear that allows the engine to run and accelerate smoothly helps to optimize fuel economy and effective emissions control.
Page 329 uuWhen DrivinguShifting ■ Reverse Lockout The manual transmission has a lockout mechanism that stops you from accidentally shifting into R from a forward gear while the vehicle is moving above a certain speed. If you cannot shift to R when the vehicle is stopped, do the following: 1.
Page 330: Econ Button
uuWhen DrivinguECON Button ECON Button The ECON button turns the ECON mode on 1ECON Button and off. The ECON mode helps you improve While in ECON mode, the climate control system has your fuel economy by adjusting the greater temperature fluctuations. performance of the engine, transmission, heating and cooling system /climate control...
Page 331: Cruise Control
uuWhen DrivinguCruise Control Cruise Control Maintains a constant vehicle speed without having to keep your foot on the 1Cruise Control accelerator. Use cruise control on freeways or open roads where you can travel at a WARNING constant speed with little acceleration or deceleration. Improper use of the cruise control can lead When to use to a crash.
Page 332 uuWhen DrivinguCruise Control ■ To Set the Vehicle Speed -/SET Button Press and release On when cruise control begins Take your foot off the pedal and press the -/SET button when you reach the desired speed. The moment you release the -/SET button, the set speed is fixed, and cruise control begins.
Page 333 uuWhen DrivinguCruise Control ■ 1To Adjust the Vehicle Speed To Adjust the Vehicle Speed You can set the vehicle speed using the -/SET button Increase or decrease the vehicle speed using the RES/+ or -/SET buttons on the on the steering wheel when adjusting the speed with steering wheel.
Page 334: Vehicle Stability Assist (Vsa®), Aka Electronic
uuWhen DrivinguVehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System Vehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System 1Vehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System VSA® helps to stabilize the vehicle during cornering if the vehicle turns more or less The VSA®...
Page 335 uuWhen DrivinguVehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System ■ 1Vehicle Stability Assist (VSA®), aka Electronic Stability Control VSA® OFF Button (ESC), System This button is on the driver side control panel. With the button pressed, your vehicle will have VSA®...
Page 336: Lanewatch Tm
uuWhen DrivinguLaneWatch LaneWatch Is an assistance system that allows you to check the passenger side rear areas 1LaneWatch displayed on the audio/information screen when the turn signal is activated to the WARNING passenger’s side. A camera in the passenger side door mirror monitors these areas and allows you to check for vehicles, in addition to your visual check and use of the Failure to visually confirm that it is safe to passenger door mirror.
Page 337 uuWhen DrivinguLaneWatch ■ Customizing the LaneWatch settings 1LaneWatch You can customize the following items using the audio/information screen. The LaneWatch camera view is restricted. Its unique • Show with Turn Signal: Selects whether LaneWatch monitor comes on when lens makes objects on the screen look slightly different from what they are.
Page 338: Tire Pressure Monitoring System (Tpms)
uuWhen DrivinguTire Pressure Monitoring System (TPMS) U.S. models only Tire Pressure Monitoring System (TPMS) 1Tire Pressure Monitoring System (TPMS) Instead of directly measuring the pressure in each tire, the TPMS on this vehicle The system does not monitor the tires when driving monitors and compares the rolling radius and rotational characteristics of each at low speed.
Page 339 uuWhen DrivinguTire Pressure Monitoring System (TPMS) Press and hold the TPMS button until the low 1TPMS Calibration Low Tire Pressure/TPMS Indicator tire pressure/TPMS indicator blinks twice, • TPMS cannot be calibrated if a compact spare tire is indicating the calibration process has begun. installed.
Page 340: Tire Pressure Monitoring System (Tpms) - Required Federal Explanation
uuWhen DrivinguTire Pressure Monitoring System (TPMS) - Required Federal Explanation U.S. models Tire Pressure Monitoring System (TPMS) - Required Federal Explanation Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label.
Page 341 uuWhen DrivinguTire Pressure Monitoring System (TPMS) - Required Federal Explanation Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale.
Page 342: Braking
Braking Brake System ■ 1Parking Brake Parking Brake NOTICE Use the parking brake to keep the vehicle stationary when parking. Release the parking brake fully before driving. The To apply: rear brakes and axle can be damaged if you drive Pull the lever fully up without pressing the with the parking brake applied.
Page 343 uuBrakinguBrake System ■ 1Foot Brake Foot Brake Check the brakes after driving through deep water, Your vehicle is equipped with disc brakes at the front, and drum brakes in the rear or if there is a buildup of road surface water. If wheels.
Page 344: Anti-Lock Brake System (Abs)
uuBrakinguAnti-lock Brake System (ABS) Anti-lock Brake System (ABS) ■ 1Anti-lock Brake System (ABS) NOTICE Helps prevent the wheels from locking up, and helps you retain steering control by The ABS may not function correctly if you use an pumping the brakes rapidly, much faster than you. incorrect tire type and size.
Page 345: Brake Assist System
uuBrakinguBrake Assist System Brake Assist System ■ Brake Assist System Designed to assist the driver by generating greater braking force when you depress the brake pedal hard during emergency braking. ■ Brake assist system operation Press the brake pedal firmly for more powerful braking. When brake assist operates, the pedal may wiggle slightly and an operating noise may be heard.
Page 346: Parking Your Vehicle
Parking Your Vehicle When Stopped 1. Depress the brake pedal firmly. 1Parking Your Vehicle 2. Firmly apply the parking brake. Do not park your vehicle near flammable objects, such as dry grass, oil, or timber. Continuously variable transmission models Heat from the exhaust can cause a fire. 3.
Page 347: Multi-View Rear Camera
Multi-View Rear Camera Models with navigation system 1About Your Multi-View Rear Camera See the Navigation System Manual. The rear camera view is restricted. You cannot see the corner ends of the bumper or what is underneath the bumper. Its unique lens also makes objects Models without navigation system appear closer or farther than they actually are.
Page 348 uuMulti-View Rear CamerauAbout Your Multi-View Rear Camera You can view three different camera angles on the rearview display. Models with color audio system Press the LIST/SELECT (selector) knob to switch the angle. Models with display audio system Touch the appropriate icon to switch the angle. : Wide view : Normal view : Top down view...
Page 349: Fuel Information
NOT contain harmful manganese-based fuel additives such as MMT, if such gasoline is Because the level of detergency and additives in gasoline vary in the market, Honda available. endorses the use of “TOP TIER Detergent Gasoline” where available to help maintain the performance and reliability of your vehicle.
Page 350: How To Refuel
uuRefuelinguHow to Refuel How to Refuel 1. Stop your vehicle with the service station 1How to Refuel Fuel Fill Door pump on the left side of the vehicle in the Release Handle WARNING rear. 2. Turn off the engine. Gasoline is highly flammable and explosive. 3.
Page 351 uuRefuelinguHow to Refuel 4. Remove the fuel fill cap slowly. If you hear a 1How to Refuel release of air, wait until this stops, then turn The filler nozzle automatically stops to leave space in the knob slowly to open the fuel fill cap. the fuel tank so that fuel does not overflow as a result of changes in air temperature.
Page 352: Emissions
Fuel Economy and CO Emissions Improving Fuel Economy and Reducing CO Emissions Achieving fuel economy and reducing CO emissions is dependent on several 1Improving Fuel Economy and Reducing CO Emissions factors, including driving conditions, load weight, idling time, driving habits, and Direct calculation is the recommended method to vehicle condition.
Page 353: Accessories And Modifications
Honda Genuine accessories are recommended to ensure proper operation on your vehicle. Modifications Do not modify your vehicle or use non-Honda components that can affect its handling, stability, and reliability. Overall vehicle performance can be affected. Always make sure all equipment is properly installed and maintained, and that it meets federal, state, province, territory, and local regulations.
Page 355: Maintenance
Maintenance This chapter discusses basic maintenance. Before Performing Maintenance Engine Coolant ........ 368 Tire Service Life........ 389 Inspection and Maintenance .... 354 Transmission Fluid......370 Tire and Wheel Replacement ... 390 Safety When Performing Maintenance ..355 Brake Fluid........371 Tire Rotation........
Page 356: Before Performing Maintenance
2 Checking and Maintaining Tires P. 384 subscription to the Service Express website at • Check the operation of the exterior lights monthly. www.techinfo.honda.com. 2 Replacing Light Bulbs P. 373 2 Authorized Manuals P. 441 • Check the condition of the wiper blades at least every six months.
Page 357: Safety When Performing Maintenance
uuBefore Performing MaintenanceuSafety When Performing Maintenance Safety When Performing Maintenance Some of the most important safety precautions are given here. 1Safety When Performing Maintenance However, we cannot warn you of every conceivable hazard that can arise in WARNING performing maintenance. Only you can decide whether or not you should perform a given task.
Page 358: Parts And Fluids Used In Maintenance Service
Performing MaintenanceuParts and Fluids Used in Maintenance Service Parts and Fluids Used in Maintenance Service The use of Honda genuine parts and fluids is recommended when maintaining and servicing your vehicle. Honda genuine parts are manufactured according to the...
Page 359: Maintenance Minder
Maintenance Minder If the engine oil life is less than 15%, you will see the Maintenance Minder messages appear on the information display every time you turn the ignition switch to ON . The messages notify you when to change the engine oil, or when to bring your vehicle to a dealer for indicated maintenance services.
Page 360 uuMaintenance Minder uTo Use Maintenance Minder ■ Maintenance Minder Messages on the Information Display To switch the display, press the (select/reset) knob. Oil Life Display Explanation Information Maintenance Minder Indicator The engine oil life indicator starts The engine oil is approaching the end of its service life.
Page 361 uuMaintenance Minder uTo Use Maintenance Minder ■ 1Maintenance Service Items Maintenance Service Items • Independent of the Maintenance Minder information, replace the brake fluid every 3 years. • Maintenance Minder Message Inspect idle speed every 160,000 miles (256,000 Maintenance km). Minder Indicator Main Item •...
Page 362 uuMaintenance Minder uTo Use Maintenance Minder ■ 1Resetting the Display Resetting the Display NOTICE Reset the engine oil life display if you have performed the maintenance service. Failure to reset the engine oil life after a maintenance 1. Turn the ignition switch to ON service results in the system showing incorrect 2.
Page 363: Maintenance Under The Hood
Maintenance Under the Hood Maintenance Items Under the Hood Engine Oil Fill Cap Brake Fluid (Black Cap) Engine Oil Dipstick (Orange) Battery Washer Fluid (Blue Cap) Engine Coolant Reserve Tank Radiator Cap...
Page 364: Opening The Hood
uuMaintenance Under the HooduOpening the Hood Opening the Hood 1. Park the vehicle on a level surface, and set 1Opening the Hood Hood Release Handle the parking brake. NOTICE 2. Pull the hood release handle under the Do not open the hood when the wiper arms are lower left corner of the dashboard.
Page 365: Recommended Engine Oil
This seal indicates the oil is energy conserving and that it meets the American Petroleum Institute’s latest requirements. Use a Genuine Honda Motor Oil or another commercial engine oil of suitable viscosity for the ambient temperature as shown. 0W-20 Ambient Temperature ■...
Page 366: Oil Check
uuMaintenance Under the HooduOil Check Oil Check We recommend that you check the engine oil level every time you refuel. 1Oil Check Park the vehicle on level ground. If the oil level is near or below the lower mark, slowly Wait approximately three minutes after turning the engine off before you check the add oil being careful not to overfill.
Page 367: Adding Engine Oil
uuMaintenance Under the HooduAdding Engine Oil Adding Engine Oil 1. Unscrew and remove the engine oil fill cap. 1Adding Engine Oil 2. Add oil slowly. If any oil spills, wipe it up immediately. Spilled oil may 3. Reinstall the engine oil fill cap, and tighten damage the engine compartment components.
Page 368: Changing The Engine Oil And Oil Filter
uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter Changing the Engine Oil and Oil Filter You must change the engine oil and oil filter regularly in order to maintain the 1Changing the Engine Oil and Oil Filter engine’s lubrication. The engine may be damaged if they are not changed regularly. NOTICE You may damage the environment if you do not Change the oil and filter in accordance with the Maintenance Minder message on...
Page 369 uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter 5. Remove the oil filter and dispose of the 1Changing the Engine Oil and Oil Filter remaining oil. You will need a special wrench to replace the oil 6. Check that the filter gasket is not stuck to filter.
Page 370: Engine Coolant
Specified coolant: Honda Long Life Antifreeze/Coolant Type 2 NOTICE This coolant is premixed with 50% antifreeze and 50% water. Do not add any Genuine Honda engine coolant is a 50/50 mixture of straight antifreeze or water. antifreeze and water that can withstand freezing at temperatures as low as about -31°F (-35°C).
Page 371 uuMaintenance Under the HooduEngine Coolant ■ 1Radiator Radiator WARNING 1. Make sure the engine and radiator are Radiator Cap cool. Removing the radiator cap while the 2. Turn the radiator cap counter-clockwise engine is hot can cause the coolant to spray and relieve any pressure in the cooling out, seriously scalding you.
Page 372: Transmission Fluid
Manual transmission models ■ 1Manual Transmission Fluid Manual Transmission Fluid If Honda MTF is not available, you may use the API Specified fluid: Honda Manual Transmission Fluid (MTF) certificated SAE 0 W-20 or 5 W-20 viscosity motor oil as a temporary measure.
Page 373: Brake Fluid
Under the HooduBrake Fluid Brake Fluid 1Brake Fluid Specified fluid: Honda Heavy Duty Brake Fluid DOT 3 NOTICE ■ Checking the Brake Fluid Brake fluid marked DOT 5 is not compatible with your vehicle’s braking system and can cause extensive The fluid level should be between the MIN damage.
Page 374: Refilling Window Washer Fluid
uuMaintenance Under the HooduRefilling Window Washer Fluid Refilling Window Washer Fluid Models without washer level sensor 1Refilling Window Washer Fluid Window Washer Check the amount of window washer fluid by Reservoir NOTICE looking at the reservoir. Do not use engine antifreeze or a vinegar/water If the level is low, fill the washer reservoir.
Page 375: Replacing Light Bulbs
Replacing Light Bulbs Headlight Bulbs When replacing, use the following bulbs. 1Headlight Bulbs High/Low beam headlight: 60/55 W (H4LL/HB2LL , H4/HB2 for halogen NOTICE bulb type) Halogen bulbs get very hot when lit. Oil, perspiration, or a scratch on the glass can cause ■...
Page 376 uuReplacing Light BulbsuFront Turn Signal/Parking Light Bulbs 5. Reinstall the hold-down wire. Hook the end Hold-Down Wire of the wire on the knob in the slot. You can see if the hold-down wire is in the right place from the inspection window.
Page 377 uuReplacing Light BulbsuSide Marker Light Bulbs Side Marker Light Bulbs When replacing, use the following bulbs. Side Marker Light: 3CP 1. Turn the socket counter-clockwise and remove it. 2. Remove the old bulb and insert a new bulb. Socket Bulb Fog Light Bulbs 1Fog Light Bulbs NOTICE...
Page 378 6. Insert the coupler into the connector of the bulb. Side Turn Signal/Emergency Indicator Lights Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect and replace the light assembly. * Not available on all models...
Page 379 uuReplacing Light BulbsuBack-Up Light and Rear Turn Signal Light Bulbs Back-Up Light and Rear Turn Signal Light Bulbs When replacing, use the following bulbs. Back-Up Light: 21 W Rear Turn Signal Light: 21 W 1. Use a Phillips-head screwdriver to remove the bolts.
Page 380 Brake/Tail/Rear Side Marker Lights Brake/tail/rear side marker lights are LED type. Have an authorized Honda dealer inspect and replace the light assembly. High-Mount Brake Light High-mount brake light is LED type. Have an authorized Honda dealer inspect and replace the light assembly.
Page 381 uuReplacing Light BulbsuRear License Plate Light Bulbs Rear License Plate Light Bulbs When replacing, use the following bulb. Rear License Plate Light: 5 W 1. Push the lens on the left and pull out the lens and the socket attached to it. Lens 2.
Page 382: Checking And Maintaining Wiper Blades
Checking and Maintaining Wiper Blades Checking Wiper Blades If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces of the blade may scratch the window glass. Changing the Front Wiper Blade Rubber 1Changing the Front Wiper Blade Rubber 1.
Page 383: Blades
uuChecking and Maintaining Wiper BladesuChanging the Front Wiper Blade Rubber 3. Slide the wiper blade out from its holder by pulling the tabbed end out. Blade 4. Slide the new wiper blade onto the holder from the bottom end. The tab on the blade should fit in the indent of the top of the wiper holder.
Page 384 uuChecking and Maintaining Wiper BladesuChanging the Rear Wiper Blade Rubber Changing the Rear Wiper Blade Rubber 1. Raise the wiper arm off. 1Changing the Rear Wiper Blade Rubber 2. Pivot up the bottom end of the wiper blade NOTICE until it comes off from the wiper arm. Avoid dropping the wiper blade;...
Page 385 uuChecking and Maintaining Wiper BladesuChanging the Rear Wiper Blade Rubber 4. Remove the retainers from the rubber blade Retainers that has been removed, and mount to a new rubber blade. 5. Slide the wiper blade onto the holder. Make sure it is engaged correctly, then Holder install the wiper blade assembly onto the wiper arm.
Page 386: Checking And Maintaining Tires
Checking and Maintaining Tires Checking Tires To safely operate your vehicle, your tires must be of the proper type and size, in 1Checking Tires good condition with adequate tread, and properly inflated. WARNING ■ Inflation guidelines Using tires that are excessively worn or Properly inflated tires provide the best combination of handling, tread life, and comfort.
Page 387: Tire And Loading Information Label
uuChecking and Maintaining TiresuTire and Loading Information Label Tire and Loading Information Label The label attached to the driver’s doorjamb provides necessary tire and loading 1Tire and Loading Information Label information. The tire and loading information label attached to the driver’s doorjamb contains: The number of people your vehicle can carry.
Page 388 uuChecking and Maintaining TiresuTire Labeling ■ 1Tire Identification Number (TIN) Tire Identification Number (TIN) DOT B97R FW6X 2209 The tire identification number (TIN) is a group of numbers and letters that look like DOT: This indicates that the tire meets all the example in the side column.
Page 389: Dot Tire Quality Grading (U.s. Vehicles)
uuChecking and Maintaining TiresuDOT Tire Quality Grading (U.S. Vehicles) DOT Tire Quality Grading (U.S. Vehicles) The tires on your vehicle meet all U.S. Federal Safety Requirements. All tires are also graded for treadwear, traction, and temperature performance according to Department of Transportation (DOT) standards.
Page 390 uuChecking and Maintaining TiresuDOT Tire Quality Grading (U.S. Vehicles) ■ 1Traction Traction Warning: The traction grade The traction grades, from highest to lowest, are AA, A, B, and C. assigned to this tire is based on Those grades represent the tire’s ability to stop on wet pavement straight-ahead braking traction tests, as measured under controlled conditions on specified and does not include acceleration,...
Page 391: Wear Indicators
uuChecking and Maintaining TiresuWear Indicators Wear Indicators The groove where the wear indicator is located is 1/16 inch (1.6 mm) shallower than Example of a Wear Indicator mark elsewhere on the tire. If the tread has worn so that the indicator is exposed, replace the tire. Worn out tires have poor traction on wet roads.
Page 392: Tire And Wheel Replacement
uuChecking and Maintaining TiresuTire and Wheel Replacement Tire and Wheel Replacement Replace your tires with radials of the same size, load range, speed rating, and 1Tire and Wheel Replacement maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a WARNING different size or construction can cause the ABS, vehicle stability assist (VSA®) system and hill start assist to work incorrectly.
Page 393: Tire Rotation
uuChecking and Maintaining TiresuTire Rotation Tire Rotation Rotating tires according to the Maintenance Minder message on the information 1Tire Rotation display helps to distribute wear more evenly and increase tire life. Tires with directional tread patterns should only be rotated front to back (not from one side to the other). ■...
Page 394: Winter Tires
uuChecking and Maintaining TiresuWinter Tires Winter Tires If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires, 1Winter Tires or tire chains; reduce speed; and maintain sufficient distance between vehicles when WARNING driving. Using the wrong chains, or not properly Be particularly careful when operating the steering wheel or brakes to prevent installing chains, can damage the brake skidding.
Page 395: Battery
Battery Checking the Battery The battery condition is being monitored by the sensor on the negative terminal. If 1Battery there is a problem with the sensor, the warning message on the information display WARNING will let you know. Have your vehicle checked by a dealer. The battery gives off explosive hydrogen Check the battery terminals for corrosion monthly.
Page 396 uuBatteryuCharging the Battery Charging the Battery Disconnect both battery cables to prevent damaging your vehicle’s electrical system. 1Battery Always disconnect the negative (–) cable first, and reconnect it last. When you find corrosion, clean the battery terminals by applying a baking powder and water solution. Clean terminals with a damp towel.
Page 397: Remote Transmitter Care
Remote Transmitter Care Replacing the Button Battery If the indicator does not come on when the button is pressed, replace the battery. 1Replacing the Button Battery NOTICE ■ Keys with Remote Transmitter An improperly disposed of battery can damage the environment.
Page 398 uuRemote Transmitter CareuReplacing the Button Battery ■ Smart Entry Remote Battery type: CR2032 1. Remove the built-in key. 2. Remove the upper half of the cover by carefully prying on the edge with a coin. Remove carefully to avoid losing the Battery buttons.
Page 399: Heating And Cooling System /Climate Control System Maintenance
Heating and Cooling System /Climate Control System Maintenance Dust and Pollen Filter The heating and cooling system /climate control system is equipped with a dust 1Dust and Pollen Filter and pollen filter that collects pollen, dust, and other debris in the air. The If the airflow from the heating and cooling system Maintenance Minder messages will let you know when to replace the filter.
Page 400: Cleaning
Cleaning Interior Care Use a damp cloth with a mixture of mild detergent and warm water to remove dirt. 1Interior Care Use a clean cloth to remove detergent residue. Do not spill liquids inside the vehicle. Electrical devices and systems may malfunction if ■...
Page 401 uuCleaninguInterior Care ■ 1Floor Mats Floor Mats If you use any floor mats that were not originally The driver’s floor mat hooks over the floor provided with your vehicle, make sure they are anchors, which keep the mat from sliding designed for your specific vehicle, fit correctly, and forward.
Page 402: Exterior Care
uuCleaninguExterior Care Exterior Care Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches on painted surfaces. A scratch on a painted surface can result in body rust. If you find a scratch, promptly repair it. ■...
Page 403 uuCleaninguExterior Care ■ 1Applying Wax Applying Wax NOTICE A good coat of automotive body wax helps protect your vehicle’s paint from the Chemical solvents and strong cleaners can damage elements. Wax will wear off over time and expose your vehicle’s paint to the the paint, metal, and plastic on your vehicle.
Page 404 uuCleaninguExterior Care ■ Fogged Exterior Light Lens The inside lenses of exterior lights (headlights, brake lights etc.) may fog temporarily if you have driven in the rain, or after the vehicle has been run through a car wash. Dew condensation also may build up inside the lenses when there is a significant enough difference between the ambient and inside lens temperatures (similar to vehicle windows fogging up in rainy conditions).
Page 405: Handling The Unexpected
Handling the Unexpected This chapter explains how to handle unexpected troubles. Tools Indicator, Coming On/Blinking If the Low Tire Pressure/TPMS Indicator Types of Tools ........404 If the Low Oil Pressure Indicator Comes Comes On or Blinks ....... 422 On..........419 If a Tire Goes Flat Fuses Changing a Flat Tire ......
Page 406: Tools
Tools Types of Tools 1Types of Tools Tool Case Jack The tools are stored in the cargo area. Wheel Nut Wrench/ Detachable Towing Hook Jack Handle Jack Jack Handle Bar...
Page 407: If A Tire Goes Flat
If a Tire Goes Flat Changing a Flat Tire If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually 1Changing a Flat Tire to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact Periodically check the tire pressure of the compact spare tire.
Page 408 uuIf a Tire Goes FlatuChanging a Flat Tire ■ Getting Ready to Replace the Flat Tire 1. Open the cargo area floor lid. Floor Lid 2. Take the tool case out of the cargo area. Spare Tire Take the wheel nut wrench, jack handle bar Jack and jack out of the tool case.
Page 409 uuIf a Tire Goes FlatuChanging a Flat Tire 5. Place the compact spare tire (wheel side up) under the vehicle body, near the tire that needs to be replaced. Models with wheel cover Jack Handle Bar 6. Put the flat tip of the jack handle bar into the edge of the wheel cover.
Page 410 uuIf a Tire Goes FlatuChanging a Flat Tire ■ 1How to Set Up the Jack How to Set Up the Jack WARNING 1. Place the jack under the jacking point closest to the tire to be changed. The vehicle can easily roll off the jack, seriously injuring anyone underneath.
Page 411 uuIf a Tire Goes FlatuChanging a Flat Tire ■ 1Replacing the Flat Tire Replacing the Flat Tire Do not over tighten the wheel nuts by applying extra 1. Remove the wheel nuts and flat tire. torque using your foot or a pipe. Wheel Models with wheel cover Make sure the wire support ring is hooked into the...
Page 412 uuIf a Tire Goes FlatuChanging a Flat Tire ■ Storing the Flat Tire 1Storing the Flat Tire WARNING Models with aluminum wheels Wing Bolt For full-size 1. Remove the center cap. Spacer tire Loose items can fly around the interior in a Cone All models crash and can seriously injure the...
Page 413: Engine Does Not Start
Engine Does Not Start Checking the Engine If the engine does not start, check the starter. 1Checking the Engine If you must start the vehicle immediately, use an assisting vehicle to jump start it. 2 Jump Starting P. 414 Starter condition Checklist Starter doesn’t turn or turns Check the brightness of the interior lights.
Page 414: If The Smart Entry Remote Battery Is Weak
uuEngine Does Not StartuIf the Smart Entry Remote Battery is Weak Models with smart entry system If the Smart Entry Remote Battery is Weak If the beeper sounds, the indicator on the ENGINE START/STOP button flashes, and the engine won’t start. Start the engine as follows.
Page 415: Emergency Engine Stop
uuEngine Does Not StartuEmergency Engine Stop Models with smart entry system Emergency Engine Stop The ENGINE START/STOP button may be used to stop the engine due to an 1Emergency Engine Stop emergency situation even while driving. If you must stop the engine, do either of the Do not press the button while driving unless it is following operations: absolutely necessary for the engine to be switched...
Page 416: Jump Starting
Jump Starting ■ 1Jump Starting Jump Starting Procedure WARNING Turn off the power to electric devices, such as audio and lights. Turn off the engine, then open the hood. A battery can explode if you do not follow 1. Connect the first jumper cable to your the correct procedure, seriously injuring vehicle’s battery + terminal.
Page 417 uuJump Startingu ■ What to Do After the Engine Starts Once your vehicle’s engine has started, remove the jumper cables in the following order. 1. Disconnect the jumper cable from your vehicle’s stud bolt. 2. Disconnect the other end of the jumper cable from the booster battery - terminal.
Page 418: Shift Lever Does Not Move
Shift Lever Does Not Move Continuously variable transmission models Follow the procedure below if you cannot move the shift lever out of the position. ■ Releasing the Lock 1. Set the parking brake. Slot Models without smart entry system 2. Remove the key from the ignition switch. Models with smart entry system 2.
Page 419: Overheating
Overheating How to Handle Overheating Overheating symptoms are as follows: 1How to Handle Overheating • The high temperature indicator (red) comes on or the engine suddenly loses WARNING power. • Steam or spray comes out of the engine compartment. Steam and spray from an overheated engine can seriously scald you.
Page 420 uuOverheatinguHow to Handle Overheating ■ Next thing to do 1How to Handle Overheating 1. Check that the cooling fan is operating and WARNING stop the engine once the high temperature indicator goes off. Removing the radiator cap while the If the cooling fan is not operating, engine is hot can cause the coolant to spray immediately stop the engine.
Page 421: Indicator, Coming On/Blinking
Indicator, Coming On/Blinking If the Low Oil Pressure Indicator Comes On ■ Reasons for the indicator to come on 1If the Low Oil Pressure Indicator Comes On Comes on when the engine oil pressure is low. NOTICE ■ What to do as soon as the indicator comes on Running the engine with low oil pressure can cause 1.
Page 422: If The Malfunction Indicator Lamp Comes On Or Blinks
uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks If the Malfunction Indicator Lamp Comes On or Blinks 1If the Malfunction Indicator Lamp Comes On or Blinks ■ Reasons for the indicator lamp to come on or blink NOTICE •...
Page 423: If The Brake System Indicator (Red) Comes
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On If the Brake System Indicator (Red) Comes On ■ Reasons for the indicator to come on 1If the Brake System Indicator (Red) Comes On U.S. • The brake fluid is low. Have your vehicle repaired immediately.
Page 424: If The Low Tire Pressure/Tpms Indicator Comes On Or Blinks
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks U.S. models If the Low Tire Pressure/TPMS Indicator Comes On or 1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks Blinks NOTICE ■ Driving on an extremely underinflated tire can cause Reasons for the indicator to come on or blink it to overheat.
Page 425: Fuses
Fuses Fuse Locations ■ If any electrical devices are not working, Circuit protected and fuse rating turn the ignition switch to LOCK Circuit Protected Amps Circuit Protected Amps check to see if any applicable fuse is blown. Headlight Low Beam Main 20 A Back Up Main 15 A...
Page 426 uuFusesuFuse Locations ■ ■ Fuse box B Pull up the cover on the + terminal, then Circuit protected and fuse rating remove it while pulling out the tab as Circuit Protected Amps shown. Battery Main 100 A Replacement of engine compartment fuses RB Main 1 70 A should be done by a dealer.
Page 427 uuFusesuFuse Locations ■ Circuit protected and fuse rating ■ Interior Fuse Boxes Circuit Protected Amps Circuit Protected Amps ■ Fuse box A Door Lock (20 A) – – – – Washer 15 A Smart (10 A) Rear Wiper (10 A) Driver Side Door Unlock 15 A 7.5 A...
Page 428 uuFusesuFuse Locations ■ ■ Fuse box B Circuit protected and fuse rating Circuit Protected Amps Circuit Protected Amps 70 A Heater 30 A 30 A IG Main 2 30 A IG Main 50 A – – Fuse Box Main 2 50 A ABS/VSA FSR 30 A...
Page 429: Inspecting And Changing Fuses
uuFusesuInspecting and Changing Fuses Inspecting and Changing Fuses 1. Turn the ignition switch to LOCK . Turn 1Inspecting and Changing Fuses headlights and all accessories off. NOTICE 2. Check the fuses on the battery in the Replacing a fuse with one that has a higher rating engine compartment.
Page 430: Emergency Towing
Emergency Towing Call a professional towing service if you need to tow your vehicle. 1Emergency Towing NOTICE ■ Flat bed equipment Trying to lift or tow your vehicle by the bumpers will The operator loads your vehicle on the back of a truck. cause serious damage.
Page 431: When You Cannot Open The Tailgate
When You Cannot Open the Tailgate ■ 1When You Cannot Open the Tailgate What to Do When Unable to Open the Tailgate After taking these steps, contact a dealer to have If you cannot open the tailgate, use the following procedure. your vehicle checked.
Page 432 uuWhen You Cannot Open the Tailgateu Models without smart entry system 2. Slide the lever to unlock the tailgate. 3. Open the tailgate. Lever...
Page 433: Information
Information This chapter includes your vehicle’s specifications, locations of identification numbers, and other information required by regulation. Specifications ........432 Emissions Testing Identification Numbers Testing of Readiness Codes....437 Vehicle Identification Number (VIN), Warranty Coverages ......439 Engine Number and Transmission Authorized Manuals......
Page 434: Specifications
Specifications ■ ■ Vehicle Specifications Engine Specifications Gross Axle Weight U.S.: 1,825 lbs (828 kg) Model Displacement 91.4 cu-in (1,498 cm Rating (Front) 1,858 lbs (843 kg) No. of Passengers: DILZKAR7C11S Spark Plugs 1,867 lbs (847 kg) Front DENSO DXE22HCR11S 1,869 lbs (848 kg) ■...
Page 435 ■ ■ ■ Brake Fluid Engine Oil Tire Specified Honda Heavy Duty Brake Fluid DOT 3 ·Genuine Honda Motor Oil 0W-20 185/60R15 84T Recommended Size ·API Premium-grade 0W-20 detergent oil 185/55R16 83H ■ Continuously Variable Transmission Change 3.3 US qt (3.1 L)
Page 436: Identification Numbers
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission Number Your vehicle has a 17-digit vehicle identification number (VIN) used to register your 1Vehicle Identification Number (VIN), Engine Number and vehicle for warranty purposes, and for licensing and insuring your vehicle. Transmission Number The locations of your vehicle's VIN, engine number and transmission number are The interior vehicle identification number (VIN) is...
Page 437: Devices That Emit Radio Waves
Devices that Emit Radio Waves The following products and systems on your vehicle emit radio waves when in operation. Audio System Bluetooth® Audio Bluetooth® HandsFreeLink® Immobilizer System Smart Entry System Remote Transmitter Each of the above complies with the appropriate requirements or the required standards of FCC (Federal Communications Commission) and Industry Canada Standard, described below: As required by the FCC:...
Page 438: Reporting Safety Defects
However, Transport Canada cannot become involved in individual problems between you, your dealer, or Honda Canada Inc. To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/...
Page 439: Emissions Testing
Emissions Testing Testing of Readiness Codes Your vehicle has readiness code as part of the onboard self diagnostic system. Some 1Testing of Readiness Codes states use these codes for testing to verify whether your vehicle’s emissions The readiness codes are erased when the battery is components are working properly.
Page 440 uuEmissions TestinguTesting of Readiness Codes 7. Select a nearby, lightly traveled major highway where you can maintain a speed of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in D (automatic) or 6MT (manual). Do not use cruise control. When traffic allows, drive for 90 seconds without moving the accelerator pedal.
Page 441: Warranty Coverages
Rust Perforation Limited Warranty – all exterior body panels are covered for rust-through from the inside for the specified time period with no mileage limit. Accessory Limited Warranty – Honda accessories are covered under this warranty. Time and mileage limits depend on the type of accessory and other factors.
Page 442 Replacement Muffler Lifetime Limited Warranty – provides coverage for as long as the purchaser of the muffler owns the vehicle. Restrictions and exclusions apply to all these warranties. Please read the Honda warranty information booklet that came with your vehicle for precise information on warranty coverages.
Page 443: Authorized Manuals
■ Service Express For electronic copies of service publications, you can purchase a subscription to Service Express. Visit www.techinfo.honda.com for pricing and options. ■ For U.S. Owners Manuals be purchased from Helm Incorporated. You can order a manual by phone at (800) 782-4356 (credit card orders only), or online at www.helminc.com.
Page 444: Customer Service Information
Vehicle Identification Number 2 Vehicle Identification Number (VIN), dealership’s service manager or general manager. If you are dissatisfied with the Engine Number and Transmission decision made by the dealership’s management, contact Honda Customer Services. Number P. 434 • Date of purchase •...
Page 445 Pandora internet radio is a music service • Android devices must be connected to not affiliated with HONDA. More the vehicle via Bluetooth, iPhone® devices information is available at http:// may be connected via Bluetooth or USB.
Page 447: Index
Index Index Numbers Heating ........... 155 Authorized Manuals ........ 441 Heating and Cooling System....154 Auto Door Locking/Unlocking....103 7-Speed Manual Shift Mode ....323 Air Pressure ........385, 433 Customize..........104 Airbags ............41 Automatic Climate Control Sensors ..160 Advanced Airbags ........
Page 448 Fog Lights..........375 Cleaning the Interior........ 398 Headlights ..........373 Climate Control System......157 Daytime Running Lights ......125 High-Mount Brake Light ......378 Clock............88 Dead Battery ..........414 Rear License Plate Light......379 Coat Hook..........150 Defrosting the Windshield Side Turn Signal/Emergency Indicator Compact Spare Tire ......
Page 449 Exterior Care (Cleaning) ......400 Fuel Fill Cap ........21, 349 Exterior Mirrors ........131 Message..........420 ECON Button ..........328 Fuel Fill Door ........21, 348 ECON Mode Indicator........ 78 Fuses............423 Electric Power Steering (EPS) System Inspecting and Changing......427 Indicator ...........
Page 450 Head Restraints......... 139 CRUISE MAIN ........79, 329 Information Display ........83 Headlights ..........121 Door and Tailgate Open ...... 31, 75 Instrument Panel........69 Aiming ............ 373 ECON Mode........78, 328 Brightness Control ........128 Dimming ......... 121, 125 EPS (Electric Power Steering) Interior Lights...........
Page 451 High-Beam Indicator ......... 77 Oil ............364 Interior............ 144 Precautions..........355 Odometer ........... 84 Light Switches......... 121 Radiator ..........369 Oil (Engine)..........363 Lights On Indicator........77 Remote Transmitter ......... 395 Adding............ 365 Turn Signals ..........121 Replacing Light Bulbs....... 373 Checking..........
Page 452 Pregnant Women ........39 Setting the Clock........88 Puncture (Tire) .......... 405 Shift Lever ......20, 319, 321, 325 Safe Driving ..........27 Shift Position Indicator ....72, 320, 322 Safety Check ..........31 Shifting (Transmission) .... 319, 321, 325 Safety Labels..........
Page 453 Transmission ......319, 321, 325 7-Speed Manual Shift Mode ....323 Tachometer ..........82 Vanity Mirrors..........7 Continuously Variable......318 Tailgate............. 107 Vehicle Identification Number (VIN)..434 Fluid ............370 Temperature Vehicle Stability Assist (VSA®)....332 Manual............ 325 High Temperature Indicator ...... 74 Off Button..........
Page 454 Snow Tires..........392 Tire Chains ..........392 Wipers and Washers ......... 126 Checking and Replacing Wiper Blades........... 380, 382 WMA ......... 178, 184, 209 Worn Tires......... 384, 389...

Honda FIT 2017 Owner's Manual

Particular Model.

Safe Driving

Instrument Panel

Controls

Features

Driving

Maintenance

Handling the Unexpected

Quick Links

Chapters

Related Manuals for Honda FIT 2017

Summary of Contents for Honda FIT 2017
