OVE 2020-06-12
INSTALLATION MANUAL - SHOWER ENCLOSURE
MANUEL D'INSTALLATION - CABINE DE DOUCHE
MANUAL DE INSTALACIÓN - PUERTA DE DUCHA
Questions, problems, need help?
Call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday
Questions, problèmes ou besoin d'aide?
Contactez notre service à la clientèle au
1-866-839-2888, du lundi au vendredi de 9h00 à 17h00 HNE.
Preguntas, problemas o necesita ayuda?
Llame a nuestro departamento de servicio al cliente al
1-866-839-2888, 9 am. – 5 pm., HDE, Lunes a Viernes.

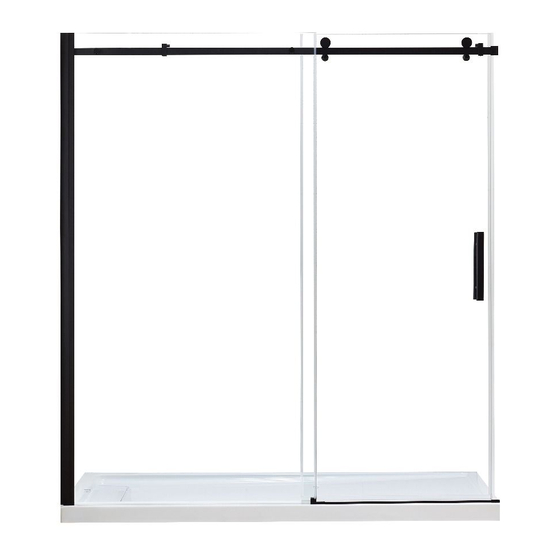

KELSEY 72
PAGE 1
Advertisement
Table of Contents
Related Manuals for OVE KELSEY 72
Summary of Contents for OVE KELSEY 72
- Page 1 KELSEY 72 INSTALLATION MANUAL - SHOWER ENCLOSURE MANUEL D’INSTALLATION - CABINE DE DOUCHE MANUAL DE INSTALACIÓN - PUERTA DE DUCHA Questions, problems, need help? Call our customer service department at 1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday Questions, problèmes ou besoin d’aide?
- Page 2 DO NOT START WITH THIS INSTALLATION MANUAL 1) FIRST, INSTALL YOUR SHOWER BASE (AN INSTALLATION MANUAL CAN BE FOUND IN THE SHOWER BASE PACKAGE). 2) SECOND, INSTALL YOUR SHOWER SIDE PANEL, IF APPLICABLE (AN INSTALLATION MANUAL CAN BE FOUND IN THE SIDE PANEL PACKAGE). 3) THIRD, INSTALL YOUR SHOWER ENCLOSURE (USING THIS MANUAL).
-
Page 3: Table Of Contents
TABLE OF CONTENT TABLE DES MATIÈRES TABLA DE CONTENIDOS WALL-TO-WALL DIMENSIONS ............14 TABLE OF CONTENT ................3 TABLE DES MATIÈRES ................3 MESURES MUR-À-MUR ................14 MEDIDAS DE PARED-A-PARED .............14 TABLA DE CONTENIDOS ................3 SAFETY INFORMATION ................4 WALL TRACK INSTALLATION ..............15 INSTALLATION DE LA GLISSIÈRE ............15 INFORMATION SUR LA SÉCURITÉ... -
Page 4: Safety Information
SAFETY INFORMATION INFORMATION SUR LA SÉCURITÉ INFORMACIÓN DE SEGURIDAD CAUTION Please carefully read the following important safety information before handling or installing this shower. There is a risk of serious injury while handling this product. To minimize these risks, please note: •... -
Page 5: Safety Notice
SAFETY NOTICE AVIS DE SÉCURITÉ AVISOS DE SEGURIDAD NOTICE • Any modification or alteration from what is specified in this instruction manual will void any and all warranty on this product. • The distributor is not responsible for any damage to the unit or personal property caused by improper installation. If you disregard instructional warnings, you will void your warranty and possibly deal with water damage. -
Page 6: Package Content
PACKAGE CONTENT CONTENU DE L’EMBALLAGE CONTENIDO DEL PAQUETE PAGE 6... - Page 7 PACKAGE CONTENT CONTENU DE L’EMBALLAGE CONTENIDO DEL PAQUETE PAGE 7...
-
Page 8: Part List
PART LIST LISTE DES PIÈCES LISTA DE PIEZAS PART # DESCRIPTION QUANTITY CODE # DE PIÈCE DESCRIPTION QUANTITÉ CODE PARTE # DESCRIPCIÓN CANTIDAD CÓDIO Satin Nickel / Satiné / Satinado: 99STR1020-WM Wall track Glissière Matt Black / Noir Mat / Negro Mate: 99STR3635-WM Riel de la pared Chrome / Chrome / Cromo: 99STR1068-WM Satin Nickel / Satiné... - Page 9 PART LIST LISTE DES PIÈCES LISTA DE PIEZAS PART # DESCRIPTION QUANTITY CODE # DE PIÈCE DESCRIPTION QUANTITÉ CODE PARTE # DESCRIPCIÓN CANTIDAD CÓDIO Short seal strip Bande d’étanchéité courte 99SRU0063 Tira de sello corto Satin Nickel / Satiné / Satinado: 99SHA1010-WM Door handle Poignée de porte Matt Black / Noir Mat / Negro Mate: 99SHA3613-WM...
-
Page 10: Supplied Hardware List
SUPPLIED HARDWARE LIST QUINCAILLERIE FOURNIE CONTENIDO DE HARDWARE Wall Anchor Screw Screw Screw Ancrage mural Capuchon Tarugo Tornillo Tornillo Tornillo Capuchón ø8x30mm ST5x30mm ST4x20mm ST4x12mm Fitting Screw Allen key Raccord Capuchon Capuchon Clé Allen Accesorio Tornillo Capuchón Capuchón Llave Allen ST5x35mm 2mm &... -
Page 11: Reversibility
REVERSIBILITY RÉVERSIBILITÉ REVERSIBILIDAD This instruction is drawn up for a door opening from right to left (see illustration A). For an installation for a door opening from left to right (see illustration B), use the same instructions, but switch around the panels: mirror effect. Utilisez ces instructions pour une ouverture de la porte de droite à... -
Page 12: Shower Dimensions
SHOWER DIMENSIONS DIMENSIONS DE LA DOUCHE DIMENSIONES DE LA DUCHA Measurements Mesures Medidas Shower height Hauteur de la douche Altura de la ducha Shower width (Min. without cutting the bar) Largeur de la douche (Min. sans couper la barre) Ancho de la ducha (Min. sin cortar la barra) Fixed panel width Largeur du panneau fixe Ancho de panel fijo... -
Page 13: Shower Installation: Overview
SHOWER INSTALLATION: OVERVIEW IF USING TILE WALL INSTALLATION DE LA DOUCHE: VUE D’ENSEMBLE AVEC MUR DE TUILE MONTAJE DE LA DUCHA: VISIÓN GENERAL CON PARED DE AZULEJOS A. Before you start the installation of your shower base, consult the illustration A below showing a side-view of the completed installation. B. -
Page 14: Wall-To-Wall Dimensions
WALL-TO-WALL DIMENSIONS MESURES MUR-À-MUR MEDIDAS DE PARED-A-PARED • Make sure to have a distance tile to tile (D) between 1813mm (71 3/8 in) min. and 1829mm (72 in) max. (see image). • Measure the thickness of your tiles on either side before installing the metal tracks. A thicker tile will limit your space to install the shower panels. -
Page 15: Wall Track Installation
WALL TRACK INSTALLATION INSTALLATION DE LA GLISSIERE INSTALACIÓN DEL RIEL DE PARED A-B. Position the wall track (A) as illustrated. Level the track (A) and mark the track holes positions. C. Remove the track and drill pilot holes in the marked locations with a ø5/16” (8mm) drill bit. D. -
Page 16: Fixed Panel And Support Bar Installation
FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Insert the fixed panel bottom seal strip (L) on the base of the fixed panel (B). B. - Page 17 NEXT STEP MAY REQUIRE TO TRIM THE SUPPORT BAR If the support bar is too long for your wall-to-wall opening “D”, you will have to trim it down. Below calculation is for reference only: Ensure you made all the proper measurements before you cut the bar. ONLY CUT THE BAR ON THE SIDE WITH NO HOLES! (THE DOOR SIDE) 1.
- Page 18 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Slide the 2 stoppers (D) and the 2 support bar anchors (C) onto the support bar (E). B.
- Page 19 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A-B. Completely remove the guide (O) and the support bar (E). C. Completely remove the fixed panel (B). D.
- Page 20 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Drill a pilot hole for the sliding door guide (O) using a ø1/8” (3mm) drill bit. B.
- Page 21 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A-B. Place the fixed panel (B) into the wall track (A) and put back the sliding door guide (O). C.
-
Page 22: Shower Door Installation
SHOWER DOOR INSTALLATION INSTALLATION DE LA PORTE DE DOUCHE INSTALACION DE LA PUERTA DE DUCHA A. Install the 2 door rollers (G) on the door panel (I). B. Insert the door bottom seal strip (M) onto the door panel (I). C. -
Page 23: Leveling The Glass Panel
LEVELING THE GLASS PANEL NIVELAGE DU PANNEAU DE VERRE NIVELANDO EL PANEL DE CRISTAL After the wheels have been installed, adjust the level of the glass panel using the eccentric mechanism of the rollers. Fit the bigger Allen key in the center of the inner roller, hold it in place, do not turn it, as it will loosen the wheel. -
Page 24: Seal Strips Installation
SEAL STRIPS INSTALLATION INSTALLATION DES BANDES D’ÉTANCHÉITÉ INSTALACIÓN DE LAS TIRAS DEL SELLO A-C. Install the 2 short seal strips (J) onto the glass panels. Install the 2 glass panel vertical seal strips (N). Install the door vertical seal strip (P) on the closing end. -
Page 25: Handle Installation
HANDLE INSTALLATION INSTALLATION DE LA POIGNÉE INSTALACIÓN DE LA MANIJA A-B. Using silicone, install the decorative track (R) in front of the door panel. Slide the decorative caps (Q) onto the track. C-D. Fix the fixed panel (B) by drilling guide holes through the wall tracks (A) and screwing it in place using fittings (FF), screws (DD) and caps (EE). E. -
Page 26: Sealing
SEALING SCELLAGE SELLADO Ensure that the door closes tightly and opens smoothly. Ensure that there is a firm connection between the fixed panel(s) and the support bar. Apply a clear silicone water sealant around the outside perimeter of any fixed shower components. Allow 24 hours for silicone to dry. Improper application of silicone sealant may cause your shower to leak. -
Page 27: Care And Maintenance
CARE AND MAINTENANCE TRAITEMENT ET ENTRETIEN CUIDADO Y MANTENIMIENTO For the daily maintenance, use a wet cloth and a soft liquid cleaner. Never use abrasive cleaners containing some acetone, chlorine or strong bleach, scrapers, metallic brushes, nor other objects or the products which can graze or tarnish surfaces. -
Page 28: Limited Product Warranty
Modification de produit : OVE se réserve le droit de changer, de modifier ou d’améliorer les produits sans être tenue d’incorporer ces modifications aux produits vendus ou installés précédemment. Autorité et modification : Le vendeur au détail n’est pas le représentant d’OVE et n’est pas autorisé à modifier ou à changer les modalités de la garantie limitée. De plus, le détaillant ne peut lier OVE ni faire de représentation ou de promesses à...
