An installation video guide can be found on our Youtube channel:
Un guide d'installation video est disponible sur notre chaîne Youtube:
Una guía de instalación de vídeo está disponible en nuestro canal de Youtube:
OVE 2019-11-19

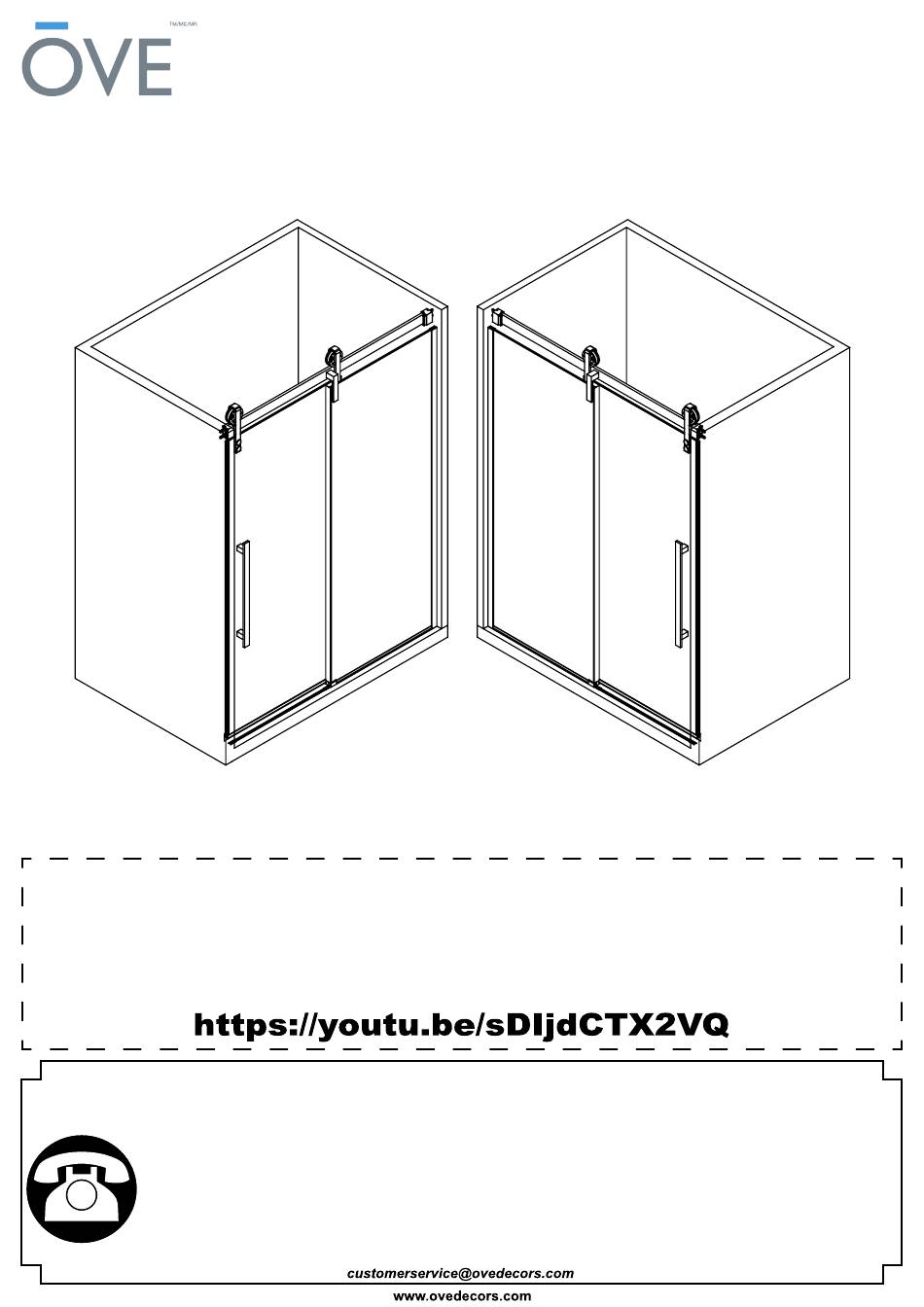

INSTALLATION MANUAL - SHOWER ENCLOSURE
MANUEL D'INSTALLATION - CABINE DE DOUCHE
MANUAL DE INSTALACIÓN - PUERTA DE DUCHA
Questions, problems, need help?
Call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday
Questions, problèmes ou besoin d'aide?
Contactez notre service à la clientèle au
1-866-839-2888, du lundi au vendredi de 9h00 à 17h00 HNE.
Preguntas, problemas o necesita ayuda?
Llame a nuestro departamento de servicio al cliente al
1-866-839-2888, 9 am. – 5 pm., HDE, Lunes a Viernes.
SEDONA 60
PAGE 1
Advertisement
Table of Contents
Related Manuals for OVE SEDONA 60
Summary of Contents for OVE SEDONA 60
- Page 1 SEDONA 60 INSTALLATION MANUAL - SHOWER ENCLOSURE MANUEL D’INSTALLATION - CABINE DE DOUCHE MANUAL DE INSTALACIÓN - PUERTA DE DUCHA An installation video guide can be found on our Youtube channel: Un guide d’installation video est disponible sur notre chaîne Youtube: Una guía de instalación de vídeo está...
- Page 2 DO NOT START WITH THIS INSTALLATION MANUAL 1) FIRST, INSTALL YOUR SHOWER BASE (AN INSTALLATION MANUAL CAN BE FOUND IN THE SHOWER BASE PACKAGE). 2) SECOND, INSTALL YOUR SHOWER SIDE PANEL, IF APPLICABLE (AN INSTALLATION MANUAL CAN BE FOUND IN THE SIDE PANEL PACKAGE). 3) THIRD, INSTALL YOUR SHOWER ENCLOSURE (USING THIS MANUAL).
-
Page 3: Table Of Contents
TABLE OF CONTENT TABLE DES MATIÈRES TABLA DE CONTENIDOS TABLE OF CONTENT ................3 TABLE DES MATIÈRES ................3 TABLA DE CONTENIDOS ................3 SAFETY INFORMATION ................4 INFORMATION SUR LA SÉCURITÉ ............4 INFORMACIÓN DE SEGURIDAD ...............4 SAFETY NOTICE ..................5 AVIS DE SÉCURITÉ ..................5 AVISOS DE SEGURIDAD ................5 PREPARATION ....................5 PRÉPARATION ....................5... -
Page 4: Safety Information
SAFETY INFORMATION INFORMATION SUR LA SÉCURITÉ INFORMACIÓN DE SEGURIDAD CAUTION Please carefully read the following important safety information before handling or installing this shower. There is a risk of serious injury while handling this product. To minimize these risks, please note: •... -
Page 5: Safety Notice
SAFETY NOTICE AVIS DE SÉCURITÉ AVISOS DE SEGURIDAD NOTICE • Any modification or alteration from what is specified in this instruction manual will void any and all warranty on this product. • The distributor is not responsible for any damage to the unit or personal property caused by improper installation. If you disregard instructional warnings, you will void your warranty and possibly deal with water damage. -
Page 6: Package Content
PACKAGE CONTENT CONTENU DE L’EMBALLAGE CONTENIDO DEL PAQUETE PAGE 6... - Page 7 PACKAGE CONTENT CONTENU DE L’EMBALLAGE CONTENIDO DEL PAQUETE PAGE 7...
-
Page 8: Part List
PART LIST LISTE DES PIÈCES LISTA DE PIEZAS PART # DESCRIPTION QUANTITY CODE # DE PIÈCE DESCRIPTION QUANTITÉ CODE PARTE # DESCRIPCIÓN CANTIDAD CÓDIO Wall track Satin Nickel / Satiné / Satinado: 99STR1125-WM Glissière Oil rubbed bronze / Bronze huilé brossé / Bronce aceitado: 99STR1126-WM Riel de la pared Fixed panel Satin Nickel / Satiné... -
Page 9: Supplied Hardware List
SUPPLIED HARDWARE LIST QUINCAILLERIE FOURNIE CONTENIDO DE HARDWARE Wall Anchor Screw Screw Screw Screw Ancrage mural Fitting Tarugo Tornillo Tornillo Tornillo Tornillo Capuchon Raccord ø8x30mm ST5x30mm ST5x25mm ST4x12mm ST5x40mm Capuchón Accesorio Cap of fixed panel bracket Cap of fixed panel bracket Cap of door roller Cap of door roller Allen key... -
Page 10: Reversibility
REVERSIBILITY RÉVERSIBILITÉ REVERSIBILIDAD This instruction is drawn up for a door opening from right to left (see illustration A). For an installation for a door opening from left to right (see illustration B), use the same instructions, but switch around the panels: mirror effect. Utilisez ces instructions pour une ouverture de la porte de droite à... -
Page 11: Shower Dimensions
SHOWER DIMENSIONS DIMENSIONS DE LA DOUCHE DIMENSIONES DE LA DUCHA Measurements Mesures Medidas 32”[813] Base depth Profondeur de la base 60”[1524] Profundidad del plato Base width Largeur de la base Anchura de la base Shower height Hauteur de la douche Altura de la ducha Shower width Largeur de la douche... -
Page 12: Shower Installation: Overview
SHOWER INSTALLATION: OVERVIEW INSTALLATION DE LA DOUCHE: VUE D’ENSEMBLE MONTAJE DE LA DUCHA: VISIÓN GENERAL A. Before you start the installation of your shower enclosure, consult the illustration A below showing a side-view of the completed installation. B. Illustration B shows the recommended wall structure and measurements for the shower installation. NOTE: Customer must follow and comply with the local and national building and plumbing code. -
Page 13: Wall-To-Wall Dimensions
WALL-TO-WALL DIMENSIONS MESURES MUR-À-MUR MEDIDAS DE PARED-A-PARED • Make sure to have a distance tile to tile (D) between 1485mm (58 7/16 in) min. and 1525mm (60 1/16 in) max. (see image). • Measure the thickness of your tiles on either side before installing the metal tracks. A thicker tile will limit your space to install the shower panels. -
Page 14: Wall Track Installation
WALL TRACK INSTALLATION INSTALLATION DE LA GLISSIERE INSTALACIÓN DEL RIEL DE PARED A. Level the track (A) and mark the track holes positions. B. Remove the track and drill pilot holes in the marked locations with a ø5/16” (8mm) drill bit. C. -
Page 15: Fixed Panel And Support Bar Installation
FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Insert the fixed panel bottom seal strip (J) on the base of the fixed panel (B). Cut the surplus part with a cutter, about 1 9/16” (40mm) from the panel’s edge. - Page 16 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Disassemble the bracket (F). B-C. Install the bracket (F) onto the fixed panel (B), make sure the bracket (F) is perpendicular to the fixed panel (B). D.
- Page 17 NEXT STEP MAY REQUIRE TO TRIM THE SUPPORT BAR If the support bar is too long for your wall-to-wall opening “D”, you will have to trim it down. Below calculation is for reference only: Ensure you made all the proper measurements before you cut the bar. ONLY CUT THE BAR ON THE SIDE WITH NO HOLES! (THE DOOR SIDE) 1.
- Page 18 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Slide the 2 support bar anchors (C & D) onto the support bar (E). B-C.
- Page 19 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A-B. Completely remove the guide (M) and the support bar (E). C-D. Completely remove the support bar holder (Q) and the fixed panel (B). E.
- Page 20 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Drill pilot holes for the sliding door guide (M) using a ø5/32” (4mm) drill bit. B.
- Page 21 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A-B. Place the fixed panel (B) into the wall track (A) and put back the sliding door guide (M). C.
- Page 22 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Re-install the support bar (E) onto the fixed panel bracket (F). Install the caps of the fixed panel bracket (II). B-C.
-
Page 23: Shower Door Installation
SHOWER DOOR INSTALLATION INSTALLATION DE LA PORTE DE DOUCHE INSTALACION DE LA PUERTA DE DUCHA A. Disassemble the door rollers (G). B-C. Insert the door bottom seal strip (K) onto the door panel (H). Place the door (H) into the guide (M). D-E. - Page 24 SHOWER DOOR INSTALLATION INSTALLATION DE LA PORTE DE DOUCHE INSTALACION DE LA PUERTA DE DUCHA SHOWER DOOR LEVEL ADJUSTMENT (if needed): A. If the door requires a slight leveling adjustment, loosen the bolts of the door roller (G), this will allow a slight up and down level adjustment. B.
- Page 25 SHOWER DOOR INSTALLATION INSTALLATION DE LA PORTE DE DOUCHE INSTALACION DE LA PUERTA DE DUCHA SHOWER DOOR LEVEL ADJUSTMENT (if needed): A-B-C. Re-install the door panel (H) onto the rollers (G), but keep the bolts loose. Adjust the level of the door, and then use a ratchet to strongly tighten the blots. Make sure to tightly screw up the safety hex bolt located at the bottom of the roller, secure it by turning the hex bolt clockwise.
-
Page 26: Seal Strips Installation
SEAL STRIPS INSTALLATION INSTALLATION DES BANDES D’ÉTANCHÉITÉ INSTALACIÓN DE LAS TIRAS DEL SELLO A-D. Install the 2 glass panel vertical seal strips (L). Install the door vertical seal strip (N) on the closing end. Cut the surplus part with a cutter. A-D. -
Page 27: Handle Installation
HANDLE INSTALLATION INSTALLATION DE LA POIGNÉE INSTALACIÓN DE LA MANIJA A-B. Fix the fixed panel (B) by drilling guide holes through the wall tracks (A) and screwing it in place using fittings (GG), screws (DD) and caps (FF). C-D. Using silicone, install the decorative track (P) in front of the door panel. Slide the decorative caps (O) onto the track. E. -
Page 28: Sealing
SEALING SCELLAGE SELLADO Ensure that the door closes tightly and opens smoothly. Ensure that there is a firm connection between the fixed panel(s) and the support bar. Apply a clear silicone water sealant around the outside perimeter of any fixed shower components. Allow 24 hours for silicone to dry. Improper application of silicone sealant may cause your shower to leak. -
Page 29: Care And Maintenance
CARE AND MAINTENANCE TRAITEMENT ET ENTRETIEN CUIDADO Y MANTENIMIENTO For the daily maintenance, use a wet cloth and a soft liquid cleaner. Never use abrasive cleaners containing some acetone, chlorine or strong bleach, scrapers, metallic brushes, nor other objects or the products which can graze or tarnish surfaces. -
Page 30: Limited Product Warranty
Modification de produit : OVE se réserve le droit de changer, de modifier ou d’améliorer les produits sans être tenue d’incorporer ces modifications aux produits vendus ou installés précédemment. Autorité et modification : Le vendeur au détail n’est pas le représentant d’OVE et n’est pas autorisé à modifier ou à changer les modalités de la garantie limitée. De plus, le détaillant ne peut lier OVE ni faire de représentation ou de promesses à...
