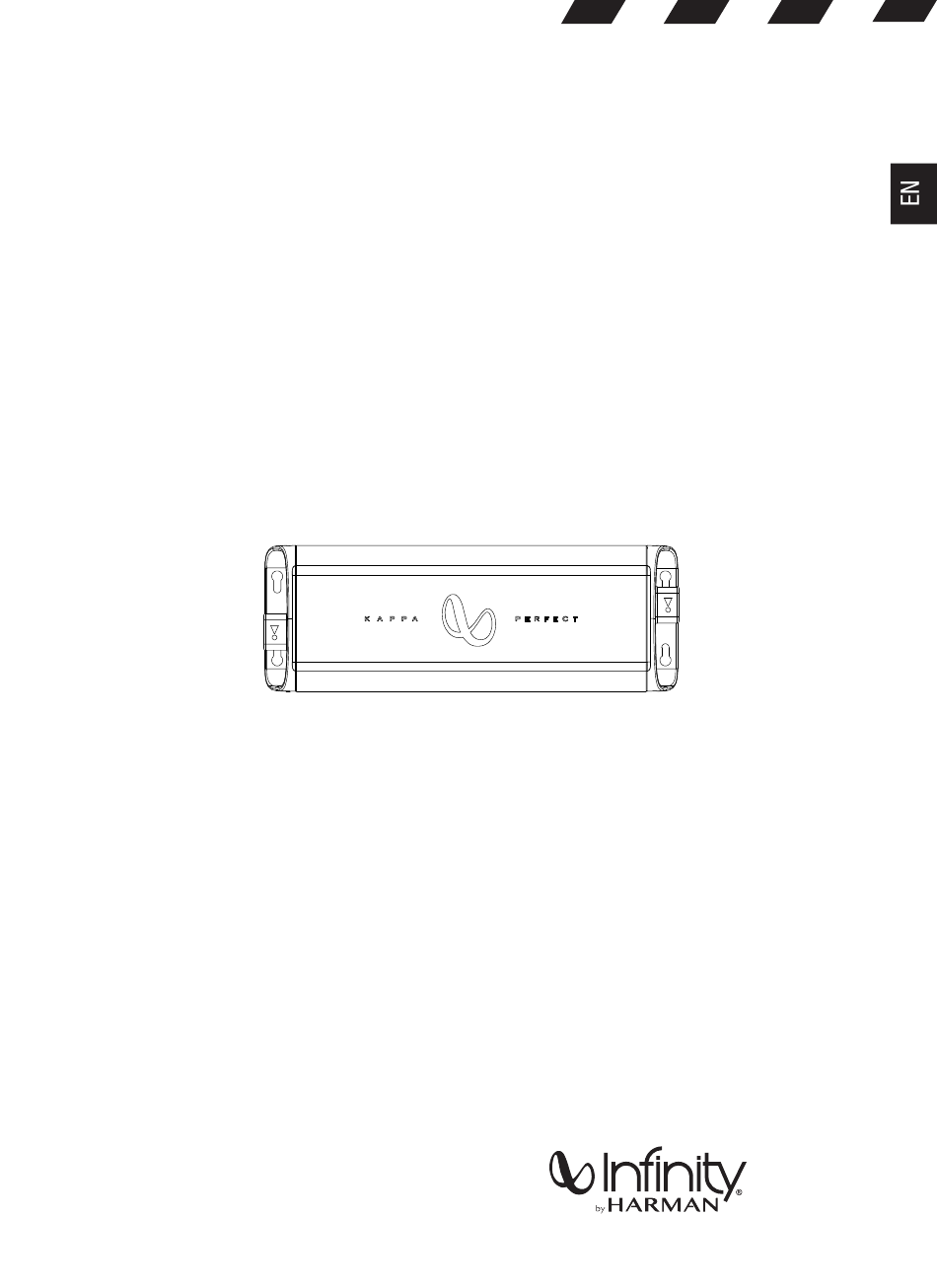

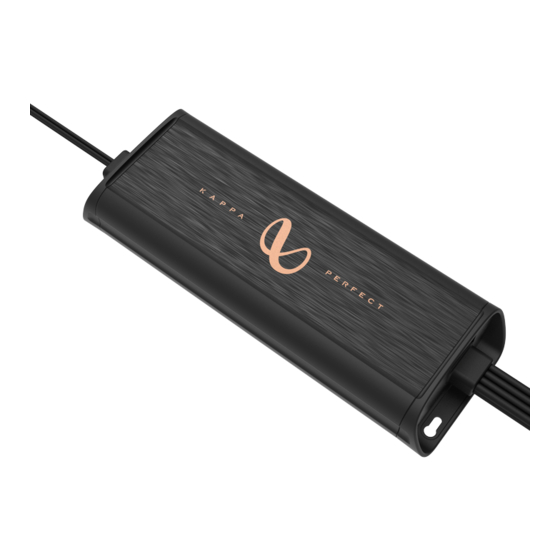

- Page 1 Infinity Kappa Perfect PowerSports AMPLIFIERS OWNER'S MANUAL...
-
Page 2: Thank You For Your Purchase
THANK YOU FOR YOUR PURCHASE . . . Your product has been designed to provide you the performance and ease of operation you expect from Infinity. Take time to read this manual before operating or installing your amplifier. This manual describes general installation guidelines and operation instructions. Please note that proper installation of mobile audio components requires qualified experience with mechanical and electrical procedures. -
Page 3: Table Of Contents
INFINITY KAPPA TABLE OF CONTENTS THANK YOU FOR YOUR PURCHASE . . . WHAT'S IN THE BOX INSTALLATION AND WIRING Mounting the Amplifier Wiring the Amplifier Power and Ground Connections – Direct Hardwire Power/Protect indicators Line-level Signal Input Speaker-level Signal Input Speaker-level Input –... -
Page 4: What's In The Box
WHAT'S IN THE BOX (KP3002) (KP5004) amplifier tie wraps spare fuse Stainless steel mounting hardware Black zip ties Infinity stickers end panel covers owner’s manual... -
Page 5: Installation And Wiring
INFINITY KAPPA INSTALLATION AND WIRING IMPORTANT: Disconnect the vehicle’s negative (–) battery terminal before beginning the installation. Mounting the Amplifier • Wear protective eyewear when using tools. • Choose a safe mounting location. Check clearances on both sides of the location. Be sure that screws will not puncture brake or fuel lines or wiring harnesses, and that wire routing will not interfere with vehicle operation. -
Page 6: Power And Ground Connections - Direct Hardwire
Mating power wire terminals part number: KP3002: HRB T9910PS-2 KP5004: HRB T9910PS-2A for remote turn-on, T9910-2A for Power and Ground Mating connector housing part number: HRB P9910-3-B-H-A/B Mating connector housing HRB P9910-3-B-H-A/B wire configuration Wire Corresponding Amplifier Wire Color Remote turn-on Blue Power Ground... -
Page 7: Power/Protect Indicators
INFINITY KAPPA • Ground: Connect the GND wire to the negative terminal of the vehicle’s battery, or to the vehicle’s chassis near the battery with a screw. NOTE: If possible, remove any paint from the chassis for best contact. It’s recommended to use a star washer below the ring connector for a secure connection. -
Page 8: Speaker-Level Signal Input
Speaker-level Signal Input Speaker-level Input with Optional Mating Connectors • If your audio system’s source unit does not have line-level outputs, connect the speaker-level input wires from the amplifier to the front and/or the rear speaker output wires of your source unit. -
Page 9: Speaker-Level Input - Direct Connection
INFINITY KAPPA Mating connector housing 039012040 wire configuration for front channels (KP5004 and KP3002) Wire Corresponding Amplifier Wire Color Front left + White Front right + Gray Front left - White/Black Front right - Gray/Black Mating connector housing 039012040 wire configuration for rear channels (KP5004 only) Wire Corresponding Amplifier Wire Color Rear left +... -
Page 10: Input Level Selection
INPUT LEVEL SELECTION INPUT If you’re sending signal to the amplifier using low-level outputs from your source unit, slide LEVEL the input level selector to “LO.” If using high-level outputs from your source unit, slide the selector to “HI.” Speaker Output Connections Speaker Output with Optional Mating Connectors •... -
Page 11: Speaker Output - Direct Connection
INFINITY KAPPA Mating connector housing 039039042 for all channels (KP5004 and KP3002), terminal 030000039 for front channels (KP3002), terminal 039000077 for all channels (KP5004) Wire Corresponding Amplifier Wire Color Front left + White Front right + Gray Front left - White/Black Front right - Gray/Black... - Page 12 • KP5004 4-channel operation: Connect the front left speaker leads (white and white/black) to the front left speaker’s + and - terminals, and the front right speaker leads (gray and gray/black) to the front right speaker’s + and - terminals. Next, connect the rear left speaker leads (green and green/black) to the rear left speaker’s + and - terminals, and the rear right speaker leads (violet and violet/black) to the rear right speaker’s + and - terminals.
- Page 13 INFINITY KAPPA • KP5004 3-channel (bridged) operation: Connect the front left speaker leads (white and white/ black) to the front left speaker’s + and - terminals, and the front right speaker leads (gray and gray/black) to the front right speaker’s + and - terminals. Next, connect the rear left + speaker lead (green) to the single speaker’s + terminal, and the rear right - speaker lead (violet /black) to the single speaker’s - terminal.
- Page 14 • KP5004 2-channel (bridged) operation: Connect the front left + speaker lead (white) to the front single speaker’s + terminal, and the front right - speaker lead (gray/black) to the front single speaker’s - terminal. Next, connect the rear left + speaker lead (green) to the rear single speaker’s + terminal, and the rear right - speaker lead (violet /black) to the rear single speaker’s - terminal.
- Page 15 INFINITY KAPPA • KP3002 2-channel operation: Connect the left speaker leads (white and white/black) to the left speaker’s + and - terminals, and the right speaker leads (gray and gray/black) to the right speaker’s + and - terminals. KP3002 INPUT LEVEL LEVEL MIN MAX...
-
Page 16: Setting The Sound
SETTING THE SOUND Setting the input level To match your amplifier’s input sensitivity (gain) to your source unit’s output level, we recommend the following procedure: • Turn the input level control counterclockwise to MIN (minimum). • Play a dynamic music track through your source unit. Turn the source unit’s volume control to the 3/4 position. -
Page 17: Specifications
INFINITY KAPPA The KP3002 lets you slide the X-OVER switch to select no filter (OFF) for a full-range signal; a high-pass filter (HPF) if you’re powering speakers and have an independently powered subwoofer in your system; or a low-pass filter (LPF) if you’re powering a subwoofer in bridged mode. Slide the FREQ. switch to choose your desired crossover point. - Page 18 Model KP5004 KP3002 Frequency response: 20Hz – 20kHz 20Hz -20KHz Front HPF 60H, 80Hz, 120Hz selectable @ OFF/HPF/LPF 60Hz, Crossover filter 12/dB/octave; Rear LPF/ 80Hz, 120Hz selectable @ HPF 60Hz, 80Hz, 120Hz 12dB/octave selectable @ 12dB/octave 0, +6dB, +12dB selectable Bass boost @45Hz (only when LPF is engaged)
-
Page 19: Troubleshooting
INFINITY KAPPA TROUBLESHOOTING PROBLEM No audio and POWER INDICATOR is off. CAUSE and No voltage at BATT+ and/or REM terminals, or bad or no ground connection. Check SOLUTION voltages at amplifier terminals with VOM. PROBLEM No audio and PROTECT INDICATOR flashes every 4 seconds. CAUSE and DC voltage on amplifier output. - Page 20 © 2022 HARMAN International Industries, Incorporated. All rights Industries, Incorporated reserved. 8500 Balboa Boulevard, Infinity is a trademark of HARMAN International Industries, Incorporated, Northridge, CA 91329 USA registered in the United States and/or other countries. Features, www.infinityspeakers.com specifications and appearance are subject to change without notice.
