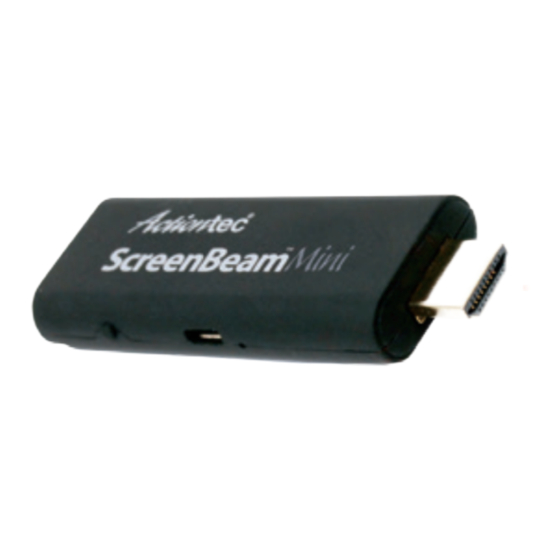

Wireless display receiver

Advertisement

Quick Links

Installation Guide
This Installation Guide will walk you through the easy steps
to set up your ScreenBeam Mini Receiver. During this
process, we'll show you how to :
A
Install the Receiver
B
Connect Using
1
Intel WiDi App
B
Connect Using
2
Windows 8.1 or Higher
B
Connect Using WiFi
3
Miracast-Enabled Device
Wireless Display
Receiver
Model # SBWD50A
Part No: 0530-0703-000

Advertisement

loading
Need help?

Need help?

Do you have a question about the ScreenBeam Mini and is the answer not in the manual?

Questions and answers

Summary of Contents for ActionTec ScreenBeam Mini

  • Page 1 Receiver Model # SBWD50A Installation Guide This Installation Guide will walk you through the easy steps to set up your ScreenBeam Mini Receiver. During this process, we’ll show you how to : Install the Receiver Connect Using Intel WiDi App Connect Using Windows 8.1 or Higher...
  • Page 2 HDMI port on your HDTV. Step Plug the male connector (smaller end) of the USB cable to the ScreenBeam Mini USB micro-port labled “Power. ” Step Plug the male connector (larger end) of the USB cable to a USB port on your HDTV.
  • Page 3 TV (due to other components, or a poorly accessible port), use the supplied HDMI cable to connect the Receiver. The ScreenBeam Mini Receiver is now connected to your HDTV. Proceed to one of the next three sections of this Guide (depending on the device you are using to connect to ScreenBeam Mini) to finish the connection procedure.
  • Page 4 Note: ScreenBeam Mini only supports the 2.4GHz wireless frequency. Make sure your device is not connected to a 5GHz wireless router prior to connecting ScreenBeam Mini. Step Find the Intel Wireless Display application on the device and launch it. To find the application, go to Windows Search on your device and search for “Intel WiDi”...
  • Page 5 Step The HDTV displays messages to show the status of the connection process. Step A Connection Successful screen appears on your device’s screen, as well as on the HDTV. Display Tip: If the edges of the device screen cannot be seen on the HDTV, adjust cropping.
  • Page 6 Connect Using Windows 8.1 or Higher Step From the Windows desktop, navigate to the Charms menu and select Devices. You can also use the shortcut keys, Windows + K. Step From the Charms menu, click the Project icon. Step From the Project screen, select Add a wireless display.
  • Page 7 Connect Using Miracast-Enabled Device You can connect to ScreenBeam Mini from a Miracast-enabled Android device, such as a smartphone, tablet, or game console (find the wireless display feature in Settings). Also, the device should be running the latest software for best performance.
  • Page 8 Wait for the device to associate with the Receiver. When it does, the device’s screen will be displayed on the HDTV. Product Support & Additional Information Go to http://www.actiontec.com/support for product support, updates, and more information including: • Firmware Updates • Troubleshooting • Registration • FAQs...
  • Page 9 FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
