Fractal Define 7 Mini User Manual page 9

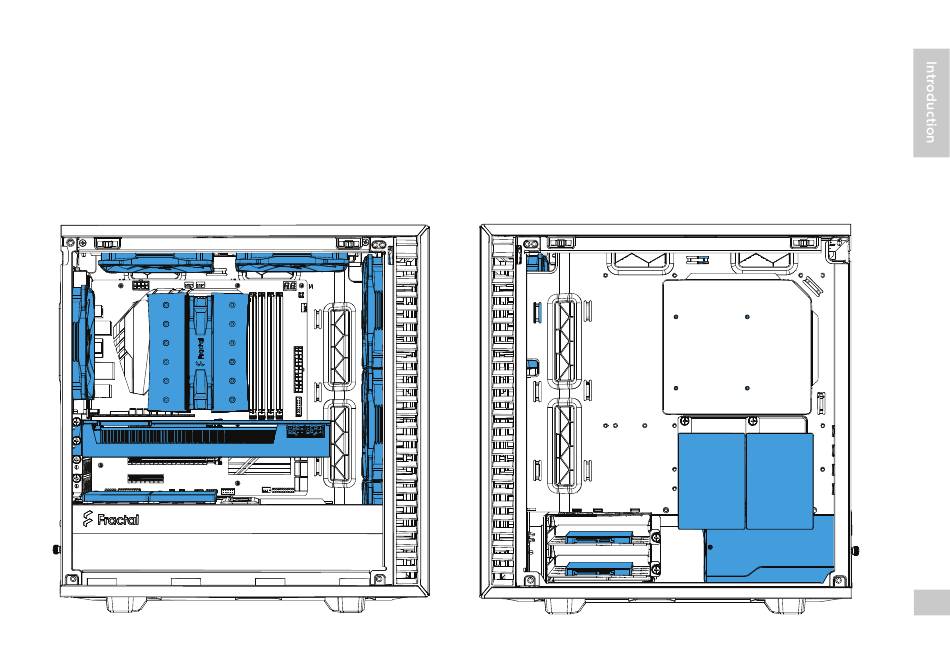

Air Cooling Tower Build
Luftkühlung / Montage de refroidissement par air / Sistema de refrigeración por aire / Luftkylningsbygge / Сборка воздушного охлаждения /
標準空冷クーラー構成例 / 风冷散热配置 / 風冷散熱配置
2.5" Drives: 6 - extra trays soild separately
GPU Length: 267 mm (up to 306 mm possible)
CPU Cooler Height: 159 mm (up to 167 mm possible)
Front Fans: 3 x 120 mm
Top Fans: 2 x 120 mm
Rear Fan: 1 x 120 mm
8
