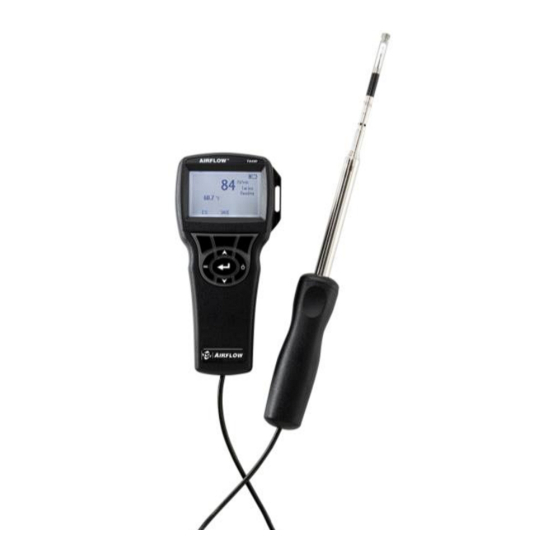

- Page 1 AIR VELOCITY METER ALNOR MODEL ® AVM430/AVM430A AIRFLOW INSTRUMENTS ™ MODEL TA430/TA430A OPERATION AND SERVICE MANUAL P/N 1980583, REV H NOVEMBER 2020...
- Page 3 Copyright TSI Incorporated / 2007-2020 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 Limitation Of Warranty And Liability (effective February 2015) (For country-specific terms and conditions outside of the USA, please visit www.tsi.com.) Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in the operator's manual, to be free from defects in workmanship and material for 24 months, or if less, the length of time specified in the operator's...
- Page 4 REPLACEMENT OF THE GOODS. IN THE CASE OF SOFTWARE, SELLER WILL REPAIR OR REPLACE DEFECTIVE SOFTWARE OR IF UNABLE TO DO SO, WILL REFUND THE PURCHASE PRICE OF THE SOFTWARE. IN NO EVENT SHALL SELLER BE LIABLE FOR LOST PROFITS, BUSINESS INTERRUPTION, OR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES.
-
Page 5: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP ..............3 ® Supplying Power to the Alnor AVM430/Airflow™ Instruments TA430 ................. 3 Installing the Batteries ............... 3 Using the Optional AC Adapter ..........3 Using the Telescoping Probe ............3 Extending the Probe .............. - Page 6 (This page intentionally left blank)
-
Page 7: Chapter 1 Unpacking And Parts Identification
Chapter 1 Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components. If anything is missing or damaged, notify ® Incorporated immediately. 1. Carrying case 2. Instrument 3. - Page 8 (This page intentionally left blank) Chapter 1...
-
Page 9: Chapter 2 Setting-Up
Chapter 2 Setting-up ® Supplying Power to the Alnor AVM430/Airflow™ Instruments TA430 ® The Alnor AVM430/Airflow™ Instruments TA430 is powered with four size AA batteries. Installing the Batteries Insert four AA batteries as indicated by the diagram located on ® the inside of the battery compartment. -
Page 10: Retracting The Probe
Retracting the Probe To retract the probe, hold the handle in one hand while pulling gently on the probe cable with the other hand. Connecting to a Computer ® Use the Computer Interface USB Cable provided with the Alnor AVM430/Airflow™ Instruments TA430 to connect the instrument to a computer for downloading stored data. -
Page 11: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ® ON/OFF Key Press to turn the Alnor AVM430/Airflow™ Instruments TA430 on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision and Last Date Calibrated. Arrow () Keys Press to scroll through choices while setting a parameter. -
Page 12: Menus
Menus DISPLAY SETUP Display setup menu is where you will setup the desired parameters to be displayed on the running screen. With a parameter highlighted you can then use the ON soft key to have it show up on the running screen or select the OFF soft key to turn off the parameter. -
Page 13: Data Logging
DATA LOGGING Measurements Measurements to be logged are independent of measurements on the display, and must therefore be selected under DATA LOGGING → Measurements. Delete Data Use this to delete all data, delete test or delete sample. % Memory This option displays the memory available. Delete All, under Delete Data, will clear memory and reset the memory available. - Page 14 (This page intentionally left blank) Chapter 3...
-
Page 15: Chapter 4 Maintenance
“Service Request” number. To fill out an online “Service Request” form, visit TSI’s website at tsi.com/service. U.S. & International TSI Incorporated TSI Instruments Ltd. ® Alnor Products Stirling Road 500 Cardigan Road... - Page 16 (This page intentionally left blank) Chapter 4...
-
Page 17: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended ® solutions for common problems encountered with the Alnor AVM430/Airflow™ Instruments TA430. If your symptom is not listed, ® or if none of the solutions solves your problem, please contact TSI ®... - Page 18 (This page intentionally left blank) Chapter 5...
-
Page 19: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Velocity: Range: ......0 to 6000 ft/min (0 to 30 m/s) 1&2 Accuracy : ..... ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater Resolution: ....... 1 ft/min (0.01 m/s) Duct Size: Range: ...... - Page 20 External Meter Dimensions: 3.3 in. 7.0 in. 1.8 in. (8.4 cm 17.8 cm 4.4 cm) Meter Probe Dimensions: Probe length: ....40 in. (101.6 cm) Probe diameter of tip: ..0.28 in. (7.0 mm) Probe diameter of base: ... 0.51 in. (13.0 mm) Articulating Probe Dimensions: Articulating section length: ....
- Page 21 Notes Operation...
- Page 22 Notes Appendix A...
- Page 24 TSI Incorporated TSI Instruments Ltd. Visit our website www.tsi.com for more Visit our website at www.tsi.com for more information. information. Tel: +1 800 680 1220 Tel: +44 149 4 459200 India Tel: +91 80 67877200 France Tel: +33 1 41 19 21 99...
