Summary of Contents for TSI Instruments ALNOR AVM410

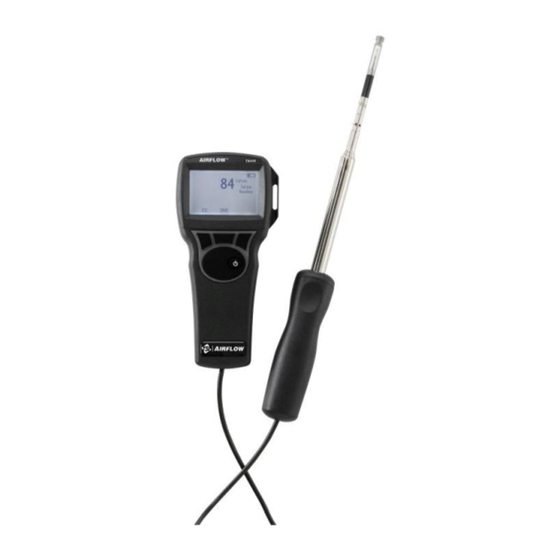

- Page 1 AIR VELOCITY METER ALNOR MODEL AVM410 ® AIRFLOW INSTRUMENTS ™ MODEL TA410 OPERATION AND SERVICE MANUAL P/N 1980575, REV G NOVEMBER 2020 1.800.544.2843 www.calcert.com sales@calcert.com...
- Page 2 1.800.544.2843 www.calcert.com sales@calcert.com...
- Page 3 Copyright TSI Incorporated / 2007-2020 / All rights reserved. Limitation Of Warranty And Liability (effective February 2015) Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in the operator's manual, to be free from defects in workmanship and material for 24 months, or if less, the length of time specified in the operator's manual, from the date of shipment to the customer.
- Page 4 REPLACEMENT OF THE GOODS. IN THE CASE OF SOFTWARE, SELLER WILL REPAIR OR REPLACE DEFECTIVE SOFTWARE OR IF UNABLE TO DO SO, WILL REFUND THE PURCHASE PRICE OF THE SOFTWARE. IN NO EVENT SHALL SELLER BE LIABLE FOR LOST PROFITS, BUSINESS INTERRUPTION, OR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES.
-
Page 5: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP ..............3 ® Supplying Power to the Alnor AVM410/Airflow™ Instruments TA410 ................. 3 Installing the Batteries ............... 3 Using The Telescoping Probe ............3 Extending The Probe ..............3 Retracting The Probe .............. -
Page 6: Chapter 1 Unpacking And Parts Identification
Chapter 1 Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components below. If anything is missing or damaged, notify ® Incorporated immediately. 1. Carrying case 2. Instrument 1.800.544.2843 www.calcert.com sales@calcert.com... -
Page 7: Chapter 2 Setting-Up
Chapter 2 Setting-up ® Supplying Power to the Alnor AVM410/Airflow™ Instruments TA410 ® The Alnor AVM410/Airflow™ Instruments TA410 is powered with four size AA batteries. Installing the Batteries Insert four AA batteries as indicated by the diagram located on ® the inside of the battery compartment. -
Page 8: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ® ON/OFF Key Press to turn the Alnor AVM410/Airflow™ Instruments TA410 on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision, and Last Date Calibrated. ft/min / m/s Key Pressing this key changes the display to read air velocity. -
Page 9: Chapter 4 Maintenance
Please contact one of TSI’s offices or your local distributor to make service arrangements and to receive a “Service Request” number. To fill out an online “Service Request” form, visit TSI’s website at U.S. & International TSI Incorporated TSI Instruments Ltd. ® Alnor Products Cases If the instrument case or storage case needs cleaning, wipe it off with a soft cloth and isopropyl alcohol or a mild detergent. -
Page 10: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended ® solutions for common problems encountered with the Alnor AVM410/Airflow™ Instruments TA410. If your symptom is not listed, or if none of the solutions solves your problem, please contact ®... -
Page 11: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Velocity: Range: ......0 to 4000 ft/min (0 to 20 m/s) 1&2 Accuracy : ..... ±5% of reading or ±5 ft/min (±0.025 m/s), whichever is greater Resolution: ....... 1 ft/min (0.01 m/s) Temperature: Range: ......
