- Page 1 PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview

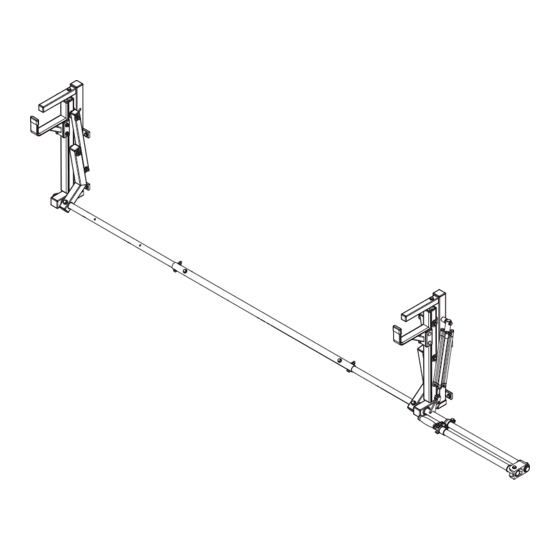

CONTENTS OVERVIEW 1—Rear Rotation Assembly........(Qty 1) 2—Front Rotation Assembly ........(Qty 1) Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 3 3—Rear Drive Shaft ..........(Qty 1) Left Hand, 50.00” 4—Connecting Bar ..........(Qty 1) 48.00” 5—Front Drive Shaft ..........(Qty 1) B Version, 35.75” HKT-8163-Rotation Hardware Kit Clevis Pin (1X) M8 x 50MM (4X) ⅜" x 2.25" (2X) M8 x 25MM (1X) Cotter Pin (1X) M8 Lock Nut (5X) ⅜"...
- Page 4 UTILITY BODY MOUNTING 6.00-8.00 Ft: Drill holes into the Service Body mounting location according to dimensions shown. 96.00” 84.00” 72.00” Front Lower Rear Lower 3.50” 3.50” 72.00” 84.00” 96.00” Position and align the vertical Uprights until the mounting holes realign to the body holes drilled during Steps 0.1.
-
Page 5: Rear Drive Shaft
LEFT ROTATION ASSEMBLY SEQUENCE REAR DRIVE SHAFT Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). -
Page 6: Front Drive Shaft
CYLINDER HARDWARE CONNECTING BAR FRONT DRIVE SHAFT CONNECTING BAR FASTENERS Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 7 CYLINDER ADJUSTMENT DRIVE SHAFT SEALING Adjust the Cylinder Flow Control Screw to allow approximately 3 seconds Apply Silicone Sealant time for the ladder to glide to Connecting Bar ends down when operating the loaded Ladder Rack. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 8 USAM-UVX211-US01 Rev-B 0618...
