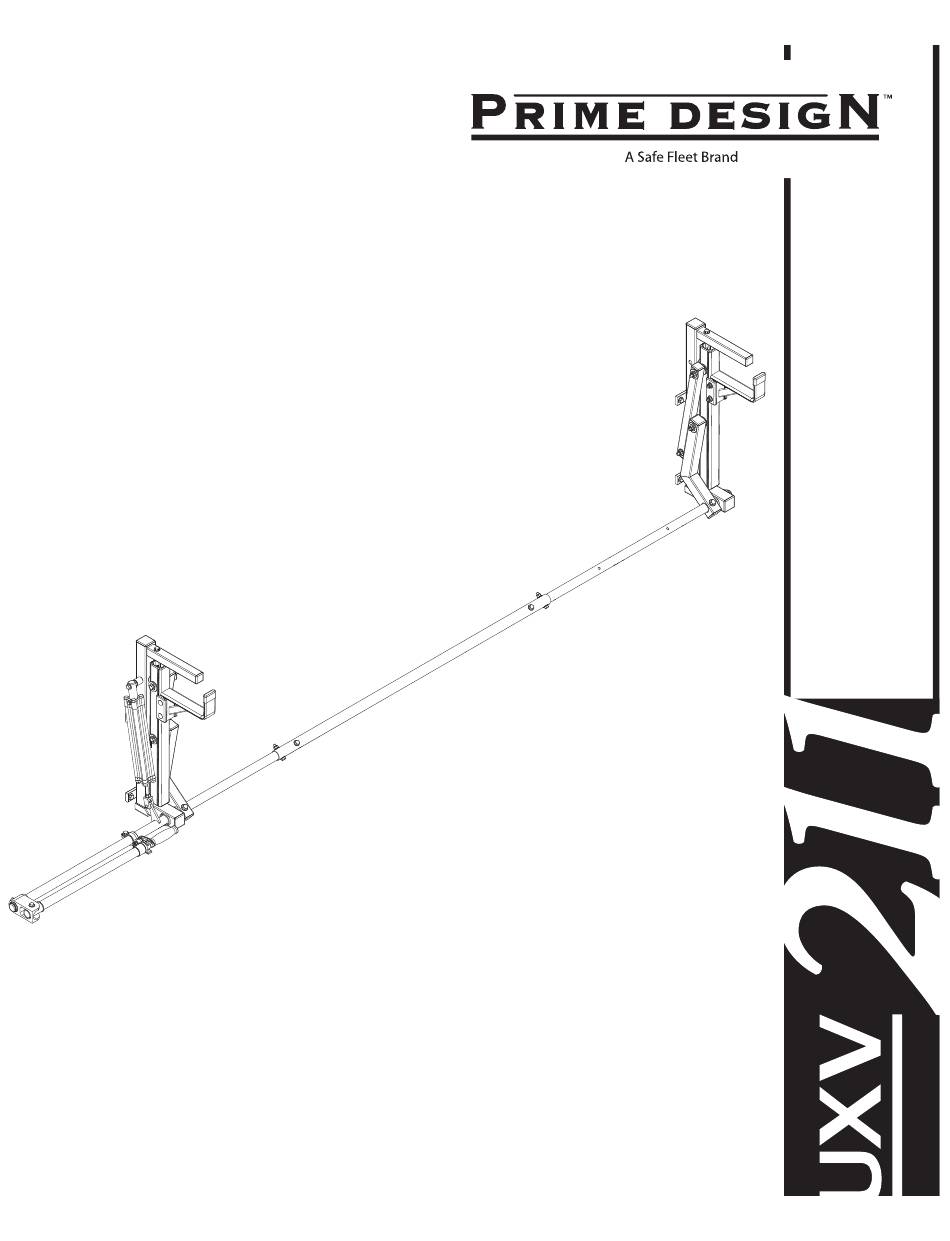

Summary of Contents for Safe Fleet PRIME DESIGN UXV 211
Page 2
CONTENTS OVERVIEW ELR-8151 left rear handle ELR-8151 left rear handle assembly assembly ELR-8151 Rear handle Assembly ELR-8112 Tele scope handle ELR-7558 Vertical Upper Gen 4 1—Rear Rotation Assembly........(Qty 1) ACL-125 ELR-8082 Adj Z post 2—Front Rotation Assembly ........(Qty 1) ELR-7049 Vertical Rotational Arm ELR-7038 Vertical drive arm...
Page 3
3—Rear Drive Shaft ..........(Qty 1) Right Hand, 50.00” ELR-1119 Hinge block ELR-8525 Trigger latch ELR-8151 left rear handle 4—Connecting Bar ..........(Qty 1) assembly 48.00” ELR-8204 connecting rod 5—Front Drive Shaft ..........(Qty 1) B Version, 35.75” ELR-8061 Adj front drive shaft HKT-8102-Rotation Hardware Kit M8 x 50MM (4X) Cotter Pin (1X)
Page 4
UTILITY BODY MOUNTING 6.00-8.00 Ft: Drill holes into the Service Body mounting location according to dimensions shown. 96.00” 84.00” 72.00” Rear Lower Front Lower 3.50” 3.50” 72.00” 84.00” 96.00” Position and align the vertical Uprights until the mounting holes realign to the body holes drilled during Steps 0.1.
Page 5
RIGHT ROTATION ASSEMBLY SEQUENCE REAR DRIVE SHAFT Torque to 90 in-lbs...
Page 6
CYLINDER HARDWARE CONNECTING BAR FRONT DRIVE SHAFT CONNECTING BAR FASTENERS Torque to 90 in-lbs...
Page 7
CYLINDER ADJUSTMENT DRIVE SHAFT SEALING Adjust the Cylinder Flow Control Screw to allow approximately 3 seconds Apply Silicone Sealant time for the ladder to glide to Connecting Bar ends down when operating the loaded Ladder Rack. ADDITIONAL INFORMATION For additional information regarding your UXV-211 Ladder Rack, please visit the Prime Design website at: www.primedesign.net.
