Summary of Contents for Safe Fleet PRIME DESIGN UVX-201

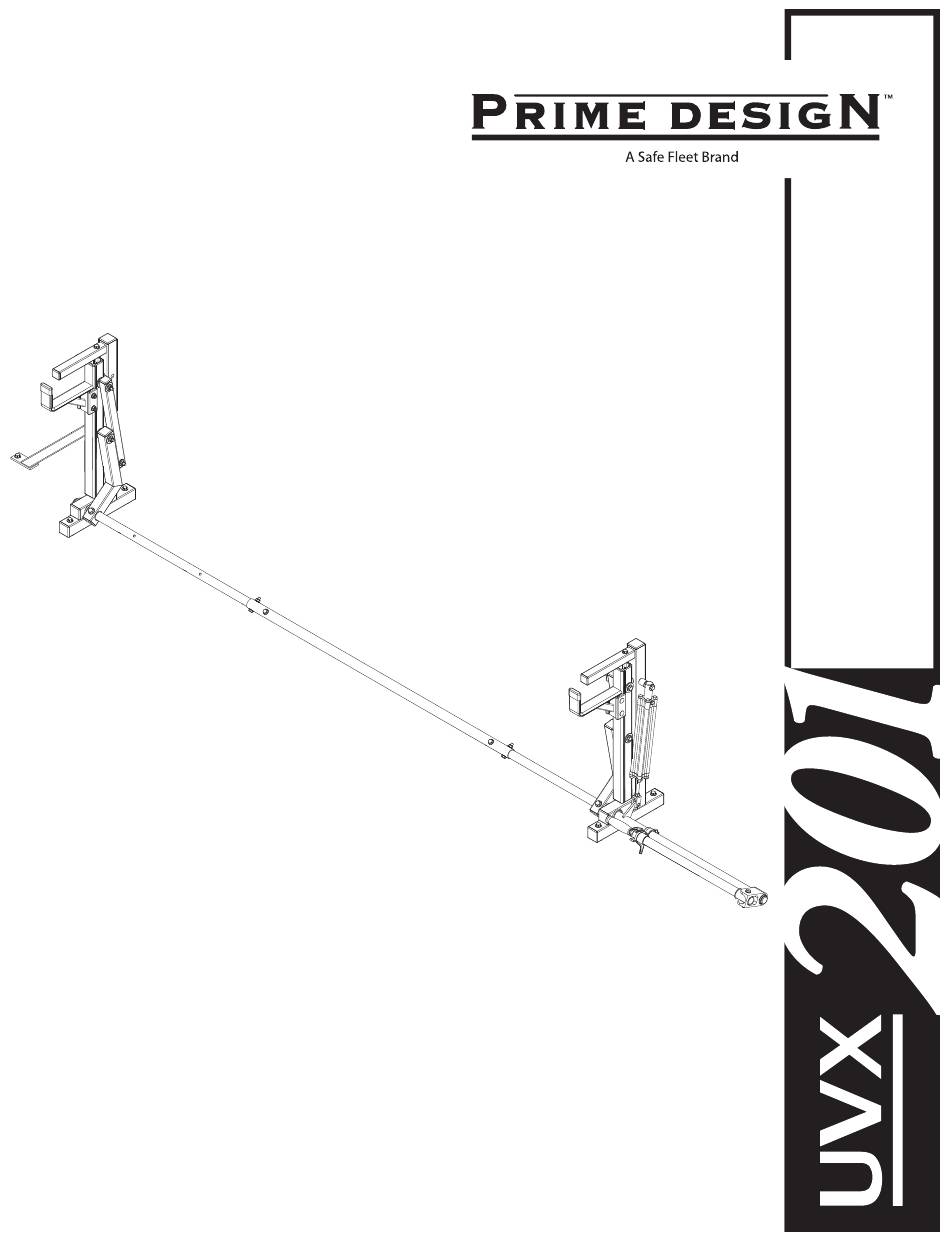

  • Page 1 PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
  • Page 2: Contents Overview

    CONTENTS OVERVIEW 1—Rear Rotation Assembly........(Qty 1) 2—Front Rotation Assembly ........(Qty 1) 3—Mount Brace ............. (Qty 1) 20.00” Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 3 4—Rear Drive Shaft ..........(Qty 1) Left Hand, 50.00” 5—Connecting Bar ..........(Qty 1) 48.00” 6—Front Drive Shaft ..........(Qty 1) B Version, 35.75” HKT-8163-Rotation Hardware Kit Clevis Pin (1X) M8 x 50MM (4X) ⅜" x 2.25" (2X) M8 x 25MM (1X) Cotter Pin (1X) M8 Lock Nut (5X) ⅜"...
  • Page 4: Mounting Dimensions

    MOUNTING DIMENSIONS 6.00 Ft: Drill holes into the Service Body mounting location according to dimensions shown. Mounting to Service Body: dimensions are dependent upon Crossbar distances of 6’-8’ plus allowance for the Mount Brace from the front of the Utility Rack. Brace Area Allow spacing for the Mount Brace, but do not drill or install until Step 9.
  • Page 5 LEFT ROTATION ASSEMBLY SEQUENCE REAR ROTATION ASSEMBLY FRONT ROTATION ASSEMBLY Fastening Hardware Fastening Hardware Torque to 120 in-lbs. Torque to 120 in-lbs. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 6: Rear Drive Shaft

    REAR DRIVE SHAFT Torque to 90 in-lbs CYLINDER HARDWARE CONNECTING BAR Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 7: Front Drive Shaft

    FRONT DRIVE SHAFT CONNECTING BAR FASTENERS Torque to 90 in-lbs MOUNT BRACE INSTALLATION Remove the Mount Brace to expose the bolt hole markings. Using a 9MM, 23/64”, or T size bit, drill a hole into the Utility Rack at the marked bolt hole location created during Step 8.1. Using a pencil, marker, or grease pencil, mark the location of the hole for installing the Mount Brace...
  • Page 8 Fastening Hardware Torque to 90 in-lbs. CYLINDER ADJUSTMENT DRIVE SHAFT SEALING 10.1 Adjust the Cylinder Flow Control Screw to allow approximately 3 seconds time for the ladder to glide down when operating the Apply Silicone Sealant 10.2 to Connecting Bar ends loaded Ladder Rack.
