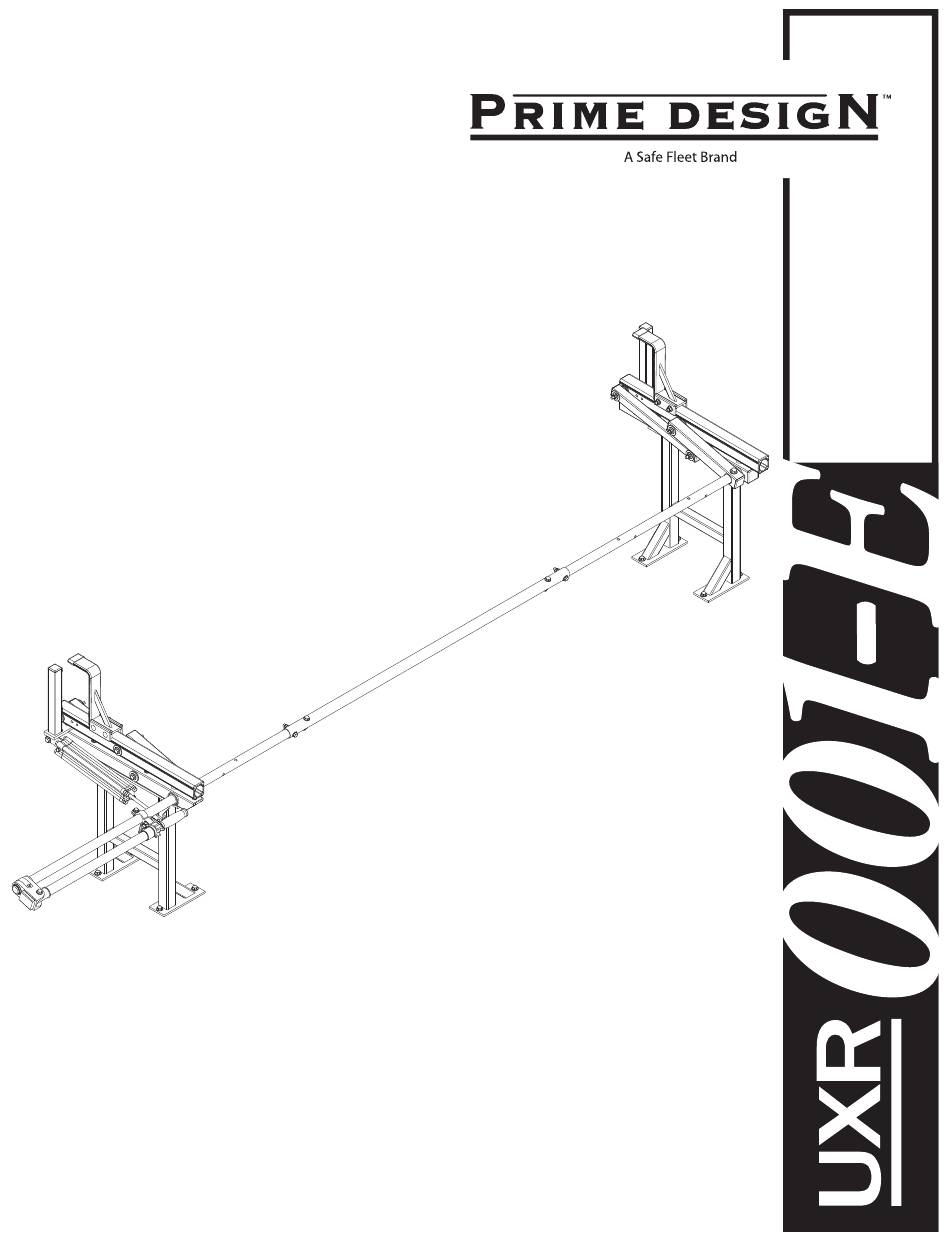

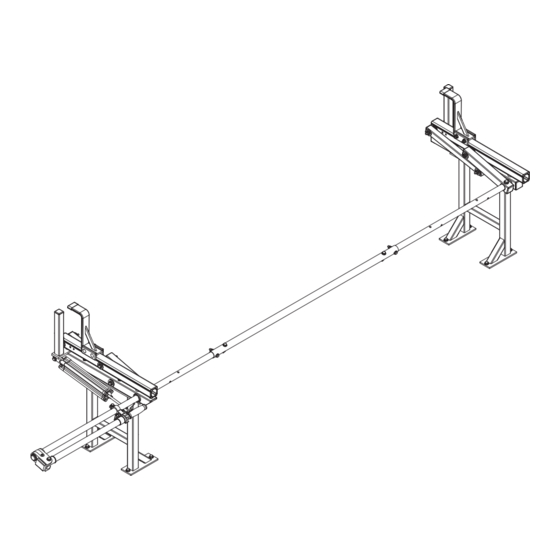

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW 1—Utility Base Standing Mount ......(Qty 2) 2—Rear Rotation Assembly........(Qty 1) 3—Front Rotation Assembly ........(Qty 1) 4—Rear Drive Shaft ..........(Qty 1) Right Hand, B4 Version, 50.00” 5—Connecting Bar ..........(Qty 1) 48.00” 6—Front Drive Shaft ..........(Qty 1) B Version, 35.75”... - Page 3 7—Z Post ..............(Qty 2) Adjustable, 7.25” 8—L Post ..............(Qty 2) 9.25” HKT-8163-Rotation Hardware Kit Clevis Pin (1X) M8 x 50MM (4X) ⅜" x 2.25" (2X) M8 x 25MM (1X) Cotter Pin (1X) M8 Lock Nut (5X) ⅜" Lock Nut (2X) "...
- Page 4 UTB-2316 MOUNTING BRACKETS Dimensions shown below are for 5’ (60.00”), 6’ (72.00”), and 7’ (84.00”) spacing. BRACKET PRE-ASSEMBLY Dimensions A are measured from center to center of top mounting rail. Dimensions B are measured from outside 6.00” Bracket Hole to outside Bracket Hole. Dimensions B Dimensions A Drill holes into the Service...
- Page 5 RIGHT ROTATION ASSEMBLY SEQUENCE Installer’s Note: Due to variances between Utility Body manufacturers, the UTB Mounting Bracket’s top plate comes undrilled from the factory. After installing the Mounting Brackets, determine the correct positioning of the Rotation Assembly according to your Utility Body, then mark the hole locations on the Mounting Brackets based upon the holes found in the Lowers as shown in Steps 1.1–2.2...
-
Page 6: Rear Drive Shaft
REAR DRIVE SHAFT CYLINDER HARDWARE Torque to 90 in-lbs CONNECTING BAR FRONT DRIVE SHAFT Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 7 CONNECTING BAR FASTENERS L POSTS Torque to 90 in-lbs Z POSTS DRIVE SHAFT SEALING SEE QUICK START GUIDE FOR ADJUSTMENTS 10.1 Apply Silicone Sealant to 10.2 Torque to 90 in-lbs Connecting Bar ends Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 8 CYLINDER ADJUSTMENT Adjust the Cylinder Flow Control Screw to allow approximately 3 seconds time for the ladder to glide down when operating the loaded Ladder Rack. USAM-UXR001E-US01 Rev-C 0618 Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
