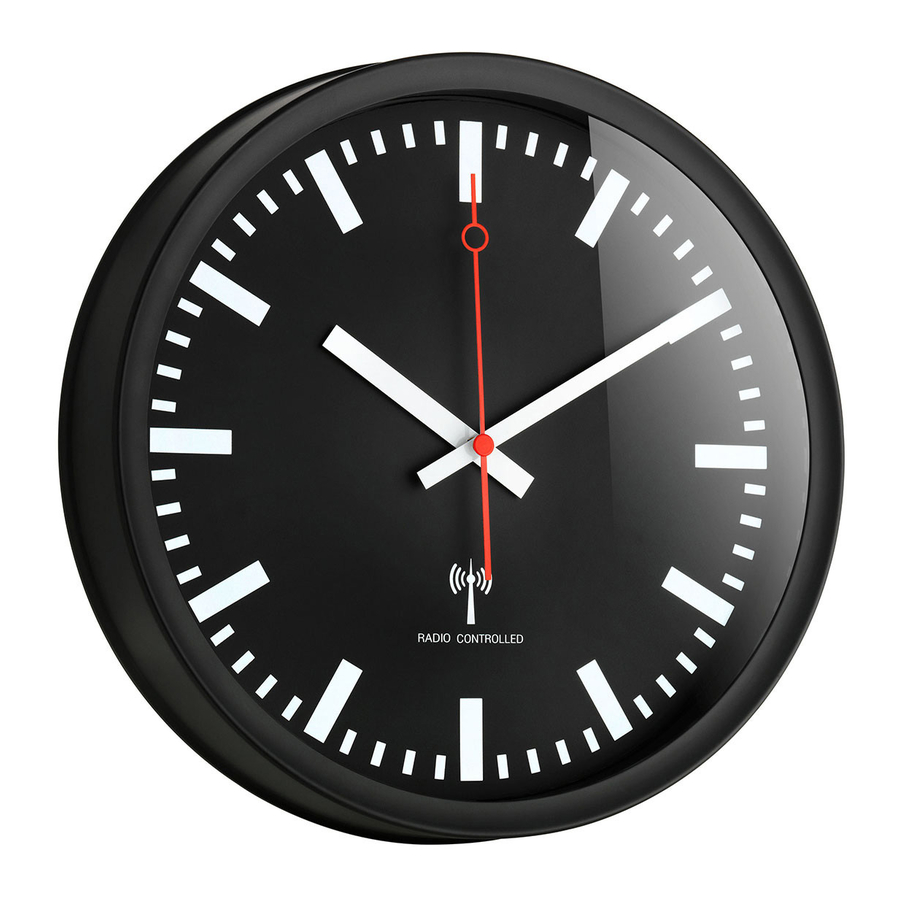

TFA 60.3513 - Radio Controlled Wall Clock Manual

Before you use this product

• Please make sure you read the instruction manual carefully.
• Following and respecting the instructions in your manual willprevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result ofnon-following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

Field of operation and all the benefits of your new instrument at a glance

• High precision radio-controlled clock
• Silent "Sweep" movement
• Large dial
• Second hand
• Ideal for home, office, waiting room, lobby or entrance hall oras a gift

For your safety

• This product is exclusively intended for the field of application described above. It should only be used as described in your instruction manual.
• Unauthorised repairs, modifications or changes to the product are prohibited.

Risk of injury:

• Keep this instrument and its battery out of the reach of children.
•
  Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, takenapart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to preventdamage caused by leaking.
• Wear chemical-resistant protective gloves and safety glasseswhen handling leaking batteries.

Important information on product safety!

• Do not place the unit near extreme temperatures, vibrations or shocks.
• Protect it from moisture.

Elements

Buttons
A: M SET button
B: RESET button
C: REC button

Housing
D: Wall mounting hole
E: Battery compartment

Note for radio-controlled time DCF:
The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radiocontrolled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

• The recommended distance to any interference sources like computer monitors or TV sets is at least 1.5 - 2 metres.
• Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.
• During night-time, atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

Getting started

• Insert one new battery AA size 1.5 V with the polarity as indicated.
• Your clock is now ready to use.
• After the initial setup, the clock's hands move to 12 o'clock and will try to receive the radio signal for 3-12 minutes. When the time code is received, the radio-controlled time will be shown. The clock receives the signal twice a day (1:00 and 3:00 am).
  During the reception the clock's second hand stops at 12 h.

REC button

• Manual initialization can be helpful. Press the REC button for 3 seconds. The clock's second hand stops and the clock will scan the DCF frequency signal.

M SET button - Manual setting of clock

• In case the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.) the time can be set manually. The clock will then work as a normal quartz clock.
• Press and hold M SET button for three seconds.
• Hold the button until the desired time is indicated.
• Press the button briefly the pointer moves minute by minute.
• The clock's second hand stops at 12 o'clock.
• After 30 seconds or when pressing the REC button the second pointer is moving forward again.
• The manually set time will be overwritten by the DCF time when the signal is received successfully.

RESET button

• Use a pin to press the RESET button if the unit does not work properly.

Care and maintenance

• Clean your instrument with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the battery if you do not use the product for a long period of time.
• Keep your clock in a dry place.

Troubleshooting

If your device fails to work despite these measures contact the supplier from whom you purchased it.

Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste.
As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.
The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).
Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Specifications

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.
The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU declaration of conformity
Hereby, TFA Dostmann declares that the radio equipment type 60.3513 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.tfa-dostmann.de/service/downloads/ce

www.tfa-dostmann.de
E-Mail: info@tfa-dostmann.de

TFA Dostmann GmbH & Co. KG
Zum Ottersberg 12, D-97877 Wertheim, Germany
