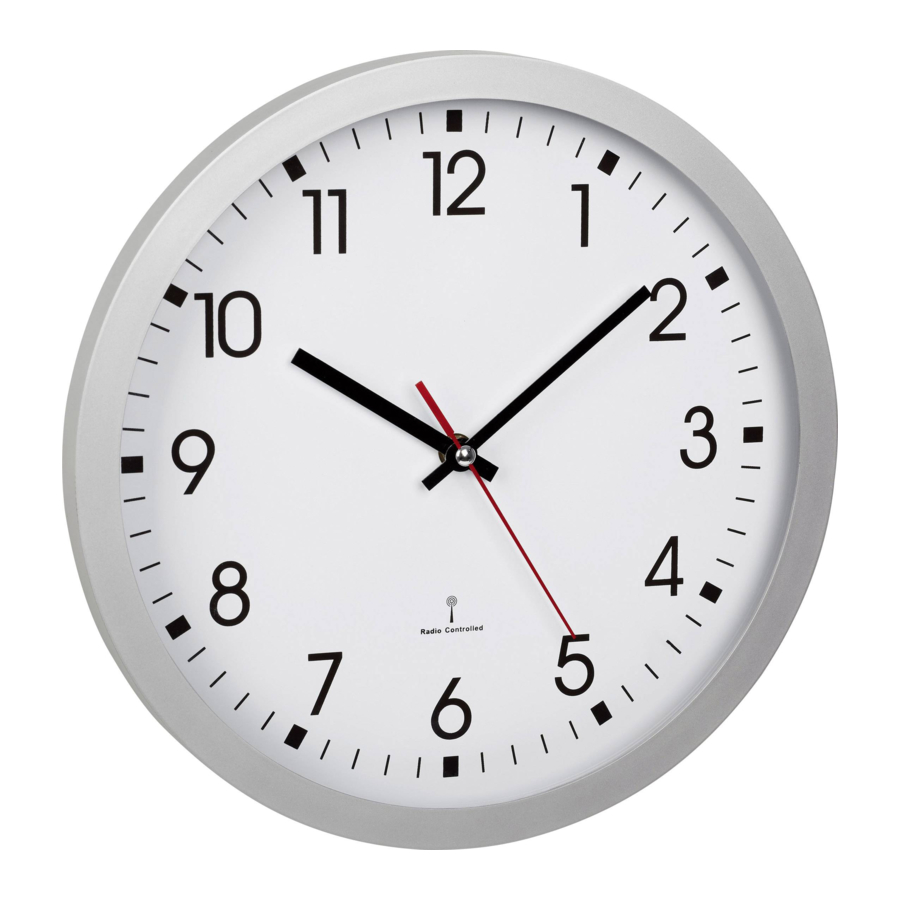

TFA 60.3522 - Radio-Controlled Wall Clock Manual

Before you start using it

• Please make sure to read the instruction manual carefully.
• This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual for future reference.

Scope of delivery

• Radio-controlled wall clock
• Instruction manual

Field of operation and the benefits of your new instrument at a glance

• Radio-controlled wall clock with high precision
• Analogue time display with second hand
• Cover made of real glass
• Large easy-to-read dial
• Ideal for home, office, waiting room, lobby or entrance hall and as a gift

For your safety

• This product is exclusively intended for the field of application described above. It should only be used as described in your instruction manual.
• Unauthorised repairs, modifications or changes to the product are prohibited.

Risk of injury:

• Keep this device and the battery out of reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not place the unit near extreme temperatures, vibrations or shocks.
• Protect it from moisture.

Elements

Buttons

1. M SET button
2. RESET button
3. REC button

Housing

4. Battery compartment

Getting started

• Pull the protective foil from the glass cover.
• Insert a new battery 1,5 V AA polarity as illustrated.
• The device is ready for use.

Reception of the DCF frequency signal

• The hands move to 12.00 o'clock.
• The clock will now scan the DCF frequency signal.
• When the time code is received successfully after a few minutes, the radio-controlled time is displayed steadily on the display.
• If the reception is not successfully received it will be repeated every hour. The reception will be tried 12 times.

Note for radio-controlled time DCF:
The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. The quality of the reception depends mainly on the geographic location. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

• The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.
• Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.
• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

M SET - Manual setting of the clock

• If the clock cannot detect the DCF-signal (for example due to distur-bances, transmitting distance, etc.), the time can be set manually. The clock will then work as a normal quartz clock.
• Press and hold the MSET button for three seconds.
• The second hand stops.
• Press and hold the MSET button until the desired time is indicated.
• Press the MSET button briefly the hand moves minute by minute.
• After a few seconds the second hand is moving forward again.
• By a successful reception of the DCF signal the manually set time willbe overwritten.

REC button

• You can start the initialization manually.
• Press and hold the REC button for three seconds.
• The hands move to 12.00 o'clock.
• The clock will now scan the DCF frequency signal.

RESET button

• If the device does not work properly use a pin to press the RESET button.

Care and maintenance

• Clean your instrument with a soft damp cloth. Do not use solvents orscouring agents.
• Remove the battery if you do not use the product for a long period oftime.
• Keep your clock in a dry place.

Battery replacement

• Change the battery when the functions of the device become weak.
  • Insert one new battery 1,5 V AA, polarity as illustrated.

Troubleshooting

If your device fails to work despite these measures contact the supplier from whom you purchased it.

Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste.
As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are:

Cd=cadmium, Hg=mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentallycompatible disposal.

Specifications

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.
The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU declaration of conformity

Hereby, TFA Dostmann declares that the radio equipment type 60.3522 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.tfa-dostmann.de/service/downloads/ce

www.tfa-dostmann.de
E-Mail: info@tfa-dostmann.de

TFA Dostmann GmbH & Co. KG
Zum Ottersberg 12, D-97877 Wertheim, Germany
