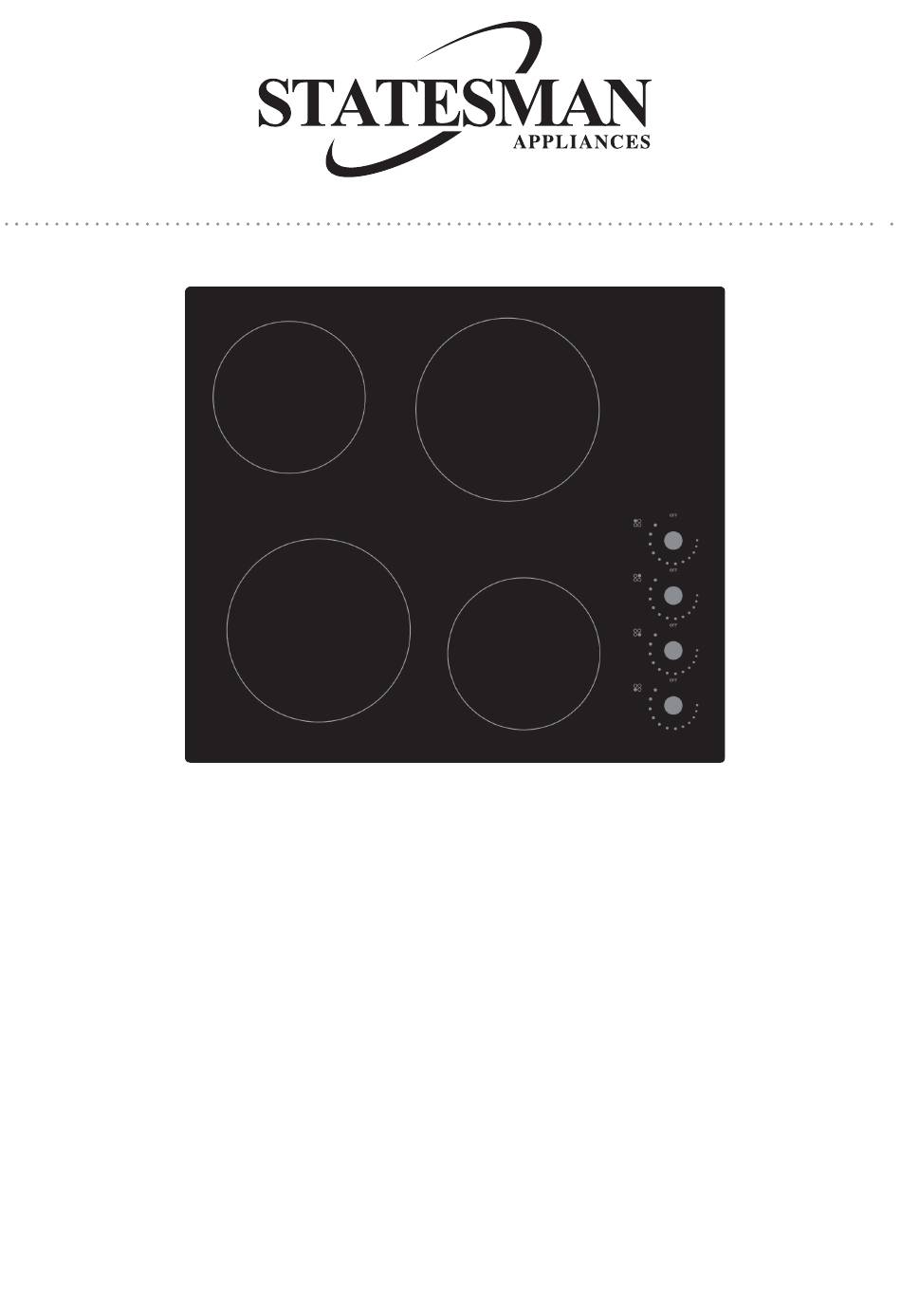

- Page 1 ECH60DC 60CM CERAMIC HOB DIAL CONTROL Instruction Manual Please read these instructions carefully before use and retain for future reference...
- Page 2 Safety Warnings Your safety is important to us. Please read this information before using your cooktop. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. • Alterations to the domestic wiring system must only be made by a qualified electrician. • Failure to follow this advice may result in electrical shock or death. Cut Hazard • Take care - panel edges are sharp. • Failure to use caution could result in injury or cuts. Important safety instructions • Read these instructions carefully before installing or using this appliance.
- Page 3 Cut Hazard • The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children. • Failure to use caution could result in injury or cuts. Important safety instructions • Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite. • Never use your appliance as a work or storage surface. • Never leave any objects or utensils on the appliance. • Never use your appliance for warming or heating the room. • After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). • Do not allow children to play with the appliance or sit, stand, or climb on it. • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. • Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings. • Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician. • Do not use a steam cleaner to clean your cooktop. • Do not place or drop heavy objects on your cooktop. • Do not stand on your cooktop.
-
Page 4: Product Overview
WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts • A steam cleaner is not to be used. • The appliance is not intended to be operated by means of an external timer or separate remote-control system. Congratulations on the purchase of your new Ceramic Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. - Page 5 Product Information This ceramic cooker hob can meet different kinds of cuisine demands because of resistance wire heating, really the optimal choice for modern families. Working Principle This ceramic cooker hob directly employs resistance wire heating, and adjust the output power by the power regulation with the mechanical controls. Before using your New Ceramic Hob • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your ceramic hob. Choosing the right Cookware Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.
-
Page 6: Using Your Ceramic Hob
USING YOUR CERAMIC HOB To start cooking 1. Place a suitable pan on the cooking zone that you wish to use. • Make sure the bottom of the pan and the surface of the cooking zone are clean and dry. 2. Adjust the power regulating control to the desired level to turn on the control Hot hob warning indicator When the glass plate is hot, the hot hob warning indicator will light. Don’t touch the glass plate until the indicator goes out. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot. When you have finished cooking Turn the cooking zone off by turning the power regulating control to “OFF“ to turn off the control. -
Page 7: Care And Cleaning
CARE AND CLEANING Hints and Tips- Please do not disassemble the unit by yourself to avoid any dangers and damages to the ceramic hob. -
Page 8: Installation
Technical Specification- Cooking Hob ECH60DC Cooking Zones 4 zones Supply voltage 220 - 240V~ Installed Electric power 5500 - 6600W Product size L x W x H (mm) 590 x 520 x 50 Building in Dimensions A x B (mm) 560 x 490 Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice. INSTALLATION Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below: L(mm) W(mm) H(mm) D(mm) A (mm) B (mm) X (mm) 590 520 560 490 50 min. - Page 9 A(mm) B(mm) C(mm) 760 50 min. 20 min. Air intake Air exit 5mm Before locating the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation. screw bracket. screw hole base Adjust the bracket position to suit for different work surface’s thickness.
- Page 10 Cautions 1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. 3. The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its reliability. 4. The wall and induced heating zone above the work surface shall withstand heat. 5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat. 6. A steam cleaner is not to be used. Connecting the hob to the mains power supply The power supply should be connected in compliance with the relevant standard,or a single-pole circuit breaker.the method of connection is shown below. 1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. 2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts. 3. The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations. 4. The cable must not be bent or compressed. 5. The cable must be checked regularly and only replaced by a properly qualified person.
-
Page 11: Service And Spare Parts
DISPOSAL: Do not dispose this product as unsorted municipal For more detailed information about treatment, recovery and recycling of waste. Collection of such waste this product, please contact your local city office, your household waste separately for special treatment disposal service or the shop where you purchased the product. is necessary. SERVICE AND SPARE PARTS Should you experience any difficulty in using your Statesman appliance at any time, you may contact your Statesman Retailer or call our Customer Service Department on; 0844 848 5861 Please have the following details ready; • Model Name/ Model Number • Serial Number • Date of Purchase • Where Purchased • Customer Name, address and Postcode • Contact Telephone Number...
