GH75SS | 75cm 5 Zone Gas Hob Stainless Steel
GH90SS | 90cm 5 Zone Gas Hob Stainless Steel
Instruction Manual
Serial Number:
Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have been caused in transit.
Advertisement
Table of Contents
Related Manuals for STATESMAN GH75SS
Summary of Contents for STATESMAN GH75SS

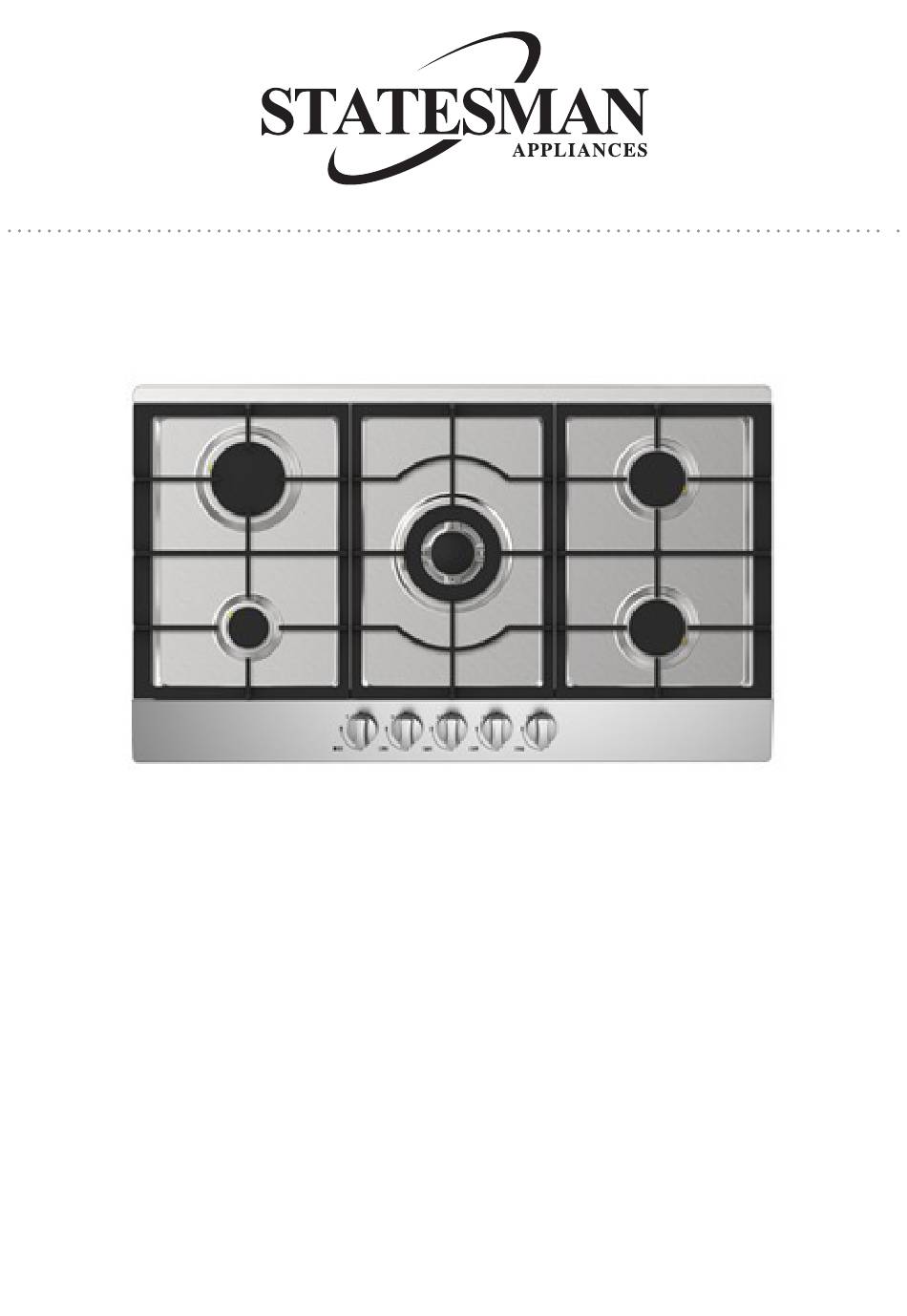

- Page 1 FOR MODELS GH75SS | 75cm 5 Zone Gas Hob Stainless Steel GH90SS | 90cm 5 Zone Gas Hob Stainless Steel Instruction Manual Serial Number: Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ........2 - 3 Specification ..............4 Appliance Overview ............5 Installation ............. 5 - 10 Operating Instructions ......... 11 - 12 Cleaning and Maintenance ..........13 Fuse Replacement ............14 Disposal Information ...........14 Trouble Shooting Guide ..........15 IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. - Page 3 19. It is not recommended to use plastic or aluminium foil dishes on the appliance. 20. Care should be taken when using this appliance as the cooker top can become extremely hot. 21. Do not allow clothing or any items other than suitable cookware contact with the appliance. 22.
-
Page 4: Specification
Technical Specification GH75SS – 75cm 5 Zone Gas Hob Supplier Name Statesman Model GH75SS Type of Hob Pan Support Cast Iron Top Plate Stainless Steel Dimensions (H x W x D) mm 90 x 750 x 510 Ignition Device Continous Ignition... -
Page 5: Appliance Overview
Ensure that the selected worktop or unit and all surrounding materials are made of non-flammable materials. Install a mechanical ventilation device. Important: Always ensure the appliance is well ventilated and the air inlet and outlet are not blocked. GH75SS GH90SS... - Page 6 GH75SS 5 Zone Gas Hob | Product Dimensions W (mm) D (mm) H (mm) 750mm 700mm 700mm 400mm 400mm 400mm 400mm FO 0813 FO 0812 GH90SS 5 Zone Gas Hob | Product Dimensions W (mm) D (mm) H (mm) 900mm...
- Page 7 Apply the provided Sealing Strip around the edge of the appliance. Ensuring not to leave a gap or overlapping the sealing agent. Top View Bottom View Sealing Strip GH75SS | 75cm 5 Zone Gas Hob The thickness of the sealing strip is 1.5mm The width of the sealing strip is 10mm...
- Page 8 • Locate the screw holes on the base of the appliance. • Place the bracket over the matching holes and secure with a screw ensuring to allow the bracket to move. (A) SEALING STRIP (C)S CREW (B)B RACKET • Carefully turn the hob back over and then gently lower into the cut hole. •...
- Page 9 Triple-Crow burner Rapid burner Semi-rapid S emi-rapid 3.6kW(263g/h) 3.0kW(219g/h) 1.75kW(127g/h) 1.75kW(127g/h) 1.0kW(73g/h) 11.1kW(809g/h) G31 37mbar 0.96 0.85 0.65 0.65 0.50 GH75SS 220-240V ac G30, 29mbar 0.96 0.85 0.65 0.65 0.50 50/60Hz √ G20, 20mbar 1.32T 1.30H 0.97 0.97 0.72 G25 25mbar 1 1.22...
- Page 10 Change the Injector of the Burners • Remove the pan support, burner lid and flame spreader. • Unscrew the injector using a 7mm box spanner and replace with new injector correct for the new gas supply. Ensuring that the new injector is firmly tightened.
-
Page 11: Operating Instructions
Operating Instructions The appliance is fitted with a flame failure safety device on each burner, which is designed to stop the flow of gas to the burner in the event of the flame going out. Black Circle: Gas off Large Flame: Maximum setting Small Flame: Minimum setting •... - Page 12 lid half off one side. them that they increase the temperature in this area and may cause damage. the trivet. support as serious damage to the appliance may result. cooktop WARNING: Do not touch burners or trivets whilst in use or for a good period after use as they will be extremely hot.
-
Page 13: Cleaning And Maintenance
Cleaning and Maintenance WARNING: Allow burners to cool before cleaning. Do not clean parts in the dishwasher. Cleaning the Top Plate Before cleaning and maintenance ensure the appliance is disconnected from the mains electricity supply. • Regularly wipe the appliance using a soft cloth with warm water and a little washing up liquid, ensuring to thoroughly dry before use. -
Page 14: Fuse Replacement
Re-assembling the Auxiliary, Semi-Rapid, Rapid and Triple-Crown Burner Auxiliary, Semi-Rapid Triple Crown and Rapid • Place the flame spreader on the burner cup so that 1/2/3 Burner Lid the ignition and flame failure safety device extends through the holes in the flame spreader. The flame Flame Spreader spreader should click into place. -
Page 15: Trouble Shooting Guide
Trouble Shooting If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Fault Possible Causes Solution... - Page 16 Ipswich, IP3 9RR 0844 848 5861 Disclaimer: Statesman operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
