9-1. Preparation

The Remote Control Software on a PC (Personal Computer) lets you control the Unit externally.
FG, SG, and PE of the Unit and the FG of the PC can be isolated.
Once communication with the Remote Control Software is established, you cannot control the
Unit locally any more. To enable local control, the Unit must be turned off once.
The following items are necessary:
・ Remote Control Software (Option ISS-7601)
・ Optical Interface Unit (Option 07-00022A)
・ PC (Personal Computer) (To be procured separately by the user)

9-2. Hardware Setup

・ Confirm that the power of the Unit and the PC are both OFF.
・ Remove the protective cap on the "Communication Terminal ⑪ " on the rear panel of the
Unit.
・ Remove the protective rubber caps on the optical cable plugs. Insert the plug of the optical
cable that comes with the optional Optical Interface Unit 07-00022A, into the Communication
Terminal ⑪ , and insert the other plug into the Optical Interface Unit. See Figure 12.
・ Turn the Unit power ON.
・ Turn the PC power ON, and run the OS.
・ Log in as a user with administrative authority.
・ Plug the USB plug of the Optical Interface Unit into the PC.
Optical cable

9. REMOTE CONTROLLING BY PC

Optical interface unit (07-00022A)
光 ケ ー ブ ル

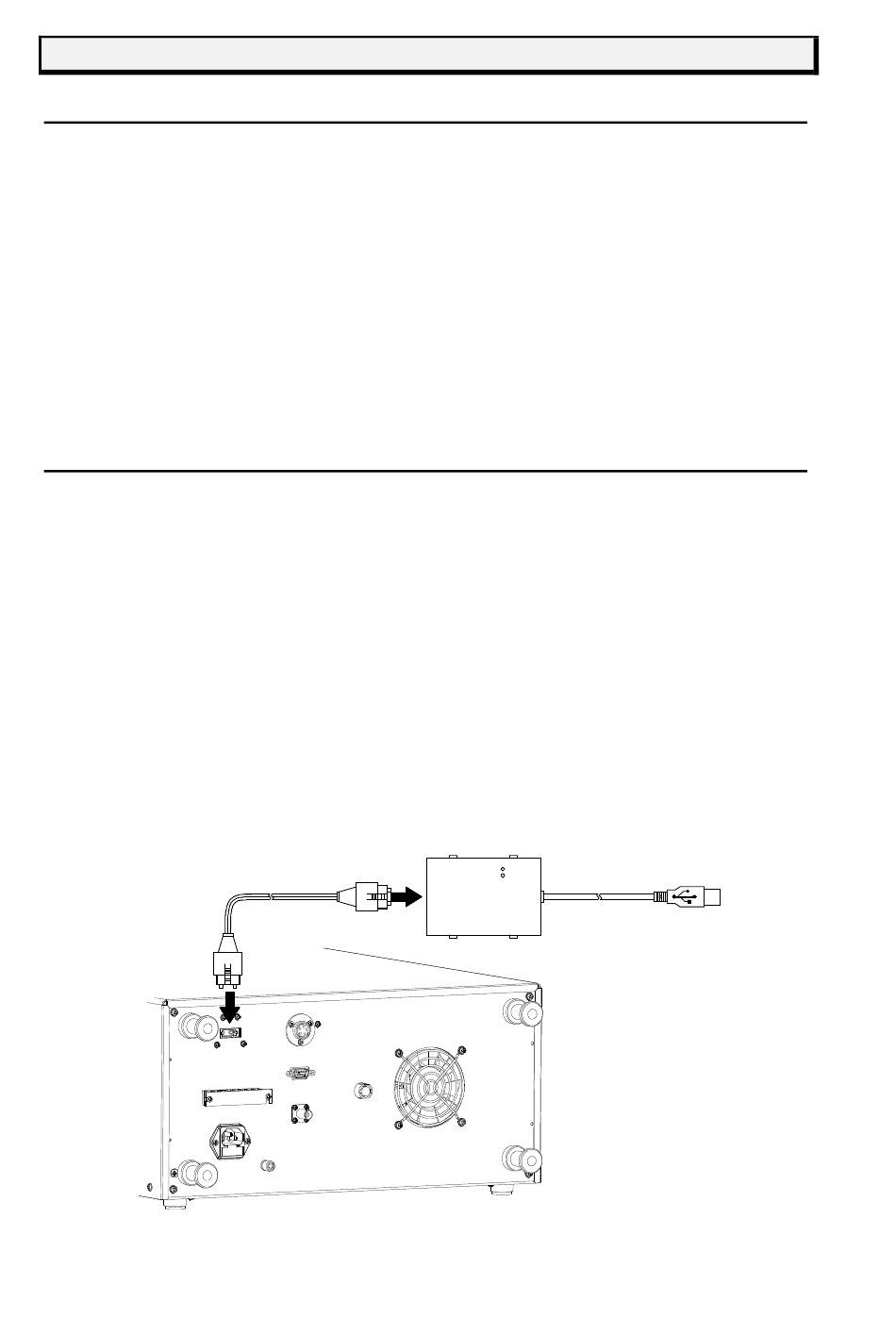

Figure 12 Hardware Setup
光 イ ン タ ー フ ェ ー ス ユ ニ ッ ト
0 7 - 0 0 0 2 2 A
Ｎ ｏ
ｉ ｓ
ｅ Ｋ
ｅ ｎ
- - 26
USB plug
