HPE Networking Instant On AP22 Access
Point
The Instant On AP22 access point delivers high performance concurrent 2.4 GHz and 5 GHz Wi-Fi 6 (802.11ax)
functionality with MIMO radios (2x2 in 2.4 GHz, 2x2 in 5 GHz), while also supporting legacy 802.11a/b/g/n/ac
wireless services
Package Contents
1 x AP22 access point
1 x Mount bracket
1 x Ethernet cable
If you have ordered AP22 bundle, the package would also include a power supply unit to power the AP through
an electrical power outlet.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
Hardware Overview

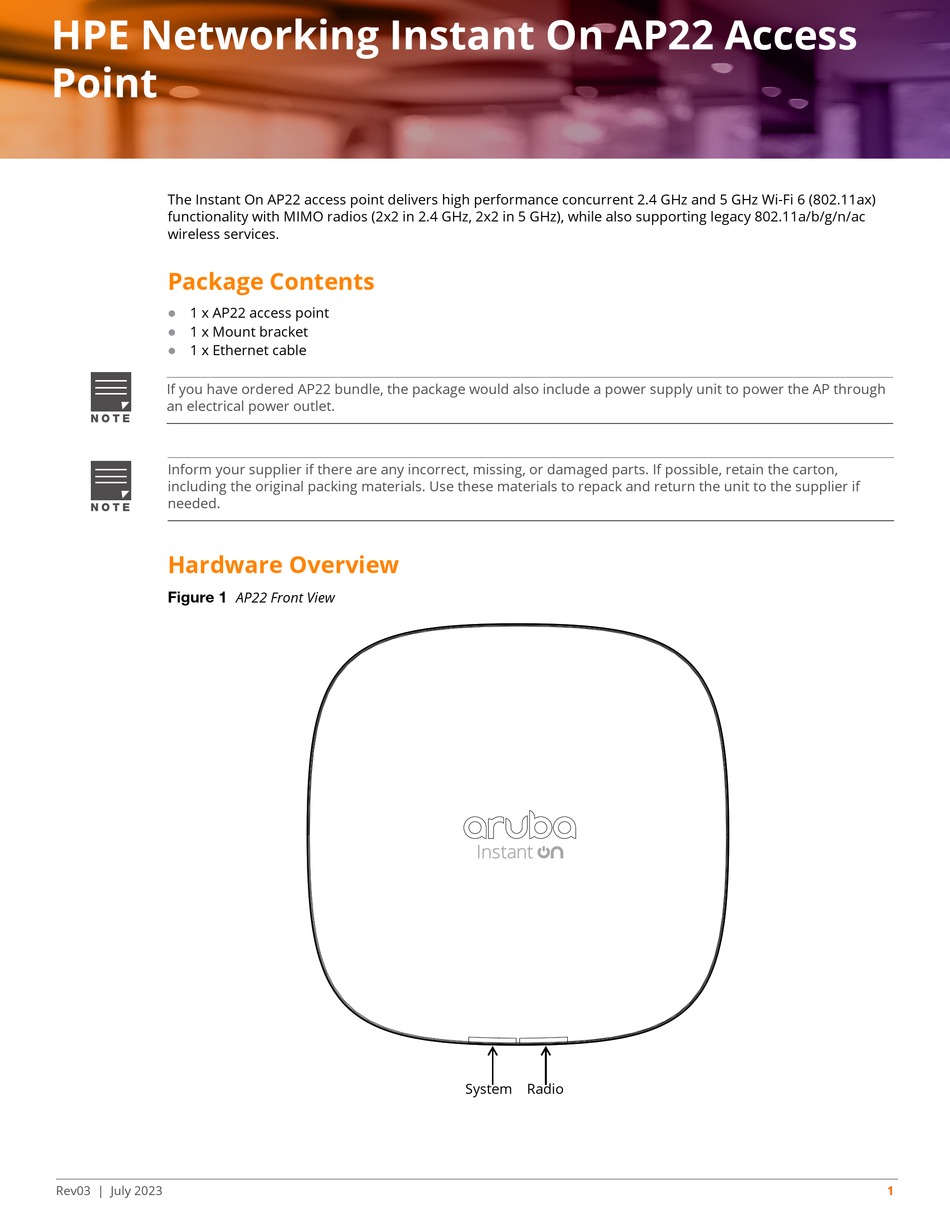

Figure 1
Rev03 | July 2023
.

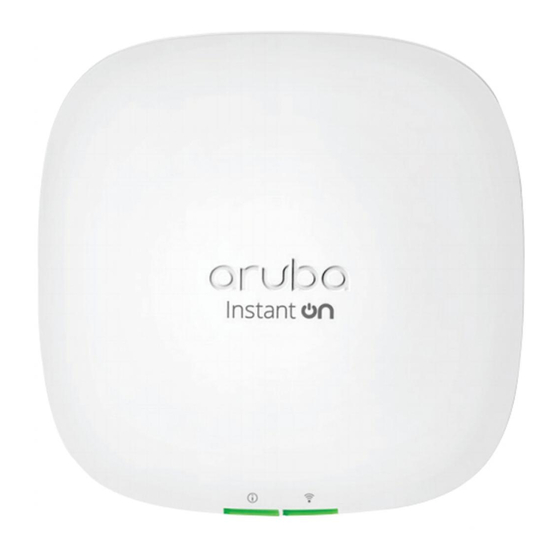

AP22 Front View
System Radio
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aruba AP22
Summary of Contents for Aruba AP22
- Page 1 1 x Ethernet cable If you have ordered AP22 bundle, the package would also include a power supply unit to power the AP through an electrical power outlet. Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials.
- Page 2 LEDs The AP22 access point has two LEDs that indicate the system and radio status of the device. AP22 Access Point LEDs Status Table 1 Color/State Meaning System No Lights Device has no power Blinking Green Device is starting Alternating Green/Amber...
- Page 3 If PoE is not available, a proprietary Aruba power adapter can be used to power the AP22 access point. This power adapter is available in the box if you buy the AP22 and power adapter bundle. For details, refer to the ordering information in the AP22 data sheet at https://www.ArubaInstantOn.com/resources.
-
Page 4: Before You Begin
The AP22 access point ships with a mount bracket to install the access point to a 9/16” or 15/16” ceiling tile rail, or on a solid surface, such as a wall or a hard ceiling. - Page 5 6). Make sure that any cable slack is above the ceiling tile. 5. Pushing toward the ceiling tile, rotate the access point clockwise until the device clicks into place on the ceiling tile rail. | Installation Guide Aruba Instant On AP22 Access Point...
- Page 6 Install any necessary wall anchors. Wall anchors are not included in the package. b. Align the screw holes in the mount bracket with the previously installed anchors or demarcated screw points. Aruba Instant On AP22 Access Point | Installation Guide...
- Page 7 30 degrees to the mount bracket. 3. Pushing towards the solid surface, rotate the access point clockwise until it clicks into place (see Figure Attaching the Access Point to the Mount Bracket Figure 8 | Installation Guide Aruba Instant On AP22 Access Point...
-
Page 8: Verifying Post-Installation Connectivity
Mobile Application Installation Click the Apple App Store or Google Play badge below to download and install the Aruba Instant On mobile app to your phone. Launch the app and follow the instructions to complete the setup. Alternately, simply search for “Aruba Instant On”... -
Page 9: Regulatory Model Number
If a power adapter other than the Aruba-approved adapter is used in the US or Canada, it should be NRTL listed, with an output rated 12Vdc, minimum 2A, marked “LPS” and “Class 2”, and suitable for plugging into a standard power receptacle in the US and Canada. - Page 10 IEC 60601-1. 3. Wipe with a dry cloth, no additional maintenance required. 4. No serviceable parts, the unit must be sent back to the manufacturer for repair. Aruba Instant On AP22 Access Point | Installation Guide...
- Page 11 If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally. Compliance is based on the use of Aruba approved accessories. Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.
- Page 12 OF UKRAINE dated May 24, 2017, No. 355. The full text of the UA declaration of conformity is available at the following internet address: https://certificates.ext.hpe.com/public/certificates.html Х’ЮЛЕТТ ПАКАРД ЕНТЕРПРАЗ, 6280 АМЕРИКА ЦЕНТР Д-Р, САН-ХОСЕ, КАЛІФОРНІЯ 95002, США Oman OMAN - TRA D192690 R/8925/20 Philippines Type-Approval No. ESD-1921058C Aruba Instant On AP22 Access Point | Installation Guide...
- Page 13 Singapore DB100427 | Installation Guide Aruba Instant On AP22 Access Point...
-
Page 14: Contact Information
Attn: General Counsel WW Corporate Headquarters 1701 E Mossy Oaks Rd Spring, TX 77389 United States of America. Warranty For information regarding Instant On product warranties and support service, visit https://www.arubainstanton.com/contact-support. Aruba Instant On AP22 Access Point | Installation Guide...
