General Hobby Wilga 30cc Assembly Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Wilga 30cc
Assembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wilga 30cc and is the answer not in the manual?

Questions and answers

Related Manuals for General Hobby Wilga 30cc

Summary of Contents for General Hobby Wilga 30cc

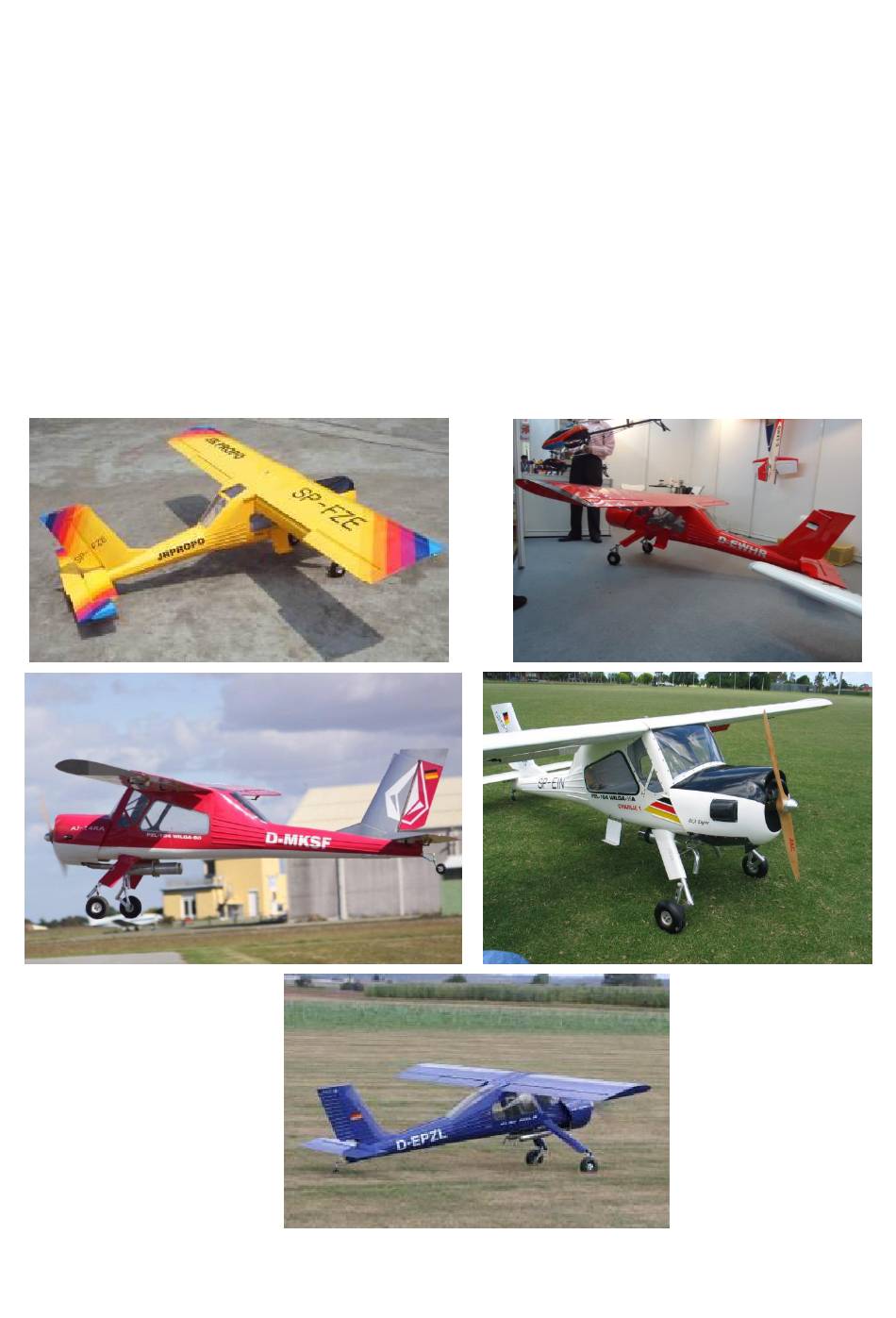

  • Page 1 Wilga 30cc Assembly Manual...
  • Page 2 Caution! You should not regard this plane as a toy! To ensure safety, please read this instruction manual thoroughly before assembly. Building and operating a model plane requires diligent practice and correct guidance. An inexperienced flyer can cause serious injury and property damage.
  • Page 3 Note: the accessories coming with airplane may not same as below list. Please inquire it with the distributor.

  • Page 5: Main Landing Gear Installation

    Main Landing Gear Installation Install the landing gear into the fuselage by screws as shown. Lock the wheels onto the landing gear by wheel axles. LED light Find out the LED light system. Insert the LED light into the holder as shown. Find out the holes for the LED light in the wings and rudder.
  • Page 6 Find out the hole for the LED light on the top of the rudder and cut it out. Insert the LED light wire from the top of rudder, and glue it onto the rudder.

  • Page 7: Rudder And Tail Wheel Installation

    Rudder and tail wheel Installation Find out the rudder and rudder tube Insert the rudder tube into rudder. Connect the rudder onto the fuselage. Find out the steel as shown, insert it into the rudder and glue it. Connect the rudder onto the fuselage by two pcs of carbon fiber tubes. Connect it as shown, totally four pcs of wires.
  • Page 8 There are totally three place for you to install the tail servo. Choose the middle one to pull the rudder and tail wheel. Find out above wood servo tray, and stick it onto the rudder servo position, to make the rudder servo on a higher level. The rest two servo hole could be installed with elevator servo.
  • Page 9 Find out the parts bag for the tail landing gear Assembly it as shown Install the tail landing gear into the fuselage tail with screws Connect one side of the wire with the rudder and tail servo in the fuselage. And another side to the arm to steel the tail wheel as shown.

  • Page 10: Main Wing Assembly

    Lock the aluminum piece with self-tapped screw onto the fuselage and the stabs. Connect the servo arm and control horn with pushrod. Main Wing Assembly Parts for Main wing installation...
  • Page 11 1 Remove the covering from the servo position. Find out the slot pre-opened for rudder control horn, remove the film. as shown. 2 Fit the control horn into the slot, glue the horns into the aileron of each side. 3 Drill holes for the servo mounting screws and harden the wood around the holes with a drop of thin CA.

  • Page 12: Engine Installation

    7 Install the control horn. Adjust the horn and servo arm. Fix the horn in place firmly. Install the ball link and push rod . Make sure it’s firm and flexible. 8 Repeat the previous steps for the other wing. Please install the wing tube and wing bolts in the final assembly.
  • Page 13 2 Insert the bolts through flat fender washers, the firewall and into the engine stand offs. Tighten firmly. Secure mounting bolts nuts with Blue Loctite. 3 Use a bit to drill a pushrod exit hole on the firewall in line with the engine carburetor throttle arm.
  • Page 14 Fuel Tank 1 Install the inside parts of fuel tank as shown. 2 Assembly the outside fuel pipe as shown. 3 Tighten the velcro ties secure the fuel tank.
  • Page 15 Aero-Tow 1 Install the aero-tow and servo onto the plywood 1 with screws. 2 Find the right position on the fuselage then cut a hole for the aero-tow. Install the plywood 1 as shown in the photos. Stick it into the fuselage very well.
  • Page 16 Stairs Findout the stair parts and the screws. Install the wood stair model onto the aluminume support by screws as shown. Lock the stair support onto the fuselage (you need to cut holes to install the stair onto the fuselage). Chairs...
  • Page 17 Doors Installation Use screws and hinge install the doors onto the fuselage. Use magnet on the doors and fuselage. Stick them to the right position. Find and mark the right positions on the back side of the wings. Cut out the film and stick another pc of magnet on the back of the wings.
  • Page 18 Wood Decoration Stick the wood decoration into the fuselage place as shown. Spinner...
  • Page 19 Wilga 100cc D = 136 mm Wilga 50cc D = 116 mm Wilga 30cc D = 100 mm Wilga 20cc D = 90mm...
  • Page 20 Trail run the Engine to check its stability at high speed and low speed to ensure there are no problems with vibration on the model. Run the motor at high speed about 30 min, check the Engine and make sure the temperature is below the prescription of manufacturer.
