Miele professional PG 8583 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Miele professional Manuals
  4. Laboratory Equipment
  5. PG 8583
  6. Operating instructions manual

Miele professional PG 8583 Operating Instructions Manual

Washer-disinfector for laboratory glassware and laboratory utensils
Hide thumbs Also See for PG 8583:
Table of Contents

Advertisement

Quick Links

Download this manual

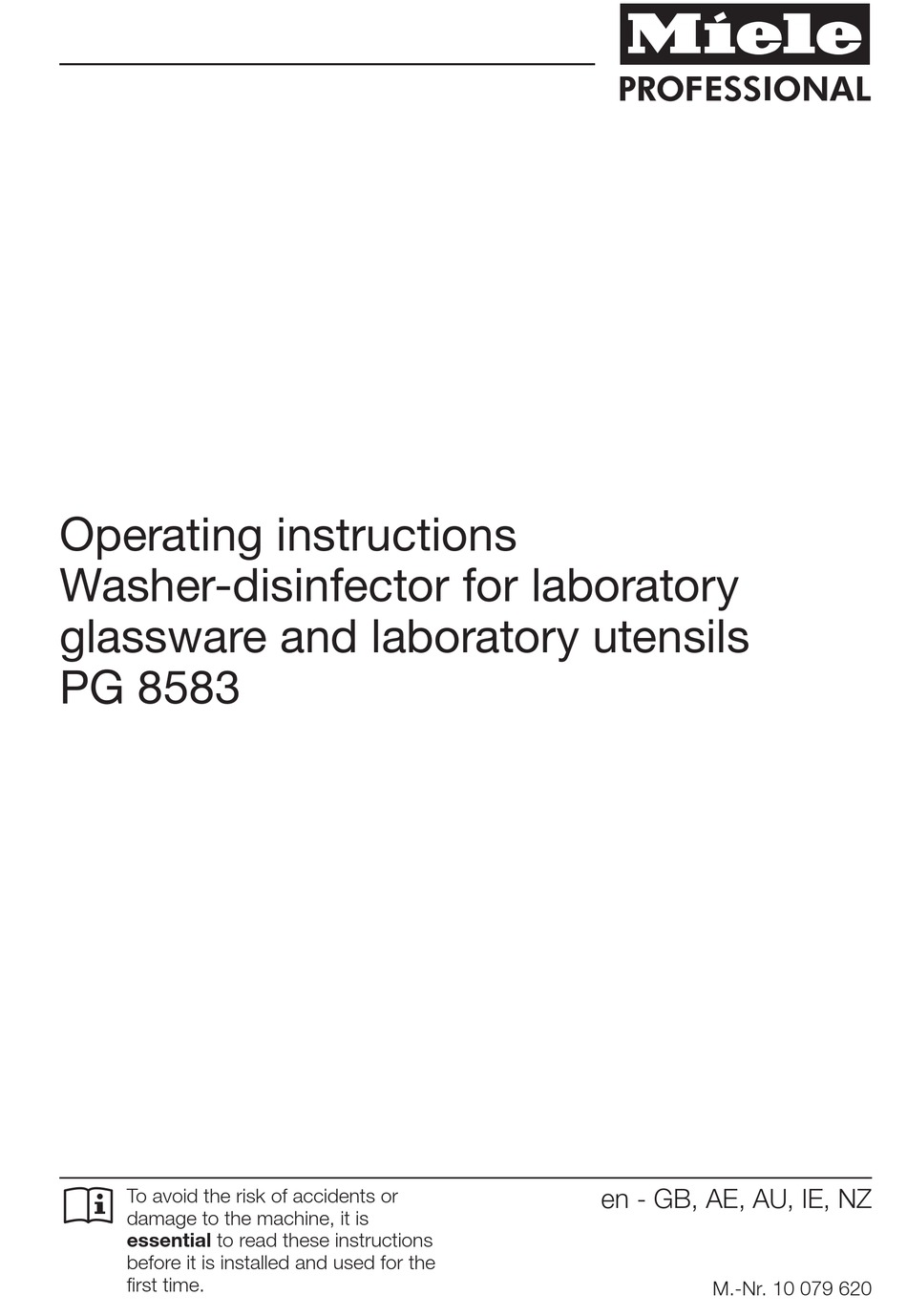

Operating instructions
Washer-disinfector for laboratory
glassware and laboratory utensils
PG 8583
To avoid the risk of accidents or
damage to the machine, it is
essential to read these instructions
before it is installed and used for the
first time.
en - GB, AE, AU, IE, NZ
M.-Nr. 10 079 620

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG 8583 and is the answer not in the manual?

Questions and answers

Related Manuals for Miele professional PG 8583

Summary of Contents for Miele professional PG 8583

  • Page 1 Operating instructions Washer-disinfector for laboratory glassware and laboratory utensils PG 8583 en - GB, AE, AU, IE, NZ  To avoid the risk of accidents or damage to the machine, it is essential to read these instructions before it is installed and used for the first time.

  • Page 3: Table Of Contents

    Contents Notes about these instructions ..................7 Intended use ........................8 User profiles ........................10 Guide to the machine ......................11 Overview..........................11 Control panel ........................12 LEDs in the buttons ......................13 Warning and Safety instructions ..................14 Symbols on the machine ..................... 21 Using the machine......................
  • Page 4 Contents Refill indicator........................54 Dispensing neutralising agent ..................54 Cleaning agent........................55 Refilling liquid cleaning agent..................55 Refill indicator........................56 Dispensing liquid cleaning agent ..................56 Dispensing powder cleaning agent ................. 57 Operation..........................59 Selecting a programme ...................... 59 Starting a programme......................
  • Page 5 Contents Programme structure......................96 Programme header......................96 Programme blocks ......................97 Opening the menu ....................... 98 Reset programme ........................ 99 Altering a programme ....................... 100 Allocating wash blocks....................101 Spray arm monitoring....................102 Change water quantity ....................104 Increasing drainage time ....................105 Setting the concentration level..................
  • Page 6 Contents Installation........................143 Installation and levelling ....................143 Building under a continuous worktop................144 Removing the lid ......................144 Electromagnetic compatibility (EMC) ................145 Electrical connection ...................... 146 Equipotential bonding connection..................146 Plumbing........................... 147 Connection to the water supply ..................147 Connecting the drain hose ....................

  • Page 7: Notes About These Instructions

    Notes about these instructions Important warnings  Information which is important for safety is highlighted in a thick framed box with a warning symbol. This alerts you to the potential danger of injury to people or damage to property. Read these warning notes carefully and observe the procedural instructions and codes of practice they describe.

  • Page 8: Intended Use

    Intended use This Miele washer-disinfector can be used to reprocess laboratory glassware and laboratory utensils with water based media. The process includes cleaning and rinsing, and disinfection where required. Due to the wide variety of laboratory glassware and laboratory utensils on the market, it may be necessary in some cases to establish whether it is suitable for reprocessing in a washer- disinfector.
  • Page 9 Intended use This machine is programmed to carry out the final rinse with mains water or with processed water of a quality to suit the application (e.g. purified water, fully demineralised water or demineralised water). It is particularly important to ensure the appropriate water quality for the rinse and final rinse of items for analytical purposes.

  • Page 10: User Profiles

    Intended use User profiles Daily operators Daily operators must be instructed in operating and loading the machine and trained regularly to guarantee safe daily use. They require knowledge of machine reprocessing of laboratory glassware and utensils. Tasks for daily routine operation are located in the menu.

  • Page 11: Guide To The Machine

    Guide to the machine Overview Comfort door locking mechanism Filter combination Module slot for a communication module Plinth facing (Back, top right) On the back: Test point for performance checks – Second data plate (Top, front right; only visible with lid –...

  • Page 12: Control Panel

    Guide to the machine Control panel  On/Off button For switching the washer-disinfector on and off. ,  and  buttons Programme selection buttons. Can be configured.  Programme list button For accessing the list of all programmes. Display User interface and programme sequence display ...

  • Page 13: Leds In The Buttons

    Guide to the machine LEDs in the buttons The buttons on the control panel have LEDs (Light Emitting Diodes) that indicate the status of the washer-disinfector. Button Status  button The washer-disinfector is switched on. The washer-disinfector is switched off. Programme The respective programme has been selection...

  • Page 14: Warning And Safety Instructions

    Warning and Safety instructions This machine complies with all statutory safety requirements. Inappropriate use can, however, lead to personal injury and material damage. Read these instructions carefully before using it for the first time to avoid the risk of accidents and damage to the machine. Keep these instructions in a safe place where they are accessible to users at all times.
  • Page 15 Warning and Safety instructions Risk of injury Please pay attention to the following notes to avoid injury  This machine must be commissioned, serviced and repaired by a Miele authorised and trained service technician only. To ensure compliance with Good Laboratory Practice guidelines, Miele repair and maintenance contracts are recommended.
  • Page 16 Warning and Safety instructions  Take care not to inhale powder agents. Chemical agents can cause chemical burns in the mouth and throat or lead to asphyxiation.  Do not lift the machine by protruding parts such as the control panel or the opened service flap as these could be damaged or torn off.
  • Page 17 Warning and Safety instructions Quality assurance The following points should be observed to assist in maintaining quality standards when processing laboratory glassware and utensils to avoid damage to the loads being cleaned.  If it is necessary to interrupt a programme in exceptional circumstances, this may only be done by authorised personnel.
  • Page 18 Warning and Safety instructions  Where a chemical agent is recommended on technical application grounds (e.g. a cleaning agent), this does not imply that the manufacturer of the machine accepts liability for the effect of the chemical on the items being cleaned. Please be aware that changes in formulation, storage conditions etc.
  • Page 19 Warning and Safety instructions  Follow the installation instructions in the operating and installation instructions.
  • Page 20 Warning and Safety instructions Safety with children  Children must be supervised in the vicinity of the machine. Do not allow children to play with the machine. They could get locked inside  Children must not use the machine.  Keep children away from chemical agents.

  • Page 21: Symbols On The Machine

    Warning and Safety instructions Symbols on the machine Warning: Observe the operating instructions Warning: Danger of electric shock Disposing of your old machine  Please note that the machine may have contamination from blood, bodily fluids, pathogenic germs, facultative pathogenic germs, genetically modified material, etc.

  • Page 22: Using The Machine

    Using the machine Control panel The machine is operated exclusively by the buttons located on the stainless steel surfaces either side of the display. The display is not a touch screen. A light touch on the relevant button is sufficient to operate the functions.

  • Page 23: Switching On

    Press the  button until the LED lights up.  After that, the display will show the following: PG 8583 As soon as the machine is ready for operation, the display changes to show the last selected programme, e.g. Universal Temperature 75 °C...

  • Page 24: Display Interface

    Using the machine Display interface The machine is controlled by menus. The menus are displayed in a 3- line display on the control panel. The name of the menu (top line) and up to two options are shown. The currently selected option is highlighted, e.g. Settings ...

  • Page 25: Settings In The Menu

    Using the machine Settings in the menu All menu descriptions in these operating instructions are structured as follows Input procedure The input procedure describes the complete sequence required to reach a particular menu level. The menu options shown must be selected individually using the arrow buttons and then confirmed with Example: ...

  • Page 26: Symbols In The Display

    Using the machine Symbols in the display Navigation arrows  If a menu consists of more than two options, two navigation arrows are shown at the side of the menu options. Settings  Language  Date Use the  and  arrow buttons on the control panel to navigate through the menu.

  • Page 27: Commissioning

    Commissioning Installation and connection Before commissioning the machine must be securely installed, and the water inlet and drain hoses and the mains cable correctly connected. See "Installation", "Plumbing connections" and "Electrical connection" and the installation diagram supplied. Procedure During commissioning a set procedure is followed which must not be interrupted.
  • Page 28 Commissioning Select the The menu for selecting the date format will then appear. date format Date format DD:MM:YY MM:DD:YY – = Day – = Month, and – = Year. Use the  and  arrow buttons to select the date format you want ...
  • Page 29 Commissioning Setting the water The menu for setting the water hardness will then appear. hardness level Water hardness °dH (1 ­ 70 °dH ) The bottom line of the display shows the possible input range. Water hardness input values can be found in the chart in "Water softener/ Settings chart".
  • Page 30 Commissioning Commissioning Commissioning is completed when the following message is completed displayed. Set up successful Confirm the message with OK.  The machine is now ready for use. Universal Temperature 75 °C Duration 1:30 After commissioning every programme starts with reactivation of the water softener.

  • Page 31: Opening And Closing The Door

    Opening and closing the door Electronic door locking The washer-disinfector is equipped with a Comfort door lock. When the door is closed, the Comfort door lock automatically pulls the door into the correct position, electronically locking the door. Opening the door An electronically locked door can only be opened if: –...

  • Page 32: Opening The Door Using The Emergency Release

    Opening and closing the door Opening the door using the emergency release The emergency release may only be used when it is no longer possible to open the door normally, e.g. in the event of a power cut.  If the emergency release is operated during a programme cycle, hot water and cleaning agents can escape.

  • Page 33: Water Softener

    Water softener Water hardness In order to achieve good cleaning results, the machine needs to operate with soft water. Hard water results in the build-up of calcium deposits on the load and in the machine. Mains water with a hardness of more than 0.7 mmol/l (4 °dH German scale) must be softened.

  • Page 34: Setting The Water Hardness Level

    Water softener Setting the water hardness level Water hardness can be set between 0 and 12.6 mmol/l (0 - 70 °dH). Open the menu as follows:   button  Further settings Water hardness  Water hardness °dH (1 ­ 70 °dH ) The bottom line of the display shows the possible input range.
  • Page 35 Water softener Settings °dH °f mmol/l Display °dH °f mmol/l Display 19 *) 10.1 10.3 10.4 10.6 10.8 11.0 11.2 11.3 11.5 11.7 11.9 12.1 12.2 12.4 12.6 *) Factory default setting...

  • Page 36: Filling The Salt Reservoir

    Water softener Filling the salt reservoir Use only special, coarse-grained reactivation salt with a granule size of approx. 1 - 4 mm. Do not under any circumstances use other types of salt such as table salt, agricultural or gritting salt. These may contain insoluble additives which can impair the functioning of the water softener.
  • Page 37 Water softener  Do not fill the reservoir with water. The reservoir could overflow when filled with salt. Add salt only until the funnel of the salt reservoir is full, so that it  can close properly. Do not add more than 2 kg of salt. As the salt reservoir is being filled, displaced water (saline solution) may run out.

  • Page 38: Add Salt Reminder

    Water softener Add salt reminder If the salt level in the reservoir is low, the following reminder will appear: Refill salt Confirm the message with the OK button and  fill the reservoir as described.  When the message first appears, there may be sufficient salt for a further programme, depending on the water hardness level set.

  • Page 39: Areas Of Application

    Areas of application Mobile units, baskets, modules and inserts This machine can be equipped with an upper and lower basket or a mobile unit which can be fitted with different inserts and modules or exchanged for special accessories depending on the items to be washed.

  • Page 40: Adjusting The Upper Basket

    Areas of application Adjusting the upper basket Height-adjustable upper baskets can be adjusted between three positions with 2 cm between each position to accommodate items of different heights. To adjust the height, the brackets with rollers on the side of the upper basket and the water connector at the back of the basket have to be moved.
  • Page 41 Areas of application ... Middle position: Move the roller brackets on both sides to the middle position and  secure them firmly. Position the stainless steel plate over the openings in the water  supply pipe so that one of the outer apertures is covered. Secure the stainless steel plate at the top or bottom with 2 screws.

  • Page 42: Preparing The Load

    Areas of application Preparing the load  Only items which have been declared by their manufacturer as suitable for machine reprocessing may be processed. The manufacturer's specific reprocessing instructions must be observed. Special injector nozzles, irrigation sleeves or adapters may be required for appropriate internal cleaning, depending on the load.
  • Page 43 Areas of application Remove non-water soluble residues such as paint, adhesives and  polymer compounds using appropriate solvents. Rinse wash load items which have been in contact with chloride  solutions or hydrochloric acid thoroughly with water before loading in the machine and drain well. ...
  • Page 44 Areas of application Carry out a visual check before starting every programme: – Is everything correctly loaded/connected for cleaning? – Was the recommended loading template followed? – Can the lumen / narrow sections of hollow items be accessed by the wash fluid? –...
  • Page 45 Areas of application Wash load..wide necked Wash load items with wide necks, e.g. beakers, wide necked Erlenmeyer flasks and petri dishes, or cylindrical items, e.g. test tubes, can be cleaned inside and out by rotating spray arms. To do this the wash load is positioned in full, half or quarter inserts and placed in an empty lower basket or an upper basket with a spray arm.

  • Page 46: Chemical Processes And Technology

    Chemical processes and technology In this section you will find a description of the causes of common chemical reactions which can occur between different types of soiling, chemical agents and the components of the machine, along with their remedies as necessary. This section is intended as a guide.
  • Page 47 Chemical processes and technology Chemical agents Problem How to resolve it The ingredients in chemical agents have a – Follow the chemical agent manufacturer's strong influence on the longevity and instructions and recommendations. functionality (throughput) of the dispensing – Carry out a regular visual check of the system.
  • Page 48 Chemical processes and technology Chemical agents Problem How to resolve it De-foaming agents, especially silicone – De-foaming agents should be used in based ones can cause the following: exceptional cases only, for instance when absolutely essential for the process. – deposits to build up in the cabinet, –...
  • Page 49 Chemical processes and technology Soiling Problem How to resolve it The following substances cause corrosion – Thoroughly rinse items in water to stainless steel in the wash cabinet on beforehand. accessories: – Put the drip-dry items to be washed into –...

  • Page 50: Adding And Dispensing Chemical Agents

    Adding and dispensing chemical agents Using chemical agents  Only use chemical agents designed specifically for use in machine and follow the manufacturer's instructions on their application. Please observe carefully any instructions relating to non-toxic residues.  Caution when using chemical agents. Some agents may be corrosive and irritant.

  • Page 51: Dispensing Systems

    Adding and dispensing chemical agents Dispensing systems The machine is equipped with a number of internal dispensing systems for chemical agents: – Neutralisation agent This is dispensed using a siphon. Cleaning agent is dispensed, depending on machine, either – via a dispenser for power cleaning agent  in the door, –...

  • Page 52: Dos Modules

    Adding and dispensing chemical agents DOS modules Machines with a dispenser for powder cleaning agent  in the door can be fitted with up to two additional external dispensing modules (DOS modules) for liquid agents. Machines with an internal dispensing system for liquid agent can be connected to an additional external DOS module for liquid agent.

  • Page 53: Neutralising Agent

    Adding and dispensing chemical agents Neutralising agent Neutralising agent (pH setting: acidic) neutralises any residues of alkaline cleaning agents on the surface of the load. Neutralising agent is dispensed automatically in the Interim rinse phase after the main wash (see Programme charts). The reservoir must be filled and the dispensing system vented for this to occur.

  • Page 54: Refill Indicator

    Adding and dispensing chemical agents Refill indicator When the fill level is low in the DOS 3 supply container for neutralising agent you are reminded to refill it. Refill Confirm the message shown with OK and  Refill the neutralising agent as described. ...

  • Page 55: Cleaning Agent

    For cleaning specific types of soiling, and for information on the optimum cleaning agents and additives to use for liquid dispensing, please contact the Miele Professional Department. Refilling liquid Liquid cleaning agent is dispensed from an external supply container cleaning agent e.g.

  • Page 56: Refill Indicator

    Adding and dispensing chemical agents Push the siphon into the opening of the container and screw it back  on tightly. Observe the colour coding. Wipe up any spilled process chemical thoroughly.  Place the container on the floor next to the machine or in an ...

  • Page 57: Dispensing Powder Cleaning Agent

    Adding and dispensing chemical agents Dispensing  Avoid inhaling powder cleaning agent. powder cleaning Swallowing chemical agents can cause burns in the mouth and agent throat or lead to asphyxiation. Powder cleaning agent must only be used if there is a dispenser for it in the door.
  • Page 58 Adding and dispensing chemical agents Add powder agent to the dispenser.  Close the flap.   Make sure that all of the cleaning agent has dissolved at the end of the programme. Repeat the programme if residual agent is present.

  • Page 59: Operation

    Operation Selecting a programme ..using the Select a programme using short-cut buttons ,  or .  short-cut buttons ... from the Press the  button and  programme list use the  and  arrow buttons to highlight a programme and ...

  • Page 60: Drying Assistance

    Operation Setting the start Select a programme.  time Press the OK button before starting the programme.  Start time Use the arrow buttons  (higher) and  (lower) to set the hours and  confirm your selection with the OK button. When the OK button is pressed, the display jumps automatically to the next input position.
  • Page 61 Operation The drying function is switched on or off by pressing the  button before starting the programme. The LED in the button will indicate whether the additional function is switched on or off. The programme drying duration can also be altered. When the drying function is activated, the programme duration will be longer.

  • Page 62: Programme Sequence Indicator

    Operation Programme sequence indicator After the programme has started the programme sequence can be followed in the three-line display Universal Main wash 1 Time left Top line – Programme name. Middle line The following parameters can be checked using the arrow buttons  and : –...

  • Page 63: Cancelling A Programme

    Operation Cancelling a programme  If a programme is cancelled, the items in the washer-disinfector must be reprocessed again.  Be careful when opening the door. The wash load could be hot. Danger of scalding, burning and chemical burns. Programme The programme stops and an error message appears in the display.

  • Page 64: Settings

    Settings  The structure of the Settings  menu is shown below. The menu incorporates all relevant functions to support daily routine tasks. In the structure overview all options which can be permanently selected have boxes  beside them. Factory settings are indicated by a tick .

  • Page 65: Delay Start

    Settings  Delay start This setting must be activated for delay start to be available for use. Open the menu as follows:   button  Settings  Delay start  Delay start – Delay start is deactivated. – Delay start is activated and can be used for all programmes. Select an option using the ...

  • Page 66: Drying

    Settings  Drying The drying function can be preset or deactivated for all programmes with a drying phase (see Programme charts). The additional "Drying assistance" function accelerates the drying process at the end of the programme. If drying assistance has been activated the door will automatically open a few centimetres at the end of the programme to release steam from the cabinet.

  • Page 67: Dos Venting

    Settings  DOS venting The dispensing system for liquid chemical agents can only dispense reliably if the system has been purged of air. The DOS system must only be vented: – if the dispensing system is being used for the first time, –...

  • Page 68: Language

    Settings  Language  The language set will be used in the display. Open the menu as follows:   button Settings    Language  The flag symbol  after the Settings  Language  menu options acts as a guide if a language which you do not understand has already been set.

  • Page 69: Date

    Settings  Date The date is required e.g. for process documentation. The date format and the current date have to be set. Select the date The selected date format appears in the display and in the process format documentation. Open the menu as follows: ...
  • Page 70 Settings  Set the date The current date will be set in the selected date format. Open the menu as follows:   button Settings    Date  Date Use the arrow buttons  (higher) and  (lower) and confirm your ...

  • Page 71: Time Of Day

    Settings  Time of day The time of day is required for process documentation, delay start, the machine log book and the display. The date format and the current time of day have to be set. There is no automatic adjustment between summer and winter time (daylight savings).
  • Page 72 Settings  Set the time of To set the format for the time of day: Open the menu as follows:   button  Settings   Time of day  Time of day Use the arrow buttons  (higher)  (lower) to set the hours and ...
  • Page 73 Settings  Display The time of day can, if required, be displayed when the machine is switched off. Open the menu as follows:   button  Settings  Time of day  Display  Display Do not display – Time of day is constantly displayed when the machine is switched off.

  • Page 74: Volume

    Settings  Volume A buzzer which is integrated into the control panel can give an acoustic signal in the following situations: – When buttons are pressed (keypad tone) – At the end of the programme – System messages (information) Open the menu as follows: ...

  • Page 75: Further Settings

    Further settings Further settings menu incorporates all administrative processes and settings. menu can only be accessed by using a code. Further settings If you do not have the code, contact a user with appropriate access rights or cancel the process using the  button. In the structure overview all options which can be permanently selected have boxes ...
  • Page 76 Further settings Move programme   Universal  Standard  Intensive  Dispensing system  DOS_  Active  Inactive  DOS venting Concentration  Change name   Test programme   Laboratory  Validation  Interface  Ethernet ...

  • Page 77: Code

    Further settings Code Further settings menu incorporates relevant functions and system settings which require an enhanced knowledge of machine reprocessing. Access to the menu can therefore be protected by a four digit code. It is not possible to block individual options or the inputting of multiple codes at the same time.
  • Page 78 Further settings To block A programme which is already running should only be cancelled if cancellation of a strictly necessary, e.g. if the wash load is moving about significantly. programme Access to the option of cancelling a programme can be blocked using the code.
  • Page 79 Further settings Change code The code consists of a four digit number and is set by the user. Each digit can be programmed freely between 0 and 9.  When a new code is entered the old code is overwritten and is permanently deleted.

  • Page 80: Log Book

    Further settings Log book The entire life cycle of the machine, including consumption data for water and chemical agents, as well as operating hours and programme cycles are recorded in the log book. Miele Service can also use the log to calculate a recommendation for service intervals.

  • Page 81: Report

    Further settings Report You can choose between two different report formats of process reports for the purpose of archiving. More information on selecting these can be found in "Process documentation". Temperature unit During a programme the temperature display is refreshed every 2 to 5 seconds depending on the programme stage.

  • Page 82: Programme Settings

    Further settings Programme settings You can use this menu to customise the current programme to suit technical requirements and the wash load or to reset all programmes to the factory default settings. Additional specialist knowledge is required to alter programme settings and this should therefore be undertaken only by experienced users or by Miele Service.

  • Page 83: Release Programme

    Further settings Release programme It is possible to block access to individual programmes. Blocked programmes are not available for selection, so for example it can be ensured that only validated programmes are used. Open the menu as follows:   button ...

  • Page 84: Moving A Programme: Allocating Programme Selection Buttons

    Further settings Moving a programme: allocating programme selection buttons You can sort the programme selection list to suit your requirements and therefore also allocate the programme selection buttons ,  and . Open the menu as follows:   button Further settings ...

  • Page 85: Dispensing Systems

    Further settings Dispensing systems Up to two chemical agents can be dispensed in each wash block. Using the following menu you can activate and vent the dispensing system, change the name if necessary and set the dispensing concentration for all programmes. Activating Individual dispensing systems can be activated or deactivated for all dispensing...

  • Page 86: Dos Venting

    Further settings DOS venting The dispensing system for liquid chemical agents can only dispense reliably if the system has been purged of air. The DOS system must only be vented: – if the dispensing system is being used for the first time, –...

  • Page 87: Test Programme

    Further settings Setting the Dispensing concentration for liquid chemical agents, e.g. in the case dispensing of a change of manufacturer, can be adjusted for all programmes at concentration for once. liquid agents Dispensing concentration must be set in accordance with the manufacturer's instructions or with the required processing result.

  • Page 88: Interface

    Further settings Interface With Miele washer-disinfectors, cleaning processes can be documented or the Miele Remote Service can be used. To enable this, Miele washer-disinfectors are equipped with a module slot on the back to take a Miele communication module. The communication module is available from Miele and comes with its own operating instructions.
  • Page 89 Further settings Configuring the  The interface must only be configured by suitably qualified and interface competent persons. Open the menu as follows:   button  Further settings  Interface Interface Ethernet RS232 – Ethernet Configuration of an Ethernet interface –...
  • Page 90 Further settings Ethernet – Status Connection status displayed ( – DHCP The Ethernet interface can either be implemented via a Dynamic Host Configuration Protocol (DHCP) or by setting the following parameters: – IP address – Subnet mask – Standard gateway –...

  • Page 91: Water Hardness

    Further settings Water hardness You can use this menu to set the water softener to the water hardness of the mains supply. For more information see "Water softener". Display: Temperature The wash cabinet temperature can be viewed during a programme. Either the current actual temperature or the required temperature which has been preset for the current wash block is displayed.

  • Page 92: Display Brightness And Contrast

    Further settings Display brightness and contrast You can use this menu to adjust the brightness and contrast of the display. Open the menu as follows:   button  Further settings  Display Display Contrast Brightness – Contrast Set the contrast. –...

  • Page 93: Switch Off After (Auto-Off Function)

    Further settings Switch off after (Auto-Off function) If the machine has not been used for a specific duration, it switches itself off automatically. Automatic switch-off can be optionally activated and deactivated. Open the menu as follows:   button  Further settings Switch off after ...

  • Page 94: Factory Default

    Further settings Factory default All parameters which have been altered can be reset to their default settings. Control parameters and programme settings are reset separately. Open the menu as follows:   button  Further settings Factory default  Reset ...

  • Page 95: Change Name

    Further settings Change name Use this option to document all changes to factory settings in case of a subsequent Service call requirement. If the option – Change name has been selected, the display changes to the following view: Change name The current name is shown on the second line of the display.

  • Page 96: Programme Settings

    Programme settings Adjusting programme settings The programme settings should be adjusted to suit technical requirements and the load. Additional specialist knowledge is required to alter programme settings and this should therefore be undertaken only by experienced users or by Miele Service. Changing programme parameters on a validated machine will necessitate a renewed performance validation.

  • Page 97: Programme Blocks

    Programme settings Programme Wash block sequence is predefined and is the same as in the blocks programme chart (see "Programme chart"). – Pre-wash 1 Pre-washing removes coarse soiling and foaming agents. soiling and foam-building substances. – Main wash 1 Depending on wash load cleaning generally occurs at temperatures between 40 °C and 60 °C with the addition of appropriate cleaning agent.

  • Page 98: Opening The Menu

    Programme settings Opening the menu The menu for programme settings is locked for users by factory default. If required this can be released by Miele Service. Open the menu as follows:   button Further settings  Programme settings  Programme settings Change programme Reset programme...

  • Page 99: Reset Programme

    Programme settings Reset programme Programmes can be individually reset to factory default. Programmes stored on a free memory location are irretrievably deleted. Programme settings  Reset programme  All programmes are then listed in the display. Use the  and  arrow buttons to select the programme and ...

  • Page 100: Altering A Programme

    Programme settings Altering a programme You can alter all parameters which are identified as changeable in the programme charts. Other settings can only be altered by Miele Service. A programme setting is altered in two steps: – First the wash blocks must be reallocated to the programme or the existing allocation confirmed again.

  • Page 101: Allocating Wash Blocks

    Programme settings Allocating wash For every programme change the wash blocks must first be allocated. blocks Universal Accept Pre­wash 1 Allocation is by multiple choice. A box is shown next to all wash blocks in the display. If a wash block is allocated to the programme, there is a tick ...

  • Page 102: Spray Arm Monitoring

    Programme settings Spray arm The cleaning result depends on the wash water reaching all surfaces monitoring and cavities of the wash load. To do this the wash water is distributed throughout the wash cabinet by the rotation of the machine, basket and mobile unit spray arms.
  • Page 103 Programme settings Switching on Spray arm monitoring is switched on and off globally for all wash spray arm blocks. monitoring  Spray arm monitoring Spray arm monitoring Off for basket – Spray arm monitoring is switched off. – Off for basket Only the machine spray arms are monitored.

  • Page 104: Change Water Quantity

    Programme settings Change water Increasing the water level is advisable if a large amount of water quantity clings to items due to the structure of the wash load or if a heavy build-up of foam might occur due to the type of soiling (e.g. blood) and the chemical agents used.

  • Page 105: Increasing Drainage Time

    Programme settings Increasing If there is still water remaining in the wash cabinet at the end of a drainage time wash block, because e.g. the on-site drainage system is inadequate, the following error message will be displayed to enable water to be drained out of the wash cabinet within the designated time: Check drainage In this case the drainage time can be increased.

  • Page 106: Setting The Concentration Level

    Programme settings Setting the Up to two chemical agents can be dispensed in each wash block. It is concentration also possible to control the same dispensing system twice, excluding level the powder detergent dispenser (where available). Dosage 1 Dosage 2 ...

  • Page 107: Set Wash Blocktemperature

    Programme settings The wash block temperature is reached by heating up the wash wash block water. The temperature must be suited to the requirements of the temperature task. At temperatures over 55 °C, protein denaturing occurs which can cause the soiling to fix. Infection prevention requirements must be observed as appropriate.
  • Page 108 Programme settings Set the The holding time is the duration in which the wash block temperature holding time is kept constant.  Holding time Holding time (0 ­ 15 The duration can be set in 1 minute increments. The possible range is shown in the bottom line.

  • Page 109: Drying Assistance

    Programme settings Drying assistance The additional "Drying assistance" function accelerates the drying process at the end of the programme. If drying assistance has been activated the door will automatically open a few centimetres at the end of the programme to release steam from the cabinet.
  • Page 110 Programme settings The drying duration ( Drying time ) can be reset and automatically saved before starting a programme (see "Operation / Switching drying on and off").  Time changeable? Time changeable? – Drying time cannot be changed. – The drying duration can be reset and saved before the start of every programme.

  • Page 111: Process Documentation

    Process documentation Documenting processes Processes are documented per cycle. Required and actual values are always recorded. During a programme sequence the following data is recorded, among other things: – Machine type and serial no, – Date – Programme start and programme name –...
  • Page 112 Process documentation Communication module for external archiving A module slot is integrated into the back of the machine for a Miele communication module for permanent archiving of cycle reports. The module enables the installation of an Ethernet or RS 232 interface via which the cycle reports can be transmitted to documentation software or a report printer.
  • Page 113 Process documentation Process documentation using a report printer Process reports are printed via a directly connected report printer and archived on paper. Graphic representations are not included. An XKM RS232 10 Med communication module is required for direct connection. Report formats You can choose from two different report formats for paper archiving: –...

  • Page 114: Retrospective Output Of Cycle Reports

    Process documentation Retrospective output of cycle reports Internally stored reports can be output retrospectively from the machine. External software Data can be retrieved directly via the documentation software using an existing network connection. It is not necessary to input entries at the machine itself.

  • Page 115: Maintenance

    Maintenance Periodic checks The machine should be serviced every 1000 hours of operation, or at least once a year by Miele Service. This maintenance will cover the following: – Electrical safety according to national regulations (VDE 0701/0702 in Germany) – Door mechanism and door seal –...

  • Page 116: Routine Checks

    Maintenance Routine checks Before the start of each working day the user must carry out a number of routine checks. A check list is supplied with the machine for this purpose. The following need to be inspected: – All filters in the wash cabinet –...
  • Page 117 Maintenance Press the catches towards each other and pull the coarse filter  upwards to remove it. Remove the fine filter which sits loosely between between the  coarse filter and the microfine filter. Remove the flat filter last.  Clean the filters.

  • Page 118: Cleaning The Spray Arms

    Maintenance Cleaning the spray arms The spray arms can become blocked, especially if the filters are not inserted correctly in the wash cabinet. This can cause coarse particles of soiling to get into the wash fluid circulation. The spray arms must be visually checked daily for any soiling. To do this remove the mobile unit and the baskets.
  • Page 119 Maintenance Use a pointed object to push food particles into the spray arm.  Rinse the spray arm thoroughly under running water.   Do not allow any magnetic objects or wash items stick to the magnets on the spray arms. Any metallic objects on the magnets can cause a false reading of spray arm pressure.

  • Page 120: Cleaning The Machine

    Maintenance Cleaning the machine  Never clean the machine or near vicinity with a water hose or a pressure washer.  Do not use cleaning agents containing ammonia or thinners on stainless steel surfaces! These agents can damage the surface material. Cleaning the Do not use any abrasive materials or general-purpose cleaners to control panel...

  • Page 121: Checking Mobile Units, Baskets, Modules And Inserts

    Maintenance Checking mobile units, baskets, modules and inserts Mobile units, baskets, modules and inserts should be checked daily to make sure they are functioning correctly. The machine is supplied with a check list. Check the following points: – Are the mobile unit or basket rollers in good condition, and are they securely attached to their mobile units or baskets? –...

  • Page 122: Performance Check

    Maintenance Performance check Adequate processing performance must be regularly confirmed by the user. Test point for On the top of the machine, at the front right under the lid or worktop measuring is the test point for validation purposes. To gain access to this the lid sensors of the washer-disinfector must be removed or the washer-disinfector must be pulled out from under the worktop.
  • Page 123 Maintenance Test programmes There are various programmes for testing cleaning performance in the course of routine testing. The test programmes are not independent processing programmes, but additional functions which can be activated before the start of any processing programme. The test programmes interrupt the programme sequence automatically at specified points for 30 seconds.
  • Page 124 Maintenance Activating a test Test programmes are valid for only one programme sequence each programme time. A test programme must be selected again for further tests. Open the menu as follows:   button  Further settings  Test programme Test programme Laboratory –...

  • Page 125: Problem Solving Guide

    Problem solving guide The following guide may help you to find the reason for a fault, and to correct it. You should, however, note the following:  Repairs may only be carried out by Miele Service. Repairs and other work by unqualified persons could be dangerous for the user. To avoid unnecessary service call-outs, check that the fault has not been caused by incorrect operation when an error message first appears.

  • Page 126: Dispensing / Dispensing Systems

    Problem solving guide Dispensing / dispensing systems  Caution when handling chemical agents. For all chemical agents, the chemical agent manufacturer's safety instructions as given on their safety data sheets must be observed. Problem Cause and remedy The dispenser for powder The dispenser was still damp when cleaning agent was cleaning agent contains added.
  • Page 127 Problem solving guide Problem Cause and remedy Check container/lance DOS Little or no flow has been identified. Check the level in the supply container and refill or  replace it with a full container as necessary. Check the suction aperture of the siphon for deposits. ...

  • Page 128: Insufficient Salt / Water Softener

    Problem solving guide Insufficient salt / Water softener Problem Cause and remedy Refill salt Salt is running low in the water softener. Refill the reactivation salt before starting the next  programme. Machine locking out Salt in the water softener is completely depleted and Insufficient salt reactivation is no longer possible.

  • Page 129: Cancel With Fault Code

    Problem solving guide Cancel with fault code If a programme is cancelled and a fault code appears, e. g. Fault XXX (whereby XXX represents a number), there could be a serious technical fault. In the event of a programme being cancelled and a fault number being shown: Switch the machine off using the ...
  • Page 130 Problem solving guide Problem Cause and remedy Fault 440 The float switch in the base of the machine has not been activated. The switch might be blocked. Remove the filter combination.  Check the float switch to make sure it moves freely. The ...

  • Page 131: Process-Related Faults And Messages

    Problem solving guide Process-related faults and messages Problem Cause and remedy Drying during programme Drying cannot be selected at the start of a programme deactivated because drying is not available for the selected programme. Start the programme without drying.  Have the drying parameters for this programme adjusted ...

  • Page 132: Door

    Problem solving guide Door Problem Cause and remedy Door not closed properly Protruding wash load item obstructing the door. Sort the wash load so that that it does not obstruct the  door. Close the door.  Slamming the door can result in problems with the Comfort door lock.

  • Page 133: Unsatisfactory Cleaning And Corrosion

    Problem solving guide Unsatisfactory cleaning and corrosion. Problem Cause and remedy There are white deposits The water softener is set too low. on the wash load. Set the water softener to the correct water hardness.  There is no salt in the salt reservoir. Refill the reactivation salt.
  • Page 134 Problem solving guide Problem Cause and remedy Items made of glass are The items are not suitable for machine reprocessing. showing signs of Only use items which are declared by their manufacturer  corrosion. as suitable for machine reprocessing. Neutralisation has not taken place during the programme. Check the level in the supply container and vent the ...

  • Page 135: Spray Arm Monitoring / Wash Pressure

    Problem solving guide Spray arm monitoring / wash pressure Problem Cause and remedy Spray arm monitoring - upper The rotation speed set has not been reached because... wash cabinet: Spray arm - items are obstructing the machine or basket spray arms. blocked or excessive foaming Arrange the load so that the spray arms can turn easily ...

  • Page 136: Water Inlet And Drainage

    Problem solving guide Water inlet and drainage Problem Cause and remedy Check water inlet One or more stopcocks are closed. Open the stopcocks.  There was insufficient water in the machine. Clean the water intake filters.  Open the stopcocks fully. ...

  • Page 137: Noises

    Problem solving guide Noises Problem Cause and remedy Knocking noise in the One or more spray arms are knocking against the wash wash cabinet. load. Cancel the programme. To do this follow the instructions  in "Cancelling a programme". Arrange the wash load so it cannot obstruct the spray ...

  • Page 138: Printer / Serial Interface

    Problem solving guide Printer / Serial interface Problem Cause and remedy Serial printer fault: no paper The printer has run out of paper. Replenish the paper.  The washer-disinfector cannot connect to the printer. Serial printer fault: offline Switch the printer on. ...

  • Page 139: Remedial Maintenance

    Remedial maintenance Cleaning the drain pump and non-return valve If water has not pumped away at the end of a programme there may be a foreign object in the drain pump or blocking the non-return valve. Take the filter combination out of the wash cabinet (see ...

  • Page 140: Clean The Water Intake Filters

    Remedial maintenance Clean the water intake filters Filters are incorporated into the water inlet connection on the hose to protect the water inlet valve. If these filters get dirty they must be cleaned as otherwise too little water will flow into the wash cabinet. ...

  • Page 141: After Sales Service

    After sales service Contacting Miele Service  Repairs should only be carried out by a suitably qualified and trained Miele technician in accordance with local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage the machine. To avoid unnecessary service call-outs, check that the fault has not been caused by incorrect operation when an error message first appears.

  • Page 142: Software Version

    After sales service Software version When contacting the Service department you may need the version number of individual components of control software. These can be called up as follows: Open the menu as follows:   button  Further settings ...

  • Page 143: Installation

    Installation Installation and levelling Please refer to the installation diagram provided.  In order to reduce the risk of water damage, the area around the machine should be limited to furniture and fittings that are designed for use in commercial environments. The machine must be stable and horizontal.

  • Page 144: Building Under A Continuous Worktop

    Installation Building under a continuous worktop Removing the To build the machine under a continuous worktop the lid must be removed as follows: Unscrew both securing screws from the lid at the back of the  machine. Open the door. ...

  • Page 145: Electromagnetic Compatibility (Emc)

    Installation Venting the  The gaps between a built-in machine and adjacent cabinetry circulation pump. must not be filled with silicone sealant as this could compromise the ventilation to the circulation pump. Cover plate / A cover plate/worktop protector is available from Miele and may be Worktop advisable, depending on building-in location.

  • Page 146: Electrical Connection

    Electrical connection  All electrical work must be carried out by a suitably qualified and competent person in accordance with local and national safety regulations. – In the U.K. it must comply with BS 7671. – We recommend connecting the machine to the power supply via a suitable IP 44 plug and socket which must be easily accessible for servicing and maintenance work after the machine has been installed.

  • Page 147: Plumbing

    Plumbing Connection to the water supply  Water from the wash cabinet must not be consumed. – The washer-disinfector must be connected to the water supply in strict accordance with current local and national water authority regulations. – The water used must at least comply with European regulations for drinking water quality.
  • Page 148 Plumbing – Install the filter (supplied in accessory pack) between the stopcock valve and the inlet hose. The filter for AD water is made of chromium-nickel steel and can be recognised by its dull surface. IMPORTANT Australia and New Zealand For Australia and New Zealand a non-return valve is required between the tap and filter.
  • Page 149 Plumbing AD water This machine can be optionally supplied for a pressurised system connection for 30 operating between 30 - 1000 kPa. If the water pressure is below - 1000 kPa 200 kPa the water intake duration will be automatically increased. pressure - The pressure tested hose for AD water, coded green, has a ¾...

  • Page 150: Connecting The Drain Hose

    Plumbing Connecting the drain hose – A non-return valve is incorporated into the drain system in the machine to prevent drainage water flowing back into the machine via the drain hose. – The machine drainage hose should be connected to a separate drain for the machine only.

  • Page 151: Technical Data

    Technical data Height with machine lid 83.5 cm Height without machine lid 82 cm Width 60 cm Depth 60 cm Depth with door open 120 cm Wash cavity dimensions height / width / depth 52.2 / 53.6 / 51.6 cm Weight (net) 74 kg Max.

  • Page 152: Programme Chart

    Programme chart Free memory New programme name: Application: Programmable programme for special applications. Please contact Miele Service to have the programme set up. Programme header  Change volume of water [l] Spray arm monitoring Drain time   On   Standard ...
  • Page 153 Programme chart Cleaning Interim rinse Final rinse  = Customisable parameters CW = cold water HW = hot water CWxx = CW proportion in mixed water as percentage (CW70 = 70 % CW + 30 % HW) AD = aqua destillata, fully demineralised water (VE), demineralised water Min = Holding time in minutes DOS 1 = Cleaning agent DOS 3 = Neutralising agent...

  • Page 154: Free Memory

    Programme chart Free memory New programme name: Application: Programmable programme for special applications. Please contact Miele Service to have the programme set up. Programme header  Change volume of water [l] Spray arm monitoring Drain time   On   Standard ...
  • Page 155 Programme chart Cleaning Interim rinse Final rinse  = Customisable parameters CW = cold water HW = hot water CWxx = CW proportion in mixed water as percentage (CW70 = 70 % CW + 30 % HW) AD = aqua destillata, fully demineralised water (VE), demineralised water Min = Holding time in minutes DOS 1 = Cleaning agent DOS 3 = Neutralising agent...

  • Page 156: Universal

    Programme chart Universal Application: For removing organic residues and certain inorganic residues Programme header  Change volume of water [l] Spray arm monitoring Drain time   On   Standard   Off for basket   Increased   Off Wash block Pre-wash Parameters...
  • Page 157 Programme chart – For preparative and analytical applications, – for light to medium levels of soiling, – for normal wash result requirements. Cleaning Interim rinse Final rinse DOS 1 DOS 3 75 °C 75 °C * Organic residues such as oils and fats require conversion to oil-resistant elastomers if necessary.

  • Page 158: Standard

    Programme chart Standard Application: Simple programme for a range of soiling. Not suitable for denatured and acid soluble residues such as protein, metallic salts and amines. Programme header  Change volume of water [l] Spray arm monitoring Drain time   On ...
  • Page 159 Programme chart – For light soiling, – for low wash result requirements. Cleaning Interim rinse Final rinse CW50 DOS 1 DOS 3 70 °C 70 °C  = Customisable parameters CW = cold water HW = hot water CWxx = CW proportion in mixed water as percentage (CW70 = 70 % CW + 30 % HW) AD = aqua destillata, fully demineralised water (VE), demineralised water Min = Holding time in minutes DOS 1 = Cleaning agent...

  • Page 160: Intensive

    Programme chart Intensive Application: For removing organic residues and certain inorganic residues Programme header  Change volume of water [l] Spray arm monitoring Drain time   On   Standard   Off for basket   Increased   Off Wash block Pre-wash Parameters...
  • Page 161 Programme chart – For preparative and analytical applications, – for normal to heavy soiling, – for normal to high wash result requirements. Cleaning Interim rinse Final rinse DOS 1 DOS 3 80 °C 75 °C * Organic residues such as oils and fats require conversion to oil-resistant elastomers if necessary.

  • Page 162: Inorganic

    Programme chart Inorganic Application: Removal of inorganic residue Programme header  Change volume of water [l] Spray arm monitoring Drain time   On   Standard   Off for basket   Increased   Off Wash block Pre-wash Parameters Water quality...
  • Page 163 Programme chart – General programme for analysis and water analysis and for water based cultures with acid-soluble metallic salts such as Ca2+ and Mg2+ etc. – for light to medium levels of soiling, – for normal to high wash result requirements. Cleaning Interim rinse Final rinse...

  • Page 164: Organica

    Programme chart Organica Application: For removing concentrated organic residues* such as oils, fats, waxes etc. Not suitable for acid-soluble residues e.g. metallic salt, amine etc. Programme header  Change volume of water [l] Spray arm monitoring Drain time   On ...
  • Page 165 Programme chart – For normal to heavy soiling, – for normal to high wash result requirements. Use liquid cleaning agent, hot and AD water connection recommended. Cleaning Interim rinse Final rinse DOS 1 DOS 1 DOS 3 65 °C 85 °C 75 °C * Organic residues such as oils and fats require conversion to oil-resistant elastomers if necessary.

  • Page 166: Injector Plus

    Programme chart Injector Plus Application: Programme with increased water pressure and increased water levels for the following basket combinations: – Upper basket with one spray arm and lower basket with 2 injector modules. – Upper and lower baskets with a total of 4 injector modules. Programme header ...
  • Page 167 Programme chart Use as described for the Universal programme Cleaning Interim rinse Final rinse DOS 1 DOS 3 75 °C 75 °C  = Customisable parameters CW = cold water HW = hot water CWxx = CW proportion in mixed water as percentage (CW70 = 70 % CW + 30 % HW) AD = aqua destillata, fully demineralised water (VE), demineralised water Min = Holding time in minutes DOS 1 = Cleaning agent...

  • Page 168: Pipettes

    Programme chart Pipettes Application: For pipettes Programme header  Change volume of water [l] Spray arm monitoring Drain time   On   Standard   Off for basket   Increased   Off Wash block Pre-wash Parameters Water quality CW50 Dispensing system...
  • Page 169 Programme chart Cleaning Interim rinse Final rinse DOS 1 DOS 3 70 °C 70 °C  = Customisable parameters CW = cold water HW = hot water CWxx = CW proportion in mixed water as percentage (CW70 = 70 % CW + 30 % HW) AD = aqua destillata, fully demineralised water (VE), demineralised water Min = Holding time in minutes DOS 1 = Cleaning agent...

  • Page 170: Plastics

    Programme chart Plastics Application: For heat-sensitive loads, such as plastic flasks (temperature resistance: at least 55 °C). Programme header  Change volume of water [l] Spray arm monitoring Drain time   On   Standard   Off for basket ...
  • Page 171 Programme chart – For preparative and analytical applications, – for light to medium levels of soiling, – for normal wash result requirements. Cleaning Interim rinse Final rinse DOS 1 DOS 3 55 °C 55 °C  = Customisable parameters CW = cold water HW = hot water CWxx = CW proportion in mixed water as percentage (CW70 = 70 % CW + 30 % HW) AD = aqua destillata, fully demineralised water (VE), demineralised water...

  • Page 172: Oil Programme

    Programme chart Oil programme Application: For heavy oil soiling such as crude oil, synthetic oils/lubricants, fuels and partially natural oils. The machine should be refitted with oil resistant elastomers where soiling contains high levels of oil. Programme header  Change volume of water [l] Spray arm monitoring Drain time ...
  • Page 173 Programme chart Use liquid cleaning agent, hot and AD water connection recommended. Cleaning Interim rinse Final rinse DOS 4 DOS 1 DOS 3 DOS 1 65 °C 85 °C 75 °C  = Customisable parameters CW = cold water HW = hot water CWxx = CW proportion in mixed water as percentage (CW70 = 70 % CW + 30 % HW) AD = aqua destillata, fully demineralised water (VE), demineralised water Min = Holding time in minutes...

  • Page 174: Mini

    Programme chart Mini Application: Short programme for lightly soiled items and loads that do not require intensive cleaning. Programme header  Change volume of water [l] Spray arm monitoring Drain time   On   Standard   Off for basket ...
  • Page 175 Programme chart Cleaning Interim rinse Final rinse DOS 1 DOS 3 60 °C 60 °C  = Customisable parameters CW = cold water HW = hot water CWxx = CW proportion in mixed water as percentage (CW70 = 70 % CW + 30 % HW) AD = aqua destillata, fully demineralised water (VE), demineralised water Min = Holding time in minutes DOS 1 = Cleaning agent...

  • Page 176: Special 93°C-10

    Programme chart Special 93°C-10' Application: For cleaning and thermal disinfection at 93 °C with 10 minutes temperature holding time (exposure time). Programme header  Change volume of water [l] Spray arm monitoring Drain time   On   Standard ...
  • Page 177 Programme chart Cleaning Interim rinse Final rinse CW70 DOS 1 DOS 3 93 °C 75 °C  = Customisable parameters CW = cold water HW = hot water CWxx = CW proportion in mixed water as percentage (CW70 = 70 % CW + 30 % HW) AD = aqua destillata, fully demineralised water (VE), demineralised water Min = Holding time in minutes DOS 1 = Cleaning agent...

  • Page 178: Demin. Rinse

    Programme chart Demin. rinse Application: Rinse with demineralised water (fully demineralised water, pure water, demineralised water), holding time: 3 Min. Rinse Application: Cold water rinse, holding time: 1 Min. For flushing out saline solution (see "Water softener"), rinsing heavily soiled loads, e.g for pre-rinsing soiling, residual disinfecting agent, or to prevent items drying out and to prevent incrustation before running a full load.

  • Page 179: Caring For The Environment

    Caring for the environment Disposal of the packing material The packaging is designed to protect the machine against transportation damage. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled. Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.
