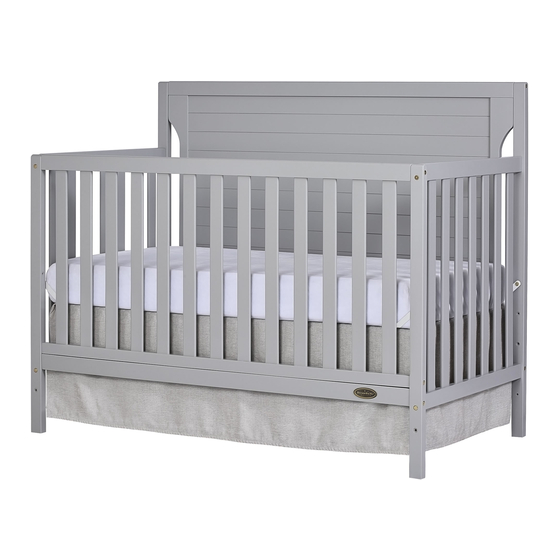

Cape Cod 5-in-1 Convertible Crib
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
Consumer Care:
www.dreamonme.com
1532 S WASHINGTON AVE
PISCATAWAY TWP NJ 08854
Email: info@dreamonme.com
www.dreamonme.com
To register your product for important safety alerts and updates to your product
please visit www.dreamonme.com and click on Product Registration.
Read all instructions before assembly and use.
KEEP INSTRUCTIONS FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly,keep
out of reach of children until assembly is complete.
style #: 732
MFG Date:Dec 2020
When contacting Dream On Me you
will need to reference the above
numbers .They can also be found on
the label on the Crib End bottom rail.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cape Cod 5-in-1 Convertible Crib 732 and is the answer not in the manual?

Questions and answers

Related Manuals for DOM FAMILY Cape Cod 5-in-1 Convertible Crib 732

Summary of Contents for DOM FAMILY Cape Cod 5-in-1 Convertible Crib 732

  • Page 1 Read all instructions before assembly and use. KEEP INSTRUCTIONS FOR FUTURE USE. ADULT ASSEMBLY REQUIRED Due to the presence of small parts during assembly,keep out of reach of children until assembly is complete. Cape Cod 5-in-1 Convertible Crib THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE. Consumer Care: style #: 732 www.dreamonme.com...
  • Page 2 CAUTION: ANY MATTRESS USED IN THIS CRIB SHALL BE AT LEAST 27 1/4 BY 51 5/8 IN. WITH A THICKNESS NOT EXCEEDING 6 IN. WARNING: . Infants can suffocate on soft bedding.Never add a pillow or comforter.Never place additional padding under an infant.
  • Page 3 TODDLER BED WARNING: INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT. Openings in and between bed parts can entrap head and neck of a small child. NEVER use bed with children younger than 15 months. ALWAYS follow assembly instructions. The maximum user weight is 50Ibs(22.7kg) WARNING STRANGULATION HAZARD NEVER place bed near windows where cords from blinds or drapes may strangle a...
  • Page 4 ATTENTION! Respecter les avertissements sur tous les produits du berceau. L'assemblage par un adulte est nécessaire. Les petites pièces peuvent présenter un danger d'étranglement avant l'assemblage. Ci-joint s'il vous plaît trouver les instructions simples, étape par étape pour vous aider à assembler rapidement vos produits.
  • Page 5 de transport ou tout autre film plastique pour recouvrir le matelas non vendu et conçus à cette fin, ils peuvent provoquer la suffocation. ATTENTION: Tout matelas utilisé dans ce lit doit être au moins 27-1/4 pouces (690mm) par 51-5/8 pouces (1310mm), avec une épaisseur n'excédant pas 6 pouces (150 mm), les dimensions du matelas doivent être prises de la couture à...
  • Page 6 PARTS: MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT. A: LEFT CRIB END (1 pc) B: RIGHT CRIB END (1 pc) A1:Left back leg (1pc) B1:Right back leg (1pc) C: Back rail (1 pc) A2:Left Crib End (1pc) B2:Right Crib End (1pc) A3:Left front leg (1pc) B3:Right front leg (1pc) E: Front rail (1 pc)
  • Page 7 PARTS: HARDWARE KIT IS PART #21598 FOR COLOR 209 OR #23486 FOR COLOR 607. SEE FRONT COVER. a. M6 x 75 mm BOLT x 10 No drills necessary. Do not use power screwdriver Phillips Screwdriver b. M6 x 60 mm BOLT x 8 (not supplied) c.

  • Page 8: Section 1: Crib Assembly

    SECTION 1: Crib Assembly STEP 1 Parts and tools required to complete step. A3:Left front B3:Right front leg x1 leg x1 Left Crib End Right Crib End A1:Left back B1:Right back leg x1 leg x1 M4 ALLEN d. BARREL WRENCH NUT x 8 SUPPLIED b.
  • Page 9 SECTION 1: Crib Assembly STEP 2 Parts and tools required to complete step. C: BACK RAIL x1 A: LEFT CRIB END x1 B: RIGHT CRIB END x1 M4 ALLEN WRENCH SUPPLIED a. M6 x 75 mm BOLT x 4 d. BARREL NUT x 4 Attach The Back Rail (C) to the assemblies from step 1, using Bolts (a),Barrel Nuts (d) .
  • Page 10 SECTION 1: Crib Assembly STEP 3 Parts and tools required to complete step. f. Wood dowels (2pcs) From Step 2 D:The bottom bar (1pc) M4 ALLEN WRENCH SUPPLIED a. M6 x 75 mm BOLT x 2 d. BARREL NUT x 2 AttachThe bottom bar (D) to The assembly from step 2 using bolts (a),barrel nuts (d).Tighten All Bolts with the allen wrench (g) .
  • Page 11 SECTION 1: Crib Assembly STEP 4 Parts and tools required to complete step. M4 ALLEN WRENCH SUPPLIED F. Mattress support (1 pc) From Step 3 c. M6 x15 mm BOLTx4 e. Wood dowels (1pc) Attach the Mattress Support (F) in all corners using Bolt (c) in each corner. Tighten with the Allen Wrench.
  • Page 12 SECTION 1: Crib Assembly STEP 5 Parts and tools required to complete step. E: Front rail X1 From Step 4 M4 ALLEN WRENCH SUPPLIED a. M6 x 75 mm BOLT x 4 d. BARREL NUT x 4 AttachThe front rail (E) to The assembly from step 4 using bolts (a),barrel nuts (d).Tighten All Bolts with the allen wrench (g) .
  • Page 13 SECTION 1: Crib Assembly STEP 6 Parts and tools required to complete step. Assenmbly Instruction Read all instructions before assembly and use. KEEP INSTRUCTIONS FOR FUTURE USE. ADULT ASSEMBLY REQUIRED Due to the presence of small parts during assembly,keep out of reach of children until assembly is complete. Booklet 5 IN 1 CRIB THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.

  • Page 14: Section 2: Toddler Bed Conversion

    SECTION 2: Toddler Bed Conversion STEP 1 Parts and tools required to complete step. g. M4 ALLEN WRENCH SUPPLIED Finished Crib Remove the Front Rail installed in step 5 of section 1 Crib Assembly.
  • Page 15 SECTION 2: Toddler Bed Conversion STEP 2 (The toddler bed guardrail is sold separately) WARNING: SEE PAGE 3 FOR TODDLER BED WARNINGS The mattress support must be in the lowest positions. Store all hardware safely. Read all warnings on page 3. As shown, use as a day bed or love seat sofa.

  • Page 16: Section 3: Full Size Bed Conversion

    SECTION 3: Full Size Bed Conversion STEP 1 Parts and tools required to complete step. g. M4 ALLEN WRENCH SUPPLIED You have the option to convert the crib to a Full Size Bed. Simply follow steps in reverse order to disassemble the crib. Then remove the Rear Legs from the left Crib End and Right Crib END with the M4 Allen Wrench as shown.
  • Page 17 SECTION 3: Full Size Bed Conversion STEP 2 (The Converting kit is sold separately) Parts and tools required to complete step. Side Bar (4PCS) Cross Bar (7PCS) From Section 3 Step 1 c:Allen wrench Split leg (2PCS) You have the option to convert crib to a full size bed II 1.Insert the split leg to the left&right side bar .
  • Page 18 SECTION 3: Full Size Bed Conversion II STEP 1 Parts and tools required to complete step. Left Foot Platform Post (1pc) Not Supplied Not Supplied Rail Post(6pcs) Right Foot Platform Post(1pc) From Section 3 Step 1 Not Supplied Not Supplied Converting kit is sold separately ou have the option to convert crib to a full size bed II 1:Use the back rail as the headboard of full size...
  • Page 19 To register your product for important safety alerts and updates to your product please visit www.dreamonme.com Please do not return this item to the store before contacting us about missing parts or with any questions. To report a problem, please log on to www.dreamonme.com and contact us by phone at 732-366-1788 In the event that you need to contact our customer service department please have the Style Number and MFG available.

  • Page 20: Limited Warranty

    LIMITED WARRANTY workmanship and agrees to remedy any such defect. This is solely limited to the repair or replacement of defective furniture components and no assembly labor is included. assembled, subjected to misuse or abuse or which has been altered or repaired in any way.
  • Page 21 1532, S. Washington Avenue Piscataway, NJ 08854 E-mail: info@dreamonme.com www.dreamonme.com Follow us on @dreamonmeinc @dreamonmeinc to get your nursery featured on our social media. Enter our monthly giveaway! Chat with us! Simply scan the QRcode to register. For any questions or concerns or feedback.
