Adult assembly required
Small parts may present choking hazard prior to assembly.
Enclosed please find simple step-by-step instructions to help you
quickly assemble your products. Before you begin we recommend
that you following the steps below:
1. Please read the instructions thoroughly.
2. Identify all parts and hardware.
3. You will need the following tools:
Philips head screw drive
Flat head screw driveo protect your parts during assemb
Hammer
DO NOT use power drills or drivers
To protect your parts during assembly please place them on a soft surface.
To clean surface use only water ona damp cloth. DO NOT use
window cleaners or cleaning abrasives as it will scratch the surface
and could damage the protective coating.
Dream On Me Inc.
1532 S WASHINGTON AVE
PISCATAWAY TWP NJ 08854
For Customer Care: +1 (732) 366-1788

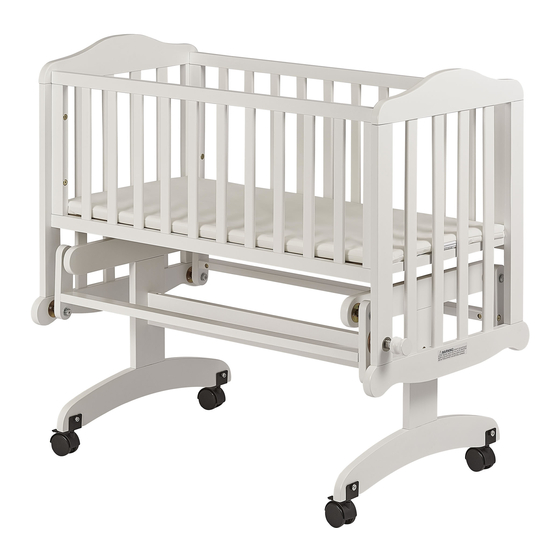

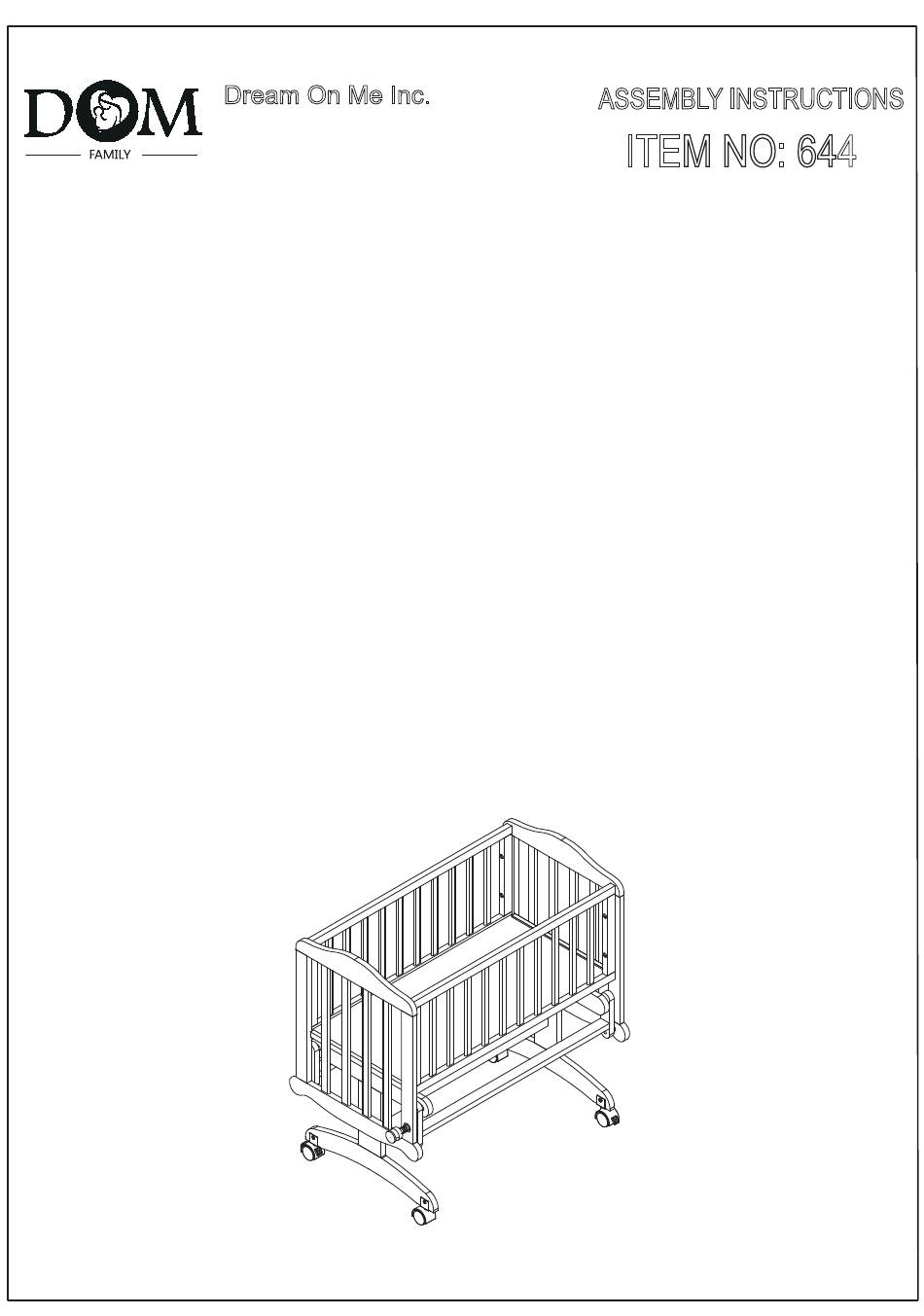

ASSEMBLY INSTRUCTIONS
1
ITEM NO: 644
MADE IN CHINA
