Data displayed by the sensor (data isn't displayed during the
flight ):
Current sensor status (Ready, Running, Measuring, Done)
●
Maximum measured relative height
●
10 relative height values
●
The receiver can only be configured if the "motor shutdown
pulse" is not exceeded after connecting the power supply (default
setting 1,100 ms). Once a throttle pulse is exceeded, then the
receiver can no longer be set until its power supply is reset.
Settings can be made only by the DC/DS transmitter (in the
"device explorer" menu).

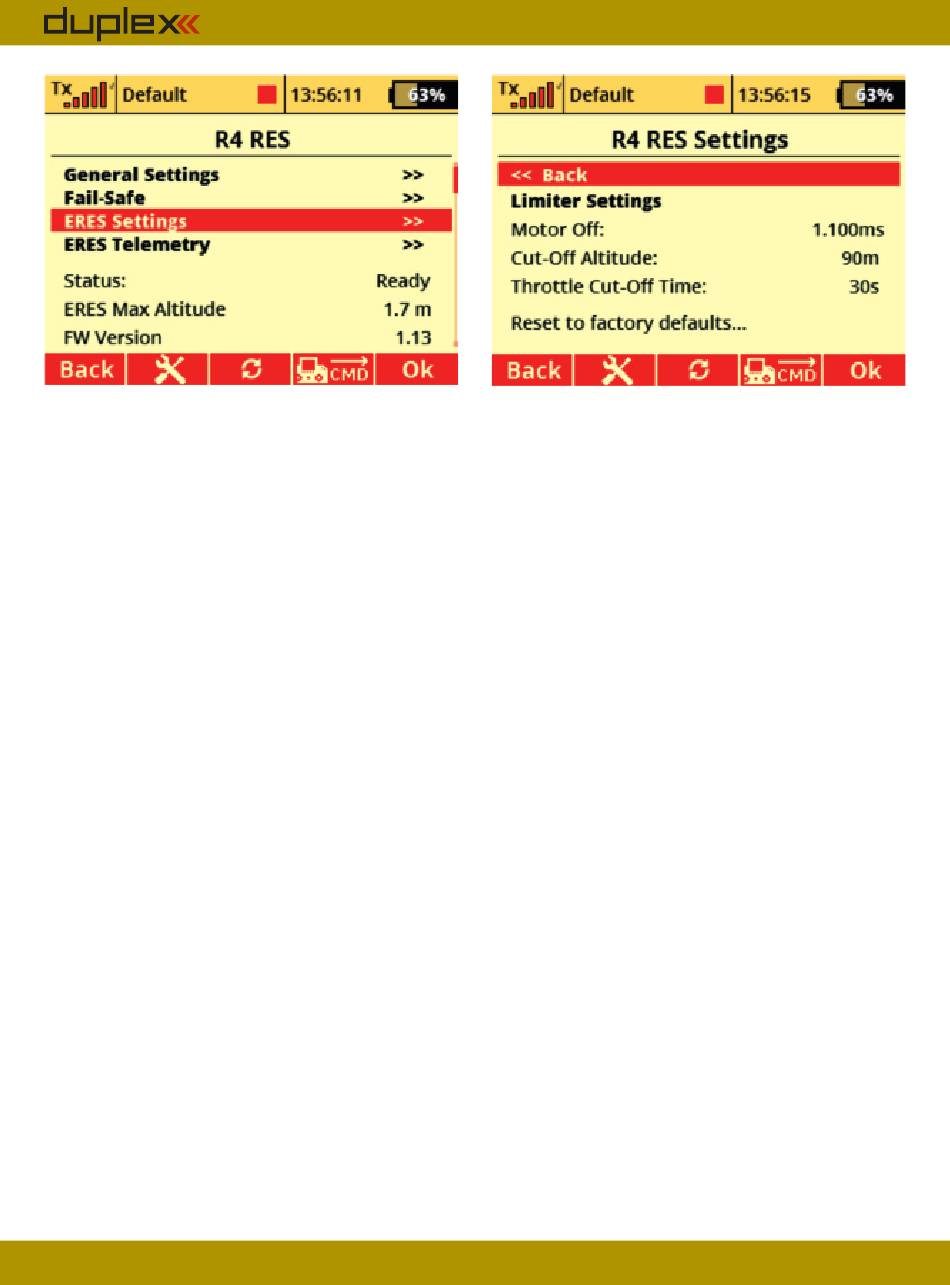

To display the R4 RES receiver in "device explorer", it is necessary to
have the configuration file R4RES.bin in the Devices folder in the
transmitter.
The measured data can be seen if the receiver is in the "Ready" or
"Done" status. The receiver save the data from the last
measurement and can be read again after connecting the power
