CPS FX1234 Series Operation Manual

Refrigerant recover / recycle / vacuum and recharge unit
Hide thumbs Also See for FX1234 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

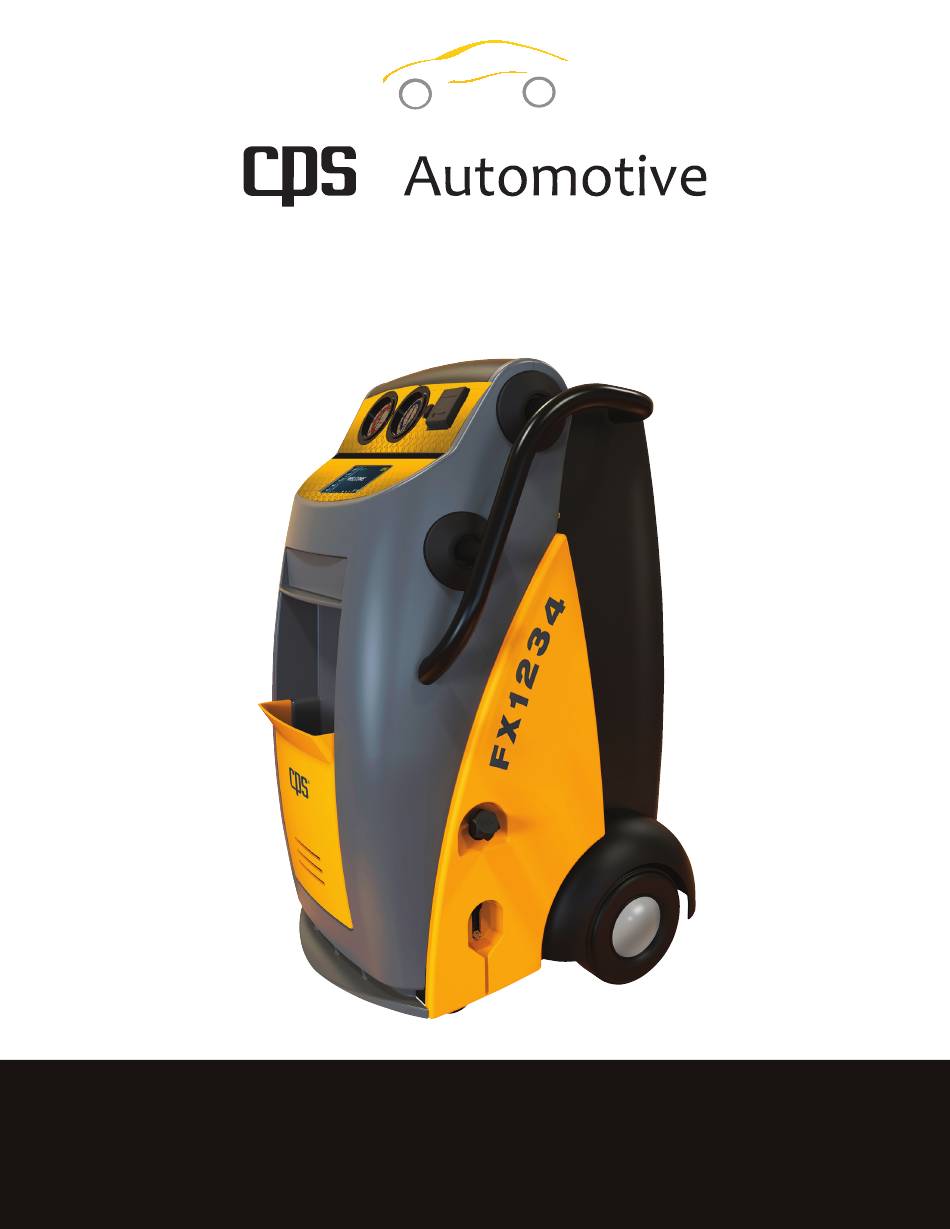

FX1234 SERIES REFRIGERANT RECOVER
/ RECYCLE / VACUUM AND RECHARGE UNIT
Covered under US Patent
8,082,750 and other patents
pending.
Certified by ITS under
SAE J2911 to meet SAE
J2843_022013 for R-1234yf.
Certified by ITS under SAE
J2911 to meet high voltage
compressor service per SAE
J2843 for R-1234yf.
OPERATION MANUAL
Models: FX1234 and FX1234V

Advertisement

Table of Contents
loading

Related Manuals for CPS FX1234 Series

Summary of Contents for CPS FX1234 Series

  • Page 1 FX1234 SERIES REFRIGERANT RECOVER / RECYCLE / VACUUM AND RECHARGE UNIT Covered under US Patent 8,082,750 and other patents pending. Certified by ITS under SAE J2911 to meet SAE J2843_022013 for R-1234yf. Certified by ITS under SAE J2911 to meet high voltage compressor service per SAE J2843 for R-1234yf.

  • Page 2: Table Of Contents

    Tank Refill Adapter-Fits High side female for R-1234yf tank thread • R-1234yf conversion fittings for hose storage and oil flush block • 41 cubic Inch CPS filter drier (Replacement part number FX3030X1) • 1 lb (454 gram) check weight •...

  • Page 3: General Safety

    CAUTION- RISK OF INJURY, the equipment should only be operated by certified personnel. CAUTION- Use only CPS certified hose assemblies on this unit. The hose assemblies are made to proper length, contain shut offs where required and have direct affect on the proper operation of this equipment.

  • Page 4: Icon Library

    Notifies user to connect HP port during LOW COUPLER Tap to select the LOW SIDE coupler only CONNECT HP tank refill MAINTENANCE Tap to launch the MAINTENANCE menu CPS FILTER CPS FILTER MAINTENANCE Tap to CHANGE FILTER DATABASE Tap to access the vehicle DATABASE FILTER CHANGE...
  • Page 5 ICON LIBRARY ICON NAME DESCRIPTION IMAGE ICON NAME DESCRIPTION IMAGE Notifies user to PLACE WEIGHT on the PLACE WEIGHT SET TIME Tap to SET TIME scale PRINT SETTINGS Tap to PRINT a report of the service Tap to launch the SETTINGS screen PSIG SETUP Tap to select PSIG...

  • Page 6: First Time Start Up

    FIRST TIME START UP Remove the black tank cover (cover not included on FX1234V) on the back of the unit by unscrewing the two thumb screws located on each side of the cover. Remove the protective packaging from between the storage tank and the scale. See Figure A below. Figure A: Shipping support to be removed before start up.

  • Page 7: Theory Of Operation

    THEORY OF OPERATION FX Series Refrigerant Management Centers feature a touch screen graphical user interface that makes operation a breeze. In this section, we will cover each operation and what the machine is actually doing. While the screen provides much of this information during operation, the descriptions below will offer more detail than can be displayed.
  • Page 8 THEORY OF OPERATION Full Cycle Select “Full Cycle” to recover, recycle, vacuum, leak check and charge the vehicle AC system. The display will prompt you to enter the vehicle charge amount. As in the “Charge” sequence, the database may be used to retrieve the charge amount for most vehicles sold in North America. The full cycle process begins with a refrigerant purity test and the vehicle system.

  • Page 9: Other Functions

    OTHER FUNCTIONS Car System Health Mode This mode allows for checking of system pressures and vent temperature before and after servicing the AC system. System parameters can be printed while in this mode to provide a before and after comparison. When entering the Car Health mode, the machine will prompt you to start the AC system.

  • Page 10: Maintenance And Care

    Calibration is suggested only if the calibration test was off by more than .02lbs. Calibration may be performed by a service center. CPS technical support can also assist with the process.

  • Page 11: Parts List And Warranty

    CPS will replace any failed part at no charge. Some failed parts must be returned to CPS. Labor time and mileage are not covered during the second year in service. CPS will cover the compressor for five full years of service, limited to the cost of the compressor only.

  • Page 12: A/C Database End-User License Agreement

    A/C DATABASE END-USER LICENSE AGREEMENT THIS IS A LEGAL AND BINDING AGREEMENT BETWEEN YOU, THE END-USER (“YOU”), AND MOTOR Information Systems, Hearst Business Publishing, Inc. (“MOTOR”). BY ACCESSING ANY OF THE MOTOR DATABASES VIA THIS WEB SITE, YOU AGREE TO ALL THE TERMS AND CONDITIONS OF THIS AGREEMENT.
  • Page 13 A/C DATABASE END-USER LICENSE AGREEMENT all prior oral, written and/or contemporaneous negotiations, commitments and understandings of the parties. (b) This Agreement shall be governed by the laws of the State of New York without giving effect to any principles of conflicts of law. The United Nations Convention on Contracts for the International Sale of Goods shall not apply.
  • Page 14 www.cpsproducts.com 73-107 REV C...
