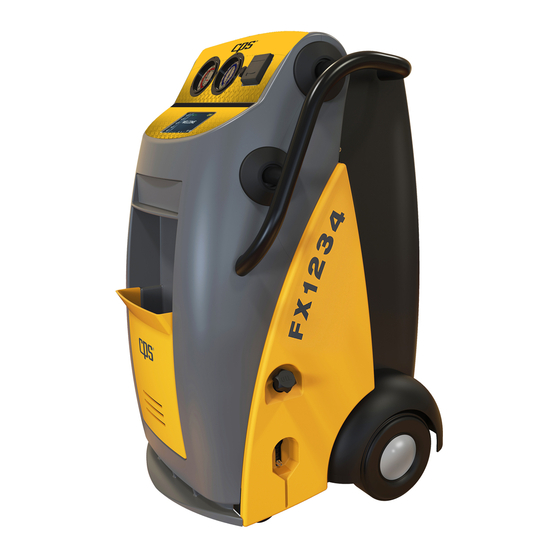

CPS FX134 Service Manual

Fx series, automotive recover, recycle, recharge
Hide thumbs
Table of Contents

Advertisement

Quick Links

FX Series Service Manual
Models: FX134, FX1234, FX3030
CPS AUTOMOTIVE RECOVER, RECYCLE, RECHARGE
1

Advertisement

Table of Contents
loading

Related Manuals for CPS FX134

Summary of Contents for CPS FX134

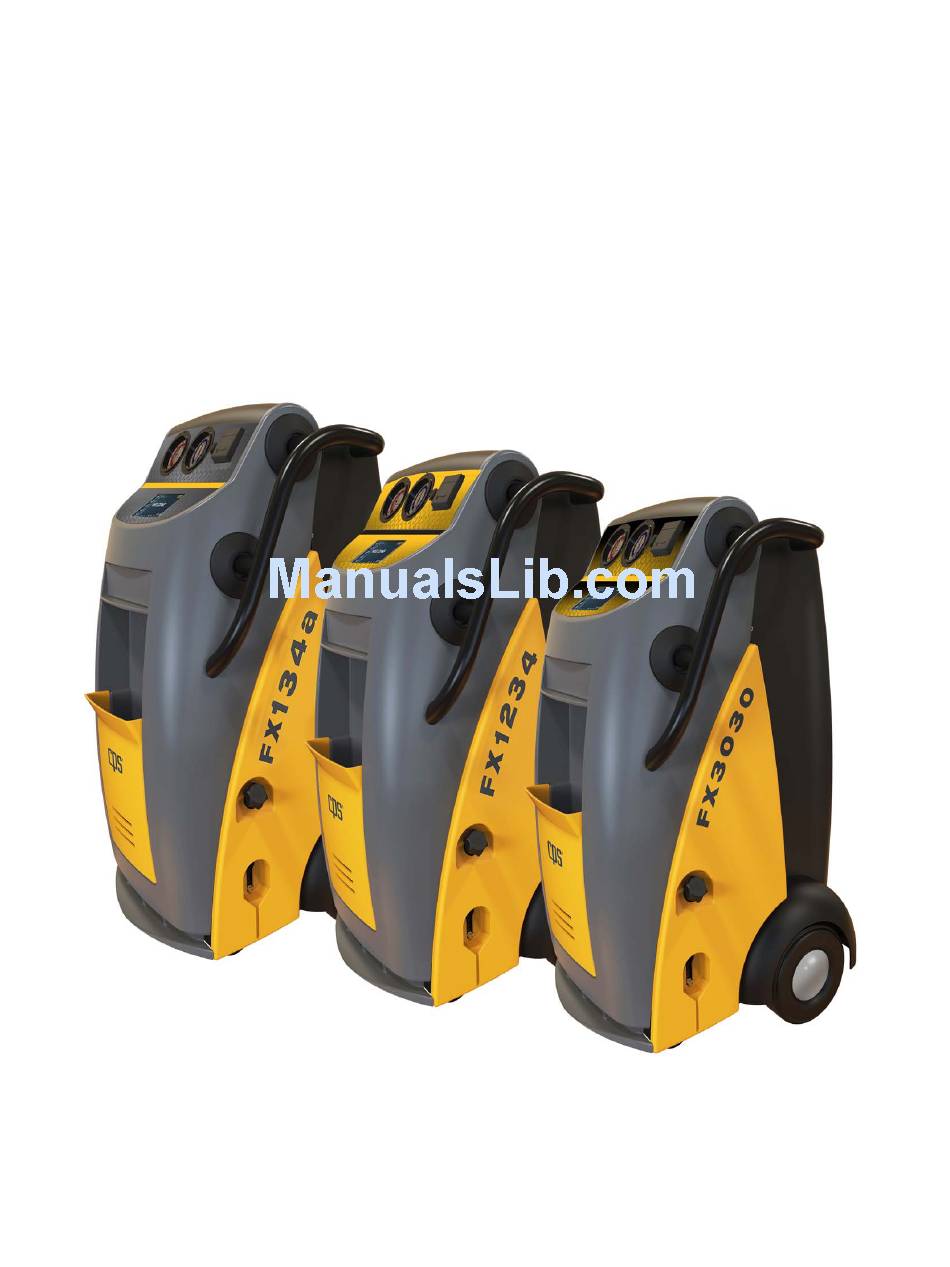

  • Page 1 FX Series Service Manual Models: FX134, FX1234, FX3030 CPS AUTOMOTIVE RECOVER, RECYCLE, RECHARGE...

  • Page 2: Table Of Contents

    Danger- The unit’s recovery tank contains liquid refrigerant. Overfilling of the recovery tank may cause a violent explosion resulting in severe injury or even death. Danger- Only use CPS Automotive recommended recovery tanks with this unit. See distributor for replacement tanks.

  • Page 3: Introduction

    The FX series is a fully automatic Recovery/Recycling, and Recharging Refrigerant work station. The FX134 Series meets and exceeds the new SAE J2788. FX1234 Series meets and exceeds the new J2843/J2788. The FX3030 Series meets and exceeds J3030. The FX134, FX1234, and FX3030 Series models are single circuit R/R/R machines for handling R134a, R1234yf from mobile AC systems.

  • Page 4: Summary Of Operation

    Many problems are a result of operator error. Please read the FX134/FX1234/FX3030 Series operating manual. The manual is separated into 4 Sections: Section 1 gives instructions on how to gain service access to the FX134/FX1234/FX3030. This Section also gives instructions on proper calibration and mechanical repair procedure Section 2 contains a list of common problems and how to resolve them.
  • Page 5 RECOVER/RECYCLE NOTE: The FX1234 and FX3030 will implement refrigerant indentifying process according to J2743. Refrigerant sample will pass through (SC2) low side service hose. The refrigerant sample will then pass through low side manifold valve (LV2) and (LS2) solenoid valve allow sample into identifier. Once refrigerant has been sampled and passes. The recovery unit will operate as instructed below.
  • Page 6 RECOVER- Oil Drain Flow Once Recover is done and the compressor shuts off. The air purge valve HS1 will open to pressurize DOA Chamber then HS1 will close. The compressor will come on to lower pressure in DOA for oil draining. Once pressure level is achieved, then (HV3) opens allowing excess oil to drain from DOA Chamber for 30 seconds.
  • Page 7 EVACUATION After the mobile a/c system is repaired, it should then be pulled into a deep vacuum to remove residual gasses and moisture before recharging it with refrigerant. The unit evacuates gasses from the a/c system through the LO Side and HI Side service hoses.
  • Page 8 CHARGE LOW SIDE NOTE: FX1234 and FX3030 will have addition steps in charging according to J2743. There will be a 10 minute vacuum test. The first 5 minutes the vacuum pump mode will run. (See Vacuum Plumbing Schematic) Then the second 5 minutes of the vacuum leak test is where it checks for vacuum loss.
  • Page 9 CHARGE HI SIDE NOTE: FX1234 and FX3030 will have addition steps in charging according to J2743. There will be a 10 minute vacuum test. The first 5 minutes the vacuum pump mode will run. (See Vacuum Plumbing Schematic) Then the second 5 minutes of the vacuum leak test is where it checks for vacuum loss.
  • Page 10 CHARGE BOTH LOW AND HI SIDE NOTE: FX1234 and FX3030 will have addition steps in charging according to J2743. There will be a 10 minute vacuum test. The first 5 minutes the vacuum pump mode will run. (See Vacuum Plumbing Schematic) Then the second 5 minutes of the vacuum leak test is where it checks for vacuum loss.
  • Page 11 REFILL NOTE: The FX1234 and FX3030 will implement refrigerant indentifying process according to J2743. Refrigerant sample will pass through (SC2) low side service hose. The refrigerant sample will then pass through low side manifold valve (LV2) and (LS2) solenoid valve allow sample into identifier. Once refrigerant has been sampled and passes. The recovery unit will operate as instructed below.
  • Page 12 AIR PURGE Air Purge is performed automatically on the FX134A / FX 1234 / FX3030 series. Two thermistors are used to determine if the storage tank have had enough time to stabilize. Once it is determine Air Purge can take place, the unit will open the charging solenoid valve (LS1) to the Pressure transducer (PT).
  • Page 13 REFRIGERANT IDENTIFIER The FX1234 and FX3030 will implement refrigerant indentifying process according to J2743. Refrigerant sample will pass through (SC2) low side service hose. The refrigerant sample will then pass through low side manifold valve (LV2) and (LS2) solenoid valve allow sample into identifier. Once refrigerant has been sampled and passes. The recovery unit will operate as instructed below.
  • Page 14 FX3030 PUMP DOWN...
  • Page 15 Hose Flush High Voltage Compressor...
  • Page 16 CAR HEALTH Car Health the screen will ask you to start car, and low side (LV2) will open and allow low side running pressure to be seen at the PT 1 pressure transducer. The hi side pressure will be seen at PT 2 pressure transducer which is common to hi side service hose.
  • Page 17 6. Scale Tare Procedure 7. Gauge Calibration Procedure 8. Pressure Transducer Recalibration Note: If there is any question on how to perform these procedures, please consult CPS service center. 1. Updating Program The unit can be updated by using USB stick or SD card.
  • Page 18 2. Front Panel Service Access into FX134A / FX1234 / FX3030 Remove service hoses, oil drain bottle, yellow holding bin for accessories and yellow face plate to expose panel screws. b. Remove screws as indicated in picture and remove front panel. Note: Check for screws on side cover over lapping top panel outer edge at very top on control panel.
  • Page 19 3. PCB / Control Panel Service Access FX134A / FX1234 / FX3030 Follow steps in Front Service Access above. b. Then remove the two plastic engagement screws on both sides as shown below. Then remove screws from side covers over lapping top panel edge if unit came with screws. d.
  • Page 20 4. Scale/PCB Board Recalibration Procedure Remove back tank cover by removing both thumb screws holding cover on to main chassis. b. Remove tank strap from tank, and unplug heater blanket. Then turn both ball valves on tank hoses to the off position, and disconnect tank hoses from purge block.
  • Page 21 The Models FX134A / FX1234 / FX3030 are shipped with a 50lb DOT storage tank (CRX400T). Use only CPS approved storage tanks on the FX134A / FX1234 / FX3030 Series. If other than CPS approved storage tank are use, they must meet the specific country’s safety regulations on refrigerant storage.
  • Page 22 6. Scale Tare and Accuracy Check Procedure The scale of the FX134A / FX1234 / FX3030 Series may require a periodic adjustment. After time the scale may slightly drift from its initial zero setting. The following is the re-tare procedure to reset the zero setting: a.
  • Page 23 Then press PT diagnostic on screen and allow calibration of pt to run. d. Once the test screen appears then tap the CPS icon 4 times and the PT icon will appear. e. Press PT icon and follow instruction on screen for recalibrating pressure transducers. 70 to 100 PSI will be needed.

  • Page 24: Section 2 Common Problems And Solutions

    Section 2. - Common Problems and Solutions The most common problems fall under one of the following categories: A. No Power to the unit after turning on Main Power Switch B. Circuit breaker trips when plugging the unit into power source C.
  • Page 25 Note: If the problem is not included in the above categories, please consult CPS service center support for addition information. A. No power to the unit after turning ON the Main Power Switch Possible Cause: Power Cord not connected correctly.
  • Page 26 Possible Cause: Vacuum pump oil is contaminated and/or cold causing the vacuum pump start windings to kick on and off upon start up. Solution: Replace vacuum pump oil. Use CPS Vacuum Pump oil. It is specially formulated for cold weather conditions. Possible Cause: Vacuum pump voltage switch is in the wrong position.
  • Page 27 G. Unit will not Charge, no pressure on Manifold gauges Possible Cause: Storage tank liquid valve and/or Liquid hose valve are closed Solution: Make sure the liquid supply to the charging solenoid valve has all valve open. Possible Cause: Charging Solenoid Valve is not energizing. Solution: Check to see if 12VDC is present on the Charging Solenoid Coil with the unit in the charging mode.
  • Page 28 J. Charging Inaccuracies- Over and Under Charging Possible Cause: Unit was moved during the Charging operation Solution: It is very important that when unit is charging, it is not bumped or in an area with excessive vibration during the CHARGING mode. The pneumatic wheels will help to reduce an external vibration.
  • Page 29 more refrigerant in the storage tank than there really is. This could make the refrigerant reading in the tank exceed the maximum amount. Follow the Tare procedure in SECTION 1 of this manual. M. Vacuum Pump starts in Evacuation mode, but will not pull into a deep vacuum (this type of leak will could prevent the Automatic PT calibration from completing its operation) or Leak Detected after Evacuation Possible Cause: Hose to Vacuum Pump is disconnected or loose...

  • Page 30: Section 3 Repair Procedures Component Service And Repair Instructions

    Section 3 - Repair Procedures Component Service and Repair Instructions 1. PC Board/ LCD Replacement 2. Scale Replacement 3. Compressor Replacement 4. Solenoid Replacement 5. Pressure Transducer Replacement 6. Gauge Replacement 7. DC Power Supplies Replacement 8. High Pressure Switch Replacement 9.
  • Page 31 1. PC Board and/or LCD Replacement Danger: Only a qualified service technician should service this equipment. An Electrical Shock hazard is present which could lead to severe injury or even death. Disconnect power supply to the FX134A / FX1234 / FX3030. Keep the PC Board free from static electricity.
  • Page 32 2. Scale Replacement Disconnect power supply to the FX134A / FX1234 / FX3030 Series. Remove back tank cover by removing both thumb screws holding cover on to main chassis. Remove tank strap from tank, and unplug heater blanket. Then turn both ball valves on tank hoses to the off position, and disconnect tank hoses from purge block.
  • Page 33 3. Compressor Replacement Danger: Only a qualified service technician should service this equipment. An Electrical Shock hazard is present which could lead to severe injury or even death. FX134A / FX1234 / FX3030 Disconnect power supply to series. Caution- all hoses may contain liquid refrigerant under pressure. Contact with refrigerant may cause frostbite or other related injuries.
  • Page 34 4. Charging and Air Purge Solenoid Replacement Danger: Only a qualified service technician should service this equipment. An Electrical Shock hazard is present which could lead to severe injury or even death. FX134A / FX1234 / FX3030 Disconnect power supply to the Series.
  • Page 35 Check for o ring damage on center post of manifold block where pressure transducer is seated. (oil the o ring) Perform a PT calibration from PT diagnostic test screen. Tap the CPS icon 4 times and the PT icon will appear.
  • Page 36 6. Gauge Replacement Danger- Avoid breathing refrigerant vapors and lubricant vapor or mist. Breathing high concentration levels may cause heart arrhythmia, loss of consciousness, or even cause suffocation. Caution- all hoses may contain liquid refrigerant under pressure. Contact with refrigerant may cause frostbite or other related injuries.
  • Page 37 7. DC Power Supply Replacement Danger: Only a qualified service technician should service this equipment. An Electrical Shock hazard is present which could lead to severe injury or even death. FX134A / FX1234 / FX3030 Disconnect power supply to the Series.
  • Page 38 3. High Pressure Switch Service and Replacement Danger: Only a qualified service technician should service this equipment. An Electrical Shock hazard is present which could lead to severe injury or even death. Danger- Avoid breathing refrigerant vapors and lubricant vapor or mist. Breathing high concentration levels may cause heart arrhythmia, loss of consciousness, or even cause suffocation.
  • Page 39 9. Fan Replacement FX134A / FX1234 / FX3030 Disconnect power supply to the series. Danger: Only a qualified service technician should service this equipment. An Electrical Shock hazard is present which could lead to severe injury or even death. a. Front Panel Service Access: Please see Section 1 part 2 b.
  • Page 40 Caution- avoid breathing refrigerant vapors and/or lubricant mist. Exposure may irritate eyes, nose, throat, and skin. Please read the manufacturers Material Safety Data Sheet for further safety information on refrigerants and lubricants. Danger: Always assume that high-pressure refrigerant exists. Failure to do so may result in bodily injury. a.
  • Page 41 11. LO and HI Manifold Replacement FX134A / FX1234 / FX3030 Disconnect power supply to the series. Danger: Only a qualified service technician should service this equipment. An Electrical Shock hazard is present which could lead to severe injury or even death. Danger- Avoid breathing refrigerant vapors and lubricant vapor or mist.
  • Page 42 12. LO or HI Manifold PCB Replacement FX134A / FX1234 / FX3030 Disconnect power supply to the series. Danger: Only a qualified service technician should service this equipment. An Electrical Shock hazard is present which could lead to severe injury or even death. a.
  • Page 43 13. Relay PCB Replacement FX134A / FX1234 / FX3030 Disconnect power supply to the series. Danger: Only a qualified service technician should service this equipment. An Electrical Shock hazard is present which could lead to severe injury or even death. a.
  • Page 44 14. Wheel Service and Replacement FX134A / FX1234 / FX3030 Disconnect power supply to the series. Danger: Only a qualified service technician should service this equipment. An Electrical Shock hazard is present which could lead to severe injury or even death. a.
  • Page 45 15. Vacuum Pump Service and Replacement Danger: Only a qualified service technician should service this equipment. An Electrical Shock hazard is present which could lead to severe injury or even death. FX134A / FX1234 / FX3030 Disconnect power supply to the series.

  • Page 46: Section 4 Reference Materials

    Section 4 Reference Materials 1. FX134A / FX1234 / FX3030 Series Refrigeration Schematic 2. FX134A / FX1234 / FX3030 Series Electrical Schematic 3. LO Manifold PCB Light Code 4. HI Manifold PCB Light Code 5. Relay PCB Light Code 6. Main PCB Light Code 7.
  • Page 47 1. FX134A / FX1234 / FX3030 Series Refrigeration Schematic...
  • Page 48 2. FX134A / FX1234 / FX3030 Series Electrical Schematic...
  • Page 49 3. LO Manifold Block PCB Lights 12 DCV Incoming Power Connection yellow patch cord Red LED L4 Motor energized L4 Compressor Red LED ball valve closed L4 Compressor Green LED ball valve open L4 12VDC motor power supply Red LED L3 Motor energized L3 Vacuum Red LED ball valve closed L3 12VDC motor power supply Red LED L2 Motor energized...
  • Page 50 LV1, LV2, LV3 and LV4 Motor Lights (Red) These lights are on monetarily when any of the LV1, LV2, LV3 or LV4 are Required to either open or close. No more than one can be energized at any one time. Once the valve has found it position, the Motor Light will de energize.
  • Page 51 HV1, HV2, and HV3 Motor Lights (Red) These lights are on monetarily when HV1, HV2 or HV3 are required to either to open or close. No more than one can be energized at any one time. Once the valve has found its position, the Motor Light will de- energize. HS1 Solenoid Light (Red) Will be energized when Air Purge is shown on LCD.
  • Page 52 Compressor Relay light will energize when Recovery, Refill, and Evacuating Filter. Vacuum Pump Relay light will energize when evacuating system. Fan Relay will energize when fan is running. Heater Blanket Relay will energize when charging. 6. Main PCB Lights SD Reader connector 5 pin On board SD card reader &...

  • Page 53: Error Codes

    Error Codes "E1-BAD TXT EPROM"; A bad scale may cause this, also. "E2-SCALE ADC"; Connection to the scale electronics lost. "E3-SCALE EPROM"; Scale not calibrated? "E4-CANNOT CAL"; Scale cannot be calibrated or bad calibration. "E5-MBV FAULT: X"; Where X is a number from 1 to 5 indicating which MBV has failed. "E6-AMB.
  • Page 54 Identifier Error Codes “00001” Error #1: The air or gas readings were unstable.  Solution: Move the unit away from sources of EMF or RFI such as radio transmitters and arc welders. “00002” Error #2: The air or gas readings were excessively high. ...
  • Page 55 LOW SIDE GAUGE KIT FX3030X22 FX134A HOSE, ASSY, HV3-OIL DRAIN BULK HEAD AR2788X17 HIGH SIDE GAUGE KIT FX3030X23 FX134A HOSE,ASSY,LV4-DOA IN AR2788X25 AR2700/AR2788/AR2788S/FA1234/FX134 SCALE PCB FX3030X24 4 RELAY PCB AR2788X30 ONE LB WEIGHT FX3030X25 FX134A OPERATION MANUAL AR2788X32 15 AMP BREAKER 115 VAC...
  • Page 56 ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ ______________________________________________________________________________________________________ _____________________________________________________________________________________________________ Additional Contact Information CPS Products Globe Locations CPS North America Head Quarter 1010 East 31 Street Hialeah, Fl 33013 USA Telephone 305-687-4121, Toll Free 800-277-3808; Fax 305-687-3743 Email cpssales@cpsproducts.com WWW.cpsproducts.com...
  • Page 57 Telephone 905-615-8620, Fax 905-615-9145 CPS N.V. Krijgsbaan 241, 2070 Zwijndrecht Belgium Telephone 323-281-30-40, Fax323-281-6583 Email infor@cpsproducts.be www.cpsproducts.be CPS Australia PTY. Ltd. 109 Welland Ave. South Australia 5007 Telephone 61-8-8340-7055, Fax 61-8-8340-7033 Email sales@cpsaustralia.com.au CPS ASIA 56A Kallang Rd. #02-00 Singapore Rd. 349329...
