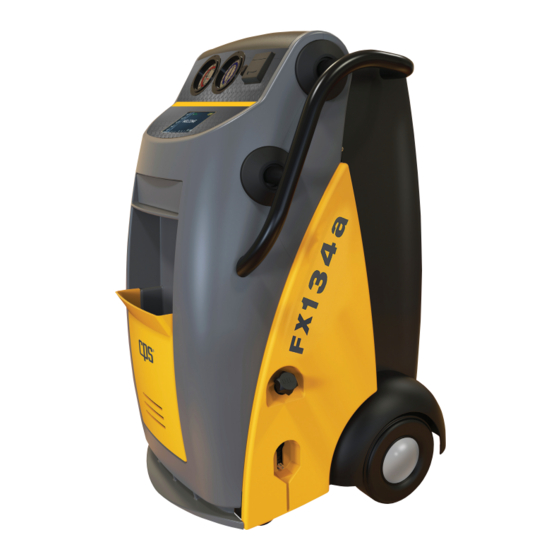

FX134a SERIES REFRIGERANT RECOVER
/ RECYCLE / VACUUM AND RECHARGE UNIT
Covered under US Patent
8,082,750 and other
patents pending.
Certified by ITS under SAE
J2911 to meet SAE J2788
for R-134a.
Certified by ITS under SAE
J2911 to meet high voltage
compressor service per SAE
J2788 R-134a.
OPERATION MANUAL
Models: FX134a
Advertisement
Table of Contents
Related Manuals for CPS FX134a Series
Summary of Contents for CPS FX134a Series

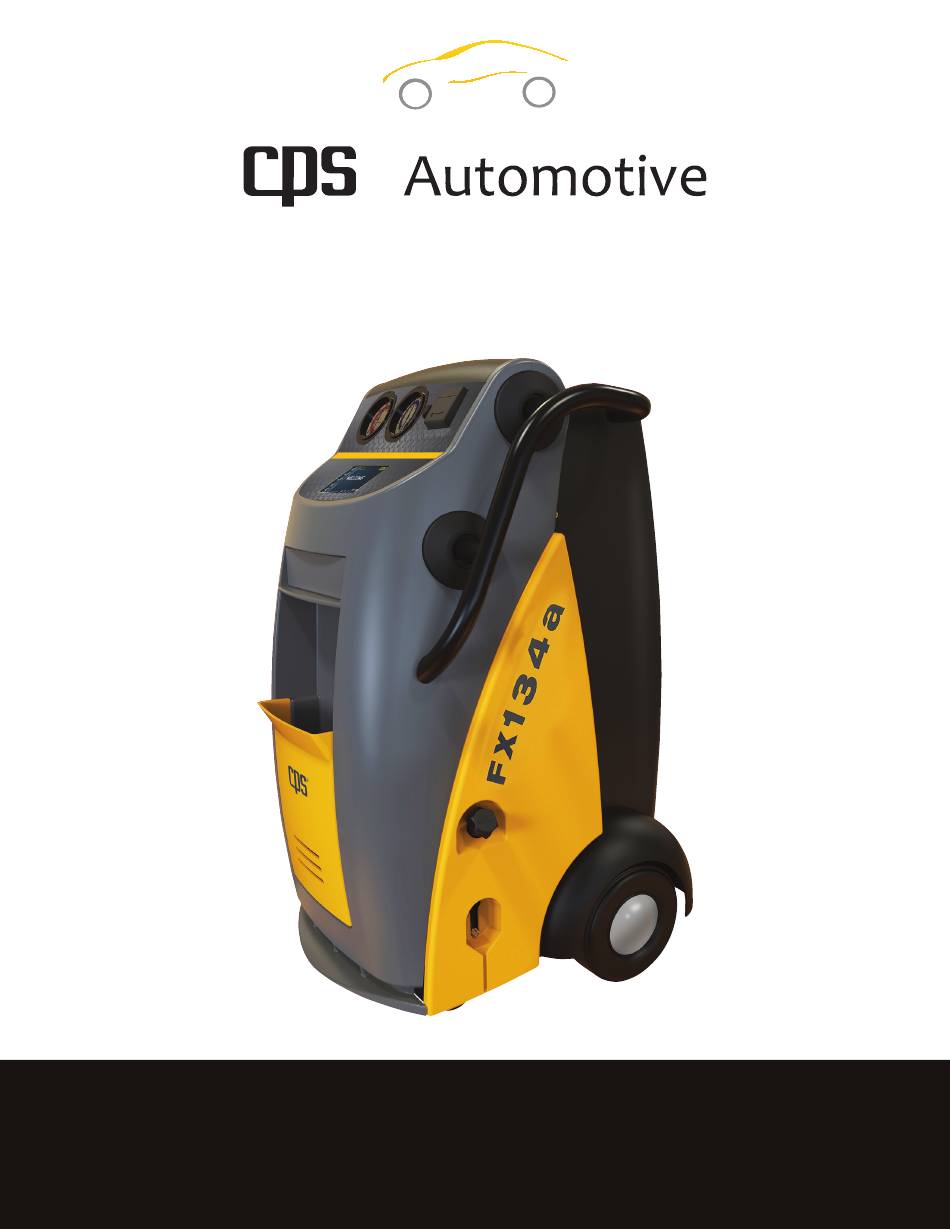

- Page 1 FX134a SERIES REFRIGERANT RECOVER / RECYCLE / VACUUM AND RECHARGE UNIT Covered under US Patent 8,082,750 and other patents pending. Certified by ITS under SAE J2911 to meet SAE J2788 for R-134a. Certified by ITS under SAE J2911 to meet high voltage compressor service per SAE J2788 R-134a.
-
Page 2: Table Of Contents
Tank Refill Adapter-Fits High side female for R-134a tank thread • R-134a fittings for hose storage and oil flush block • 41 cubic Inch CPS filter drier (Replacement part number FX3030X1) • Vent Temperature Probe • 1 lb (454 gram) check weight •... -
Page 3: General Safety
CAUTION - RISK OF INJURY, the equipment should only be operated by certified personnel. CAUTION - Use only CPS certified hose assemblies on this unit. The hose assemblies are made to proper length, contain shut offs where required and have direct effect on the proper operation of this equipment... -
Page 4: Icon Library
Tap to select the LOW SIDE coupler Notifies user to connect HP port LOW COUPLER CONNECT HP only during tank refill Tap to launch the MAINTENANCE MAINTENANCE CPS FILTER CPS FILTER menu MAINTENANCE Tap to CHANGE FILTER DATABASE Tap to access the vehicle DATABASE FILTER CHANGE... - Page 5 ICON LIBRARY ICON NAME DESCRIPTION IMAGE ICON NAME DESCRIPTION IMAGE Notifies user to PLACE WEIGHT on PLACE WEIGHT SET TIME Tap to SET TIME the scale PRINT SETTINGS Tap to PRINT a report of the service Tap to launch the SETTINGS screen PSIG SETUP Tap to select PSIG...
-
Page 6: First Time Start Up
FIRST TIME START UP Remove the black tank cover on the back of the unit by unscrewing the two thumb screws located on each side of the cover. Remove the protective packaging from between the storage tank and the scale. See Figure A below. Figure A: Shipping support to be removed before start up. -
Page 7: Theory Of Operation
THEORY OF OPERATION FX Series Refrigerant Management Centers feature a touch screen Graphical User Interface (GUI) that makes operations intuitive. In this sec- tion, we will cover each operation’s objective. The screen provides the specific information and directions during operation, so the descrip- tions below are limited to operation theory. - Page 8 THEORY OF OPERATION Full Cycle Select “Full Cycle” to recover, recycle, vacuum, leak check (if desired) and charge the vehicle AC system. The display will prompt you to enter a vacuum time and a vehicle charge amount. As described in the “Charge” sequence, the database may be used to retrieve the charge amount for most vehicles sold in North America.
-
Page 9: Other Functions
OTHER FUNCTIONS Car System Health Mode This mode allows for checking of system pressures and vent temperature before and after servicing the AC system. System parameters can be printed while in this mode to provide a before and after comparison. When entering the Car Health mode, the machine will prompt you to start the AC system. -
Page 10: Maintenance And Care
Calibration is suggested only if the calibration test was off by more than .02lbs. Calibration may be performed by a service center. CPS technical support can also assist with the process. -
Page 11: Parts List And Warranty
CPS will replace any failed part at no charge. Some failed parts must be returned to CPS. Labor time and mileage are not covered during the second year in service. CPS will cover the compressor for five full years of service, limited to the cost of the compressor only. -
Page 12: A/C Database End-User License Agreement
A/C DATABASE END-USER LICENSE AGREEMENT THIS IS A LEGAL AND BINDING AGREEMENT BETWEEN YOU, THE END-USER (“YOU”), AND MOTOR Information Systems, Hearst Business Publishing, Inc. (“MOTOR”). BY ACCESSING ANY OF THE MOTOR DATABASES VIA THIS WEB SITE, YOU AGREE TO ALL THE TERMS AND CONDITIONS OF THIS AGREEMENT. - Page 13 A/C DATABASE END-USER LICENSE AGREEMENT MISCELLANEOUS. (a) This Agreement is the complete and exclusive statement between You and MOTOR relating to the subject matter hereof and supersedes all prior oral, written and/or contemporaneous negotiations, commitments and understandings of the parties. (b) This Agreement shall be governed by the laws of the State of New York without giving effect to any principles of conflicts of law.
- Page 14 www.cpsproducts.com 73-108 REV B...
