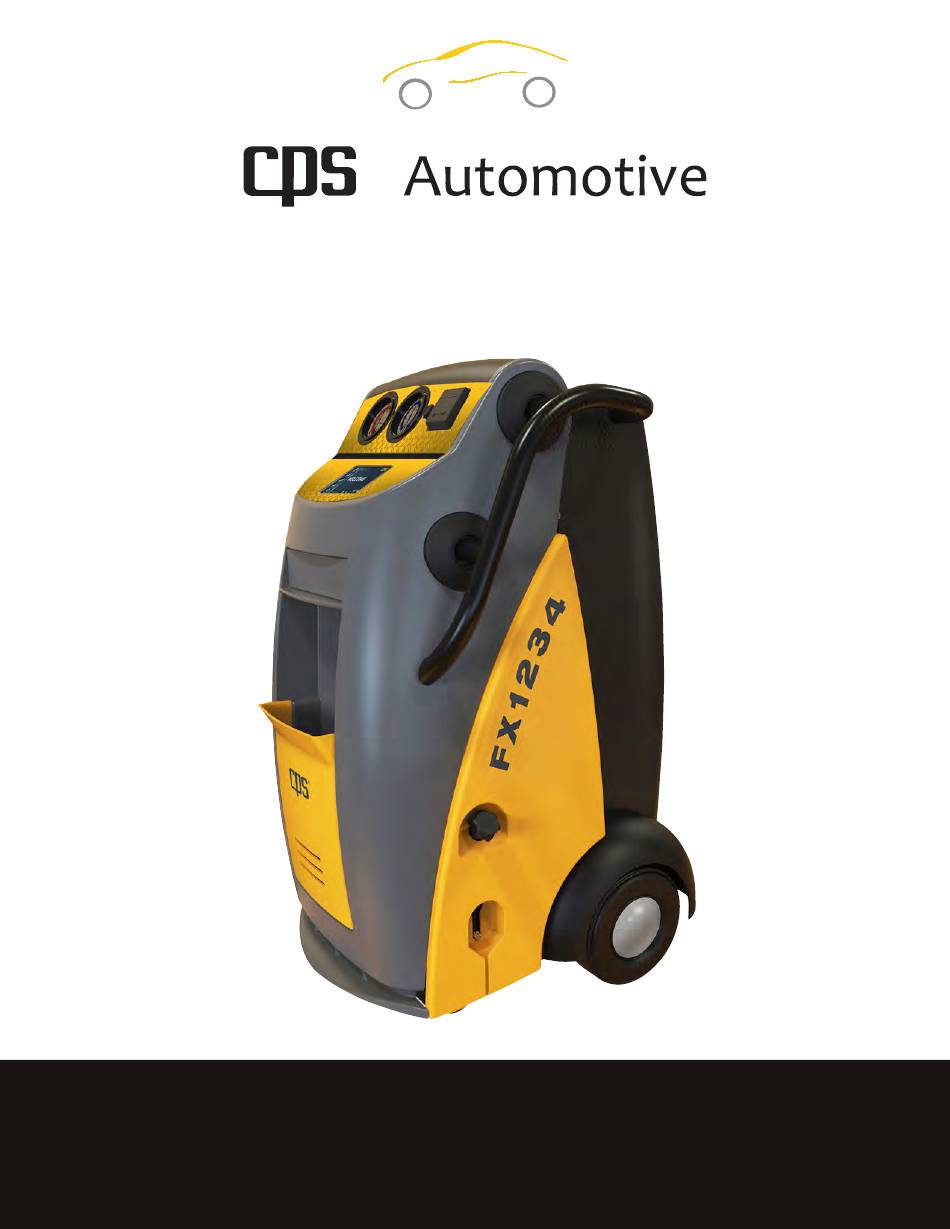

FX1234 SERIES REFRIGERANT RECOVER /
RECYCLE / VACUUM AND
RECHARGE UNIT
Covered under US Patent
8,082,750 and other patents
pending.
Certified by ITS under
SAE J2911 to meet SAE
J2843_022013 for R-1234yf.
Certified by ITS under SAE
J2911 to meet high voltage
compressor service per SAE
J2843 for R-1234yf.
OPERATION MANUAL
Models: FX1234 and FX1234W (Without Internal Ref. ID)
Advertisement
Related Manuals for CPS FX1234W
Summary of Contents for CPS FX1234W
- Page 1 Certified by ITS under SAE J2911 to meet SAE J2843_022013 for R-1234yf. Certified by ITS under SAE J2911 to meet high voltage compressor service per SAE J2843 for R-1234yf. OPERATION MANUAL Models: FX1234 and FX1234W (Without Internal Ref. ID)
- Page 2 Operation manual • 1 Roll 2.25” x 50” Thermal Paper • Built-in Refrigerant Identifier (Not included with FX1234W, but an External Identifier is required for the FX1234W to operate) End user to provide: • Refrigerant oil and/or dye for injection system •...
- Page 3 CAUTION- RISK OF INJURY, the equipment should only be operated by certified personnel. CAUTION- Use only CPS certified hose assemblies on this unit. The hose assemblies are made to proper length, contain shut offs where required and have direct affect on the proper operation of this equipment.
- Page 4 Tap to select the LOW SIDE coupler Notifies user to connect HP port LOW COUPLER CONNECT HP only during tank refill Tap to launch the MAINTENANCE MAINTENANCE CPS FILTER CPS FILTER menu MAINTENANCE Tap to CHANGE FILTER DATABASE Tap to access the vehicle DATABASE FILTER CHANGE...
- Page 5 ICON LIBRARY ICON NAME DESCRIPTION IMAGE ICON NAME DESCRIPTION IMAGE Notifies user to PLACE WEIGHT on PLACE WEIGHT SET TIME Tap to SET TIME the scale PRINT SETTINGS Tap to PRINT a report of the service Tap to launch the SETTINGS screen PSIG SETUP Tap to select PSIG...
- Page 6 FIRST TIME START UP Remove the black tank cover on the back of the unit by unscrewing the two thumb screws located on each side of the cover. Remove the protective packaging from between the storage tank and the scale. See Figure A below. Figure A: Shipping support to be removed before start up.
- Page 7 If the refrigerant is less than 98% pure, the recovery function will not be allowed and the machine will vent the hoses to prevent internal contamination of the machine and storage tank. Note that if you purchased a “W”, e.g. FX1234W, machine without an internal identi- fier, an external identifier must be connected to the USB port to perform a recovery operation.
- Page 8 The full cycle process begins with a refrigerant purity test and the vehicle system. This is required for SAE2843 for R1234yf only. Note that if you have purchased the FX1234W, you will need to have an external identifier connected to the machines USB port at start up. If the system passes the purity test, the machine will proceed with recovery.
- Page 9 OTHER FUNCTIONS Car System Health Mode This mode allows for checking of system pressures and vent temperature before and after servicing the AC system. System parameters can be printed while in this mode to provide a before and after comparison. When entering the Car Health mode, the machine will prompt you to start the AC system.
- Page 10 Calibration is suggested only if the calibration test was off by more than .02lbs. Calibration may be performed by a service center. CPS technical support can also assist with the process.
- Page 11 CPS will replace any failed part at no charge. Some failed parts must be returned to CPS. Labor time and mileage are not covered during the second year in service. CPS will cover the compressor for five full years of service, limited to the cost of the compressor only.
- Page 12 A/C DATABASE END-USER LICENSE AGREEMENT THIS IS A LEGAL AND BINDING AGREEMENT BETWEEN YOU, THE END-USER (“YOU”), AND MOTOR Information Systems, Hearst Business Publishing, Inc. (“MOTOR”). BY ACCESSING ANY OF THE MOTOR DATABASES VIA THIS WEB SITE, YOU AGREE TO ALL THE TERMS AND CONDITIONS OF THIS AGREEMENT.
- Page 13 A/C DATABASE END-USER LICENSE AGREEMENT MISCELLANEOUS. (a) This Agreement is the complete and exclusive statement between You and MOTOR relating to the subject matter hereof and supersedes all prior oral, written and/or contemporaneous negotiations, commitments and understandings of the parties. (b) This Agreement shall be governed by the laws of the State of New York without giving effect to any principles of conflicts of law.
