ATC Z-2801 M/W Manual

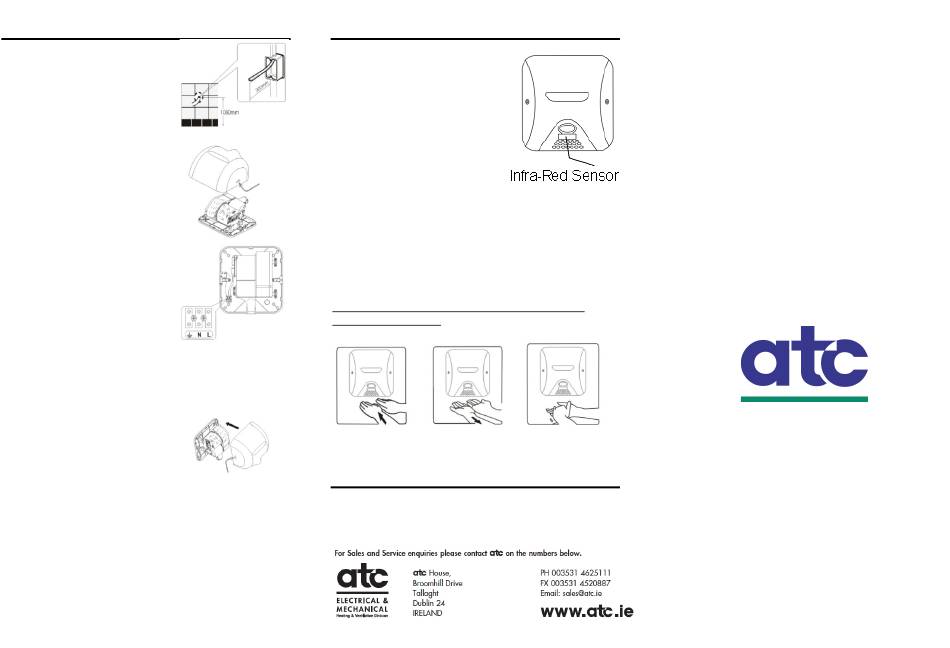

Installation Method

First Fix
•
A Recessed Junction box
should be installed to allow
hand dryer to sit flush with the
wall. Height should be
determined from table
overleaf
Cover Removal
•
Remove the Allen Screws on
either side of the hand dryer,
lift off cover and disconnect
earth cable. Make sure to put
the cover in a location where it
will not be damaged.
Mounting
• Drill mounting holes according
to the area that the Hand
Dryer is to be installed in (see
Overleaf) & mount the hand
dryer.
• Connect the electrical cables
and ensure correct Polarity.
•
Adjust Sensitivity to installed
location using the adjustment
on the PCB.
Replace Cover
•
Reconnect the earth cable and
replace the cover onto the
.
base of the hand dryer NOTE:
Z-2801M does not have an
earth cable on the cover
•
Install the two Allen Screws
and test the hand dryer
Daily Use & Maintenance
External Maintenance:
•
Regularly clean cover with a
soft cloth, do not use harsh
detergents, Acid or Alkali Based
Cleaning products or cleaning
brushes as they may damage
the cover finish.
•
If using a chemically
impregnated cloth please test
on an inconspicuous area prior
to use to check suitability.
Internal Maintenance
• After turning off the power supply, remove cover and
check all connections,
•
Clean away any dirt that has deposited inside the hand
dryer.
• Remove the motor housing and check the brushes on the
motor for wear. Replace worn Brushes.
Please note: Brushes are a consumable item and are not
covered under warranty
Method Of Operation:
Insert the back Turn your hands
of your hands over

Packing List

ATC Cheetah Hand Dryer User Manual
5mm Plastic wall plug x4 Allen Key
30mm Self Tapping Screws x4
ATC CHEETAH
Rub your hands
together until dry
Hand Dryer
Z-2801 M/W
