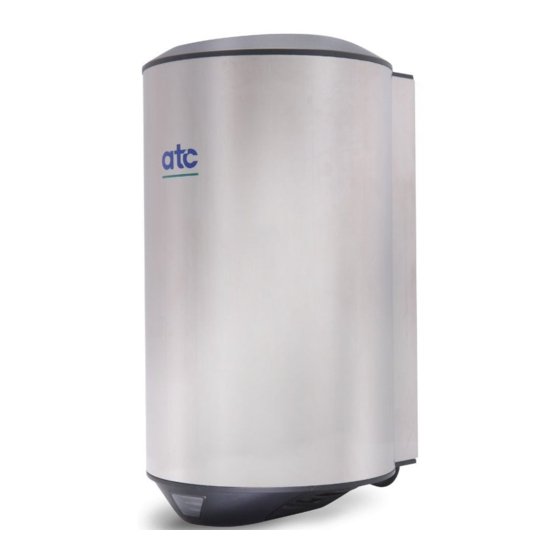

ATC CUB Z-2651M Quick Start Manual

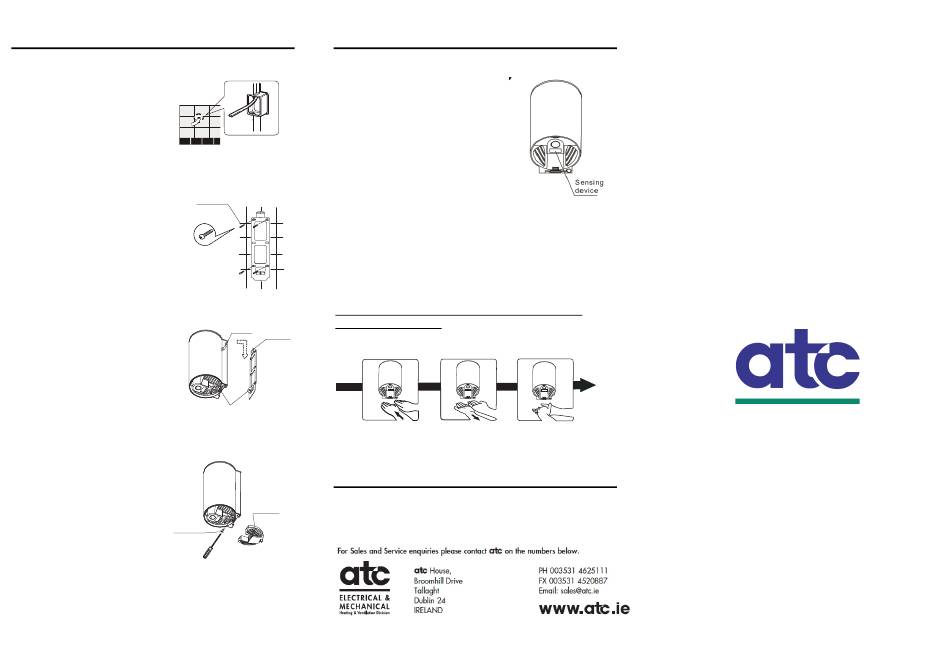

Installation Method
First Fix
•
A Recessed Junction box
should be installed to allow
hand dryer to sit flush with the
wall.
Mounting Back Plate
•
Drill mounting holes according
to the area that the back plate
is installed in (see
Overleaf)
& mount the back plate
Mounting
• Mount the Hand Dryer onto the
back plate ensuing that the
anti-theft screw holes are
aligned on both the Hand Dryer
and the back plate.
•
Connect the electrical cables
and ensure correct Polarity.
Anti-Theft
Screw the anti-theft screw into
•
the threaded holes to fix the
Hand Dryer to the back plate.
Attach the air intake grill to the
•
Safety
Hand Dryer making sure it is
screw
securely fastened.
•
Test Hand Dryer
External Maintenance:
•
Regularly clean cover with a
soft cloth, do not use harsh
detergents, Acid or Alkali Based
Cleaning products or cleaning
brushes as they may damage
the cover finish.
•
If
impregnated cloth, please test
on an inconspicuous area prior
to use to check suitability.
Self tapping
screw
Internal Maintenance
•
After turning off the power supply, remove cover and
check all connections,
•
Clean away any dirt that has deposited inside the hand
dryer and clean the air filter.
•
Remove the motor housing and check the brushes on the
motor for wear. Replace worn Brushes.
Please note: Brushes are a consumable item and are not
Hook covered under warranty
groove
Method Of Operation:
Hook
Safety screw hole
Insert the back
of your hands
ATC Cub Hand Dryer 5mm
Plastic wall plug x4 30mm
Inlet grille
Self Tapping Screws x4
Daily Use & Maintenance
using a chemically
Turn your hands Rub your hands
over together until dry
Packing List
User Manual
Allen Key
ATC
CUB HIGHSPEED
Hand Dryer
Z-2651M/BL
