ATC Tiger Eco Quick Start Manual

ATC Tiger Eco Quick Start Manual

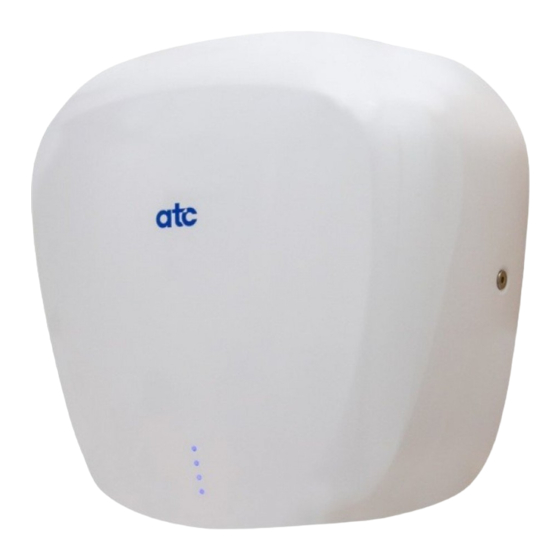

High speed hand dryer

Advertisement

Quick Links

Precautions before installation

Do not install in the following locations, installation in these areas can
cause the unit to malfunction and could void the warranty on the hand
dryer.
Areas with temperatures below 0°C and above 40°C
In direct sunlight, above reflective surfaces, or surfaces that radiate
heat - this may cause unwanted operation of the sensor.
Above Counters or sinks
Areas of high humidity or moisture levels
Locations containing Corrosive or Oxidizing gases
Areas at altitudes above 2000m
Installation Location
The chart below shows the recommended mounting height for the
hand dryer.
Make sure the hand dryer is mounted more than 150mm away
from walls on either side of the dryer to ensure access to the
cover mounting screws.
Do not mount the dryer behind doors where the opening of the
door may damage the dryer.
Do not install the dryer with the power connected.
This hand dryer must be connected by a qualified electrician when it is
being installed.
Note: If you are replacing the supplied power cable the cord used must
have a cross section of at least 1.5mm² (1.5mm² 2 Core & Earth)

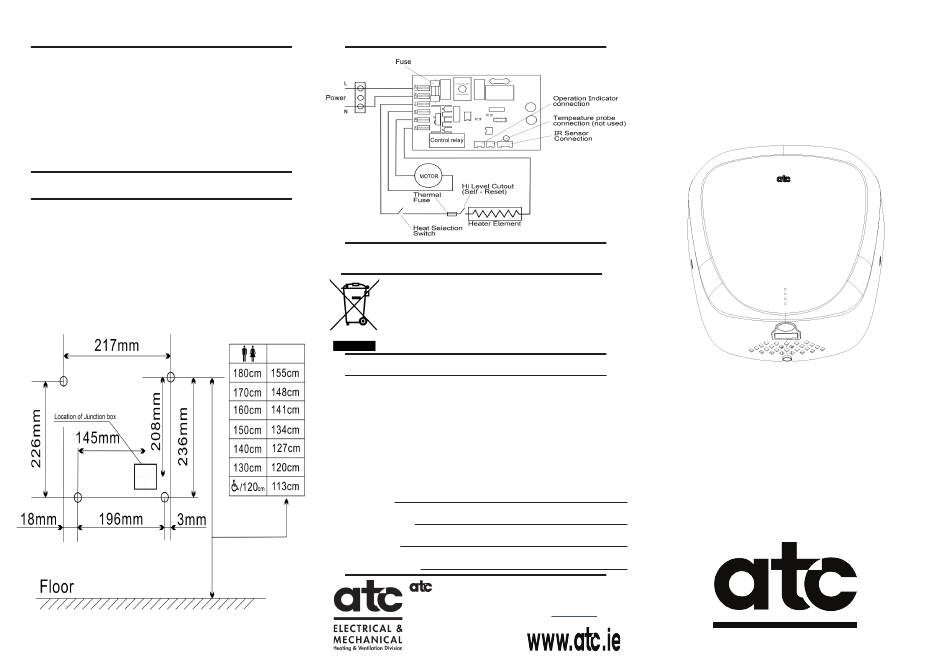

Circuit Diagram

Environmental Protection

Waste Electrical and Electronic Equipment (WEEE) must
never be placed in any household wheelie bins. WEEE is
taken back free of charge at electrical retail outlets on a
one-for-one like-for-like basis. Local authority civic ameni-
ty facilities also take back WEEE free of charge.
Do not dispose of this hand dryer with household waste.

WARRANTY

ATC Electrical and Mechanical provides a two year limited parts warranty
for the Z-3145M/W hand dryers as long as the unit has been installed,
used and maintained in accordance with the information provided in this
manual.
In order to arrange parts for the hand dryer, the information listed below
is required. It is recommended to write this information below and keep
this instruction manual in a safe place.
Receipt Number:
Date of Manufacturer:
Date of Purchase:
Location of Purchased:
House,
Broomhill drive
Tallaght
D24 EF99
Ireland
High Speed Hand Dryer
Z-3145M Stainless Steel Cover
Z-3145W White Cover
IE:003531 4678301
UK:0044 203 564 9164
FAX: 003531 4520887
Email:
Sales@atc.ie
