Marshall Electronics V-R84DP-HDSDI User Manual

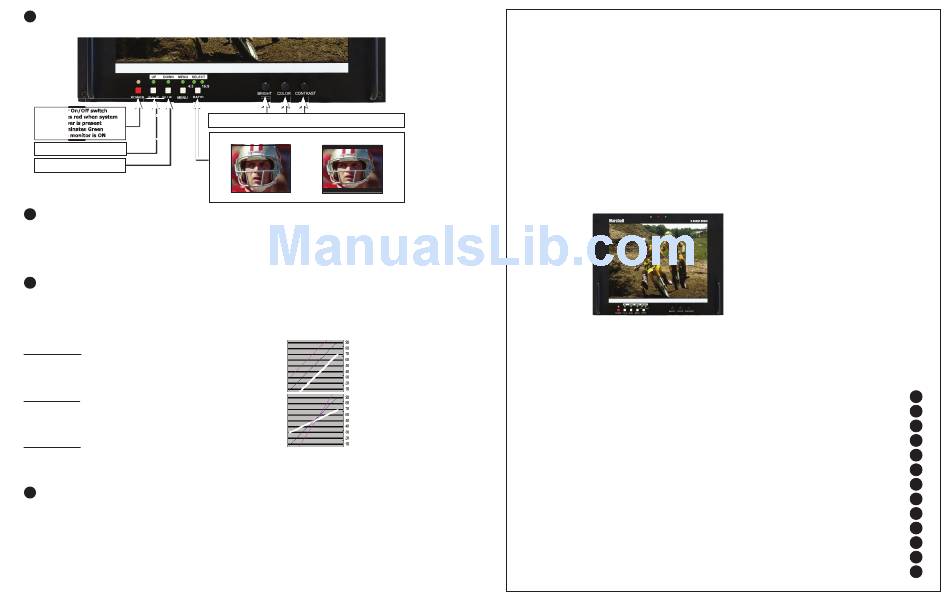

Switch Settings, Adjustments and Indicators
10
Power On/Off switch
Illuminates red when system
power is present
Illuminates Green
when monitor is ON
Pixel to Pixel On/Off
Lights when active
Blue Gun On/Off
Lights when active
Pixel to Pixel Function (Under scan)
11
As the native LCD display is 800 pixels wide by 600 pixels high, it is necessary to change the size of the image to fill the whole screen.
Pixel to Pixel mode bypasses the enlargement or scaling function and displays the native incoming format.
For 525-NTSC based images, pixel to pixel will appear as a 480x640 (4:3 aspect) or 480x720 (16:9 aspect) display.
For 625-PAL based images, pixel to pixel will appear as a 576x640 (4:3 aspect) or 576x720 (16:9 aspect) display.
Menu Functions
12
Turn On/Off with Menu button.
Use Up (P-P), Dn (Blue), and Select (Ratio) for menu navigation functions.
Color Temperature – Select D65 or User. User mode will automatically be turned on if Gain or Bias are adjusted.
Adj Color Gain – Select to adjust RGB gains.
Adj Color Bias – Select to adjust RGB bias
OSD – Toggle OSD on/off.
Version Number – Display only
Gain Adjustment
Press Up (P-P), Dn (Blue), to navigate. Chart legend: Left Line
Press Select (Ratio) to activate.
Center Line = D65 (Default)
Press Select to toggle R, G, or B Right Line = Decrease of gain
Press Up, Dn, to change value.
Press Menu to exit
Bias Adjustment
Press Up (P-P), Dn (Blue), to navigate. Chart legend: Right Line = Increase of Bias
Press Select (Ratio) to activate. Center Line = D65 (Default)
Press Select to toggle R, G, or B Left Line
Press Up, Dn, to change value.
Press Menu to exit
OSD Adjustment
Press Up (P-P), Dn (Blue), to navigate.
Press Select (Ratio) to toggle OSD On/Off
Warranty
13
Marshall Electronics warranties to the first consumer, that this V-R84DP-HDSDI portable monitor will, under normal use, be free from
defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of pur-
chase provided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor
and parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifica-
tions in design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any war-
ranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time
period described above.
Due to constant effort to improve products and product features, specifications may change without notice.
Image Adjustment Controls
Note: Tint only functions when NTSC Video or S-Video are selected
Screen aspect ratio switch 4:3 or 16:9 selector and indicators
4:3 Aspect 16:9 Aspect
= Increase of gain
= Decrease of Bias
Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • 310-333-0606
Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
V-R84DP-HDSDI V-R84DP-HDSDI Users Guide Users Guide
1
Product Overview
2
Features
3
Standard Accessories
Optional Accessories 4
5
Electrical Specifications
Mechanical Specifications 6
Faceplate Cleaning 7
8
Operational Setup
Input Connectors 9
10
Switch Settings, Adjustments and Indicators
Pixel to Pixel Function 11
12
Menu Functions
Warranty 13
