Marshall Electronics V-R82DP-2SDI User Manual

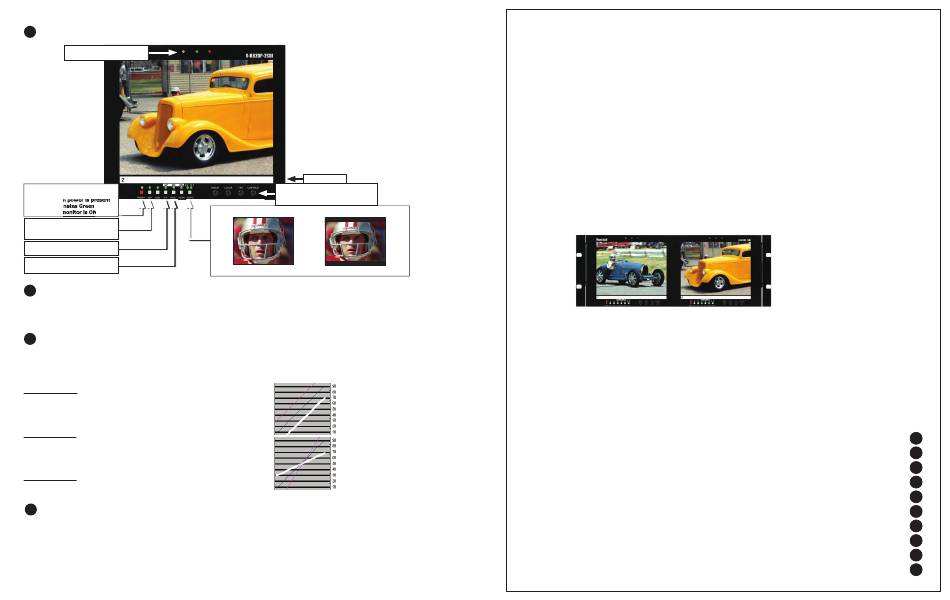

Switch Settings, Adjustments and Indicators
7
Tally Indicators
Illuminate when active
Input 1: NTSC 525 4x3
Power On/Off switch
Illuminates red
when system power is present
Illuminates Green
when monitor is ON
SDI signal selector switches
Illuminates when active. Signal
format will be displayed via OSD
Pixel to Pixel On/Off
Lights when active
Blue Gun, On/Off
Lights when active
Pixel to Pixel Function (Under scan)
8
As the native LCD display is 800 pixels wide by 600 pixels high, it is necessary to change the size of the image to fill the whole screen. Pixel to Pixel mode bypasses
the enlargement or scaling function and displays the native incoming format.
For 525-NTSC based images, pixel to pixel will appear as a 480x640 (4:3 aspect) or 480x720 (16:9 aspect) display.
For 625-PAL based images, pixel to pixel will appear as a 576x640 (4:3 aspect) or 576x720 (16:9 aspect) display.
Menu Functions
9
Turn On/Off with Menu button.
Use Up (P-P), Dn (Blue), and Select (Ratio) for menu navigation functions.
Color Temperature – Select D65 or User. User mode will automatically be turned on if Gain or Bias are adjusted.
Adj Color Gain – Select to adjust RGB gains. Adj Color Bias – Select to adjust RGB bias
OSD – Toggle OSD on/off. Version Number – Display only
Gain Adjustment
Press Up (P-P), Dn (Blue), to navigate. Chart legend: Left Line = Increase of gain
Press Select (Ratio) to activate. Center Line = D65 (Default)
Press Select to toggle R, G, or B Right Line = Decrease of gain
Press Up, Dn, to change value.
Press Menu to exit
Bias Adjustment
Press Up (P-P), Dn (Blue), to navigate. Chart legend: Right Line = Increase of Bias
Press Select (Ratio) to activate. Center Line = D65 (Default)
Press Select to toggle R, G, or B Left Line = Decrease of Bias
Press Up, Dn, to change value.
Press Menu to exit
OSD Adjustment
Press Up (P-P), Dn (Blue), to navigate.
Press Select (Ratio) to toggle OSD On/Off
Warranty
10

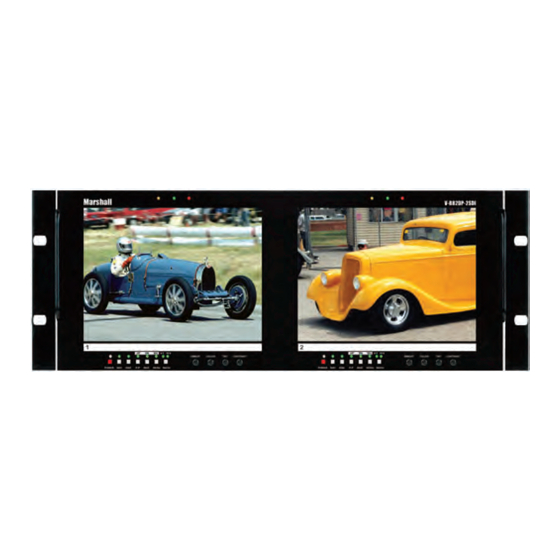

Marshall Electronics warranties to the first consumer, that this V-R82DP-2SDI Dual 8.4-inch LCD rack mounted monitor set will, under normal use, be free from
defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the purchasing end user only and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided
with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications in design or construc-
tion, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties other than those described above, or to
extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.
An extra note about LCD displays: It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the periphery of the display active view-
ing area. Marshall Electronics has the option to reserve service for display pixel failure if deemed unobtrusive to effective use of the monitor by our technicians.
Due to constant effort to improve products and product features, specifications may change without notice.
Note: Tapping any active
input signal toggles BLUE
GUN On/Off. Signal selection
is active when Blue Gun is
on. Tap active selection to
turn off.
Dry Erase Label
Image Adjustment Controls
Note: Tint only functions when NTSC
Video or S-Video are selected
Screen aspect ratio switch 4:3 or 16:9 selector and indicators
4:3 Aspect 16:9 Aspect
Version 2009-0512
Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • 310-333-0606
Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
V-R82DP-2SDI V-R82DP-2SDI
Users Guide Users Guide
1
Product Overview
2
Features
Electrical Specifications 3
4
Mechanical Specifications
Operational Setup 5
6
Connectors
7
Switch Settings, Adjustments and Indicators
Pixel to Pixel Function (under scan) 8
9
Menu Functions
Warranty 10
