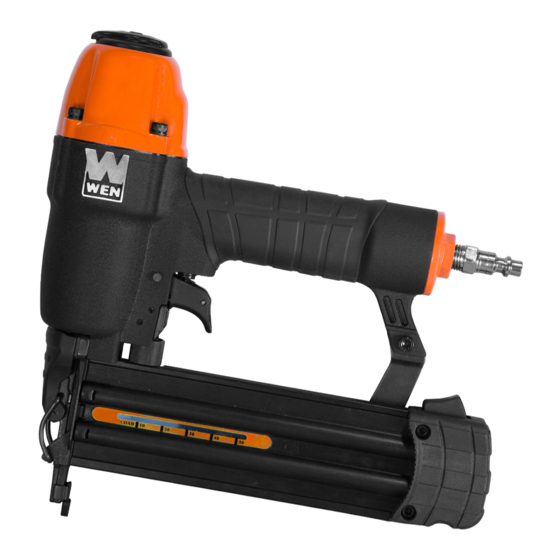

MODEL 61721, 61723K
18-GAUGE 2-INCH
BRAD NAILER
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wen 61723K
Summary of Contents for Wen 61723K
- Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
-
Page 2: Table Of Contents
CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Brad Nailer Safety Warnings ................6 BEFORE OPERATING Unpacking & Packing List .................7 Know Your Brad Nailer ..................7 Preparation & Adjustments ................8 OPERATION & MAINTENANCE Operation ....................... -
Page 3: Welcome
INTRODUCTION Thanks for purchasing the WEN Brad Nailer. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool. -
Page 4: Safety
GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
-
Page 6: Brad Nailer Safety Warnings
BRAD NAILER SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. BRAD NAILER SAFETY 1. THIS TOOL IS DESIGNED for household use only, not 9. -
Page 7: Before Operating
KNOW YOUR BRAD NAILER TOOL PURPOSE Install trim, build birdhouses, and more with the help of your handy-dandy newfangled WEN Brad Nailer. Refer to the following diagrams to become familiarized with all the parts and controls of your tool. The components will be referred to later in the manual for assembly and operation instructions. -
Page 8: Preparation & Adjustments
PREPARATIONS & ADJUSTMENTS LUBRICATING THE TOOL This tool requires lubrication before each use (especially the first use). If an inline oiler is used, manual lubrication through the air inlet is not required. Proper lubrication is the owner’s responsibility. Failure to lubricate the tool properly will dramatically shorten the life of the tool and void the warranty. - Page 9 PREPARATIONS & ADJUSTMENTS 1. Turn the compressor on and allow it to pressurize. Make sure the tool pressure regulator is set to 0 (Fig. 2). 2. Connect the air hose to the outlet of your air compressor. Connect the other end of the air hose to the air inlet of the nailer.
-
Page 10: Operation & Maintenance
OPERATION WARNING! Before each use, check the nailer, compressed air connections, and air lines. If any parts are missing or damaged, do not operate this tool until the parts are repaired and/or replaced. Failure to do so may result in serious personal injury. ADJUSTING THE DEPTH-ADJUSTMENT WHEEL Fig. - Page 11 OPERATION DRIVING MODES Your nailer has two driving modes: single-sequential and bump-fire. For details, see below. Single-sequential: 1. Press the safety bracket against the workpiece. 2. Pull the trigger. A fastener is fired. 3. Remove the safety bracket from the workpiece. Re-position the tool. Repeat steps 1 – 3. Bump-fire: 1.
-
Page 12: Maintenance
MAINTENANCE WARNING! Disconnect tool from air supply and empty fasteners from the magazine before performing any cleaning or maintenance. LUBRICATION Routine lubrication of the tool is required for best performance. If the tool is used without an in-line oiler, place 3 – 4 drops of pneumatic tool oil into the air inlet of the tool at the beginning of each workday. -
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE WARNING! Stop using the tool immediately if any of the following problems occur. Repairs and replace- ments should only be performed by an authorized technician. For any questions, please contact our customer service at 1-(800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com. PROBLEM CAUSE SOLUTION... -
Page 14: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST... - Page 15 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. 61720-001 Screw 61720-038 Trigger Valve Guide 61720-002 Bushing 61720-037 O-Ring 61720-004 Washer 61721-042 Spring 61721-004 Bushing Washer 61720-044 Washer 61721-005 Screw 61721-044 Trigger Assembly 61721-006 Washer 61720-042 Trigger Pin 61721-007 Cylinder Cap...
-
Page 16: Warranty Statement
WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
