Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.

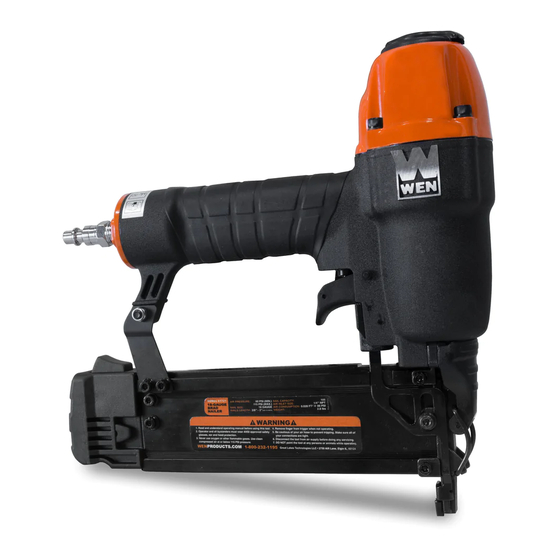

18-GAUGE 2-INCH
BRAD NAILER
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
Model # 61721
bit.ly/wenvideo
(M-F 8AM-5PM CST)
Advertisement
Related Manuals for Wen 61721
Summary of Contents for Wen 61721
- Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.
- Page 2 Know Your Nailer Operation Maintenance Exploded View and Parts List Troubleshooting Warranty TECHNICAL DATA Model Number: 61721 Operating Pressure Range: 60 PSI - 115 PSI Air Inlet: 1/4˝ NPT Nail Size Range: 3/8˝, 5/8˝, 3/4˝, 1˝, 1-1/4˝, 1-3/8˝, 1-1/2˝, 1-3/4˝, 2˝...
- Page 3 Hello! The purpose of the following safety symbols is to attract your attention to possible dangers. We don’t want any of our beloved WEN customers accidentally injuring themselves. The safety symbols and explanations with them deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger.
- Page 4 SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not use your tool until the following steps have been read and understood 1.
- Page 5 SAFETY RULES 12. DISCONNECT tool from air supply when not in use. Remove fasteners from magazine before leaving the area or passing the tool to another operator. Do not climb ladders, stairs, scaffoldings, etc. without disconnecting the tool. Do not carry a connected tool to another work area. Do not make adjustments, remove magazine, perform maintenance or clear jammed fasteners while connected to the air supply.
- Page 6 SAFETY RULES Personal injury from strong recoil, jammed fasteners, or ricochetted nails may result. 25. BE AWARE of material thickness when using the nailer. A protruding nail may cause injury. 26. KNOW that when the tool is being utilized at pressures on the high end of its operating range, nails can be driven completely through thin or very soft work material.
- Page 7 KNOW YOUR NAILER 1 - Jam-Clearing Latch 2 - Safety Bracket 3 - Low Nail Indicator Window 4 - Magazine 5 - Air Inlet 6 - Exhaust 7 - Trigger 8 - Depth Adjustment Wheel OPERATION WARNING - if any parts are missing, do not operate this tool until the missing parts are replaced. Failure to do so could result in a possibly serious personal injury.
- Page 8 OPERATION LOADING THE FASTENERS (Fig. 3) Fig. 3 NOTE: Always load the fasteners pri- or to connecting the tool to a power supply. Otherwise, unwanted misfires may occur. Lock 1. Depress the lock to release the movable maga- zine and pull the magazine out fully. Front Plate 2.
- Page 9 5. Load the magazine. Reattach nailer to air supply. Test fire a nail into scrap wood to confirm the nailer is working properly again. NOTE: If nails continue to jam in the nosepiece, have your tool serviced by an authorized WEN service center. MAINTENANCE CLEAN AND INSPECT DAILY CAUTION - Disconnect tool from air supply before cleaning/inspection.
- Page 10 EXPLODED VIEW AND PARTS LIST Part No. Description Part No. Description 61720-001 Screw 61721-039 Trigger Valve Stem 61720-002 Bushing 61720-038 Trigger Valve Guide 61720-004 Washer 61720-037 O-Ring 61721-004 Bushing Washer 61721-042 Spring 61721-005 Screw 61720-044 Washer 61721-006 Washer 61721-044 Trigger Assembly...
- Page 11 EXPLODED VIEW AND PARTS LIST...
- Page 12 TROUBLESHOOTING CAUTION: Stop using the tool immediately if any of the following problems occur or risk serious personal injury. Repairs and replacements should only be performed by authorized personnel at a certified WEN service center. Problem Common Causes Solution 1. O-ring in trigger valve is damaged.
- Page 13 LIMITED TWO YEAR WARRANTY WEN Products is committed to build tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
- Page 14 THANKS FOR REMEMBERING...
