Planet Audio P9756 - One Din In-Dash AM/FM DVD/MP3/CD Receiver Manual
![]()

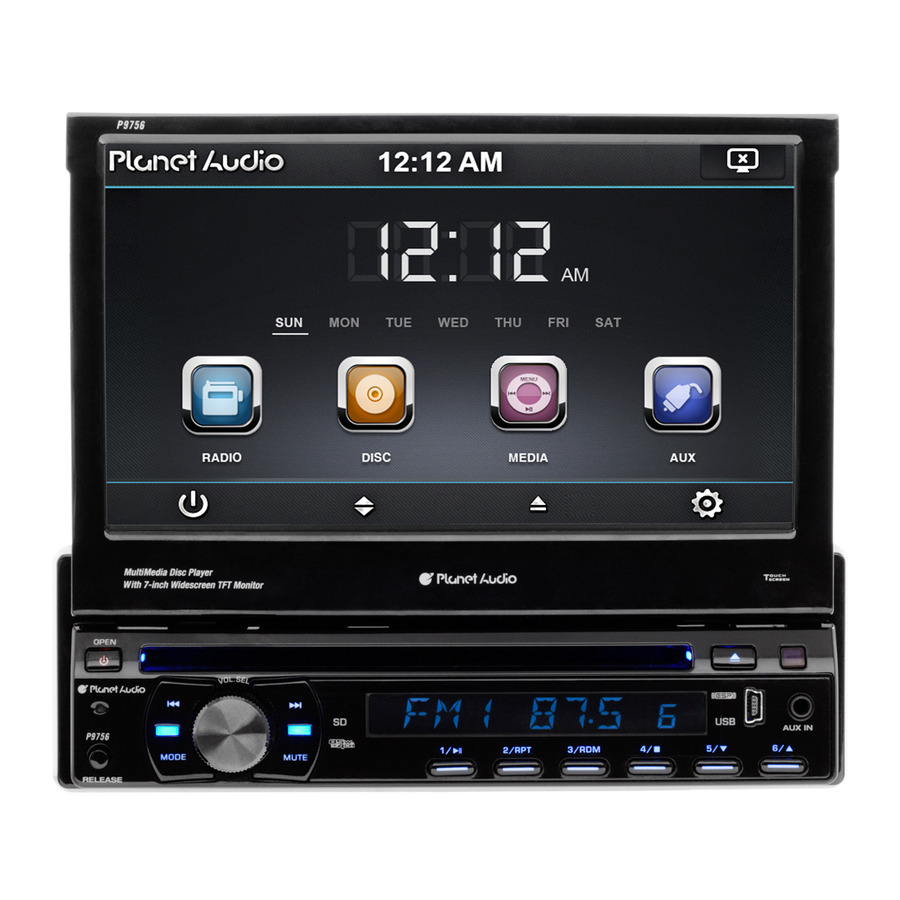

Panel Introduction
![Planet Audio - P9756 - Panel Introduction Panel Introduction]()
BASIC FUNCTION
/OPEN Button
Press the button to open / close the screen.
Press this button for short moment to turn on power, and long press it to turn off power. - SEEK Knob
![]()
In radio mode, press / rotate the knob to select station upward / backward.
Long press / rotate the knob to automatically scan station.
In playback mode, short press / rotate the knob to select song upward / backward, long press / rotate it to achieve speed forward / backward function. - RELEASE Button
Press this button to release the panel. - MODE Button
When the unit is power on, Repeat press this button can switch to different function mode as following picture. Note: When the device without connecting to USB, SD or DVD no disc inside, the system will automatically skip these related working mode. - (VOL/SEL) Volume adjustment mode
Repeat pressing this button can select the VOL, BAS, TRE, BAL, FAD adjustment mode. Then can rotate the button to adjust VOL, BAS, TRE, BAL, FAD as you like. - MUTE Button
Press this button to shut off sound output, repress this button to resume sound output; Long press this button longer to turn on / off TFT LCD display. - Number Button 1 /
![]()
In radio mode, press this button to hear radio preset;
In disc playback mode, press this button for Play/Pause. - Number Button 2 / RPT (Repeat Playback)
In radio mode, press this button to hear radio preset;
In disc playback mode, press this button to repeat the current track indefinitely. - Number Button 3 / RDM (Random playback)
In radio mode, press this button to hear radio preset;
In disc playback mode, press this button to play frocks on the disc in random order. - Number Button 4 /
![]()
In radio mode, press this button to hear radio preset;
In disc playback mode, press this button for to stop playback. - Number Button 5 /
![]()
In playback mode, press the button to adjust the angle of screen. - Number Button 6 /
![]()
In playback mode, press the button to adjust the angle of screen. - Dual (front and rear) AUX
To input external audio.
![]()
You can only use either front or rear AUX at a time. Never connect both front and rear AUX at the same time. - Dual (front and rear) USB
Insert USB removable device so as to read audio/video files.
![]()
You can only use either front or rear USB at a time. Never connect both front and rear USB at the same time! This could cause malfunctions. - IR
To receive infrared signal from the remote control. ![]()
When there is a disc in the unit, press the button to eject the disc. - SD
Insert SD card, the unit will play the files automatically. - RESET
Press this button and this unit will be restored to the initial state.
Remote Control Operation
![Planet Audio - P9756 - Remote Control Remote Control]()
![]() | POWER ON/OFF | ![]() | AMS / RPT |
![]() | MUTE | ![]() | TITLE |
![]() | SOURCE | ![]() | AUDIO |
![]() | EQ | ![]() | GO TO |
![]() | SEEK+ / SEEK- | ![]() | SUBTITLE |
![]() | VOL+ / VOL- | ![]() | PBC |
![]() | SEL | ![]() | UP / DOWN / L / R ENTER |
![]() | LOUD | ![]() | SLOW |
![]() | BAND / P / N | ![]() | ANGLE |
![]() | LOC / RDM | ![]() | SETUP |
![]() | STOP | ![]() | OSD |
![]() | PLAY / PAUSE | ![]() | ZOOM |
![]() | ST / PROG | ![]() | MENU |
![]() | 0-10+ | ![]() | DSP |
- POWER Button
Press once to switch on, press again to switch off. - MUTE Button
Press once to turn off audio output, press again to resume volume level. - SOURCE Button
Press this button to change mode. - EQ Button
Press this button to choose POP, ROCK, CLASSIC, EQ off. - SEEK+ (
) / SEEK- (
) Button
In normal playback MP3, USB, SD songs, Press this button to previous song or next song. - VOL+ (
) / VOL- (
)
Press this button to increase or decrease volume level. - SEL Button
Press this button to choose sound feature. - LOUD Button
Press this button to startup LOUD function. - BAND-P/N Button
In radio mode, press this button to choose band.
In VCD, DVD mode, press this button to choose PAL, AUTO or NTSC system. - LOC / RDM Button
In radio mode, press this button to switch between local and direction. In VCD, CD mode, press this key to randomly play. - STOP Button
Press this button to stop playing. - PLAY / PAUSE Button
Press this button to switch between play and pause.
In stop mode, press this button to play. - ST / PROG Button
In radio mode, press this button to choose stereo or mono station.
In audio mode, it can help STOP button to programmed play. - 0-10+ Button
Press this button to choose desired song, section, preset stations. Decimal numbers, for example the 19th song, press 10+ and 9 button. - AMS / RPT Button
In radio mode, press this button to browse stored stations.
In audio mode, press this button to play repeatedly. - TITLE Button
In DVD mode, press this button to play back to the top menu of disc. - AUDIO Button
In DVD mode, press this button to switch language of dialogue.
In VCD mode, press this button to choose left track, right track and stereo. - GO TO Button
In DVD mode, press this button, you can define playing time. - SUBTITLE Button
In DVD mode, press this button to switch language of subtitle. - PBC Button
In VCD mode, press this button to display all song menus, work with number button to choose songs. - UP, DOWN, LEFT, RIGHT, ENTER Button
When playing MP3, USB, SD returns to song menu, up, down selections can be up / "
" button or down / "
" key to select up and down, select and press "
" key to confirm.
The selected tracks can be played. Press the left or right arrow keys to "
" or "
" key, can be on the next page function operation. - SLOW Button
In audio mode, press this button to slow backward and slow forward. - ANGLE Button
In DVD mode, press this button to change play angle. - SETUP Button
In audio mode, press this button to choose different set items. - OSD Display
Press this button to display the title chapter and the left time. - ZOOM Button
In DVD/VCD mode, press this button to ZOOM in. - MENU Button
Press button to back to the main menu. - DSP
Press this button to show the time.
BATTERY CHANGE
When control distance of remote control becomes shorter or no function, please change battery. Please confirm polarity before change.
![]()
One hand press stopper, then pull out battery.
![]()
Put battery into controller.
![]()
Insert battery holder into controller.
Turn on/off
When the ignition switch is put in ACC or ON position, Press power button on the front panel to turn on the unit. After the host starts, hold power button for 3 seconds, the host will turn off.
Access main interface
Turned on, the interface to return the icon to switch to the main interface. As shown below:
![Planet Audio - P9756 - Main interface Main interface]()
Touch the function icons so as to access the corresponding function operations.
Touch the [
] icon or use the touch pen/finger gently sliding around the screen to switch to the main menu page.
USB/SD Card Operation
When there is a USB device/SD card connected, the unit can conduct the playback of audio/video/image files in the USB device/SD card.
Insert/Eject USB storage device
- Connect a U disc recorded with media information to the unit by a USB connecting cable.
- When there is a need to eject the USB device, exit the USB device playback screen first, and then take out the device.
Insert/eject SD card
- Insert a SD card recorded with media information into the SD card slot in the unit correctly until it is locked.
- When pulling out the SD card, exit SD card playing state first, then press the SD card and it shall pop up after unlocking.
Enter/exit
Insert a USB storage device or SD card to automatically play data contained in it. If the unit has connected with a USB device or SD card, touch [USB] icon in the multimedia interface to enter into the external storage playback interface; Touch [SD] icon to enter into the SD card playback interface. During playback, touch the top center area of the screen to pop up the touch menu, operate touch menu to perform various playback controls.
Play
After SD card/USB removable device being read out, the operation methods are similar to disk operation methods.
Radio Operation
![Planet Audio - P9756 - Radio Operation - Scrolling the options menu Radio Operation - Scrolling the options menu]()
- Enter/exit
Touch [Radio] icon in the main interface to enter into the radio interface.
Touch
icon to return to main interface, and then touch other function icons so as to exit radio mode. - MUTE on/off
Click
icon to switch MUTE on and off. - Loudness on/off
Click
icon so as to turn on/off loudness function. - Search/Save radio stations
Short press
icon to browse the stored radio stations.
FM band can save 18 radio stations (Six stations for FM1/FM2/FM3), AM band can save 12 radio stations (Six stations for AM1/AM2). - Band selection
Click
icon so as to switch among FM1, FM2, FM3, AM1, AM2 bands. - Turn on/off the Long/Short-range
Click
icon, the search pattern in the local search (LOC) and remote search (DX) switch between.
LOC feature is turned on after the signal is strong enough only to listen to those in good condition and receiving radio station; DX enabled, you can receive remote weak radio signals.
Note: This function is available only when FM band is selected. - Stereo on/off
When receiving stereo signals, click
icon to turn on/off stereo. - TA (Receive traffic information)
ON: When the traffic station is turned on, the radio will automatically search for traffic stations. After a station is searched, screen displays "TP". Only when traffic information is broadcasted can it be received, after traffic information is completed, the radio will automatically switch to the previous mode.
OFF: Repress [TA] button to close TA function. In other modes, traffic announcement will automatically switch to radio mode, after the traffic announcement is completed, it will automatically switch to the previous mode. - AF
Touch the button to turn the AF function on/off. AF function is turned on, When the received station signals become weak, the radio will automatically fine-tune to other frequencies. When receiving an emergency announcing, the screen will display warning message. - PTY
Touch the button the screen displays program types, users can search station according to program type.
Note: If the unit does not have RDS function, it has no AF/TA/PTY function.
Disc Operation
Play/eject disc
Play disc
Insert the disc into the disc slot with the printing surface up, system will detect the disc and automatically take it in to read and play.
Eject disc
- Click
button on the panel to eject the disc. - If a disc has not been took away 15 seconds after it is ejected, system will automatically take in the disc but not play.
Do not insert two discs or more.
DVD/VCD disc playback
During playback of disc, touch the middle lower area of the screen to pop up the touch menu, operate the touch menu to perform various playback controls.
![]()
CD Disc Playback
After a CD is inserted, system shall access disk reading state immediately.
When there is a disk in the device, click [Disk] at the main interface so as to access disk reading state.
After the disk being read out, system shall automatically play in sequence.
MP3/JPEG/MPEG4 disk playing
When the disk contains readable files, such as MP3/JPEG/MPEG4 files, it shall be automatically read out and played after slipping into DVD player.
During playing, touch the screen area and the touch menu shall pop up. Operate the touch menu for various playing.
![]()
- MUTE
Touch this icon to switch MUTE on and off.
Play/pause
Touch the button to pause, retouch it to continue to play.
Stop
Touch the button to enter into pre stop status.
Fast forward/backward
Consecutively touch this button to select the speed of fast-forward/fast-backward.
The previous/next song
Touch the button to select the previous/next song.
Access next menu
Touch it to access the next menu interface.
Disc
Touch this icon to eject disc.
Stereo on/off
Touch it so as to turn on/off stereo.
Return to root menu
Touch this icon, it shall return to root menu of disk in DVD state and access PBC menu playing in VCD state. All chapters in the disk shall be displayed on the interface, touch the chapter icon directly for playing.
Access title menu
Press this button to return to title menu of the disk. Directly click menu bar at title menu interface for playing.
Repeat play
In playing state, touch this button to start repeat play function:
Chapter repeat → Title repeat →Repeat All → Off
During VCD playing, this function only works when PBC is off.
Language selection
Touch this button to select language.
Digit keyboard
Touch this button and digit keyboard shall appear, click number buttons directly to select tracks for playing.
Switch play order
Touch this button to switch the play order.
Zoom in/Zoom out image
Touch this button to zoom in /zoom out the image.
Under audio/video playing mode or radio mode, the screen center will display the picture below when adjusting the volume button.
![]()
Setting
Touch this button to enter setting interface
EQ
Touch this icon to display EQ mode one by one for selecting.
![]()
ST Wheel setting
- Click on the [
] icon in the main interface into the SWC. settings interface.
![]()
- The original vehicle to the control line positive, negative with the machine control line in the positive and negative connection.
- Click the SWC buttons will appear corresponding operating tips, and fundamental operation prompts the SWC feature set.
- Set function to save the settings and click the Confirm icon to confirm.
Note: To modify function settings, repeat procedures 3~4.
To reset functions, click Reset icon, all the settings set before shall be cleared, repeat procedures 3~4 for resetting.
Connect the video input plug with external video input jack, and connect the audio input plug with external audio input jack.
![]()
Touch [AUX-IN] icon on main interface to access external AUX-IN interface.
![Planet Audio - P9756 - External input operation - Audio settings External input operation - Audio settings]()
Audio →You can adjust the volume, bass, pitch for input audio. You can adjust the speaker volume by adjusting the front and back, left and right column.
![Planet Audio - P9756 - External input operation - Video settings External input operation - Video settings]()
Video →You can adjust the brightness, contrast, saturation and hue for input video. You can also choose the video standard mode.
Calendar
Touch the icon [
] in main interface to enter the following Calendar interface:
![]()
Calculator
Touch the icon [
]in main interface to enter calculator interface to operate +/-/×/÷
![]()
Rear view function
In any running state, the video signal can switch to reverse video state when reversing the car, and the system shall return to its initial running state after reversing the car.
![Planet Audio - P9756 - Using the Rear view function Using the Rear view function]()
![]()
Do not rely on CCD system completely, please make sure you use direct eyesight while driving. Back rearview system only assists in driving. As the distance range of rearview system is limited, completely relying on the rearview system during driving may cause accidents.
Access setup interface
Click [Setting] icon on main interface to access setup interface.
General setting
Click
icon on setup interface to access general setting interface, as shown below:
![Planet Audio - P9756 - Access setup interface - General setting Access setup interface - General setting]()
In General setting interface, you may set the functions On or Off, or click the icon [
]to preview the wallpapers up and down and set your favorite wallpaper
Wallpaper
Touch the icon[
]in wallpaper bar [
]to change the wallpaper.
Audio setting
Click
icon on setup interface to access audio setting interface, as shown below:
![Planet Audio - P9756 - Access setup interface - Audio setting Access setup interface - Audio setting]()
You can turn on or turn off the existing functions on audio setting interface and adjust the rearview volume.
Video setting
Click
icon on setup interface to access video setting interface, as shown below:
![Planet Audio - P9756 - Access setup interface - Video setting Access setup interface - Video setting]()
At video setting interface, you can adjust brightness, contrast, saturation and hue of the video.
Language setting
During use, you can select your familiar language to display menu by language setup. Click
icon on setup interface to access language setting interface, as shown below:
![Planet Audio - P9756 - Access setup interface - Language setting Access setup interface - Language setting]()
In the languagebar [
] you need to set, touch the correspondingicon[
]to select your familiar language.
Time setting
Click icon on
setup interface to access time setting interface.as shown below:
![Planet Audio - P9756 - Access setup interface - Time setting Access setup interface - Time setting]()
Touch the icon [
] of Time mode, Year, Month, Date, Hour, Minute for setting.
Version
Touch the icon [
] in setting interface to enter the interface below to check the software version number of DISC/MCU/TFT (The version information is displayed please prevail in kind.)
![Planet Audio - P9756 - Access setup interface - Version Access setup interface - Version]()
Touch calibration
If the touch position is biased, you may touch the icon "Calibrate" for calibration.
Touch the icon[
] in setting interface to find the setting bar [
], and then touch any icon[
] to enter the following calibrating interface.
![Planet Audio - P9756 - Access setup interface - Touch calibration Access setup interface - Touch calibration]()
Touching methods
Use touch pen to click the center of "+" icon, and move along with center of "+" icon so as to calibrate the screen. It shall automatically save data and exit after screen calibration. Please accurately click all positions on screen, or the accuracy of touch calibration shall be affected.
Touch screen Calibration
Please follow the below instructions to calibrate when there is no touch or touch is not accurate.
- Press the mode button in the unit to switch to DVD mode.
- Insert a DVD disc, after DVD is loaded, press the stop button "
" as show in picture (1). in the remote short, the unit will display as show in picture (2).
![Planet Audio - P9756 - Touch screen Calibration - Step 1 - Press stop Touch screen Calibration - Step 1 - Press stop]()
- Press "
" in the remote as show in picture (3), the unit will display as show in picture (4).
![Planet Audio - P9756 - Touch screen Calibration - Step 2 - Press zoom Touch screen Calibration - Step 2 - Press zoom]()
- Press "
" button in the remote and then quickly press "
" button as show in picture (5) and you will enter the touch calibration interface as show in picture (6).
![Planet Audio - P9756 - Touch screen Calibration - Step 3 Touch screen Calibration - Step 3]()
- Use the touch pen to touch top left corner, top right corner, down right corner, down left corner, when the cross cursor stop at each corner, touch the center of the cursor. Then the panel will display OK and leave the calibration interface and the unit regained touch as shown below.
![Planet Audio - P9756 - Touch screen Calibration - Step 4 Touch screen Calibration - Step 4]()
WIRING DIAGRAM
This player is equipped with ISO standard connector, please follow below instruction:
![Planet Audio - P9756 - WIRING DIAGRAM WIRING DIAGRAM]()
- Red - ACC ON (+12V)
- Yellow – 12 V Constant
- Black – Ground wire
- Blue - Power Antenna / Remote Amp Turn On
- Violet/White-Reverse Gear Signal (+)
- Grey/Grey black - Right front speaker (+/-)
- White/White black - Left front speaker (+/-)
- Purple/Purple black - Right rear speaker (+/-)
- Green/Green black - Left rear speaker (+/-)
- Light Green-Parking Brake (-)
TROUBLE SHOOTING
PROBLEM | CAUSE | SOLUTION |
Cannot power on | Check fuse | Change fuse same as the old one |
Some factors cause MPU wrong operation | Press RES button on the panel by penpoint, then, power on |
After ignition switch off, setting information all lose | Change battery or fuse | Reset information and save |
Poor performance of radio station | Weak signal | Move the car to another place, then research |
Cannot load disk | There is a disk inside | Remove disc before inserting another one |
Cannot play disc | Disc is scratched | Change new disc |
Put wrong side of disc into the unit | Insert in the disk with sign side up |
Lens is dirty | Clean lens by lens clean disc |
Cannot switch language/subtitle | There is only one language/ subtitle in disc | If disc is not with multi-language/subtitle, it cannot switch language/subtitle |
No image | Other factors cause MPU wrong operation | Press RES button on the panel by penpoint, then, power on |
Cannot watch image during driving | It's not allowed to watch image during driving | Park the car in a safe place, put the car stall in " P " postion, pull up the hand brake, parking brake wire must be grounded |
SPECIFICATIONS
Power supply | DC 12V |
Power range | 10.8-16.0V DC |
Max Current Consumption | 15A |
Ground system | Negative ground |
Power Output | 85 WattsX4 Channels |
FM tuner |
US frequency range | 87.5-107.9MHz |
European frequency range | 87.5-108MHz |
Signal / Noise ratio | 55dB |
Stereo separation | 30dB |
Search station volt | 20-30dBuv |
AM tuner |
US frequency range | 530-1710KHz |
European frequency range | 522-1620KHz |
Limit noise sensitivity | 32dB |
DVD player |
S / N Ratio | 70dB |
Frequency response | 20Hz-20KHz |
![]()
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download Planet Audio P9756 - One Din In-Dash AM/FM DVD/MP3/CD Receiver Manual
Need help?
Do you have a question about the P9756 and is the answer not in the manual?
Questions and answers
