USER'S MANUAL
USER'S MANUAL

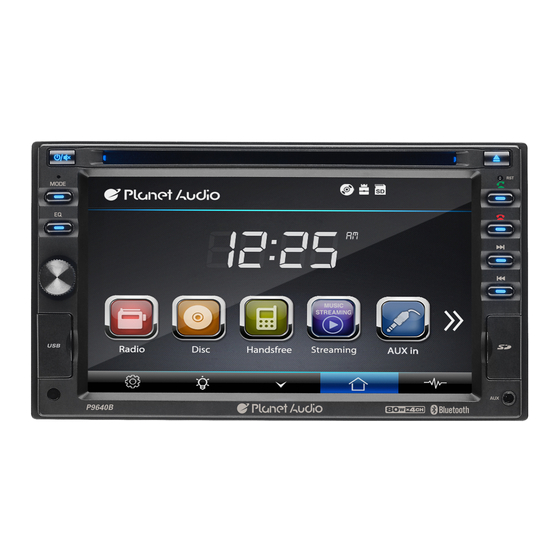

P9640B
BLUETOOTH
DVD/MP3 AM/FM RECEIVER
®
6.2" 157 mm WIDESCREEN TOUCHSCREEN
DIGITAL TFT LED MONITOR
P9640B
www.planetaudiousa.com
TELEPHONE
BLUETOOTH
DVD/MP3 AM/FM RECEIVER
®
888-990-1236 US Toll-free
805-751-4854 Customer Service
6.2" 157 mm WIDESCREEN TOUCHSCREEN
DIGITAL TFT LED MONITOR
TECHNICAL SUPPORT
www.planetaudiousa.com/customer-support
0518
iPod
is a trademark of Apple, Inc. registered in the U.S. and other countries.
®
Planet Audio is not affiliated with Apple, Inc.
The Bluetooth
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
®
and any use of such marks by Planet Audio is under license. Other trademarks and trade
names are those of their respective owners.
Advertisement
Table of Contents
Related Manuals for Planet Audio P9640B
Summary of Contents for Planet Audio P9640B
- Page 1 Planet Audio is not affiliated with Apple, Inc. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. ® and any use of such marks by Planet Audio is under license. Other trademarks and trade names are those of their respective owners.
- Page 2 To ensure safety while driving and to comply with laws, drivers should not watch video or operate the video device while driving.
-
Page 3: Table Of Contents
Congratulations on your purchase of a Planet Audio Multimedia Receiver. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will offer you years of entertainment pleasure. Content Accessories ………………………………………………………………………………………………………………………………………... Unit Installation ……………………………………………………………………………………………………………………………….. -
Page 4: Accessories
Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring (5) Rubber (2) Washer, Cushion M5 Nut (3) Screw (6) Screw Left (7)installation (4) Bolt bracket Right (5) Mounting Strap BT MIC Cable Remote Control User Manual Power Cable Trim Ring... -
Page 5: Unit Installation
Unit Installation Bracket Screw 1. Put the 2 brackets to the left and right side of the unit; 2. Use screws to fix the brackets to the unit. Wire Connection The Description of the Input/output Interface of the Rear Chassis... -
Page 6: Parking Brake Connection
Parking Brake Connection In order to view videos, the parking brake wire must be connected, and the vehicle is parked. Connecting the reversing line to tail light on the car... -
Page 7: Speaker Connection
Speaker Connection Connect the speakers according to the following diagram, incorrect connections may damage the unit or your speakers. Do not chassis ground the speakers. Always observe correct polarity. Correct connection Left front - Right front | Left rear - Right rear Incorrect connections... -
Page 8: Button Description
Button Description 1.Open button Press the button for short moment to turn on power,and long press it to turn off power. Press the button for short moment can Open or close the mute 2. Mode Button When the unit is power on ,repeat press this button can switch to different function mode as follow picture. -
Page 9: Remote Control
Remote Control 1: MODE 2: POWER 3: UP 4: BAND/RANDOM/CLEAR 5: ENTER 6: LEFT 7: DOWN 8: EJECT 9: STEREO/MONO/* 10:P.SCAN/REPEAT/# 11: SEEK-/BACKWARD 12: LOUD 13: STOP/PBC 14: OSD 15: PLAY/PAUSE 16: MUTE/BLUETOOTH 17: MENU/ROOT 18: SUB TITLE 19: RIGHT 20: SETUP 21: DIAL/ANGLE 22: HANG UP... - Page 10 Remote Control 10. P.SCN/ RPT /# button In DVD mode, press to repeat REP 1 => REP Title => REP ALL. In SD /USB mode ，press to repeat REP 1 => REP Dir => REP ALL. In Radio mode, PS (preset scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds.
- Page 11 Remote Control / SEEK + buttons In DVD/CD mode, press button to skip to the next track, press and hold button for two seconds to activate fast forward (FF) search in a track. In Radio mode, press and hold button to select station forward automatically, touch again will stop select station.
-
Page 12: Main Menu
Main Menu The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons. -
Page 13: Dvd Operation
Radio Operation Touch this button to adjust the brightness of TFT panel Touch this button to return to main menu Touch button go to EQ setting Touch this button to switch radio traffic service on or off. Touch this button to select program type. Shortcut to the rear camera mode. -
Page 14: Usb/Sd Operation
DVD Operation Touch it to turn on / off random playback. Touch it go to EQ mode Select the subtitle language Touch it setting the display brightness of TFT panel Touch it go to setting Press it to select title (only the file has many files) Press it to select file In VCD mode touch it can choose PBC ON or OFF USB/SD Operation... -
Page 15: Settings Operation
Settings Operation Setting Control Your device has default system setting, you can customize the settings to suit your personal needs. Once you change settings, your new settings will remain until you change it again. To start setting, tap it on main menu. General Control OSD Language : select English/Spanish Wallpaper... - Page 16 Settings Operation Tap time setting button to setup time Tap SWC item to program SWC 1) First check whether the car has steering wheel button. 2) The steering wheel and the unit must be connected on the line. 3) While holding down the button on the steering wheel and the corresponding button on the SWC interface it will display complete setting.
- Page 17 Settings Operation [3]. DVD Menu Lang setting:. With this option you can select the preferred language for the disc menu. When the selected language is recorded on the disc then this language will automatically be selected. If not, the first language recorded on the disc is displayed.
-
Page 18: Bluetooth Operation
(if available) will be display on the panel. According to mobile pairing device manual, after searching new device (BT friendly name: Planet Audio P9640B) select it, input password "0000" and confirm ok, device paring is finished. - Page 19 Bluetooth Operation Calling Button Tap on calling button to enter call mode. In call mode, the unit can be used as your phone, making and receiving calls are possible with bluetooth, simply tap phone number and tap button to make a call, and tap button to hang up.
-
Page 20: Aux-In Operation
Aux-In Operation Aux-In MODE To start Aux-In Mode, tap Aux-In icon from main menu screen. connect the external audio signal source to this unit will display “NOW PLAYING”. Note: Aux-In does not support a video display function. So, there is “NO SIGNAL DETECTED” displayed if no audio signal input. -
Page 21: Notes Of Disc
Notes of Disc... -
Page 22: Troubleshooting
Troubleshooting Symptom Cause Remedy Replace with fuse of the same amperage. If Power does not turn Fuse is blown the fuse blows again, consult your store of purchase (No sound is produced) Incorrect wiring Consult your local retailer 1. Turn off the unit 2. - Page 23 Troubleshooting symptom Cause Solution If the power supply is properly connected The car ignition is not on to the car accessory switch the ignition key to “ACC” No power The fuse is blown Replace the fuse Presence of disc inside the Remove the disc in the player then put a Disc cannot be loaded player...
-
Page 24: General Specification
General Specification General Power supply 11~16V DC Current consumption Max. 10 A Maximum power output 80W x 4 channels (max) Compatible formats DVD ±R/RW Video, CD ±R/RW Audio & Video Dimensions (W x D x H) / weight 7.0” x 6.4” x 3.9” /7.5 lbs Working temperature range -20°F -- +140°F ESP function...
