LightBloc ZIP™ 92 & ZIP 127
Interior shading system, Zip feature prevents the fabric from
coming out of the side channels, thus providing complete blackout.

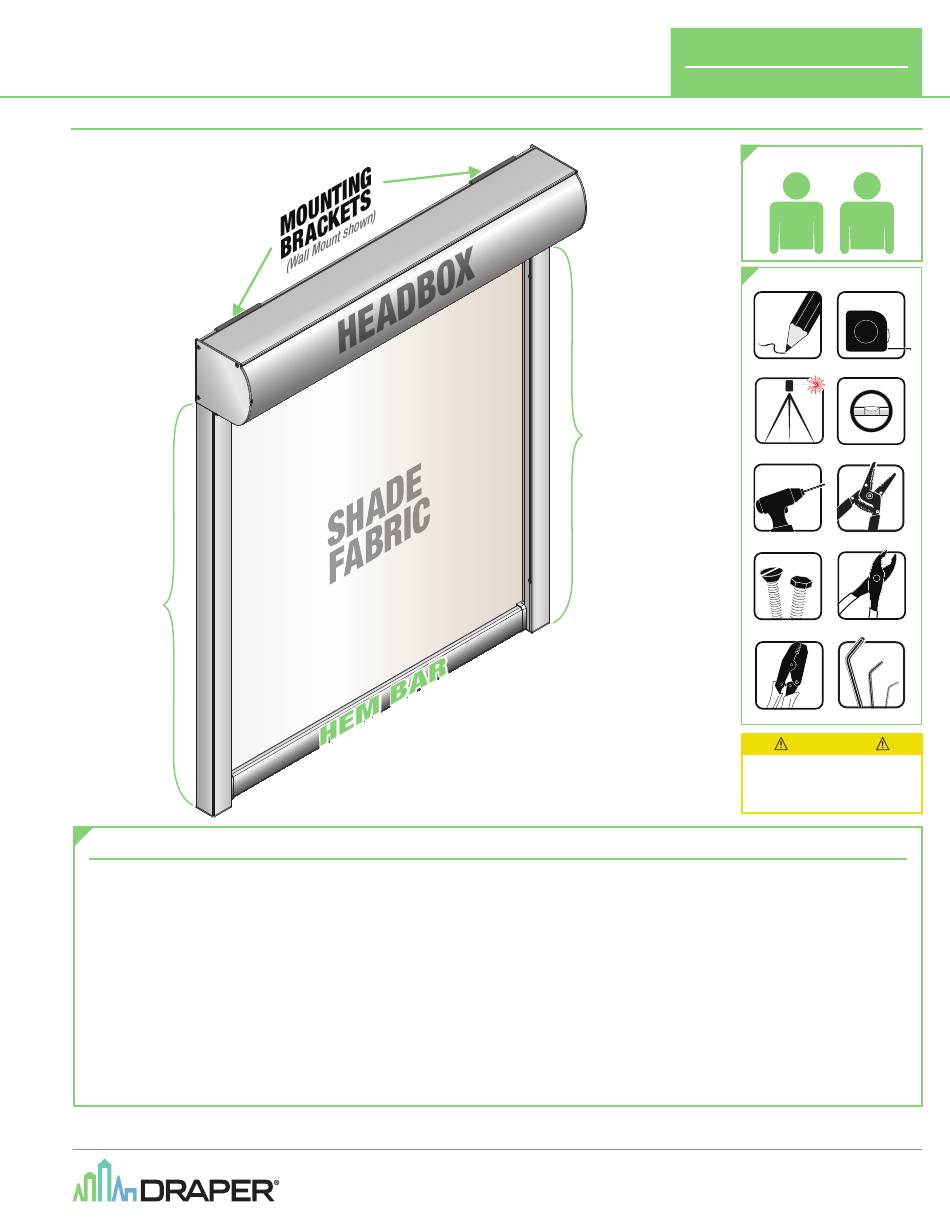

Overview - Components
E N D
C A
P
SIDE
CHANNEL
Contents
Overview - Components .......................................................................................1
PLEASE READ - Important Installation Information ........................................2
PLEASE READ - Safety Information ....................................................................2
PLEASE READ - Cleaning and Maintenance .....................................................2
Section 1 - Site Preparation ................................................................................3
.......................................................................................4
Section 5 - Installing Side Channels
Section 6 - Mounting Angled Headbox ..............................................................6
..................................4
...............5
SIDE
CHANNEL
Section 8 - Limit Setting: RTS Obstacle Detection Motors ............................7
Section 9 - Limit Setting: Standard and Quiet Motors ....................................8
Section 10 - Complete Electrical Connection ..................................................8
Section 11 - Cable Exit ..........................................................................................9
.....3
Section 16 - Assembled Dimensions: Front View ..........................................10
Section 17 - Assembled Dimensions: Side View ............................................11
Section 18 - Component Dimensions ..............................................................12
INSTRUCTIONS
INSTALLATION & OPERATION
PERSONNEL REQUIRED
1
TOOLS REQUIRED
PENCIL
LASER LEVEL
POWER DRILL
HARDWARE
(by others)
CRIMPING TOOL
CAUTION
Read and understand
all warnings before
beginning installation.
.....................6
...................................................................9
If you have any difficulties installing or servicing your
LightBloc ZIP™, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
© 2021 All Rights Reserved
FORM: LightBloc_ZIP_Inst21
2
TAPE MEASURE
LEVEL
WIRE STRIPPERS
PLIERS
HEX WRENCH
