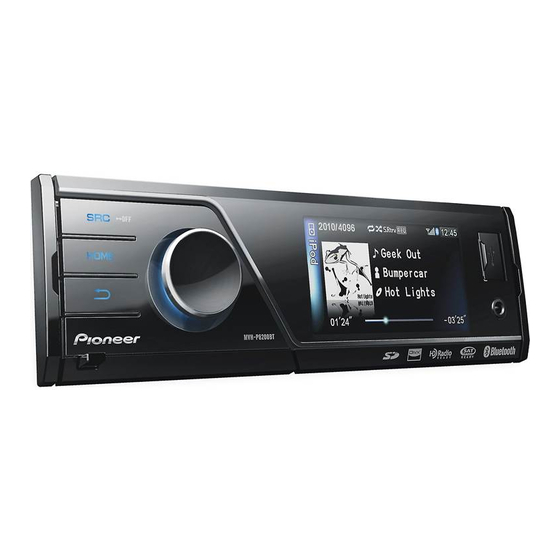

MEDIA CENTER RECEIVER
AUTORADIO MULTIMEDIA
RECEPTOR Y CENTRO DE COMUNICACIONES
MVH-P8200BT
MVH-P8200
Installation Manual
Manuel d'installation
Manual de instalación
  Printed in Thailand 
  Imprimé en Thaïlande
CRD4472-A/N
<
> UC
<KOKNX> <09L00000>
Connecting the unit
English
WARNING
WARNING
• To avoid the risk of accident and the potential
• Use speakers over 50 W (output value) and
violation of applicable laws, no viewing of front
between 4 W to 8 W (impedance value). Do not use
seat video should ever occur while the vehicle is
1 W to 3 W speakers for this unit.
being driven.
• The black cable is ground. When installing this
• In some countries or states the viewing of images
unit or power amp (sold separately), make sure
on a display inside a vehicle even by persons
to connect the ground wire first. Ensure that
other than the driver may be illegal. Where such
the ground wire is properly connected to metal
regulations apply, they must be obeyed.
parts of the car's body. The ground wire of the
power amp and the one of this unit or any other
device must be connected to the car separately
with different screws. If the screw for the ground
CAUTION
wire loosens or falls out, it could result in fire,
generation of smoke or malfunction.
• PIONEER does not recommend that you
install or service your display yourself.
Ground wire
POWER AMP
Installing or servicing the product may
expose you to risk of electric shock or other
hazards. Refer all installation and servicing
of your display to authorized Pioneer service
personnel.
• Secure all wiring with cable clamps or
electrical tape. Do not allow any bare wiring
to remain exposed.
Other devices
• Do not drill a hole into the engine
Metal parts of car's body
(Another electronic
compartment to connect the yellow lead
device in the car)
of the unit to the vehicle battery. Engine
vibration may eventually cause the insulation
to fail at the point where the wire passes from
Important
the passenger compartment into the engine
compartment. Take extra care in securing the
• When this unit is installed in a vehicle without
wire at this point.
ACC (accessory) position on the ignition switch,
• Make sure that wires will not interfere with
red cable must be wired to the terminal that can
moving parts of the vehicle, such as the
detect the operation of the ignition key. Otherwise,
gearshift, parking brake or seat sliding
battery drain may result.
mechanism.
• Do not shorten any leads. If you do, the
protection circuit may fail to work properly.
WARNING
LIGHT GREEN LEAD AT POWER CONNECTOR
IS DESIGNED TO DETECT PARKED STATUS
ACC position
No ACC position
AND MUST BE CONNECTED TO THE POWER
SUPPLY SIDE OF THE PARKING BRAKE SWITCH.
• Use this unit with a 12-volt battery and negative
IMPROPER CONNECTION OR USE OF THIS
grounding only. Failure to do so may result in a
LEAD MAY VIOLATE APPLICABLE LAW AND MAY
fire or malfunction.
RESULT IN SERIOUS INJURY OR DAMAGE.
• To prevent short-circuit, overheating or
malfunction, be sure to follow the directions
below.
— Disconnect the negative terminal of the
battery before installation.
— Secure the wiring with cable clamps or
adhesive tape. To protect the wiring, wrap
adhesive tape around them where they lie
against metal parts.
Connecting the unit
English
— Place all cables away from moving parts, such
as gear shift and seat rails.
— Place all cables away from hot places, such as
near the heater outlet.
— Do not connect the yellow cable to the battery
by passing it through the hole to the engine
compartment.
— Cover any disconnected cable connectors with
insulating tape.
— Do not shorten any cables.
— Never cut the insulation of the power cable of
this unit in order to share the power to other
equipment. Current capacity of the cable is
limited.
— Use a fuse of the rating prescribed.
— Never wire the speaker negative cable directly
to ground.
— Never band together multiple speaker's
negative cables.
• When this unit is on, control signals are sent
through the blue/white cable. Connect this cable
to the system remote control of an external power
amp or the vehicle's auto-antenna relay control
terminal (max. 300 mA 12 V DC).
If the vehicle is equipped with a glass antenna,
connect it to the antenna booster power supply
terminal.
• Never connect the blue/white cable to the power
terminal of an external power amp.
Also, never connect it to the power terminal of the
auto antenna. Doing so may result in battery drain
or a malfunction.
• IP-BUS connectors are color-coded. Be sure to
connect connectors of the same color.

Advertisement

Table of Contents

   Related Manuals for Pioneer MVH-P8200BT

   Summary of Contents for Pioneer MVH-P8200BT

  • Page 1 MVH-P8200BT regulations apply, they must be obeyed. MVH-P8200 • PIONEER does not recommend that you install or service your display yourself. Installing or servicing the product may expose you to risk of electric shock or other hazards. Refer all installation and servicing of your display to authorized Pioneer service personnel.
  • Page 2 PRECAUCIÓN chauds, tels que les sorties du chauffage. • PIONEER no recomienda que sea usted mismo quien instale o revise su pantalla. La trou dans le compartiment du moteur pour le instalación o revisión del producto puede connecter à la batterie. exponerle a descargas eléctricas u otros peligros. Solicite que todos los trabajos connectés avec du ruban isolant.
  • Page 3 Connecting the unit English Connecting the unit Connecting the power cord Microphone input This product (MVH-P8200BT only) IP-BUS input Antenna input Wired remote input (Blue) Fuse (10 A) Hard-wired remote control adaptor can be connected (sold separately). IP-BUS cable Yellow Connect to the constant 12 V supply terminal.
  • Page 4 Connexions des appareils Français Connexions des appareils Branchement du cordon d’alimentation Entrée microphone Cet appareil (MVH-P8200BT seulement) Entrée IP-BUS Entrée d'antenne Entrée de télécommande à fil (bleue) Fusible (10 A) Vous pouvez connecter un adaptateur pour télécommande à fil (vendu séparément) à cette prise.
  • Page 5 Conexión de la unidad Español Conexión de la unidad Conexión del cable de alimentación Entrada del micrófono Este producto (solamente MVH-P8200BT) Entrada IP-BUS Entrada para antena Entrada remota por cable (Azul) Fusible (10 A) Es posible conectar un adaptador de control remoto por cable (vendido separadamente).
  • Page 6 Dashboard 10cm (3-7/8 in.) 10cm (3-7/8 in.) English Installation Removing the Unit Installing the microphone • Use commercially available parts when 1. Press the detach button to release (MVH-P8200BT only) installing. the front panel. • Refer to the Operation Manual about how to Installation notes release the front panel. Firewall or Install the microphone in a position and metal support orientation that will enable it to pick up the 2.
  • Page 7 Tableau de bord d’espace 10cm 10cm Français Installation Enlèvement de l’appareil Installation du microphone sur la figure. 1. Appuyez sur le bouton de (MVH-P8200BT seulement) • Utilisez des pièces disponibles dans le détachement pour détacher le commerce lors de l’installation. panneau avant. Remarques sur l’installation Écrou • Reportez-vous au mode d'emploi pour savoir Installez et orientez le microphone à un comme retirer le panneau avant.
  • Page 8 Deje un amplio espacio 10cm 10cm Español Instalación Retirada de la unidad Instalación del micróphono ilustración. 1. Pulse el botón de liberación para (solamente MVH-P8200BT) • En la instalación, emplee piezas disponibles liberar el panel delantero. en el mercado. • Consulte el Manual de instrucciones para Notas acerca de la instalación saber cómo liberar el panel delantero. Tuerca Instale el micrófono en una posición u orientatión que permita captar bien las voces...
