Cooper Lighting Halo L5063870 Specification

DESCRIPTION

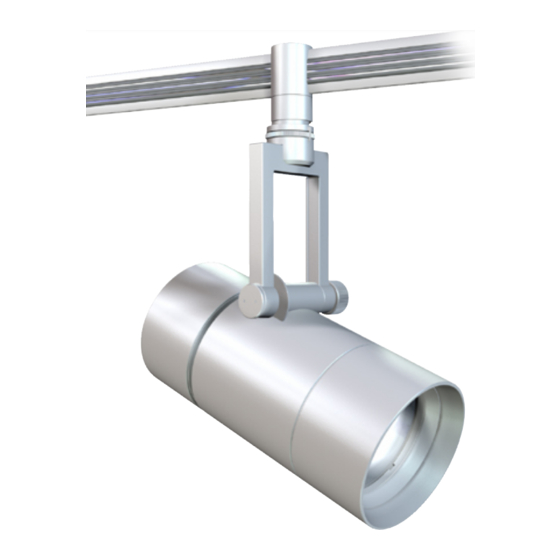

A series of lampholders employing simple geometric shapes that create
bold statements in any application. Toolless lockable tilt and rotation with
graduations for precise, repeatable aiming. Three media capable, these
70W PAR38 metal halide lampholders are comfortable in applications from
Gallery to Specialty Retail. Threaded screw-on bezel provides positive
engagement, and removable beveled spacer creates an attractive look when
multiple media are not required.
Ideal for accent and display lighting applications.
SPECIFICATION FEATURES
A ... Electrical Quick Lock
Adapter Flexible Track - LF
Die Cast housing. Attaches
electrically and mechanically
anywhere along track.
B ... Electrical Quick Lock
Adapter Power Trac - L
Die cast housing. Attaches
electrically and mechanically
anywhere along track.
C ... Electrical Quick Lock
Adapter Architectural Track -
LA
Polycarbonate housing with
integral fuse and on-off switch.
Attaches electrically and
mechanically anywhere along
track.
D ... Yoke
Aluminum die cast yoke allows
lampholder to rotate 330° and
provides 0° to 90° vertical pivot for
maximum aiming adjustability.
E ... Lockable Aiming
Lampholder tilt and rotation can be
locked in place easily without the
use of tools.
Track Lamp Type
LF=Flexible Track 5=Metal Halide
L=Halo Power-Trac
LA=Halo Architectural
Track
F ... Lampholder Body
Machined aluminum cylinders
includes integral electronic ballast.
Graduated Dials
Graduated dials for precise aiming
of fixture.
A
E
L
B
LF
L=13.12" [333mm]
W=5.5" [140mm]
E=16.25" [412mm]
2 06 30
Series Lamp
06=Synchro 30=PAR30
• Product is only available in 120 volts.
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Labels
UL/c-UL Listed for use with Halo
Architectural Linear and Flexible
Track, Halo Power-Trac, and Lazer.
EMI/RFI complies with FCC 18C,
non-consumer limits.
D
Max
Extension
F
W
C
L LA
L=13.12" [333mm] L=13.12" [333mm]
W=5.5" [140mm] W=5.5" [140mm]
E=16.25" [412mm] E=16.25" [412mm]
70
Wattage Finish
70=70W AH=Aluminum Haze
P=White (L and LR only)
MB= Black (L and LR only)
HALO
®
Type
Date
LF5063870
LA5063870
L5063870
Synchro
70W PAR38 Metal Halide Accent
Flexible Track
Architectural Track
Power-Trac
70W Electronic Ballast
Power Factor: 0.95
Total Input Watts: 79
Max Amps: 0.67
THD:<15%
ADV050037
01/24/2007 3:55:32 PM
