Summary of Contents for Idex X-Smart Pro

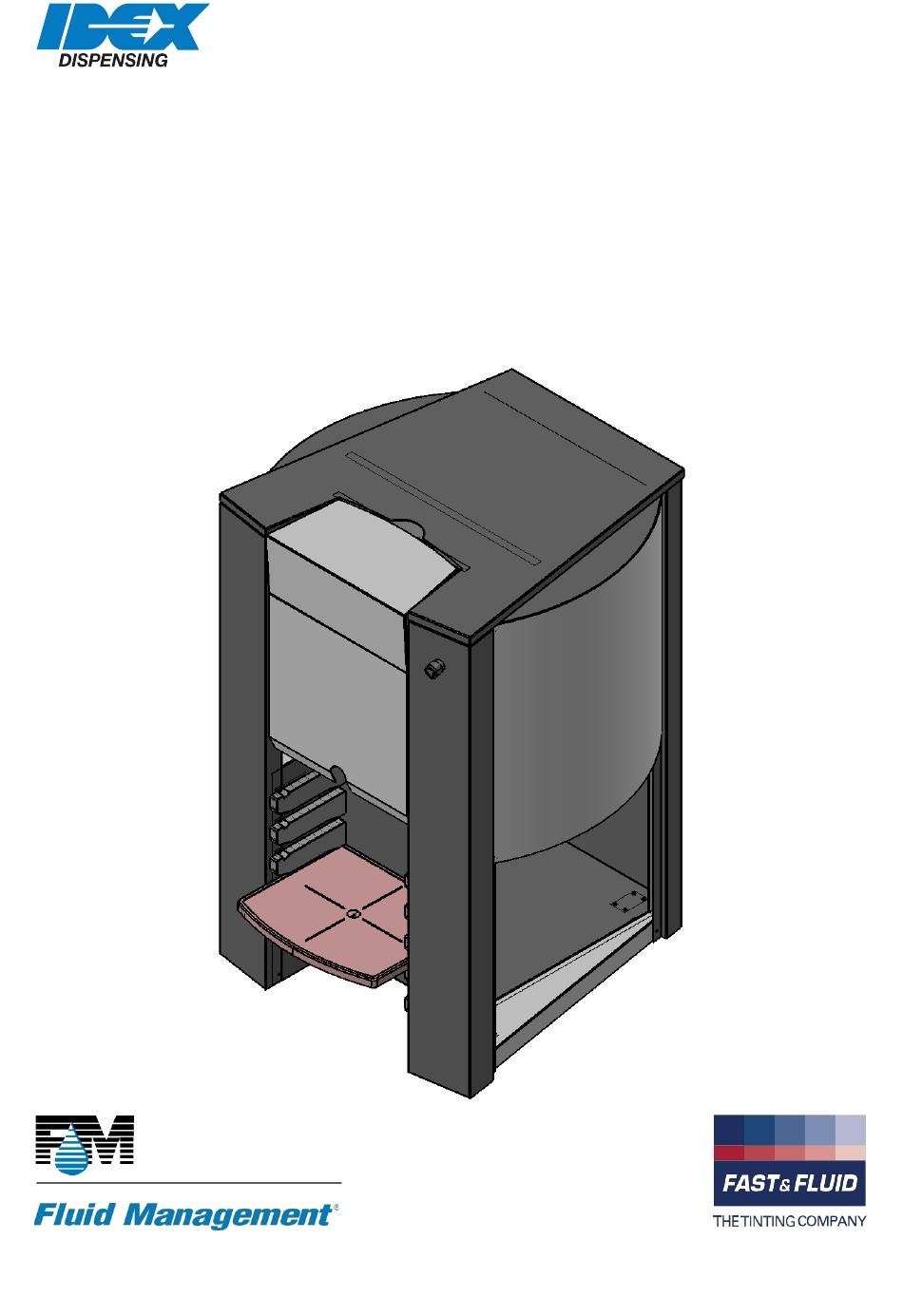

- Page 1 ® Original Manual X- Smart Pro www.fluidman.com V 2.0 www.fast-fluid.com...
- Page 2 X-Smart Pro © Fast & Fluid Management B.V. This manual or parts thereof may not be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, nor otherwise, without the prior written permission of Fast &...
-
Page 3: Table Of Contents
X-Smart Pro Table of Contents V 2.0 Table of Contents 1 About this manual ........................5 1.1 How to work with the manual ..........................5 1.2 Record of changes ..............................5 2 Safety ............................6 2.1 Intended use ................................6 2.2 Liability .................................. - Page 4 X-Smart Pro Table of Contents V 2.0 6 Technical data ......................... 20 6.1 General specifications ............................20 6.2 Dimensions and mass ............................20 6.3 Ambient conditions ..............................20 6.4 Noise level ................................21 6.5 Safety classifications ............................. 21 6.6 Electrical specifications ............................21...
-
Page 5: About This Manual
X-Smart Pro About this manual The manual shows the information necessary to: install the machine operate the machine perform basic maintenance correct small problems. The X- Smart Pro and all its versions are referred to in the manual as the 'machine'. -
Page 6: Safety
Safety X-Smart Pro V 2.0 Safety Read the manual before you install or use the machine. Failure to do so can result in personal injury, death or property damage. Intended use The machine is designed to dispense colorants into a can. Any other use of the machine is strictly forbidden. -
Page 7: User Qualification For Installation
Safety X-Smart Pro V 2.0 Do not use flammable liquids in the brush container. The use of flammable colorants or colorants that diffuse potential explosive vapors may present fire and explosion risks. User qualification for installation Only install the machine if you have written permission from the supplier of the machine. -
Page 8: Operator Manual
Operator manual X-Smart PRO V 2.0 Operator manual Description 3.1.1 Overview of the machine A: Front door Brush container B: Emergency stop switch G: Pump with nozzle C: Shelf holder H: Canister D: Can table Agitator E: Wheels... -
Page 9: Type Plate: Serial Number
Operator manual X-Smart PRO V 2.0 3.1.2 Overview of the machine A: Machine status leds B: Can sensor C: Display glass 3.1.3 Type plate: serial number... -
Page 10: Type Plate: Details
Operator manual X-Smart PRO V 2.0 3.1.4 Type plate: details Operation Warning Only push the emergency stop switch in case of a safety emergency. Make sure that the problem is solved before you reset the emergency stop switch. When you reset the emergency stop switch, the machine restarts automatically. When the machine is operational, you hear 'beep beep'. -
Page 11: Placing A Can
Operator manual X-Smart PRO V 2.0 3.2.2 Placing a can 1. Check the height of the can. Note The correct height of the can table depends on the height of the can. 2. Place the can table (A) in the correct slots for the correct height. -
Page 12: Maintenance
Operator manual X- Smart Pro V 1.5 Maintenance 3.3.1 X- Smart Pro Maintenance Kit To keep your X- Smart Pro in optimal condition, we highly recommend you to use the X- Smart Pro Maintenance Kit. The X- Smart Pro Maintenance Kit contains everything you need to keep your machine in optimal condition for the period of 1 year. -
Page 13: Cleaning The Brush Container: Daily
Operator manual X- Smart Pro V 1.5 2. When the brush is too dirty and does not clean the nozzle of the canister, rinse and clean the brush. See § 3.3.3. 3. When the nozzles are too dirty, clean the nozzles individually with a damp cloth. - Page 14 Operator manual X- Smart Pro V 1.5 7. Fill the brush container with fluid. This fluid must be a water based cleaning agent. WARNING Do not put flammable liquids in the brush container. Note Do not exceed the maximum filling height (F). Note The optimum fluid level depends on the type of colorant that is used.
-
Page 15: Refilling A Canister
Operator manual X- Smart Pro V 1.5 3.3.5 Refilling a canister WARNING Check the material safety data sheet (MSDS) of the colorants for the personal protection measures that are required for handling the colorant. CAUTION Make sure that the colorant level in the canister is correct. If a canister is empty, it can cause an inaccurate dispensing and/or a recipe fault. -
Page 16: Using The Emergency Stop Switch
Operator manual X- Smart Pro V 2.0 3.3.3 Using the emergency stop switch 1. Push (1) the emergency stop switch (A). The machine stops immediately. Caution Only push the emergency stop switch in the case of a safety emergency. Do not use the emergency stop switch as an on/off function! 2. -
Page 17: Installation
Installation X- Smart Pro V 2.0 Installation Unpacking the machine Remove the cardboard 1. Remove the straps. 2. Remove the cardboard (A). Remove the plastic transportation parts 1. Remove the plastic (seal plastic). 2. Remove the foam. -
Page 18: Put The Machine In Position
Installation X- Smart Pro V 2.0 Remove the plastic protection on the canisters 1. Open the front door. 2. Remove the foam. 3. Close the front door. 4. Remove the brush foam. Put the machine in position 4.2.1 Move the machine to the final position Warning Mind the minimum requirements of the load capacity of the floor. -
Page 19: Connect The Computer
Installation X- Smart Pro V 2.0 Connect the computer 4.3.1 Connect the computer 1. Connect a USB cable between the computer and the power board (A). 2. Connect the dispenser and the computer to the wall socket. Turning on the machine To turn on the machine: 1. -
Page 20: Troubleshooting
Troubleshooting X- Smart Pro V 2.0 Troubleshooting General troubleshooting procedure 1. Try to solve the problem with the information in this manual. See Troubleshooting guide on page 19. 2. If it is not possible to solve the problem with the information, contact service. See Contact service on page 19. -
Page 21: Technical Data
Technical data X- Smart Pro V 2.0 Technical data General specifications Parameter Specification Number of canisters Dispensing Sequential Pump type Piston pump Cleaning system Rotary and static brush Suitable for Water and universal colorants Canister size [L] 2.25 Resolution [mL/step] Maximum flow rate [L/min.] 0.25 Minimum dispense [ml]... -
Page 22: Ambient Conditions
Technical data X- Smart Pro V 2.0 Ambient conditions Parameter Specifications Temperature [°C], operational +10 to +40 Temperature [°C], out of operation -25 to +55 Altitude above sea level [m], operational -10 to 2000 Altitude -10 to 12000 above sea level [m], out of operation Parameter Specifications Maximum Relative Humidity [RH), without... -
Page 23: Noise Level
Technical data X- Smart Pro V 2.0 Noise level Parameter Specifications Maximum noise level [dB(A)] < 65 Safety classifications Parameter Specifications IP (Ingress Protection) classification EMC (Electromagnetic Compatibility) classification Class B Over voltage category Class II Electrical specifications Parameter Specifications Maximum dispenser power consumption [W] Maximum leakage current [mA] Voltage [V]... - Page 24 BLACK POWERSUPPLY 48VDC VALVE MOTOR 1817109 YSMART PCB YELLOW ORANGE 1818817 reset BLUE pump valve encoder PUMP MOTOR 1819098 1818776 DETAIL DETAIL 1234567 CENTRAL POWER TABLE EARTH CONNECTOR CONNECTOR +48V 48V-GND BROWN & PINK BLACK BLUE 1818950 EMERGENCY +5v EMERGENCY SOFT EMERGENCY HARD 1819099 CANSENSOR...
- Page 25 Manufactured by: IDEX Fluid & Metering Pvt. Ltd., Survey no: 256, GIDC Manjusar, Savli, Dist.: Vadodara 391 770, India...
