Faria GM ALDL MG2000 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
Owner's Manual
GM ALDL MG2000
Tachometer
™
IS0195
rev. A ecr#5576 8/2005

Advertisement

loading
Need help?

Need help?

Do you have a question about the GM ALDL MG2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Faria GM ALDL MG2000

Summary of Contents for Faria GM ALDL MG2000

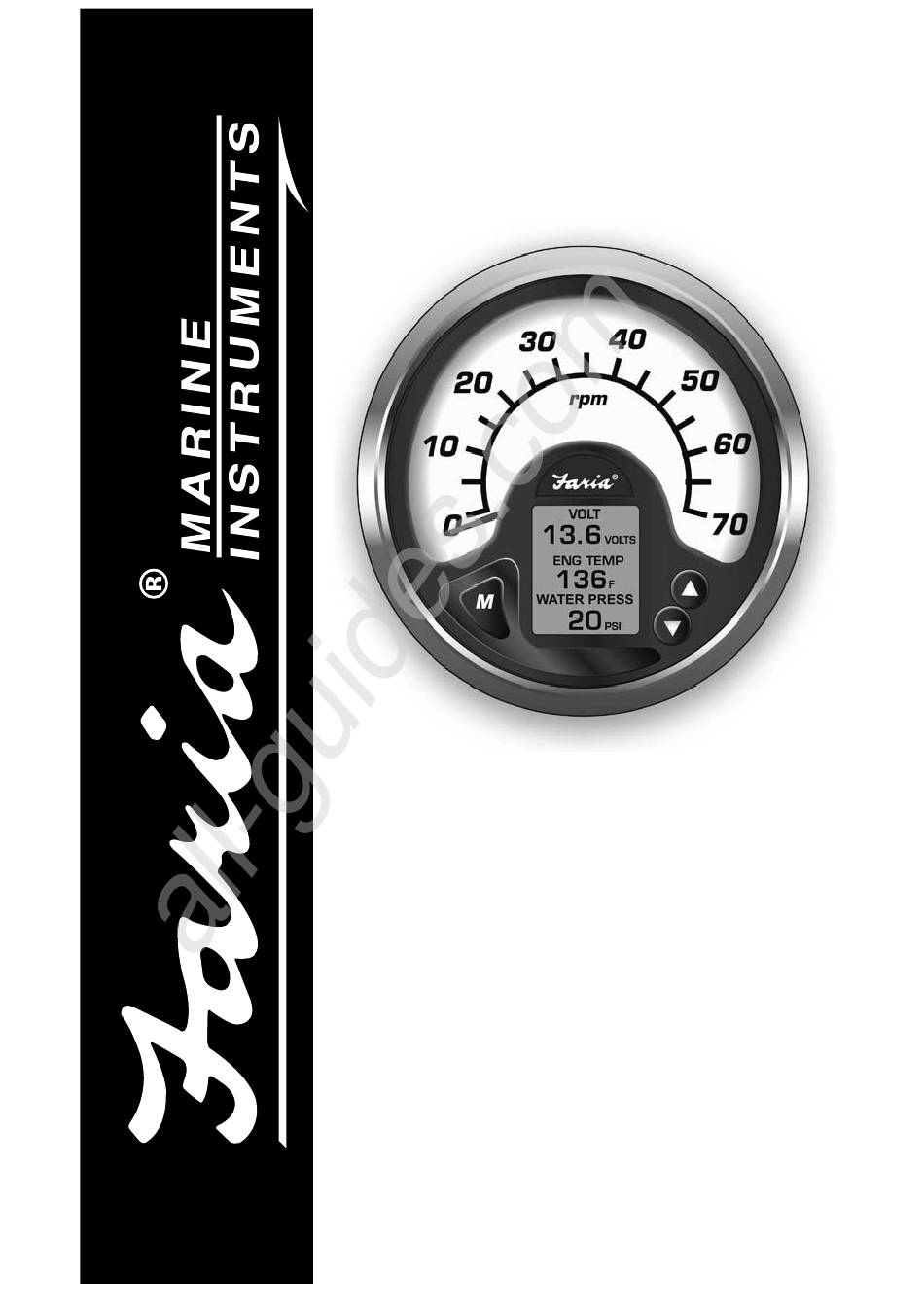

  • Page 1 All manuals and user guides at all-guides.com Owner’s Manual GM ALDL MG2000 ™ Tachometer IS0195 rev. A ecr#5576 8/2005...
  • Page 2 All manuals and user guides at all-guides.com IS0195 x7 w/ corrections Mark ups 12/20/05...
  • Page 3 All manuals and user guides at all-guides.com Index Figure 1 Default screens page 1 Description page 1 Normal Mode page 2 Contrast and Lighting page 2 Displayed Functions page 3 Default screen 1 page 3 Default screen 2 page 3 Default screen 3 page 3 Default screen 4...
  • Page 4 All manuals and user guides at all-guides.com This page left blank intentionally.
  • Page 5 Analog inputs are provided for two non- engine sensors such as fuel level and oil pressure. The MG2000 provides a Faria Bus output to allow use of various other 5, 4, and 2 inch instruments with the MG2000. The Faria MG2000 Tachometer will turn...

  • Page 6: Normal Mode

    All manuals and user guides at all-guides.com Normal Mode (see Figure 2). Press the “Mode” button to exit the “screen selection mode” and When the MG2000 is turned on the unit return to “Normal” mode or do not push will “beep” once, flash once and then the any buttons for 4 seconds and the current unit enters “Self Test”...

  • Page 7: Oil Pressure

    All manuals and user guides at all-guides.com OIL PRESSURE Analog input. Displays information from the analog oil pressure sender. Default Screen “2” To adjust the lighting intensity of all of the instruments in the system, press and hold both the “Down” and “Up” buttons for 2 seconds.
  • Page 8 All manuals and user guides at all-guides.com Displays the Engine Hours data received from the engine ECU. Default screen “4” LCD Display Screens: In “Normal” mode, press “Mode” once to This screen displays fault conditions enter screen “Select” mode, press “Up” based on engine data received from the or “Down”...
  • Page 9 All manuals and user guides at all-guides.com 1. Select Default Screen 2. Reset Fuel Used 3. Set Fuel Tank Full 4. Set Amount of Fuel 5. Organize User Screens 6. Select Gauge Range 7. Select Fuel Sender 8. Select Oil Pressure Sender 9.
  • Page 10 All manuals and user guides at all-guides.com This page left blank intentionally. Page 6...

  • Page 11: Edit Mode

    All manuals and user guides at all-guides.com Edit Mode Functions that are set or adjusted in the “Edit” mode: The “Edit” mode is used to adjust or set 1. Select Default Screen the values of numerous functions and options in the MG2000. The procedure 2.
  • Page 12 All manuals and user guides at all-guides.com Display Next Screen Press and hold the “Up” and “Down” buttons for 2 seconds to select this screen as the “default screen” and exit. Press “Up” or “Down” to select another screen. Repeat until desired “Default Screen” is selected. Press “Up”...
  • Page 13 All manuals and user guides at all-guides.com Set “Amount of Fuel” Amount Of Fuel NOTE: If a known amount of fuel is in the fuel tank but it is not full, this function can be used to indicate the amount of fuel available. The “Fuel Left” function will then use the amount of fuel entered to calculate the “Fuel Left.”...
  • Page 14 All manuals and user guides at all-guides.com Press and hold the “Up” and “Down” buttons for 2 seconds to save selection for Screen 1, line 1 and advance to Screen 1, line 2. Press “Mode” to exit with no change made. Screen 1 Refer to the list of available functions in the ownerʼs manual.
  • Page 15 All manuals and user guides at all-guides.com Press and hold the “Up” and “Down” buttons for 2 seconds to select “Oil Pressure Dial.” Press “Up” or “Down” to select another “Gauge Range.” Press “Mode” to return to the “Edit” mode. Press “Up”...
  • Page 16 All manuals and user guides at all-guides.com Select Select “Water Press Dial” Water Press Dial Press and hold the “Up” and “Down” buttons for 2 seconds to select “Water Press Dial.” Press “Up” or “Down” to select another “Gauge Range.” Press “Mode”...
  • Page 17 All manuals and user guides at all-guides.com > Press “Up” or “Down” to scroll through the selections. 240 – 33 ohm When the correct choice is next to the selection arrow, Press and hold the “Up” and “Down” buttons for 2 10 –...
  • Page 18 All manuals and user guides at all-guides.com Press “Up” or “Down” to scroll through the selections. > When the correct choice is next to the selection arrow, Press and hold the “Up” and “Down” buttons for 2 seconds to save the selection and return to select “Units.” Select Select “Volume Units”...
  • Page 19 All manuals and user guides at all-guides.com Press “Up” or “Down” to scroll through the selections. > Miles When the correct choice is next to the selection arrow, Press and hold the “Up” and “Down” buttons for 2 seconds to save the selection and return to select “Units.” Select Select “Depth Units”...
  • Page 20 All manuals and user guides at all-guides.com Select Other If there is no tank size available in the list that matches your tank size, scroll to the next screen. Fuel Tank Size Press “Up” or “Down” to set the fuel tank size displayed Select on the screen to match your fuel tank size.
  • Page 21 All manuals and user guides at all-guides.com Press and hold the “Up” and “Down” buttons for 2 seconds to save “Full Tank” calibration and exit. Press “Up” or “Down” to select another function or “Mode” to return to “Normal” mode. Select “Low Fuel Alarm”...
  • Page 22 All manuals and user guides at all-guides.com This screen will display for 10 seconds. Self The horn will sound three times. Test The warning lights will flash three times. Mode The backlights will flash three times. Is in Operation When “Self Test” is complete the unit will return to the “Edit”...
  • Page 23 All manuals and user guides at all-guides.com Alarm Mode alarm will re-occur after a period of time to ensure that the user remembers the The “Alarm” screen appears only if alarm condition. an alarm condition exists. The alarm condition may be a warning sent from the engine ECU or a “Local”...
  • Page 24 All manuals and user guides at all-guides.com Press and hold “Up” and “Down” for 2 seconds to view alarm messages. Press “Mode” to silence alarm horn and return to “Run” mode. LED will continue to function as stated until engine alarm(s) is no longer sent by ECU.
  • Page 25 All manuals and user guides at all-guides.com MAN AIR MANIFOLD AIR SENSOR SENSOR SEE DEALER THROTTLE POSITION SENSOR FAULT SEE DEALER COOLANT COOLANT SENSOR SENSOR SEE DEALER ENGINE ECU CABLE NOT CONNECTED OR NO ENGINE DATA FOUND ENGINE ENGINE EMERGENCY STOP EMERGENCY STOP ! Alarm Clear Mode...
  • Page 26 All manuals and user guides at all-guides.com ALDL Harness HN0390 MG2000 Tachometer ALDL Tachometer Cable 12- pin connector Pin 1 Pin 2 White Pin 3 Green Pin 4 Black Pin 5 Violet Pin 6 Pink Pin 7 Blue/ White Pin 8 Not Used Pin 9 Not Used...
  • Page 27 All manuals and user guides at all-guides.com Harness HN0390 MG2000 Speedometer Speedometer Cable 12- pin connector Pin 1 Pin 2 White Pin 3 Green Pin 4 Black Pin 5 Not Used Pin 6 Tan/ Black Pin 7 Pin 8 Not Used Pin 9 Not Used Pin 10 Not Used...

  • Page 28: Nmea 0183 Cable

    All manuals and user guides at all-guides.com NMEA 2000 Harness HN0401 MG2000 Tachometer NMEA 0183 Cable 6- pin connector Pin 1 Not Used Pin 2 Not Used Pin 3 Red/ White Pin 4 Red/ Blue Pin 5 Not Used Pin 6 Not Used GPS100 Antenna Heat...
  • Page 29 All manuals and user guides at all-guides.com Tachometer to 2” Gauge Connection HN0503 From Tachometer 4- pin connector PJ0018 Pin A Note: To help reduce Pin B White moisture Pin C Green Pin D Black & Sheild in the gauges, be sure to install plug PJ0018 in all open connectors...
  • Page 30 All manuals and user guides at all-guides.com Notes:...
  • Page 31 All manuals and user guides at all-guides.com...
  • Page 32 All manuals and user guides at all-guides.com Copyright 2005 by the Thomas G. Faria Corporation, Uncasville CT. All rights reserved. No part of this publication may be reproduced in any form, in an electronic retrieval system or otherwise, without the prior written permission of the company.
