Intex ULTRA XTR RECTANGULAR POOL Manual page 5

Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
5 (M6*45)
11
10
12
13

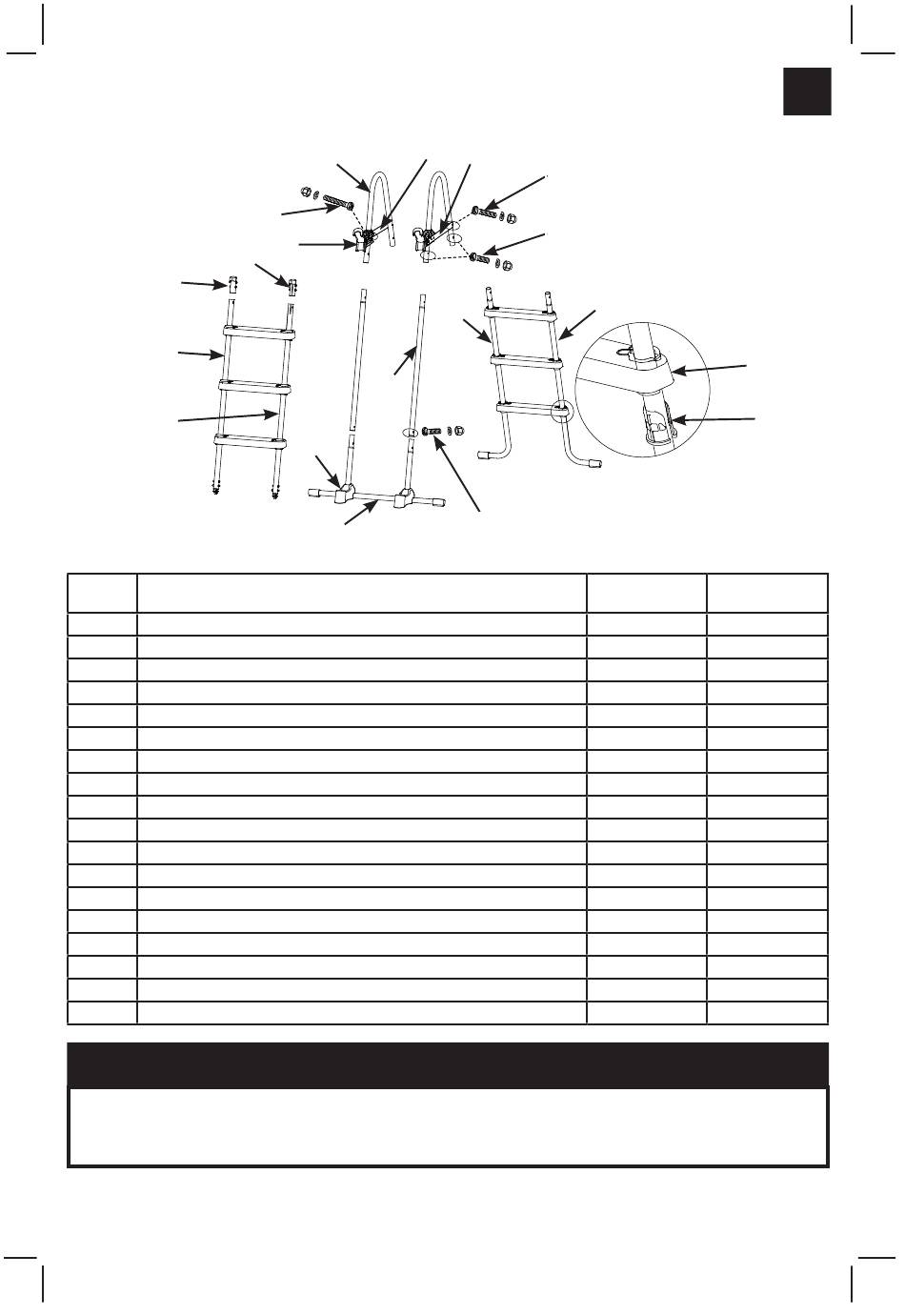

NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF.
NO.
1 U-SHAPED TOP RAIL
2 TOP BRACE (CLASP INCLUDED)
3 TOP BRACE WITH LOCKING SYSTEM (CLASP INCLUDED)
4 CLASP
5 FASTENER (WITH 1 EXTRA)
6 A SIDE (MARKED "A")
7 A SIDE (MARKED "B")
8 STEP
9 STEP ANCHOR SLEEVE
10 B SIDE PIPE END CAP (MARKED "A1")
11 B SIDE PIPE END CAP (MARKED "B1")
12 B SIDE (MARKED "A1")
13 B SIDE (MARKED "B1")
14 C SIDE - UPPER SIDE LEG (MARKED "C")
15 C SIDE - LOWER U-SHAPED SIDE LEG (MARKED "C")
16 FASTENER (WITH 1 EXTRA)
17 FASTENER (WITH 1 EXTRA)
18 SUPPORT BASE
It is very important to lay out the parts correctly and identify which parts connect
together before starting the assembly. Although some parts look alike, they are
not always interchangeable. Refer to the parts list.
S AVE THESE INSTRUCTIONS
(333IO) 42" LADDER WITH REMOVABLE STEPS ENGLISH 4.875" X 7.25" PANTONE 295U 03/30/2022
PARTS REFERENCE
2
1
4
14
18
15
DESCRIPTION
IMPORTANT
Page 4
3
16 (M6*40)
17 (M6*35)
6
7
17 (M6*35)
QUANTITIES
333
A
8
9
SPARE PART
NUMBER
2 12637A
1 12524A
1 12525A
2 12179
3 12268
1 12647AA
1 12647AB
6 12629
12 12630
1 12558A
1 12558B
1 12648AA
1 12648AB
2 12649A
1 12650A
3 10227
7 10810
2 11356
