Summary of Contents for Omega ORT61X

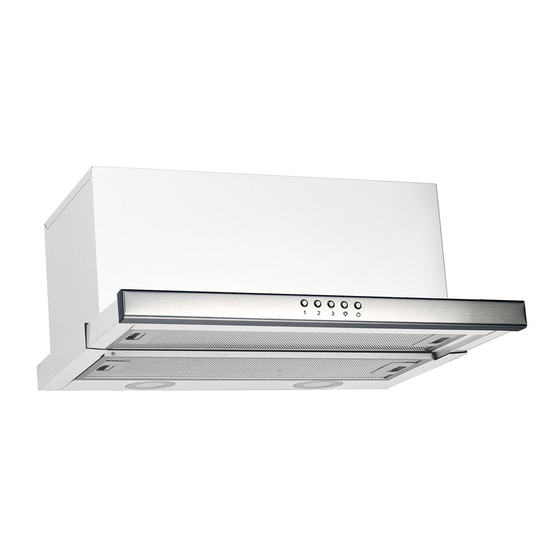

- Page 1 Instruction Manual Slide-Out Rangehood ORT61X ORT91X...
-
Page 2: Troubleshooting
Troubleshooting Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a If you still have a problem with your appliance after checking these basic troubleshooting steps, If you still have a problem with your appliance after checking these basic troubleshooting steps, welcome addition to the family. -
Page 3: Disposal Information
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. Due to continual product development, Omega reserves the right to alter specifications and appearances incorrect installation or improper use of the appliance. -
Page 4: Important Safety Warnings
Important Safety Warnings IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. In certain circumstances electrical appliances may be a safety hazard. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 5: Appliance Details
Appliance Details Voltage: 220V - 240V 50Hz Rated Input Power: 193W Lamp Max: 2 x 1.5W LED Airflow: 700m ORT61X ORT91X... -
Page 6: Installation Instructions
Installation Instructions There are two methods to install the cooker hood: Method one: Mounted on the wall: The cooker hood should be placed at a distance of 65-75cm from the cooking surface for best effect. To install onto the wall drill 4 holes of Ø8mm on a suitable place according with the centre distance of hole in the back of the cooker hood. - Page 7 Installation Instructions Method two: built-in the cabinet: Drill 4 holes of 4mm diameter at the bottom of the hanging cupboard Put the one-way valve on the cooker hood, then install the cooker hood on the bottom of the cupboard, tighten the hood with the M4 screws. Use two 3*12 screws to fix the adjusted board on the bottom of the hood in order to keep out the gap between hood back and cupboard.
-
Page 8: Cleaning And Maintenance
Operating Instructions Push the ‘Power’ button to turn the unit on and off. Push the ‘Low’ button to set the extraction fan to low speed. Push the ‘Mid’ button to set the extraction fan to medium speed. Push the ‘High’ button to set the extraction fan to high speed. -
Page 9: Replacing The Lights
Replacing the Lights Warning: Before attempting to replace the lights, ensure that the appliance is switched off and unplugged from the wall. • Remove the grease filter. • Press the spring on both sides of the lamp until it falls out (Pic. 1). •... - Page 10 Cooking zones should not be switched on without cookware placed on it. Do not place empty cookware onto the cooking zones when in use. If any cracking is noticed on the cooktop, turn the appliance off immediately and call your Omega Service Centre.
- Page 11 Email: customercare@monacocorp.co.nz If any cracking is noticed on the cooktop, turn the appliance off immediately and call your Omega Service instruction concerning the use of the appliance by a person responsible for their safety. Children should be Centre.
