Summary of Contents for Pico Macom M860

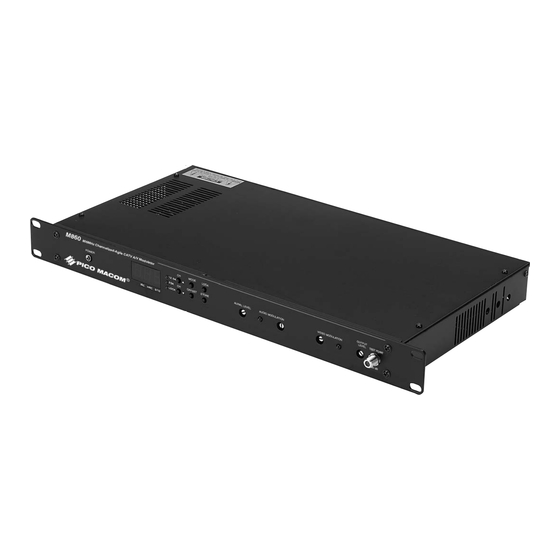

- Page 1 M860 806MHz Channelized-Agile CATV A/V Modulator Installation and Operation Manual Operation www.picomacom.com Ph: 800-421-6511 Manual Rev. 06/03...
-
Page 2: Product Inspection
To insure proper installation and operation, take a moment to read this guide before proceeding with the installation. If you have any questions or comments about the M860 Modulator, please contact your dealer or have him contact the PICO MACOM Service Center at these phone numbers: 800-421-6511, 818-493-4300. - Page 3 THAT PROVIDES GUIDELINES FOR PROPER GROUNDING AND, IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL. Ph: 800-421-6511 www.picomacom.com Safeguards M860 Rev. 06/03...
- Page 4 IF loop, wich provides compatibility with encoders, ghost cancellers, and video-override applications.The unit is lab retunable within band via front panel channel selection and minimum output filter retuning. The M860 is equipped with a pre-emphasis disable switch which enables pass-through of high- fidelity BTSC stereo signals where available.
-
Page 5: Specifications
M860 806MHz Channelized-Agile CATV A/V Modulator POWER RF OUT CAUTION: HAZARD, USE ONLY WITH SAME TYPE 0.5A 125V FUSE Channels: 125 channels (CATV 2-125) Frequency Range: Output Level: 60 dBmV min., adjustable Output Control Range: Output Impedance: Ouput Return Loss:... -
Page 6: Operation And Controls
Operation and Controls M860 M860 806MHz Channelized-Agile CATV A/V Modulator POWER Front Panel Control Power on LED: Indicates power is on when lit. Channel Display: Indicates current channel selection. Channel Indicator: LED’s indicate 12.5K, 25K offsets or LOCK channel status. -
Page 7: Installation Procedure
Measure the video and aural carrier level of the M860 and adjacent channels. 14. Adjust the Output level of the M860 to match the video and audio carrier levels of adjacent channels by adjusting the OUTPUT LEVEL adjustment on the front panel of the M860. -
Page 8: Five-Year Limited Warranty
We will issue an invoice for the List Price of the loaner unit plus shipping costs. When you receive the loaner unit, pack the failed unit in the loaner unit’s box and ship it freight prepaid to Pico Macom for repair. When you receive the repaired unit, a new RMA number will be provided in the box. Carefully pack the loaner unit and affix the new RMA number on the box and ship it back to us for full credit excluding shipping costs.
