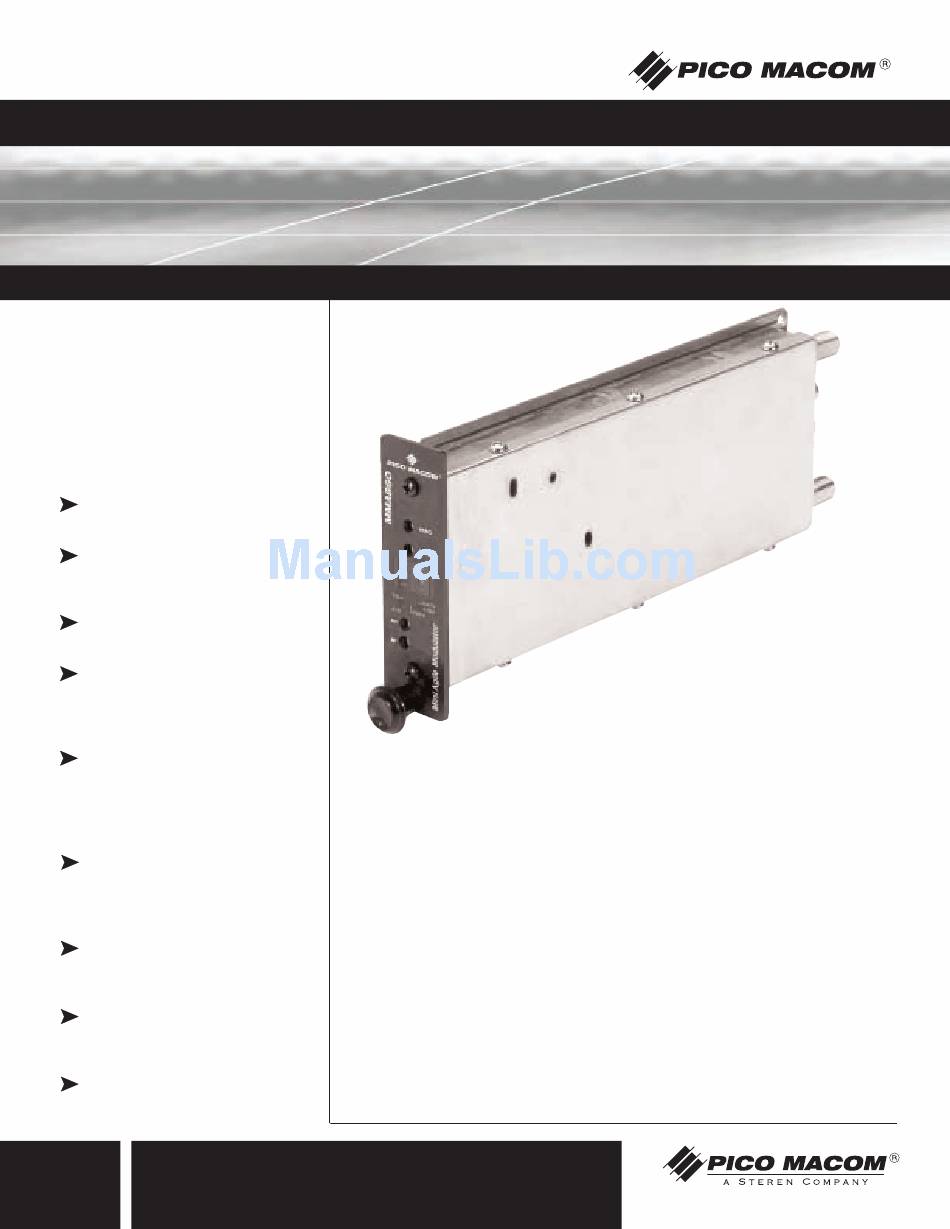

MMA860
Universal-Chassis Mini-Agile Modulator
135-Channel Range 54-860 MHz
(CATV 2-135)
>45dBmV min adjustable output
for optimum carrier-to-noise
performance
Compatible with most manufac-
turers mini-modulator chassis
State-of-the-art digital phase-
locked-loop (PLL) design guaran-
tees precise frequency locking for
solid drift-free operation
Microprocessor control enables
quick digital push-button channel
selection for ease of installation,
configuration, and improved sys-
tem uptime
SAW (surface acoustic wave)
filtered for superior adjacent
channel performance enables
drop-in channel expansion
In-band carrier-to-noise ratio
>65dB ensures superior picture
quality
Automatic selection of aeronauti-
cal offsets (12.5kHz, 25kHz) for
trouble-free configuration
Front panel access to controls
enables easy setup
Ph:800-421-6511
1
MMA860
Universal-Chassis Mini-Agile Modulator

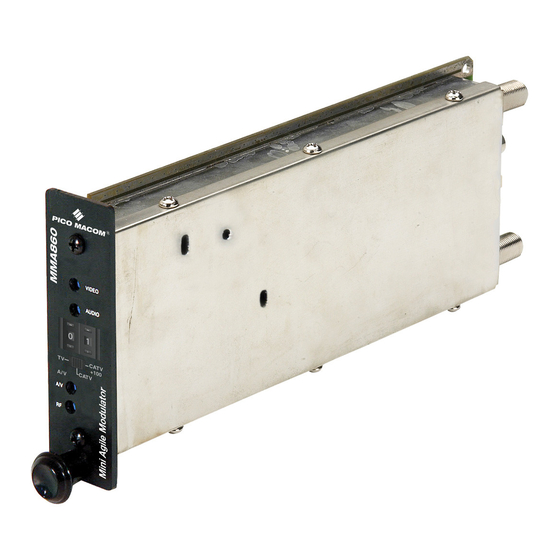

The MMA860 is a professional grade microprocessor-controlled agile audio/video mini-
modulator. This modulator accepts any audio-video baseband television signal and provides
a 45dBmV minimum output on CATV channels 2 to 135 (54-860 MHz). Channel selection is
easily accomplished via channel up/down buttons located on the front panel. Up to 12 or 16
units can be installed "mix-and-match" in Pico Macom's MPC-12, MPS-12, MPC-12R
chassis with MPCM45 mini-modulators or MPCD mini-demodulators. Its unique design
enables it to be installed in other manufacturers' mini-mod chassis. The unit's tracking filter
technology and double-heterodyne conversion ensure accurate and spurious-free output.
The MMA860 uses SAW filtering in conjunction with FCC group delay correction circuitry to
provide superior adjacent channel selectivity. The unit's PLL circuitry in conjunction with the
non-volatile memory contained in the microprocessor ensures easy and reliable channel
selection and restoration. The MMA860 modulator is shipped with all internal adjustments
preset. Pico Macom backs up this product with its industry leading 5-year limited warranty.
